HHOYC004300Mbps High Power Gigabit Wireless Router

www.jcgcom.com 1 300Mbps High Power Gigabit Wireless Router User Manual Version: V1.0 Date: 2013.02.01 Copyright : Copyright © 2013 Shenzhen Yichen Technology Development Co., Ltd. All rights reserved. JCG is a registered trademark of Shenzhen Yichen Technology Development Co., Ltd. Without the express written permission from Shenzhen Yichen Technology Development Co., Ltd., no organization or individual is allowed to imitate, duplicate, copy, translate or use for other purposes. All other trademarks or registered trademarks in this document are owned by their holders and protected by the relevant laws. The product specifications and information mentioned in this manual are for reference only, and no further notice will be provided for possible content update. For more detailed product information, please visit our offi cial website: http://www.jcgcom.com. www.jcgcom.com 3 Chapter I Introduction Thank you for purchasing JCG 11N series WLAN router, which integrates the router, switch, wireless access point with the fi rewall and adopts the most advanced MIMO (multiple input multiple output) technology to increase the wireless transmission rate over 3 times of the initial 802.11g standard. It supports 64/128-bit WEP encryption and the advanced encryption and security features like WPA and WPA2. With the WPS encryption function, you can easily set up the secure wireless network environment. And with the provided setup guide, you can easily set up the router, remotely access and manage the router anytime anywhere via the Internet. JCG 11N series WLAN router is a series of cost-effective products specially designed for small–size enterprises, families and student’s dormitory to meet their needs for wireless Internet access. It’s the best choice for you to enjoy the wireless Internet access and the fun from wireless connectivity. JCG 11N series WLAN router is simple to set up, which can be installed and set up using the operation manual without professional assistance. Before you are ready to install and use this product, please read the manual carefully for better understanding and use of the full functionalities of this product. 1.1 Purpose and Defi nitions This manual is used to help you familiarize with the JCG 11N series WLAN router and use it properly. To avoid ambiguity, we defi ne the terms used in this manual as follows: Router: refers to JCG 11N series WLAN router, unless otherwise specifi ed. Modem: network service access device. It can be xDSL, Cable Modem, GPON or EPON, etc. Computer/ host: refers to desktop computer, laptop or all the network Client in a broader sense. NIC: refers to the wired or wireless network interface card (NIC) for network connectivity. ISP: Internet service provider, refers to the company or organization providing Internet services. AP: wireless network access point, it may refer to the wireless router providing wireless network access services. www.jcgcom.com 4 STA: wireless client/station, refers to wireless client devices, such as laptop, mobile phone and tablet PC etc. Client: wired or wireless client, including but not limited to computer, laptop, mobile phone and tablet PC etc. Chapter II Hardware Installation 2.1 Panel and Interfaces JHR-N916R/N926R/N926R+ 1.Power LED Off: powered off On: powered on 2.Wireless status LED Off: wireless radio off On: wireless radio on Blinking: wireless data transmitting www.jcgcom.com 5 3.Security LED Off: wireless network unsecured On: wireless network secured Blinking:Firmware Upgrading 4.LAN status LED Off: LAN port unconnected On: LAN port connected Blinking: LAN data transmitting 5.WAN status indicator Off: WAN port unconnected On: WAN port connected Blinking: WAN data transmitting 6.LED digital display Digital display of online hosts 7.Power jack (DC IN) Connect to power adapter 8.WAN (Internet) port WAN port 9.LAN 1-4 ports LAN ports 10.WLAN (wireless) button 1) Switch on/off the wireless network 2) Wireless radio power regulation (available on JHR-N926R/N926R+ only) 11.RST/WPS button When the router is working, press this button for 1 second to start WPS progress; press this button for more than 5 seconds to restore to factory settings. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Shenzhen Yichen Technoloy Development Co.,LTD Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-4-1 SUBJECT: FCC Application for ( FCCID: HHOYC004) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Client’s name / title : Yong Zhou / Manager Contact information / address : 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen,China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen Yichen Technoloy Development Co.,LTD 2013-3-20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen Yichen Technoloy Development Co.,LTD.hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (300Mbps High Power Gigabit Wireless Router,Model: JHR-N926R+, FCC ID: HHOYC004) We affirm that between SIEMIC and Shenzhen Yichen Technoloy Development Co.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Yong Zhou / Manager Contact information / address : 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Yichen Technoloy Development Co., Ltd. 2013-3-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: HHOYC004 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Yong Zhou / Manager Contact information / address : 5F, No.1, Honghualing 2nd Industrial Zone, Xili Town, Nanshan District, Shenzhen,China

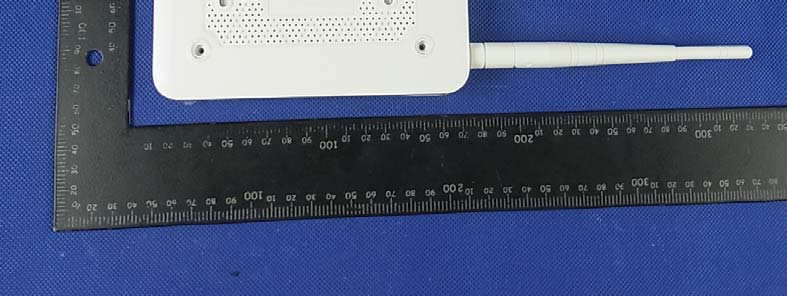

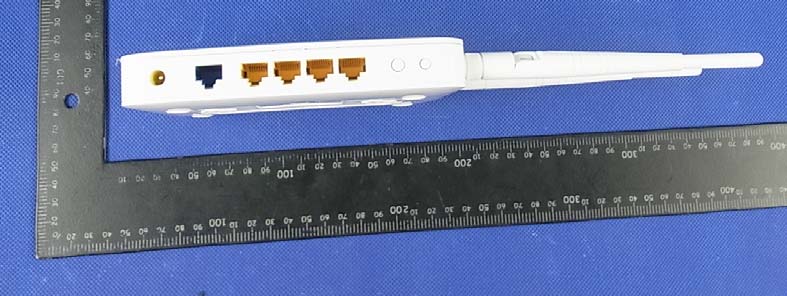

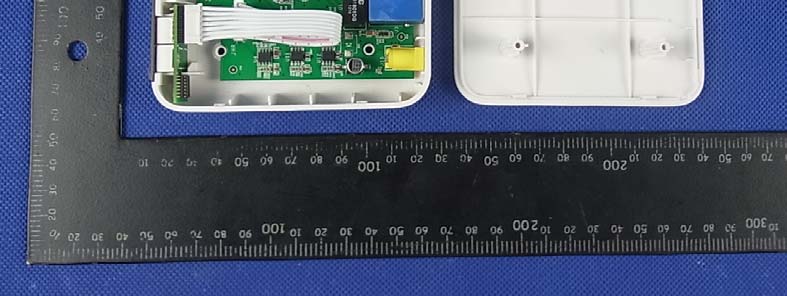

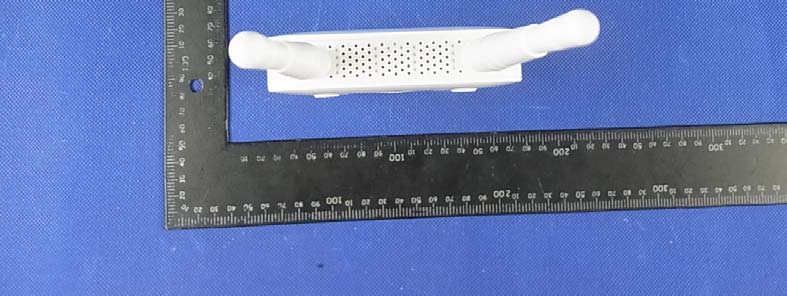

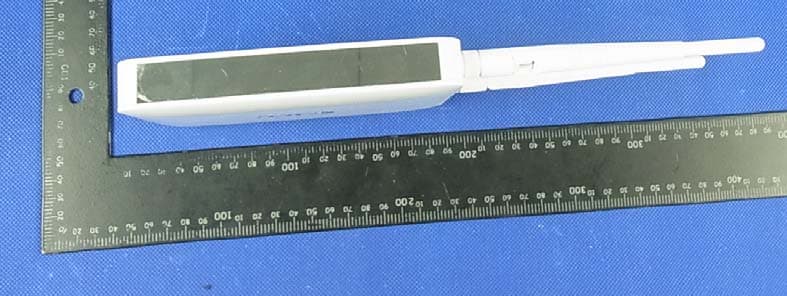

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

FCC ID: HHOYC004 RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density FCC ID: HHOYC004 MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 FCC ID: HHOYC004 TEST RESULTS NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) PK output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 19.75 94.40 5.01(7dbi) 0.094 1 Pass

FCC RADIO TEST REPORT FCC ID: HHOYC004 Product： 300Mbps High Power Gigabit Wireless Router Trade Name： Model Name： JHR-N926R+ Serial Model： N/A Report No.： NTEK- 2013NT0305246F Prepared for Shenzhen Yichen Technoloy Development Co., Ltd. 5F, No.1, Honghualing 2nd industrial Zone, Xili Town, Nanshan District, Shenzhen, Guangdong, People’s Republic Of China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 86 Report No.: NTEK-2013NT0305246F TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Yichen Technoloy Development Co., Ltd. Address ................................. : 5F, No.1, Honghualing 2nd industrial Zone, Xili Town, Nanshan District, Shenzhen, Guangdong, People’s Republic Of China Manufacture's Name ............ : Shenzhen Yichen Technoloy Development Co., Ltd. Address ................................. : 5F, No.1, Honghualing 2nd industrial Zone, Xili Town, Nanshan District, Shenzhen, Guangdong, People’s Republic Of China Product description Product name ........................... : 300Mbps High Power Gigabit Wireless Router Model and/or type reference : JHR-N926R+ Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 05 May. 2013 ~13 Mar. 2013 Date of Issue ........................................... : 14 Mar. 2013 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 86 Report No.: NTEK-2013NT0305246F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 64 4.1 APPLIED PROCEDURES / LIMIT 64 4.1.1 TEST PROCEDURE 64 4.1.2 DEVIATION FROM STANDARD 64 4.1.3 TEST SETUP 64 4.1.4 EUT OPERATION CONDITIONS 64 4.1.5 TEST RESULTS 65 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 TEST PROCEDURE 73 Page 4 of 86 Report No.: NTEK-2013NT0305246F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 73 5.1.3 TEST SETUP 73 5.1.4 EUT OPERATION CONDITIONS 73 5.1.5 TEST RESULTS 74 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 TEST PROCEDURE 82 6.1.2 DEVIATION FROM STANDARD 82 6.1.3 TEST SETUP 82 6.1.4 EUT OPERATION CONDITIONS 82 6.1.5 TEST RESULTS 83 7 . ANTENNA REQUIREMENT 84 7.1 STANDARD REQUIREMENT 84 7.2 EUT ANTENNA 84 8 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 86 Report No.: NTEK-2013NT0305246F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 86 Report No.: NTEK-2013NT0305246F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 86 Report No.: NTEK-2013NT0305246F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 300Mbps High Power Gigabit Wireless Router Trade Name Model Name JHR-N926R+ Serial Model N/A Model Difference N/A Product Description The EUT is a 300Mbps High Power Gigabit Wireless Route r Operation Frequency: 802.11b/g/n(20):2412~2462 MHz 802.11n(40):2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20MHz):150/144.44/130/11 7/115.56/104/86.67/78/52/6.5 Mbps 802.11n(40MHz):300/270/240/180/1 50/120/108/90/54 Mbps Number Of Channel 2412~2462MHz: 11CH 2422~2452MHz: 7CH Ant…

Text truncated - open the document above for the full version.

Page 85 of 86 Report No.: NTEK-2013NT0305246F 8. EUT TEST PHOTO Radiated Measurement Photos Page 86 of 86 Report No.: NTEK-2013NT0305246F Conducted Measurement Photos
