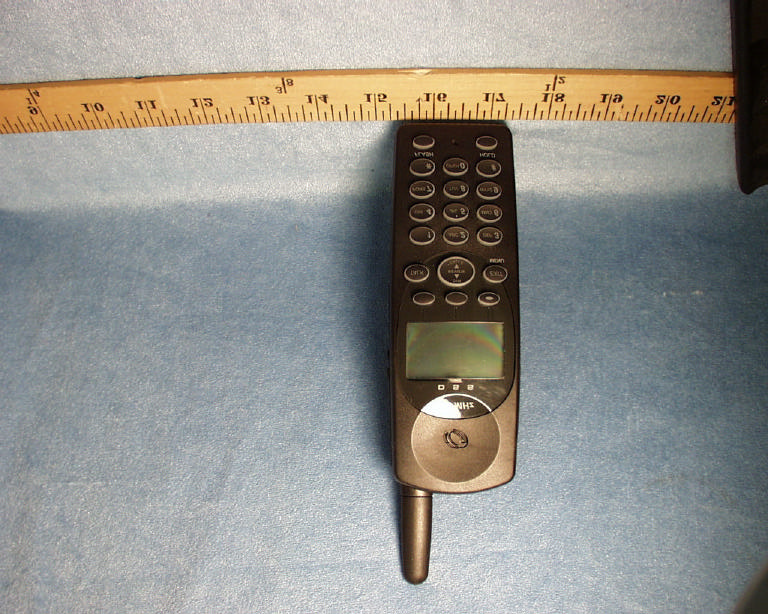

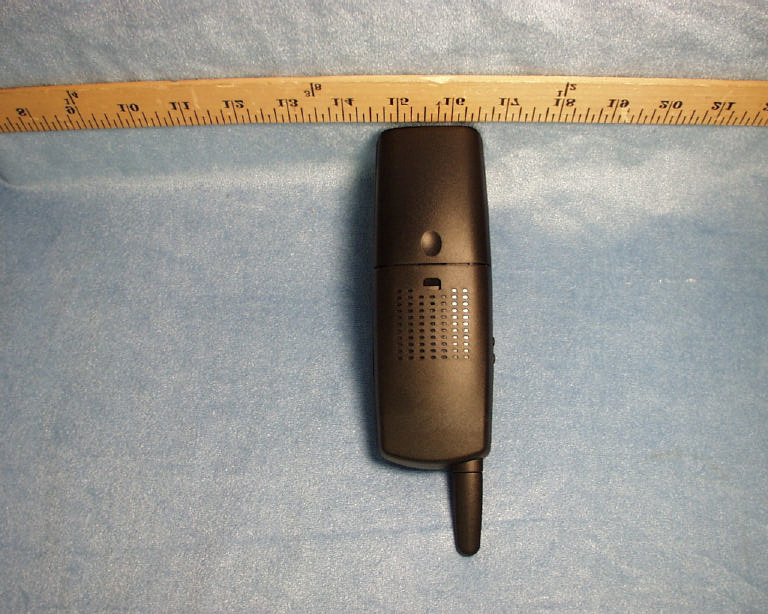

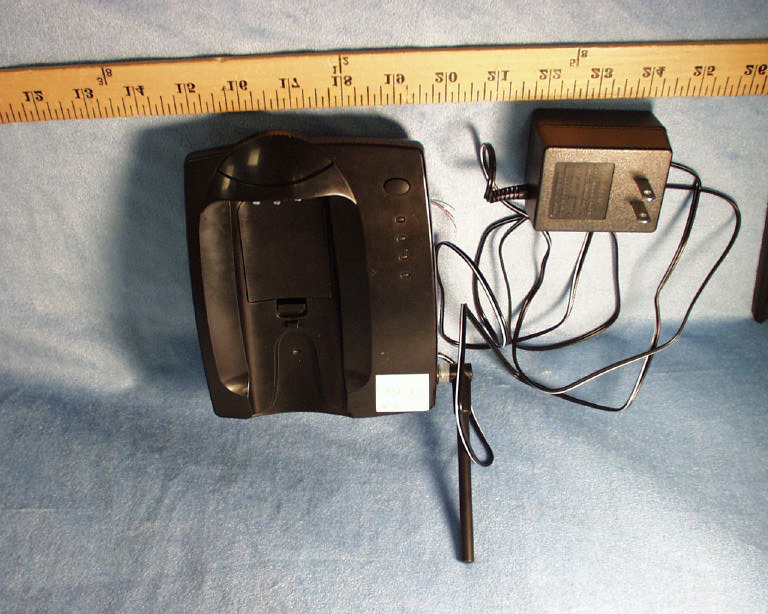

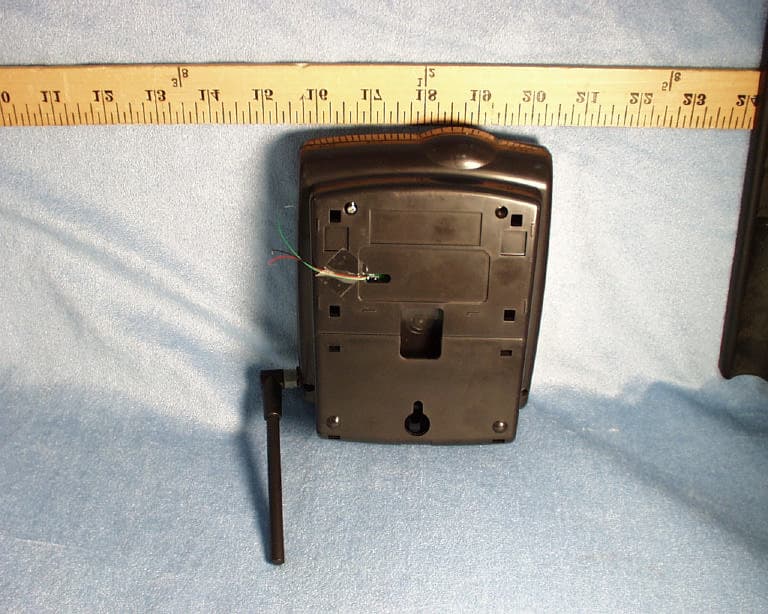

HOLD933900MHz DSS Cordless Telephone System

User Manual 900 MHz DSS D933 105886-01 Rev. A Preliminary Alpha Test TABLE OF CONTENTS i TABLE OF CONTENTS
SAFETY INSTRUCTIONS & WARRANTY iii Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Telephone Wiring and Jack Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv FCC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
INTRODUCTION 1 D933 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLING THE D933 2 Check the Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Install the Handset Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Choose a Location for the Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Plug in the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Install the Telephone Line Cord and Desktop/Wall Mount Wedge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attach the Belt Clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Spare Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Attach Headset (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FEATURES AND CONTROLS 6 Handset Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Personalizing your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ii TABLE OF CONTENTS
USING THE D933 12 Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Clearing the Voicemail Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using Call Waiting ID (CWID) Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using Network Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Pre-Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Convenience Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Using Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Timing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Temporary Tone Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Locating a Lost Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Caller ID Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Directory Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Reading Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TROUBLESHOOTING 20 Problem / Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 D933 - 900MHz Cordless SAFETY INSTRUCTIONS & WARRANTY iii SAFETY INSTRUCTION S & WARRANTY S AFETY S YMBOLS WARNING:This symbol is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case. CAUTION:This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.NEED TO KNOW:This symbol is intended to highlight important information. S AFETY I NSTRUCTIONS CAUTION To reduce the risk of fire or injury to persons, read and follow these instructions:
Read and understand all instructions.
Follow all warnings and instructions marked on the unit and in the User Manual.
Use only the battery type recommended in this manual.
Unplug this telephone from the wall outlet before cleaning. Do not use liquid or aerosol cleaners, just use a damp cloth for cleaning.
Do not place this telephone on an unstable cart, stand, or table. It could fall, causing serious damage or impede operation.
Never place this telephone near or over a radiator or heat register.
Only operate this telephone using the type of power source listed on the marking label. If you are not sure of the power supply of your home, consult your dealer or local power company.
Do not overload wall outlets and extension cords as this can result in the risk of fire or electrical shock.
Never push objects of any kind into this telephone as they can touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock.
Take the phone to a qualified technician when it requires repair work or service.
To reduce the risk of electrical shock, do not disassemble the telephone. Opening or removing covers can e…

Text truncated - open the document above for the full version.

A A B B C C D D E E 44 33 22 11 D933 BLOCK DIAGRAM HANDSET BLOCK DIAGRAM BASE BLOCK DIAGRAM POWER SUPPLY QUICK CHARGER BATTERYCIRCUITS KEYPAD SAMSUNG LCD DRIVER LCD 900 MHZRADIOTranceiver POWER AMPLIFIER +ANTENNA SWITCH CODEC MERLINBaseband+DSP TELEPHONE INTERFACE CODEC MERLINBaseband +DSP POWER AMPLIFIER +ANTENNA SWITCH 900 MHZRADIOTranceiver {Doc}{RevCode} {Title} B 11Wednesday, August 29, 2001 Title SizeDocument NumberRev Date:Sheetof EAR PIECEMICROPHONE

From: Denise Teng Sent: Tuesday, April 30, 2002 2:04 PM To: Mike Kuo Cc: CLIENT ADVOCATES; Anne Liang; Steve Cheng Subject: RE: CIDCO Communications Corporation, FCC ID:HOLD933, AN02T1997 Hi Mike, Here's the answers for TCB questions: Question #1: Please see attched file. Question #2: Please see attached files for internal photos. Question #3: Please see revised user manual (PAGE 8) in attached file. Thanks! regards, -----Original Message----- From: Mike Kuo Sent: Friday, April 26, 2002 1:40 PM To: Steve Cheng Cc: CLIENT ADVOCATES; Anne Liang Subject: FW: CIDCO Communications Corporation, FCC ID:HOLD933, AN02T1997 -----Original Message----- From: CERTADM Sent: Friday, April 26, 2002 1:39 PM To: '[email protected]' Subject: CIDCO Communications Corporation, FCC ID:HOLD933, AN02T1997 Notice_content ------------- Question #1: Please provide MPE data for base set. Question #2: Please provide additional internal photos to show the component and solder sides of PCB by removing the shilding plate. Please do so for base set and hand set. Question #3: User Manual does not contain RF Expsoure warning statement for base set. The following statement is suggested for the reference: "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, use only the antenna that is installed on the telephone. Avoid direct contact to the antenna while talking. Base set should be positoned to proivde a separtion distance of at least 20 cm away from all persons." Please provide revised user manual to comply this requirement. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION CIDCO COMMUNICATIONS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone FCC ID: HOLD933 FCC ID LABEL

D933 Theory of Operation Description of Circuit Operation (1) Base Unit: The differential I and Q signals from RF105 transceiver chip are fed to the baseband IC, U7. The signals are either audio data or control data. The DSP and CODEC process the 32 KBIT ADPCM audio data in this baseband IC. The converted differential analog audio, SPKO+ and SPKO- at pin 46 & 47 of U7 are transmitting to Tel-Line, Tip & Ring via hybrid circuit, OPAMP, U38 and Transformer, T3. The digital control data is input to the microprocessor 65C02 in the baseband IC; U7 after it is processed by the DSP. The received analog audio signal from the Tel-Line is input the sidetone canceling circuit formed by OPAMP, U38 and other passive components. The audio path, LINEI is fed into audio portion of the baseband IC, U7 for muting and routing. The processed audio or control data is input to RF105 transceiver IC to be modulated and sent to Handset via 900 MHz Radio Frequency carrier. The relay K1 and Q25 via OFF_HOOK at pin 99 of U7 control the “ONHOOK” and “OFFHOOK” of the Tel-Line. Ring signal is monitored by the ring detect circuit, D27, D28, D53, R396, C585 and U105 pin 4. After receive a valid ring signal from the Tel-Line, the base will send control data to handset for ringing. DTMF signal is generated by the CODEC in U7 at pin 46 & 47 (SPKO+ and SPKO-) of U7 is output to the Tel-Line through the hybrid circuit, T3. When the handset is in the charging cradle, the charge detect signal, PARK at pin 25 of U7 will activate the base to send security codes to the charging handset through the center charge contact. The unregulated power supply from the AC adapter is input to U36, 5V regulators, 7805. The 5V regulator is in turn to be regulated to 3V by U37 to be supplied to the baseband, U7 and RF105, transceiver IC. The “LINE IN USE” LED is controlled by pin 93 of U7. Caller ID data pass through C672 and C673 from Tel-Line. It is process by differential Amplifier, U108 via pin 5-7. CAS data and dial tone are input through U38 at pin 8 to the CODEC in U7 at pin 37. The detected CAS or Dial tone is signal back to the microprocessor in U7. Extension phone is use is detected by U108 at pin 1. Hold Release Circuit, Q3, Q4, Q26, Q28, Q32 and opto-coupler, U106 at pin 4 detect hold release signal. (2) Handset unit: The receive differential Q and I signals from RF105 transceiver chip are fed to the baseband IC, U7. The signals are either audio data or control data. The DSP and CODEC process the 32 KBIT ADPCM audio data in this baseband IC. The converted differential analog audio, SPKO+ and SPKO- at pin 46 & 47 of U7 are input to the earpiece through Stereo-Phone-Jack, J13. The digital control data is input to the microprocessor 65C02 in the baseband IC; U7 after it is processed by the DSP. The voice signal from the Microphone at JP8 & 10 is differentially ac coupled to U7. The analog signal is digitized by the CODEC before it passes to the DSP to create the 32 Kbit ADPCM audio data. The processed audio or control data is input to RF105 transceiver IC for being modulated and sent to Base via 900 MHz Radio Frequency carrier. The handset keys are detected at pin8-11, pin 53-60 of U7. The Buzzer BZ1 generates key beep and ringing tones through the control of Q3 and pin 88 of U7. (3) RF Circuits Both base and Handset RF circuits and PCB layout are identical. The RF105 transceiver IC, U1 and RF106 Class AB Power Amplifier, U3 are designed to work with the same baseband chip used in both Base and Handset unit. Together with T/R switch, receive preselect filter, low pass filter, loop filter, bandpass filter and VCO, a 900 MHz DSS cordless telephone complete transmit, receive and frequency function is formed (See attached figure). The RF105/RF106 interface requires a minimum of 18 signals from the baseband chip. Transmit Path: The baseband digital input signal is shaped by external filter. The shaping of the baseband data determines the spectral shape of the transmitted RF signal. For the 900 MHz telephone system, the typical 3-dB highpass filter cutoff frequency is about 22 KHz and the lowpass filter is 820 KHz. The transmit baseband input level at the TXD input of the RF105 is typically 100 mVp-p. The RF106 PA inputs and outputs are single ended RF signals. L15, L23 and C78 sent it out to the air via antenna switch, formed by D1, D2, U4 filter the Amplified output, pi network (C98, C99 and L16) and other passive components. The antenna switch performs TDD (Time Domain Duplex) function such that the transmitter and receiver are turn on with 50% duty cycle by TRSW. The phone is designed to provide automatically selectable High, Medium and low output power modes. Depending on the distance between base and handset unit, the system automatically set the desired power mode. Receive Path: The 900 MHz signal is received at the antenna and passes through the antenna switch and RF Bandpass Filter (BPF), FL1. The BPF is used to minimize overloading of the front end of the radio. The filter has a 3-dB passband range from 902 to 928 MHz. The output of the BPF is AC-coupled through C189 to the Low Noise Amplifier (LNA) in RF105. The RF105 downconverts the RF signals into I/Q baseband signal. The differential I/Q baseband signals are DC-coupled to the baseband IC at RXIP, RXIN, RXQP and RXQN inputs. Antenna Switch or Transmit/Receive (T/R) Switch: The T/R functions of the radio are enabled by TRSW control signals from the baseband IC. LOCAL Oscillator (LO) Generation: The LO signal is generated by a programmable PLL frequency synthesizer and the VCO in the RF105. C29, C30 and R8 form the low pass filter of the PLL. Shielding: Radio shield is used to minimize the VCO pulling effects, noise interference, and to comply with FCC part 15 radiated emission limits.

APPLICANT: CIDCO FCC ID: HOLD933 MPE CALCULATION for 0 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 0.60 from 1.1310 Table 1 P (dBm) =15.50 EUT output power G (dBi) =0.00EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.17 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

C640 27pF 1 2 R446 47 12 R447 47 12 R448 47 12 R449 47 12JP1010 HOLE JP88 HOLE M100 MICROPHONE ELECTRET 1 2 C639 27pF 1 2 NOTES: 1. UNLESS OTHERWISE SPECIFIED: CAPACITORS ARE uF +/-20% RESISTORS ARE +/-5%, 1/10W RINGER For VBAT=3.0V, input voltage to BATTERY pin = 1.39V (assumes 1M ohm input resistance) **Tie ASIC analog VSS to DGND only near pin 74 & 76 on same layer as ASIC **Run all microphone traces opposite side of where antenna is mounted and shield the traces with ground plane & away from digital signal **Tie CODEC analog VSS to DGND only near pin45 & same layer as ASIC **PCB trace resistance between AGND & DGND < 50milliohms **Route SPKRO+ & SPKRO- away from digital signals **Place decoupling capacitors near VRP & AGND pins & directly on analog ground plane **Minimize the trace length of CCLK & MCLK to ASIC **Filter traces in/out of shield with ground plane BATTERY CONNECTOR **Use ground plane for DGND PLACE ONE CAPACITOR ALONG EACH SIDE OF U7 **Place decoupling capacitors close to supply pins & directly on the analog ground plane **Place decoupling capacitors close to supply pins 1/4W **Place decoupling capacitors near VREF & AGND pins & directly on analog ground plane PHONE "TALK" HANDSET SELECTION VM_LED SCHEMATICS: 10-01 PCB: 10-01 PCBA: 10-01 DWG, ASSLY: 10-01 SPKPHONE_LED RF INTERFACE NO GROUND AROUND JACK , NO GROUND AROUND THE TRACE JACK PIN1 NO GROUND AROUND THE TRACE CT3 DNA 105591-01 5 D933 HANDSET; MERLIN 34Monday, April 01, 2002 CIDCO COMMUNICATIONS Title SizeDocument NumberRev Date:Sheetof KEYPAD KEYPAD ROW1 ROW2 ROW3 ROW4 ROW5 ROW6 ROW7 ROW8 COL1 COL2 COL3 COL4 AGC LNAATTN RXEN SYNDATA REFOSC SYNCLK SYNSTB SYNEN TXEN TXPWR0 SPK_MUTE CHG_DET BACKLIGHT COL2 MONIN COL4 RXQN RXIP PARK RXQP COL3 TXDATA COL1 RXIN TXPWR1 TRSW COL2 COL3 COL4 COL1 SPK_MUTE ROW2 ROW8 ROW1 ROW7 ROW6 ROW[1:8],COL[1:4] ROW4 ROW4 ROW7 ROW1 ROW3 ROW5 ROW8 ROW3 ROW5 ROW2 ROW6 ROW8 ROW4 ROW7 ROW1 ROW3 ROW5 ROW2 ROW6 LCDRW LCDEN TXPWR0 TXPWR1 LNAATTN RXQN SYNCLK RXIN SYNEN RXIP REFOSC SYNSTB SYNDATA AGC TXEN RXQP TXDATA RXEN TRSW AGND2 AGND2AGND2 AGND2 VBAT VBAT AGND2 VBAT VBATVBAT AGND2 VBAT RF RF VBAT VBAT VCC VBAT VBAT VCC VCC VCC VCC VBAT VBATVBAT VCC RF VBAT RF RFRF VCC RF VBAT VCC C507 33pF R631K C504 10uF 6.3V R671K R478 470 U12 KA8602 VOUT1 VOUT2 VCC GND IN(+) IN(-) MUTE RP_RJ C502 100nF R701K +C644 1uF U8 AT24C02 A0 A2 VCC SCL A1 GNDSDA TEST C503 100nF R711K TP24 LCDEN C505 100nF R721K TP23 ROW1 Q7 MMBT3906 Y2 19.2MHZ R731K C506 100nF R450 240k J13 PHONEJACK_STEREO_SW D17 1N914 R1151K D14 LED C641 180pF C141 47pF D18 1N914 R53 57.6K C651 100nF C646 100nF C145 47pF C530 33pF .5pf D23 1N4001 R57 57.6K 1% C200 100nF R452 10K CT2 CONTACT C529 33pF .5pf R87 1M C513 33pF .5pf C202 100nF +C647 4.7uF TP3 ARTI C528 33pF .5pf C510 33pF .5pf R481 20K C645 33uF 6.3V TP2 ARTO C527 33pF .5pf JP16 HEADER 22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 C511 33pF .5pf R84 62K C652 100nF R112 10 1206 R60 3.3 TP43 C526 33pF .5pf C509 33pF .5pf R8610K C642 100nF TP44 C531 33pF .5pf C508 33pF .5pf R55 2400 C201 100nF R451 20K TP45 C525 33pF .5pf C515 33pFf .5pf R58 2400 R453 0 TP46 C520 33pF .5pf C514 33pF .5pf R56 2K TP47 C522 33pF .5pf C148 100uF 6.3V R92 100K D38 1N914 TP48 C516 33pf .5pf R83 100K C648 2.2uF JP10 HOLE R111 178K 1% D12 LED TP39 SW_VBAT C650 33pF U7 MERLINE_100 OSCO OSCI AUX DAC ARTI ARTO GPIOB2 GPIOB0 GPIOB1 GPIOB3 PARK GPIOB6 GPIOB7 GPIOB5 GPIOB4 GPIOA6 GPIOA7 CDCDATAI CDCFRAME CDCICLK CDCDATAO RESETO GPIOC0 RESETI RXIP RXIN RXQP RXQN BATTERY0 AGC TXDAC RXEN TRSW GPIOC1 GPIOC2 GPIOC3 REFOSC GPIOC4 GPIOC5 GPIOC7 VDDP0VDDP1VDDP2 GPIOA0 GPIOA1 GPIOA2 GPIOA3 KEYPADC0 KEYPADC1 KEYPADC2 KEYPADC3 KEYPADC4 KEYPADC5 KEYPADR4 KEYPADR5 KEYPADR0 KEYPADR1 KEYPADR2 KEYPADR3 N/C VSSC2AVSS VSSP0VSSP1VSSP2 VSSC0VSSC1 VDDC0VDDC1VDDC2 AVDD AGND AUXREF GPIOA5 GPIOA4 GPIOC6 TXEN SPKO+ SPKO- LINEO MICIN+ MICIN- LINEI MICBIAS CDCMCLK FSYNC SIN SOUT CDCPOR CDCVREF CDCAGND CAVDDCDVDD CAVSS0CAVSS1CAVSS2CDVSSCAVSS3 BATTERY1 KEYPADR6 KEYPADR7 Q8 MMBT3904 R4661K JP8 HOLE C521 33pF .5pf E5THPAD L19BLM21A121S R89 270K 1% C71 1000pF 20% 100V R90 10K C68 22nF 20% 16V R114 1K Q4 MMBT3904 R1100 R65 47 + C69 10uF 10V 10% TP20 SPK+ R1090 R64 47 R45 470 U13 TK11130 CTRL BYP GND1 Vout VIN TP21 SPK- C112 33pF R5210 TP17 CHG_1 C512 33pF .5pf R51 10 TP18 CHG_2 GT3 R68 510 TP22 DIODE_BRIDGE R80 470 C523 1000PF C137 100nF C524 33pF GT1 C119 33pF GT2 C116 100nFJP11 HOLE C139 33PF JP12 HOLE C140 27PF BZ1 BUZZER C12315nF D15 LED CT1 CONTACT C122 10nF R105 4.7K CT3 CONTACT C126100nF D8 LED D10 LED TP1 LCD_RESET JP1012 HOLE TP19 MIC C133 100nF C203 33pF R82 100K C134 100nF D13 LED E1 THPAD C12515nF E2 THPAD JP1013 HOLE C142 100nF TP4 LCDRS R107 47 D24 1N5230B 4.7V R479 470 C131 33pF L18 BLM21A121S C130 33pF R88 4.7K C129 33pF V1 P0080EA R66 470 R484 0 C120 .330uF R54 3.3 C204 33pF C124 100PF D29 1N914 C121 100nF C205 100nF TP5 LCDRW C117 33uF 6.3V D25 1N914 C132 100nF D9 LED C118 33uF 6.3V D28 1N914 Q3 MMBT3904 D39 LED,DNA C127 10uF 6.3V D26 1N914 R69 100 R467 470,DNA R113 330 L17BLM21A121S D27 1N914 R611K D11 LED TP11 LCDEN E6THPAD R621K V2 P0080EA LNAATTN RXEN SYNDATA REFOSC SYNCLK SYNSTB SYNEN TXDATA TXEN TXPWR0 RXQP RXQN RXIN RXIP AGC LCD_RESET TRSW TXPWR1 LCDRS ROW1 ROW2 ROW3 ROW4 ROW5 ROW6 ROW7 ROW8 LCDRW LCDEN 12 3 456 789 0*# FLASH TALK HOLD UPDOWN SOFT1SOFT2SOFT3 BACK/MENU LEFT RIGHT 105591-015 D933 HANDSET; MERLIN B 14Monday, April 01, 2002 CIDCO COMMUNICATIONS Title SizeDocument NumberRev Date:Sheetof S26 JP13 HOLE 1 S27 JP14 HOLE 1 JP15 HOLE 1 TP13 C3 1 TP14 C2 1 TP15 C1 1 TP16 C0 1 TP40 R0 1 TP6 R1 1 S2 TP7 R2 1 S3 TP8 R3 1 S4 TP9 R4 1 S7 TP10 R5 1 S8 S9 TP12 R7 1 S12 S13 D301N914 21 S14 S17S18S19 S23 S5S20 D311N914 21 S22 D321N914 21 S10 D331N914 21 S6 D341N914 21 D351N914 21 D371N914 21 JP1011 HOLE 1 S15 S24S25 ROW1 ROW2 ROW3 ROW4 ROW5 ROW6 ROW7 ROW8 COL4 COL3 COL2 COL1 A A B B 22 11 LCD INTERFACE 105591-015 D933 HANDSET; MERLIN 44Monday, April 01, 2002 CIDCO COMMUNICATIONS Title SizeDocument NumberRev Date:Sheet…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE MODEL: D933 FCC ID: HOLD933 REPORT NUMBER: 02U1248-1 ISSUE DATE: APRIL 9, 2002 Prepared for CIDCO COMMUNICATIONS, LLC. 105 COCHRANE CIRCLE MORGAN HILL, CA 95035 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 21U1248-1 DATE: APRIL 9, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD933 Page 2 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION------------------------------------------------------------------------3 2. EUT DESCRIPTION------------------------------------------------------------------------------------------4 3. TEST METHODOLOGY------------------------------------------------------------------------------------4 4. TEST FACILITY----------------------------------------------------------------------------------------------4 5. ACCREDITATION AND LISTING-----------------------------------------------------------------------4 5.1. Laboratory Accreditations and Listings----------------------------------------------------------------5 6. MEASURING INSTRUMENT CALIBRATION--------------------------------------------------------6 6.1. Measurement Uncertainty--------------------------------------------------------------------------------6 7. SUPPORT EQUIPMENT / TEST DIAGRAM-----------------------------------------------------------7 8. APPLICABLE RULES---------------------------------------------------------------------------------------8 9. TEST SETUP, PROCEDURE AND RESULT----------------------------------------------------------12 9.1. CONDUCTED POWER---------------------------------------------------------------------------------12 9.2. 6 dB BANDWIDTH MEASUREMENT-----------------------------------------------------------------19 9.3. CONDUCTED SPURIOUS EMISSION----------------------------------------------------------------26 9.4. PEAK POWER SPECTRAL DENSITY-----------------------------------------------------------------39 9.5. BANDEDGE MEASUREMENT-------------------------------------------------------------------------46 9.6. RADIATED EMISSION----------------------------------------------------------------------------------52 9.7. LINE CONDUCTED EMISSION-----------------------------------------------------------------------62 9.8. SETUP PHOTOS-----------------------------------------------------------------------------------------64 REPORT NO: 21U1248-1 DATE: APRIL 9, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD933 Page 3 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: CIDCO COMMUNICATIONS, LLC. 105 COCHRANE CIRCLE MORGAN HILL, CA 95035 USA CONTACT PERSON: SA FOO / ENGINEER TELPHONE NO: 408-782-8200 EUT DESCRIPTION: 900 MHZ DIGITAL SPREAD SPECTRUM CORDLESS PHONE MODEL NAME: D933 DATE TESTED: APRIL 04 – APRIL 08, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 900MHz TRANSCEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 SUBPART C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, Part 15, Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE THANH VAN NGUYEN CHIEF ENGINEER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 21U1248-1 DATE: APRIL 9, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD933 Page 4 of 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The D933 is a 900 MHz cordless phone. The phone base antenna gain is 0 dBi. The handset antenna gain is 0 dBi. Crystal Board Name Crystal (MHz) Phone Base Unit 19.2MHz on the base PCB Handset Unit 19.2MHz on the Handset PCB 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publicatio…

Text truncated - open the document above for the full version.

Processing Gain Measurement Method The following method is specified by the FCC to measure processing gain. The details are in FCC document 15.247 (e)(1). This involves transmitting a Continuous Wave (CW) jammer in the RF passband of the system and measuring the Jammer to Signal Ratio (JSR) required to achieve a certain BER (normally 10-3). The choice of the actual value of the BER is left up to the tester. The jammer is stepped in 50 kHz increments across the entire passband and in each case the JSR to achieve the desired BER is measured. The Jammer to Signal Ratio (JSR) is measured at the RF input of the system under test. The lowest 20 percent of the JSR data (in dB) is discarded. The processing gain can then be calculated as follows: Gp = (S/N) theory + (J/S) measured + L system loss where GP is the processing gain (dB), S is signal power (dBm), N is signal noise (dBm), J is jammer power (dBm), and Lsystem is the system implementation losses (dB). Note that the FCC does not allow values for Lsystem greater than 2 dB. Processing Gain Measurement Test Setup The test set up is shown in Figure below. The base station and handset are configured to measure the BER using the utility program FCC3v3.exe. The BER test results are displayed on the monitor. The strength of the received signal entering at the receiving antenna port of the UUT is derived from the signal strength of the transmitting unit. General Procedure 1. Measure the output power of the base station and handset units in LOW power modes. Determine attenuation and signal losses in the path to calculate the received signal strength arriving at the base station antenna port. 2. Connect the serial interface of the base station and handset to the serial ports of a PC. 3. Connect the base station and handset through the attenuator, signal combiner, and other components using 50  SMA connectors and cables as shown in Figure below. In this way, the BER test set up establishes a link through wired connections. 4. Using the Test Utility software, select the channel 10, low power mode, and corresponding LNA attenuation for the base station and handset units. 5. On the BER Test window, click on the “Start S7 HS Master” button. The link is established and the BER results are displayed on the monitor. 6. Turn on the very low power jamming signal from the signal generator. 7. Increase jamming signal power until the BER increases to  10–3. This signal power is recorded for computing received jammer power level J. 8. Increment the jamming signal frequency in steps of 50 kHz and repeat step 7. Determine the minimum jammer signal power required to achieve a BER of  10–3…

Text truncated - open the document above for the full version.
