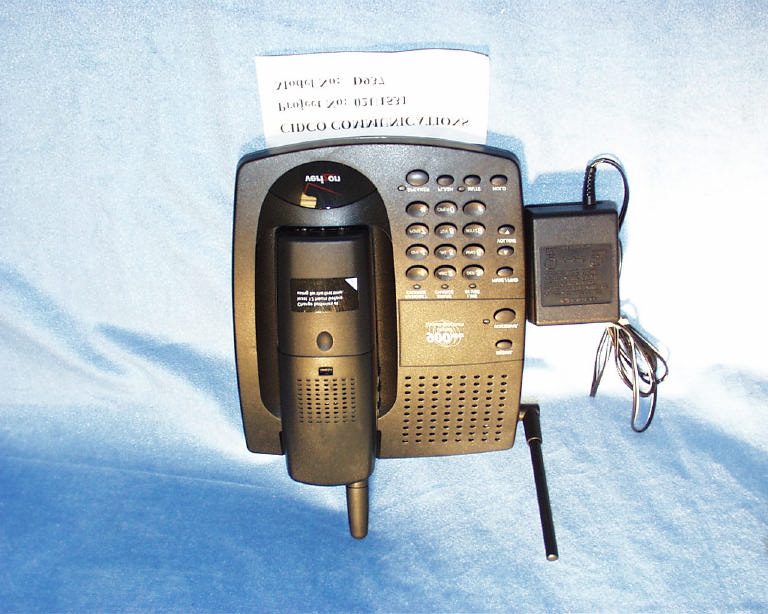

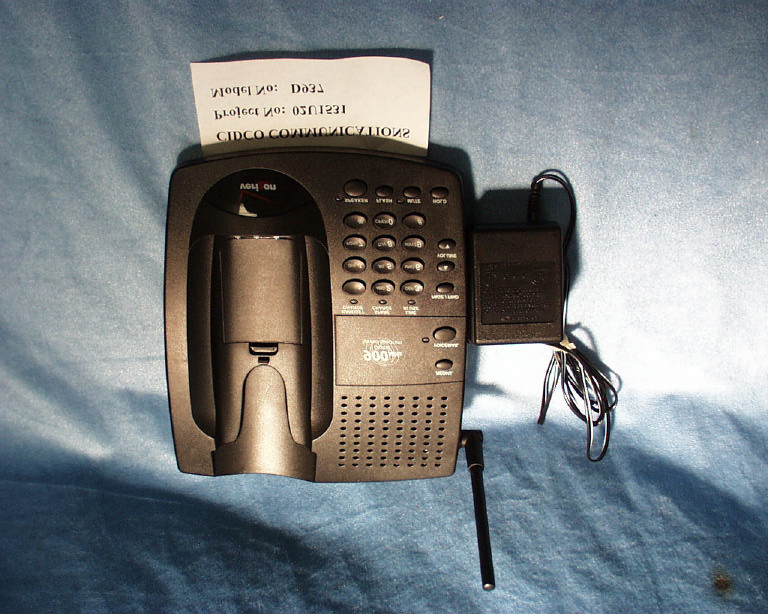

HOLD93X900MHz Digital Spread Spectrum Cordless Phone

TITLE: DOC NO. REVISION SHEET 1 OF : : : E-mail address: [email protected] Contact________________ Phone___________ Fax___________ Modem________________ Fold❑Wrap-around❑ FINISH Collate❑Slip sheet❑ Staple❑ Drill❑Score❑Perf❑ Saddle stitch❑ PMS _______ Wire O❑GBC❑ Spot color❑ INK Black❑ BINDING Color separations❑ SPECIAL INSTRUCTIONS DATE Text stock______________ Sample attached❑Finished size ________ 1Sided❑2 Sided❑ Cover stock____________ Insert stock_______________ PA P E R Color _______ Text stock (Asia)______________ or Engineering Approved Equivalent FILM/FILES CHECKED BY:________________________________________________ DATE:__________________________________________________________________ : SOURCE Film ❑ Adobe PDF ❏ D936/D937-01 English/ Spanish User Manual 106389-01 A Heather Unger 408.782-8209 408.782-8270 heather.unger 70 lb glossy 70 lb glossy 115 gm white 8.0 x 5.5 in. x x Trim for Bleed Tabs PDF file provided only Print in Black and White (no color) 8/30/02 3 Heather Unger August 30, 2002 x X x TITLE: DOC NO. REVISION SHEETOF : : A coverblankTOCIntroductio n Safety Instruction s Installing the D937 Features and Controls Using the D937 Troublesh ooting FCC and Warranty FCC y Garantia Resolucio nde Problemas Uso del D937 iiiiiiivvvi 12345678 910111213141516 1718192021222324 2526272828272625 2423222120191817 161514131211109 D936/D937-01 English/Spanish User Manual 106389-01 2 3 TITLE: DOC NO. REVISION SHEETOF : : A Funciones y Controles Instalacion Instruccio nes de Seguridad Introducci on Tab l a d e contenido blankCover 87654321 viviviiiiii D936/D937-01 English/Spanish User Manual 106389-01 3 3 User Manual 900 MHz DSS 106389-01A D936/D937 D936-937.book Page 1 Friday, August 30, 2002 10:24 AM D936-937.book Page 2 Friday, August 30, 2002 10:24 AM TABLE OF CONTENTS i TABLE OF CONTENTS
INTRODUCTION iii D936 and D937 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii D937 Only Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
SAFETY INSTRUCTIONS iv Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv Telephone Wiring and Jack Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
INSTALLING THE D936/D937 1 Check the Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Choose a Location for the Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Plug in the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Install the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Install the Telephone Line Cord and Desktop/Wall Mount Wedge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Removing the Desktop / Wall Mount Wedge . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attach the Belt Clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Attach Headset (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FEATURES AND CONTROLS 5 Handset Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Personalizing your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 D936-937.book Page i Friday, August 30, 2002 10:24 AM ii TABLE OF CONTENTS
USING THE D936/D937 12 Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Pre-Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Timing Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Temporary Tone Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Locating a Lost Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Using Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Network Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using the Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Clearing the Voicemail Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Using Call Waiting ID (CWID) Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Caller ID Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Directory Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Reading Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TROUBLESHOOTING 23 Problem / Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

A A B B C C D D E E 44 33 22 11 D937 BLOCK DIAGRAM HANDSET BLOCK DIAGRAMBASE BLOCK DIAGRAM POWER AMPLIFIER +ANTENNA SWITCH MERLINBaseband +CODEC POWER SUPPLY QUICK CHARGER TELEPHONE INTERFACE SPEAKERPHONE KEYPAD 900MHZRADIOTranceiver BATTERYCIRCUITS KEYPAD LCD DRIVER LCD 900MHZRADIOTranceiver POWER AMPLIFIER +ANTENNA SWITCH CODEC MERLINBaseband +DSP SPEAKER {Doc}{RevCode} {Title} B 11Wednesday, September 18, 2002 Title SizeDocument NumberRev Date:Sheetof SPEKAERMICROPHONE MICROPHONEEAR PIECE

From: Christine Vu Sent: Monday, October 07, 2002 3:57 PM To: Mike Kuo Cc: Steve Cheng; Anne Liang Subject: RE: CIDCO Communications Corporation, FCC ID:HOLD93X, AN02T2255 Importance: High Hello Mike, Item 1: Attached below is the Revise FCC ID Label. Item 2: Attached below is the Theory of Operation. Item 3: Client sent Anne an email stating that he will include in the Manual. Attached below is his email. Is this sufficient? Item 4: Attached below is the additional Internal & External Photos. Thanks, Christine -----Original Message----- From: Mike Kuo Sent: Monday, September 23, 2002 2:57 PM To: Anne Liang; CLIENT ADVOCATES Cc: Steve Cheng Subject: FW: CIDCO Communications Corporation, FCC ID:HOLD93X, AN02T2255 -----Original Message----- From: CERTADM Sent: Monday, September 23, 2002 2:53 PM To: '[email protected]' Subject: CIDCO Communications Corporation, FCC ID:HOLD93X, AN02T2255 Notice_content ------------- Question #1: Since both handset and base station are included in this filing, proposed FCC ID label format shall be placed on the handset as well. Please provide revised FCC ID label format and location,. Question #2: Please provide theory of operation ( operational description ). Question #3: There is no RF exposure information contains in the user manual. Suggest wording can be " Importance Notice : This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. To comply with FCC RF exposure compliance requirements, only use supplied antenna. Any unauthorized modification to the antenna or device could avoid user's authority to operate this device." Question #4: Please provide internal photos for base station and handset. Only two pages of internal photos were submitted. In addition, please make sure to include internal photos without the metal plate on the RF module. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION CIDCO COMMUNICATIONS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone FCC ID: HOLD937X FCC ID LABEL CIDCO COMMUNICATIONS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone FCC ID: HOLD937X FCC ID LABEL

D937 Theory of Operation Description of Circuit Operation (1) Base Unit: The differential I and Q signals from RF105 transceiver chip are fed to the baseband IC, U7. The signals are either audio data or control data. The DSP and CODEC process the 32 KBIT ADPCM audio data in this baseband IC. The converted differential analog audio, SPKO+ and SPKO- at pin 46 & 47 of U7 are transmitting to Tel-Line, Tip & Ring via hybrid circuit, OPAMP, U38 and Transformer, T1. The digital control data is input to the microprocessor 65C02 in the baseband IC; U7 after it is processed by the DSP. The received analog audio signal from the Tel-Line is input the sidetone canceling circuit formed by OPAMP, U38 and other passive components. One path of the receive audio is routed to the Speakerphone IC, U12 for speakerphone function. The audio path, LINEI is fed into audio portion of the baseband IC, U7 for muting and routing. The processed audio or control data is input to RF105 transceiver IC to be modulated and sent to Handset via 900 MHz Radio Frequency carrier. The relay K1 and Q10 via OFF_HOOK at pin 99 of U7 control the “ONHOOK” and -Line. Ring signal is monitored by the ring detect circuit, D15, D16, D20, R528, C585 and U41 pin 4. After receive a valid ring signal from the Tel-Line, the base will send control data to handset for ringing. DTMF signal is generated by the CODEC in U7 at pin 46 & 47 (SPKO+ and SPKO-) of U7 is output to the Tel-Line through the hybrid circuit, T1. When the handset is in the charging cradle, the charge detect signal, PARK at pin 25 of U7 will activate the base to send security codes to the charging handset through the center charge contact. The unregulated power supply from the AC adapter is input to U39, 5V regulators, 7805. The 5V regulator is in turn to be regulated to 3V by U37 to be supplied to the baseband, U7 and RF105, transceiver IC. The “LINE IN USE” LED is controlled by pin 93 of U7. Caller ID data pass through C672 and C673 from Tel-Line. It is process by differential Amplifier, U40 via pin 5-7. CAS data and dial tone are input through U38 at pin 8 to the CODEC in U7 at pin 37. The detected CAS or Dial tone is signal back to the microprocessor in U7. Extension phone is use is detected by U108 at pin 1. Hold Release Circuit, Q11, Q12, Q13, Q14, Q18 and opto-coupler, U42 at pin 4 detect hold release signal. (2) Handset unit: The receive differential Q and I signals from RF105 transceiver chip are fed to the baseband IC, U7. The signals are either audio data or control data. The DSP and CODEC process the 32 KBIT ADPCM audio data in this baseband IC. The converted differential analog audio, SPKO+ and SPKO- at pin 46 & 47 of U7 are input to the earpiece through Stereo-Phone-Jack, J13. Other audio path is routed to U12 for speakerphone function. The digital control data is input to the microprocessor 65C02 in the baseband IC; U7 after it is processed by the DSP. The voice signal from the Microphone at JP8 & 10 is differentially ac coupled to U7. The analog signal is digitized by the CODEC before it passes to the DSP to create the 32 Kbit ADPCM audio data. The processed audio or control data is input to RF105 transceiver IC for being modulated and sent to Base via 900 MHz Radio Frequency carrier. The handset keys are detected at pin8-11, pin 53-60 of U7. The speaker BZ1 generates key beep and ringing tones through the control of Q3 and pin 88 of U7. (3) RF Circuits Both base and Handset RF circuits and PCB layout are identical. The RF105 transceiver IC, U1 and RF106 Class AB Power Amplifier, U3 are designed to work with the same baseband chip used in both Base and Handset unit. Together with T/R switch, receive preselect filter, low pass filter, loop filter, bandpass filter and VCO, a 900 MHz DSS cordless telephone complete transmit, receive and frequency function is formed (See attached figure). The RF105/RF106 interface requires a minimum of 18 signals from the baseband chip. Transmit Path: The baseband digital input signal is shaped by external filter. The shaping of the baseband data determines the spectral shape of the transmitted RF signal. For the 900 MHz telephone system, the typical 3-dB highpass filter cutoff frequency is about 22 KHz and the lowpass filter is 820 KHz. The transmit baseband input level at the TXD input of the RF105 is typically 100 mVp-p. The RF106 PA inputs and outputs are single ended RF signals. L15, L23 and C78 sent it out to the air via antenna switch, formed by D1, D2, U4 filter the Amplified output, pi network (C77, C90 and L10) and other passive components. The antenna switch performs TDD (Time Domain Duplex) function such that the transmitter and receiver are turn on with 50% duty cycle by TRSW. The phone is designed to provide automatically selectable High, Medium and low output power modes. Depending on the distance between base and handset unit, the system automatically set the desired power mode. Receive Path: The 900 MHz signal is received at the antenna and passes through the antenna switch and RF Bandpass Filter (BPF), FL1. The BPF is used to minimize overloading of the front end of the radio. The filter has a 3-dB passband range from 902 to 928 MHz. The output of the BPF is AC-coupled through C189 to the Low Noise Amplifier (LNA) in RF105. The RF105 downconverts the RF signals into I/Q baseband signal. The differential I/Q baseband signals are DC-coupled to the baseband IC at RXIP, RXIN, RXQP and RXQN inputs. Antenna Switch or Transmit/Receive (T/R) Switch: The T/R functions of the radio are enabled by TRSW control signals from the baseband IC. LOCAL Oscillator (LO) Generation: The LO signal is generated by a programmable PLL frequency synthesizer and the VCO in the RF105. C29, C30 and R8 form the low pass filter of the PLL. Shielding: Radio shield is used to minimize the VCO pulling effects, noise interference, and to comply with FCC part 15 radiated emission limits.

APPLICANT: CIDCO FCC ID: HOLD93X MPE CALCULATION FOR 0 dBi ANTENNA (Phone Base Unit) Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 0.60 from 1.1310 Table 1 P (dBm) = 16.53 EUT output power G (dBi) = 0.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.44 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE CALCULATION FOR 0 dBi ANTENNA (Handset Unit) Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) = 0.60 from 1.1310 Table 1 P (dBm) = 12.16 EUT output power G (dBi) = 0.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 1.48 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

**Tie ASIC analog VSS to DGND onlynear pin 74 & 76 on same layer asASIC **Tie CODEC analog VSS to DGND only nearpin45 & same layer as ASIC **PCB trace resistance betweenAGND & DGND < 50milliohms **Place decoupling capacitors near VREF &AGND pins & directly on analog groundplane **Place decoupling capacitorsnear VRP & AGND pins &directly on analog groundplane **Minimize the trace lengthof CCLK & MCLK to ASIC **Filter traces in/out ofshield with ground plane to BATTERY pin = 1.39V(assumes 1M ohm input resistance) **Route SPKRO+ &SPKRO- away fromdigital signals 1. UNLESS OTHERWISE SPECIFIED: CAPACITORS ARE uF +/-20%RESISTORS ARE +/-5%, 1/10W SCHEMATICS: 1?-01PCB: 1?-01PCBA: 1?-01DWG, ASSLY: 1?-01 PLACE ONE CAPACITOR ALONGEACH SIDE OF U7 **Place decoupling capacitorsclose to supply pins &directly on the analog groundplane **Place decouplingcapacitors close to supplypins For VBAT=3.0V, input voltage From AmpU43c, p8,Sheet 8 105920-01 4 D936/7 BASE MAIN; MERLIN 18 Wednesday, August 14, 2002 CIDCO COMMUNICATIONS TitleSize Document Number Rev Date: Sheet of RXQPTXDATARXIPLNAATTNRXENSYNDATAREFOSCSYNCLKSYNSTBSYNENTXENTXPWR 1TXPWR 0RXINRXQNAGCTRSW OFF_HOOK HOLD_RELEASE RIPQUICK_CHARGE LIU SPKO- VREF SPKO+ SPARE_CHG_DET SENSDOSDI SCLK AUD_INT RAC PARKROW3ROW5 ROW2 COL2 LED_ENCOL1COL2COL3COL4ROW1ROW2ROW3ROW4ROW5ROW6 SENSDOSDISCLKRAC HTO- HTO+ LINEO AUD_INTAUD_CTL1AUD_CTL2 SPARE_CHG_DET COL3 AUD_CTL3 AUD_CTL2 LINEI VREF ROW1ROW6COL1LED_ENCOL4ROW4 LINEO VREF VREF AUD_CTL1AUD_CTL3 ARTO MONIN AGND2 AGND2 VCC1 AGND2 AGND2 AGND2 RF VCC AGND2 AGND2 VCC VCC VCC1 VCC1 VCC A A A VCC1 VCC VCC VCC VCC VCC VCC VCC VCC1 VCC1 VCC1 AGND2 C111 100nF 12 C665100nF 1 2 C743100nF 1 2 C60833pF C11833uF6.3V 12 + - U38ALPV324B 32 1 411 C60133pF C77533pF R41210K 1% L17 BLM21A121S 1 2 C816 33pF U8AT24C64 13 86 24 57 A0A2 VCC SCL A1GND SDA TEST R414 10K1% Y2 19.2MHZ 12 C817 4700pF TP10 VPROMPT_OUT 1 C603 4700pF TP13 MICOUT 1 C81533pF R607 10k R4164.7K TJ1REF_OSC 1 C813 33pF 1 2 R48120K5% TP22 AUD_TO_TR 1 C668220nF C671220nF C809 33pF 1 2 TP18RXO 1 L18 BLM21A121S 1 2 C204 33pF 12 TP25MUX 1 C80433pF 1 2 R485200K 5% TP14LINEO 1 C50733pF 12 C50410uF6.3V 12 R471 1k 1 2 C502100nF 12 C202100nF 12 JP2CON512345 C503100nF 12 U9 ISD4002 123 2826131716 56789 1019202122 18111223274 15 252414 SSMOSIMISOSCLKXCLKAUDOUTANA IN+ANA IN-N/C1N/C2N/C3N/C4N/C5N/C6N/C7N/C8N/C9N/C10 VCCA VSSA1VSSA2VSSA3 VCCD VSSD N/C11 -INT RAC AMP CAP C505100nF 12 + C74710uF16V 12 C506100nF 12 R69 100 1 2 L19 BLM21A121S 1 2 + C742 10uF 10V20% 12 C75033pF R588 1K 1 2 C814 33pF 1 2 R61 1K 1 2 C584220nF R484200K 5% R109 100 1 2 C201100nF 12 TP9 LINEI MICOUT 1 R62 1K 1 2 C110 100nF 12 TP19 AUD_CTL3 1 C711000pF20% 100V 12 C112 33pF 12 C80233pF 1 2 R71 1K 1 2 R39516k 5% C81033pF 1 2 R466 1K 1 2 C6822nF20%16V 12 R72 1K 1 2 R6054.7K TP17 HTO+ 1 + C6910uF10V10% 12 R73 1K 1 2 C774220nF R6064.7k TP3ARTI 1 U37TK11130 132 45 CTRLBYPGND1 Vout VIN R115 1K 1 2 R60420K5% C670220nF TP2ARTO 1 R472 1k 1 2 R5357.6K 1 2 R48320K5% R5764.9k1% 12 R4011000603 C205100nF 12 R87 1M 12 C59033pF + - U38CLPV324B 10 9 8 C137 100nF 12 R5010 1 2 C595 33pF C741 100nF 12 R589100K 12 R8462K 12 R405100K C744220nF R398 20K 5% R86 1K 1 2 C200100nF 12 R58420K5% + C59310uF16V 12 R1413.3K 12 C140 27PF 1 2 R4533.3K 12 C20333pF 12 GT1 D231N4148SOD80C 21 TP24 AUD_TO_TPRG 1 C80333pF 1 2 + C59210uF16V 12 C81133pF 1 2 GT2 R89 61.9K 1% 1 2 R9010K 1 2 C59133pF R11149.9K 1% 12 R470 1K 1 2 C80533pF 1 2 C80733pF 1 2 C586 33pF JP1 123456789 101112131516141718 123456789101112131516141718 R474DNA 12 C109 100nF 12 R587100K 1 2 TP12 AUD_CTL2 1 TP20RXO_MICOUT 1 C59633pF R82100K 12 C11927pF 12 C58833pF C13933PF 12 R473100K 1 2 R616 10k C581 33pF C116 100nF 12 + - U38D LPV324B 1213 14 U7 MERLIN_100 7374882426212322182513121417 994 3334513252 5 77 82838485808681679166929072717069 2 15 65 9394959611109876575853545556 63 61 76 3 16 64 1 20100 19 62 75 78 87 98976889 4647453839374030272928354142 43 49 31 36 44 48 50 795960 OSCOOSCIAUX DACARTIARTOGPIOB2GPIOB0GPIOB1GPIOB3PARKGPIOB6GPIOB7GPIOB5GPIOB4 GPIOA6GPIOA7 CDCDATAICDCFRAMECDCICLKCDCDATAORESETO GPIOC0 RESETI RXIP RXIN RXQP RXQN BATTERY0 AGC TXDAC RXEN TRSW GPIOC1GPIOC2GPIOC3 REFOSC GPIOC4GPIOC5GPIOC7 VDDP0 VDDP1 VDDP2 GPIOA0GPIOA1GPIOA2GPIOA3 KEYPADC0KEYPADC1KEYPADC2KEYPADC3KEYPADC4KEYPADC5KEYPADR4KEYPADR5KEYPADR0KEYPADR1KEYPADR2KEYPADR3 N/C VSSC2 AVSS VSSP0 VSSP1 VSSP2 VSSC0 VSSC1VDDC0 VDDC1 VDDC2 AVDD AGND AUXREF GPIOA5GPIOA4 GPIOC6 TXEN SPKO+SPKO-LINEOMICIN+MICIN-LINEIMICBIASCDCMCLKFSYNCSINSOUTCDCPORCDCVREFCDCAGND CAVDD CDVDD CAVSS0 CAVSS1 CAVSS2 CDVSS CAVSS3 BATTERY1 KEYPADR6KEYPADR7 R403100K C8210.1uF 12 + - U38B LPV324B 56 7 C12210nF 12 C587220nF C126 100nF 1 2 R39716k 5% C133 100nF 12 C580 33pF C134 100nF 12 R39320K 5% R6024.7K 12 U46 74HC4053 1213 21536 1110 9 14154 16 8 7 X0X1Y0Y1Z0Z1INHABC X YZ VDD VSS VEE C11733uF6.3V 12 C59433pF C812 33pF 1 2 C80133pF 1 2 R6034.7K 12 R475 47 1 2 C142100nF 12 TP16HTO- 1 TP11 AUD_CTL1 1 R4064.7K R48220K 5% C808 33pF 1 2 C80633pF 1 2 C669220nF C606 33pF TP21 AUD_FR_TR 1 C124 100PF 12 LNAATTNRXENSYNDATAREFOSCSYNCLKSYNSTBSYNENTXDATATXENTXPWR 1TXPWR 0RXQPRXQNRXINRXIPAGCTRSW VPROMPT_OUT SPK1SPK2 SPKAMP_EN SPKR_MUTESPKR_ENSPARE_CHG_DETQUICK_CHARGEHOLD_RELEASEOFF_HOOKRIP AUX_REFAUX_DAC LIU ARTO PARK SPKO+ SPKO- HTO+ HTO- LINEO /AC_DET LINEIMICOUT VREF RXO AUDIO_to_TIPRING AUDIO_to_TR AUDIO_from_TR LINEI VPROMPT_OUT AA BB CC DD EE 4 4 3 3 2 2 1 1 105920-01 4 D936/7 BASE MAIN; MERLIN 28 Wednesday, August 14, 2002 CIDCO COMMUNICATIONS TitleSize Document Number Rev Date: Sheet of R44747 1 2 R44847 1 2 R44947 1 2 JP10HOLEJP8HOLE C63933pf 12 M100 MICROPHONEELECTRET 12 C64033pf 12 R446 47 1 2 AA BB CC DD EE 4 4 3 3 2 2 1 1 POWER 9VDC IN **Place the filter close to Power Jack Use 'SPARK 1' SparkGap (Jesus Library) Use 'SPARK 1' SparkGap (Jesus Library) Use 'SPARK 1'Spark Gap (JesusLibrary) External Components 105920-01 4 D936/7 BASE MAIN; MERLIN 38 Wednesday, August 14, 2002 CIDCO COMMUNICATIONS TitleSize Document Number Rev Date: Sheet of QUICK_CHARGE…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE MODEL: D936 & D937 FCC ID: HOLD93X REPORT NUMBER: 02U1531-1 ISSUE DATE: SEPTEMBER 18, 2002 Prepared for CIDCO COMMUNICATIONS, LLC. 105 COCHRANE CIRCLE MORGAN HILL, CA 95035 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1531-1 DATE: SEPTEMBER 18, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD93X Page 2 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION---------------------------------------------------------------------------3 2. EUT DESCRIPTION---------------------------------------------------------------------------------------------4 3. TEST METHODOLOGY---------------------------------------------------------------------------------------4 4. TEST FACILITY-------------------------------------------------------------------------------------------------4 5. ACCREDITATION AND LISTING--------------------------------------------------------------------------4 5.1. Laboratory Accreditations and Listings-------------------------------------------------------------------5 6. MEASURING INSTRUMENT CALIBRATION-----------------------------------------------------------6 6.1. Measurement Uncertainty-----------------------------------------------------------------------------------6 7. SUPPORT EQUIPMENT / TEST DIAGRAM--------------------------------------------------------------7 8. APPLICABLE RULES------------------------------------------------------------------------------------------8 9. TEST SETUP, PROCEDURE AND RESULT-------------------------------------------------------------12 9.1. CONDUCTED POWER------------------------------------------------------------------------------------12 9.2. 6 dB BANDWIDTH MEASUREMENT--------------------------------------------------------------------19 9.3. CONDUCTED SPURIOUS EMISSION-------------------------------------------------------------------26 9.4. PEAK POWER SPECTRAL DENSITY--------------------------------------------------------------------37 9.5. BANDEDGE MEASUREMENT----------------------------------------------------------------------------42 9.6. RADIATED EMISSION-------------------------------------------------------------------------------------48 9.7. LINE CONDUCTED EMISSION--------------------------------------------------------------------------59 9.8. SETUP PHOTOS--------------------------------------------------------------------------------------------61 REPORT NO: 02U1531-1 DATE: SEPTEMBER 18, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD93X Page 3 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: CIDCO COMMUNICATIONS, LLC. 105 COCHRANE CIRCLE MORGAN HILL, CA 95035 USA EUT DESCRIPTION: 900 MHZ DIGITAL SPREAD SPECTRUM CORDLESS PHONE MODEL NAME: D936 & D937 DATE TESTED: SEPT11 – SEPT 13, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 900MHz TRANSCEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 SUBPART C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, Part 15, Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE THANH VAN NGUYEN CHIEF ENGINEER EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1531-1 DATE: SEPTEMBER 18, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD93X Page 4 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The Models D936 AND D937 are a 900 MHz cordless phone. The phone base antenna gain is 0 dBi. The handset antenna gain is 0 dBi. Crystal Board Name Crystal (MHz) Phone Base Unit 19.2MHz on the base PCB Handset Unit 19.2MHz on the Handset PCB 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements o…

Text truncated - open the document above for the full version.

REPORT NO: 02U1531-1 DATE: SEPTEMBER 18, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD93X Page 61 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.8. SETUP PHOTOS RADIATED EMISSION PHOTOS Handset Unit-Z Position Handset Unit-X Position REPORT NO: 02U1531-1 DATE: SEPTEMBER 18, 2002 EUT: 900MHz DIGITAL SPREAD SPECTRUM CORDLESS PHONE FCC ID: HOLD93X Page 62 of 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Handset Unit-Y Position REPORT NO: 02U1531-1 DATE: SEPTEMB…
