HQXAGP-Y6WIRELESS PRESENTER

Y6# Block Diagram +3.0V USB +5V R03# Block Diagram Crystal:16MHz USB Port ID SW Micro-controller e ht82k68E Button DETECT RF IC RF2402 Battery AAA*1 DC/DC CONVERTER Micro-controller CY7C63743 ID SW Crystal:16MHz LED Indicator RF IC RF2401 Presenter DETECT Presenter Data Data 2.4GHz RF Signal 2.4GHz RF Signal R,L, Left,right,up,down direct moving PDF created with pdfFactory trial version www.pdffactory.com

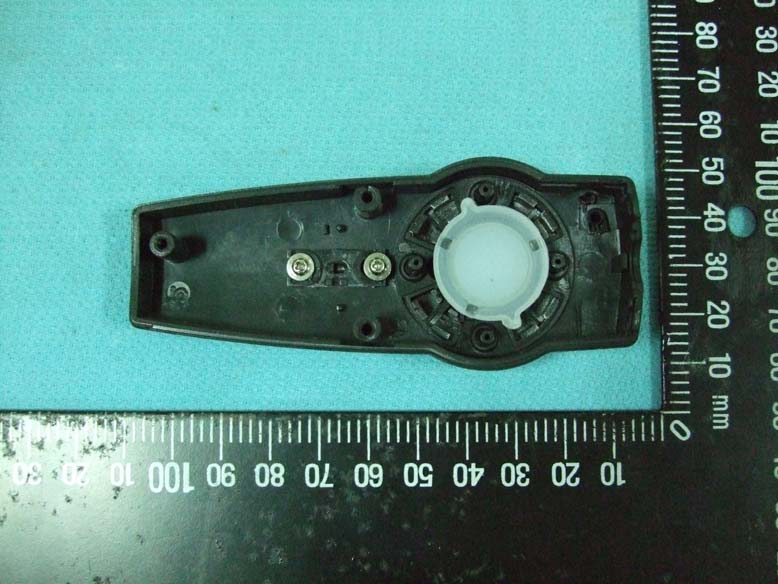

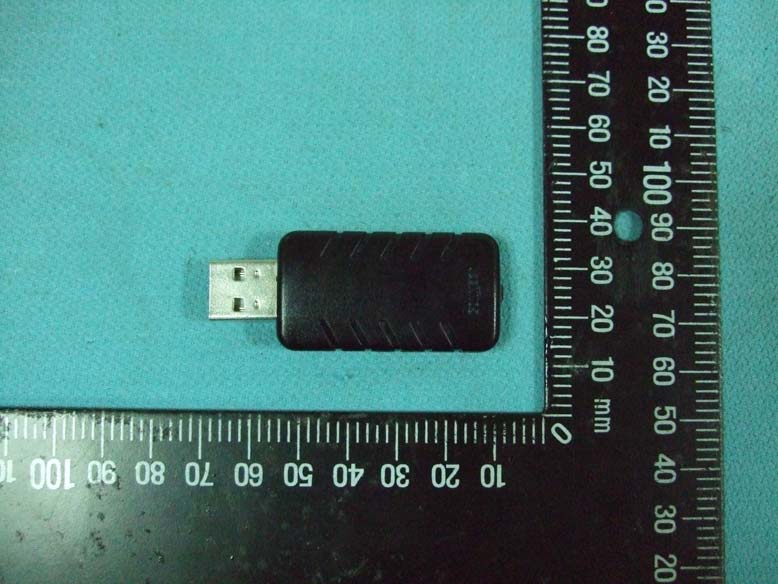

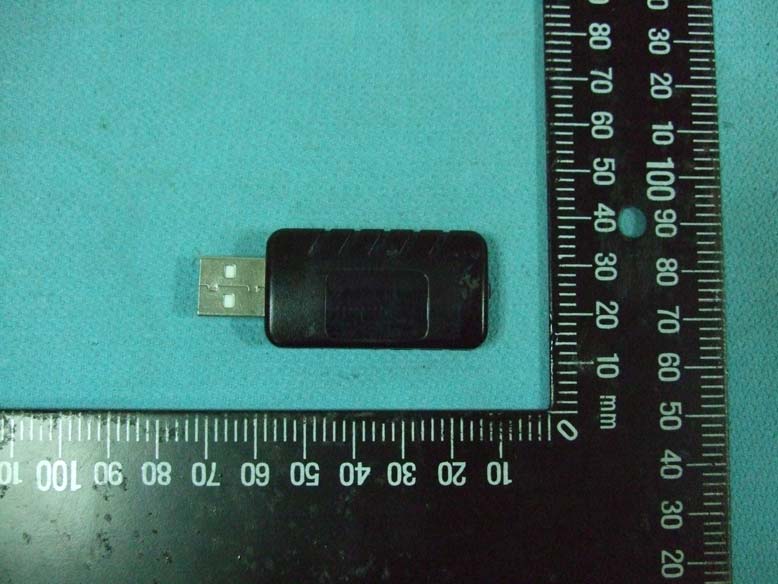

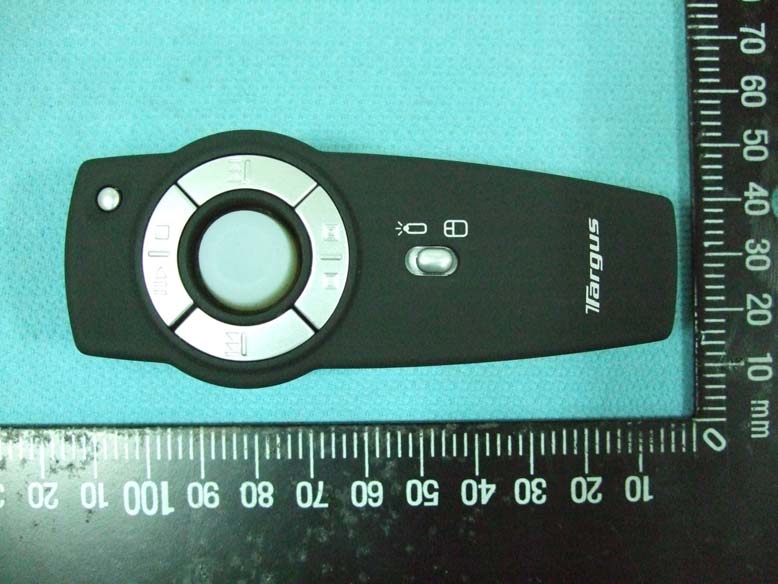

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 7 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 7 PHOTOS OF EUT- Inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 7 PHOTOS OF EUT-Receiver

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID: HQXAGP-Y6

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 7 PHOTOS OF EUT-Control Board Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 7 PHOTOS OF EUT-Power Board Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 7 PHOTOS OF EUT-Inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 7 of 7 PHOTOS OF EUT-Electrical Board

FCC ID: HQXAGP-Y6 Operational Description of the equipment PRODUCT Wireless Presenter MODEL NO. AGP-Y6 POWER REQUIREMENTS 0.9V, 1.5A FREQUENCY BAND 2400 ~ 2483.5MHz CARRIER FREQUENCY CH1: 2414 MHz CH2: 2418 MHz CH3: 2462 MHz CH4: 2466 MHz NUMBER OF CHANNEL 4 CHANNEL SPACING 27.8 MHz RF OUTPUT POWER ＜-4dBm MODULATION TYPE GFSK ANTENNA TYPE PCB antenna ANTENNA GAIN 0dBi BATTERY 1.5V AAA Alkaline

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:26-Nov-2007Sheet of File:E:\Layout DDB\UPS \2000MS\2000MS.ddb Drawn By: CE 1 CS 2 CLK 3 DIN 4 VSS 5 XC2 6 XC1 7 VDD 8 VSS_PA 9 ANT1 10 ANT2 11 VDD_PA 12 VDD 13 IREF 14 VSS 15 PWR_UP 16 U1 2402 C1 22PF C2 22PF C3 22PF C4 CAP C5 102 C6 103 C8 1PF C9 1PF C10 1PF X1 16M R1 1M R2 22K GND GND GND V3.3 V3.3 GND GND GND L2 22nH L1 3.9nH ANT RF PART GND V3.3 1 2 3 4 5 6 7 8 9 10 11 12 131415161718192021222324 25 26 27 28 29 30 31 32 33 34 35 36 373839404142434445464748 U1 HT68K42E 18 27 36 45 U3 24C02 GND GND V3.3 1 2 3 4 5 CON5 GND SW2 GND R1 330K R2 102 R3 330R R4 330R R5 330R R8 330R R10 10K C1 104 C2 10UF C5 104 C4 15PF C6 10UF C7 104 C8 104 C3 15PF C9 100PF C10 100PF C11100PF C12100PF C17 104 VSS 1 PWR_UP 2 CS 3 DIN 4 VDD 5 CE 6 CLK 7 VSS 8 JP1 VSS 1 PWR_UP 2 CS 3 DIN 4 VDD 5 CE 6 CLK 7 VSS 8 RP3 CLK CLK CE GND GND CE DIN CS CSDIN 1 8 2 7 3 6 4 5 RP1 GND L1 220UH GND D2 5817 S2VCC Q1 3906 D4 GND GND D14148 P35 P35 C16 100UF GND GND 1 OUT 2 IN 3 U2 VCC GND X3 6M V3.3 SW13 SW12 SW32 SW16 GND 18 27 36 45 RP2 1 2 J2 BATTERY GND GND S1 POWER PART MAIN PART Laser Beam 1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:26-Nov-2007Sheet of File:E:\Layout DDB\UPS\2000MS\2000MS.ddbDrawn By: P0.0 1 P0.1 2 P0.2 3 P0.3 4 P1.0 5 P1.2 6 P1.4 7 P1.6 8 VSS 9 VPP 10 VREG 11 XTALIN 12 XTALOUT 13 VCC 14 D- 15 D+ 16 P1.7 17 P1.5 18 P1.3 19 P1.1 20 P0.7 21 P0.6 22 P0.5 23 P0.4 24 U2 CY7C63743 CE 1 DR2 2 CLK3 3 DOUT2 4 CS 5 DR1 6 CLK1 7 DATA 8 DVDD 9 VSS 10 XC2 11 XC1 12 VDD_PA 13 ANT1 14 ANT2 15 VSS_PA 16 VDD 17 VSS 18 IREF 19 VSS 20 VDD 21 VSS 22 PWR_UP 23 VDD 24 U2 2401 IN 2 GND 1 OUT 3 U4 VDD D- D+ GND J1 GND R1 1M R16 1K R3 560R R4 10R R5 4.7K R6 10K R7 4.7K R8 10K R9 4.7K R10 10K R11 4.7K R12 10K R13 4.7K R14 10K R15 1.3K VCC C1 22PF C2 22PF C3 22PF C4 0.1UF C5 1nF C6 2.2NF C7 0.5PF C8 1PF C9 4.7UF C10 1UF C11 1UF C12 10UF C13 100PF C15 4.7UF C16 104 VCC GND GND 18 27 36 45 U3 24C02 GND GND VCC SW1 LED(KB) VCCV3.3 R17 330R GND GND GND X1 16M L2 3.3nH GND L1 ANT GND V3.3 LED(MS) GND R2 22K GND V3.3 P0.1 P0.0 P0.6 P0.7 P0.1 P0.0 P0.4 P0.4 P0.6 P0.7 GND

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A07112106 Report No.: FCCA07112106 FCC ID: HQXAGP-Y6 Page:2 of 48 Date: Nov. 29, 2007 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................ 4 1.1 DOCUMENT POLICY ........................................................................................ 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION ......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT ................................................................. 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 3. DESCRIPTION OF APPLIED STANDARDS ...................................................... 6 4. CONDUCTED EMISSION.................................................................................... 7 4.1 LIMIT .................................................................................................................... 7 4.2 TEST EQUIPMENT .............................................................................................. 7 4.3 TEST SETUP........................................................................................................ 8 4.4 TEST PROCEDURE............................................................................................. 8 4.5 EUT OPERATING CONDITION ......................................................................... 9 4.6 TEST RESULT ..................................................................................................10 5. RADIATED EMISSION TEST ........................................................................... 12 5.1 RADIATED EMISSION LIMIT............................................................................12 5.2 TEST EQUIPMENT...........................................................................................13 5.3 TEST SET-UP(30MHZ - 1GHZ) ........................................................................14 5.4 TEST SET- UP (1GHZ - 25GHZ).......................................................................15 5.5 TEST PROCEDURE .........................................................................................16 5.6 EUT OPERATING CONDITION ........................................................................16 5.7 RADIATED EMISSION TEST RESULT .............................................................17 6. 6 DB BANDWIDTH............................................................................................25 6.1 LIMIT .................................................................................................................25 6.2 TEST EQUIPMENT...........................................................................................25 6.3 TEST SET-UP ...................................................................................................25 6.4 TEST PROCEDURE .........................................................................................25 6.5 EUT OPERATING CONDITION ........................................................................25 6.6 TEST RESULT ..................................................................................................26 7. PEAK POWER TEST........................................................................................... 29 7.1 LIMIT ...................................................................................................................29 7.2 TEST EQUIPMENT...........................................................................................29 7.3 TEST SET-UP ...................................................................................................30 7.4 TEST PROCEDURE .........................................................................................30 7.5 EUT OPERATING CONDITION ........................................................................30 7.6 TEST RESULT ..................................................................................................30 8. BAND EDGE TEST .............................................................................................. 34 8.1 LIMIT ...................................................................................................................34 8.2 TEST EQUIPMENT...........................................................................................35 8.3 TEST SET-UP ...................................................................................................36 8.4 TEST PROCEDURE .........................................................................................37 8.5 EUT OPERATING CONDITION ........................................................................37 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A07112106 Report No.: FCCA07112106 FCC ID: HQXAGP-Y6 Page:3 of 48 Date: Nov. 29, 2007 FMNG-059.10 REPORT 8.6 TEST RESULT ..................................................................................................37 9. POWER DENSITY TEST...................................................................................... 40 9.1 LIMIT ...................................................................................................................40 9.2 TEST EQUIPMENT .............................................................................................40 9.3 TEST SET-UP......................................................................................................40 9.4 TEST PROCEDURE..........................…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A07112106 Report No.: FCCA07112106 FCC ID: HQXAGP-Y6 Page:45 of 48 Date: Nov. 29, 2007 FMNG-059.10 REPORT 11. PHOTOS OF TESTING - Conducted Emission test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A07112106 Report No.: FCCA07112106 FCC ID: HQXAGP-Y6 Page:46 of 48 Date: Nov. 29, 2007 FMNG-059.10 REPORT - Radiated Emission test (below 1 G) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A07112106 Report No.: FCCA07112106 FCC ID: HQXAGP-Y6 Page:47 of 48 Date: Nov. 29, 2007 FMNG-059.10 REPORT - Radiated Emission test (above 1 G)
