HQXAXM-403WIRELESS OPTICAL MOUSE

Wireless Optical Mouse / Brand Name: SANYO / Model No.: AXM403IPM , SYMS-403I Wireless Optical Mouse SANYO AXM403IPM , SYMS-403I 1. Connecting with Computer: The first time you take out this mouse and receiver from the packing, Factory Preset ID enables Plug and Play function. Plug the Receiver into PC USB Port . Under Win2000 or higher , wait for the OS to detect the RF device. Under Win98 or lower installation of driver for the device is necessary. Insert the batteries into the mouse and move it for a while , then it startsworking . 2. Inserting Batteries: A. Push the battery cover Compartment backwards and open it. B. Insert 2 AAA batteries Into compartment with correct orientation . C. Slide the battery cover int the compartment and close the cover . 3. ID Link: When Factory ID has been changed or wish to be changed , link ID as below : A. Press the ID button on the top of the receiver and the led on it starts blinking . B. Press the ID button on the bottom of the mouse . If blinking of that led turns faster , ID Link is OK . ! ID linking should be completed within 10 seconds or connection would be failed 4. Power Saving Mode: A. Suspend Mode : Keep mouse stationary for 10 minutes, mouse will be automatically set to Suspend Mode. Press left button to wake up the mouse again. B. Power Off Mode : When you wish to set the mouse to power of f mode, press mouse ID for 3 seconds. The Optical Led will flash once and then fade out showing mouse power is already off. Press ID switch for waking up again . 7. Trouble Shooting: A. When mouse doesn ＇ t respond, check the battery power status, and link ID again. B. Be sure the two DC Jacks be connected to the right respective mouse or receiver DC sockets C. Check the battery pole if the optical Led is still off after inserting batteries. connected when Low Battery Alert Led never fades out. F. Ask for maintenance solution from your retailer and engineer . Personally taking apart p rohibited after trouble happened. CE Safety Statements This device has bee tested and found to comply with the requirements set up in thecouncil directive on the approximation of the law of member states relating to EMC Directive 89/336/EEC, Low Voltage Directive73/23/EEC and R&TTE Directive 99/5/EC. The product has been approved for LVD and covered the following countries: Austria, Belgium, Denmark, France, Finland, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, U.K., Spain, Sweden FCC Note : This device complies with Part 15 of the FCC rules, operation is subjec t to the following two conditions. （ 1 ） This device may not cause harmful interference and, （ 2 ） This device must accept any interference received, including interference tha t may cause undesired operation . This equipment has been tested and comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful intererence to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user ＇ s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter

Wireless Optical Mouse / Brand Name: SANYO Model No,:AXM403IPM, SYMS-403I Block Diagram of Transmitter X1.X2 /Y1.Y2 TX:27.045MHz OPTICAL ID SW ANT DETECT Z1,Z2 TX MICROCONTROLLER RF MODULE Crystal(27.042MHz) R, L, M +3.3Volt BATTERY Receiver R01# Block Diagram of Receiver LED Indicat ID SW Crystal(26.590M) Crystal(6.0M) ENCODE DETECT DC/DC CONVERTE BOTTOM DETECT + 3.3Vol Crystal76.8KHz 27.045MHz ANT RX RFmodule EEPROM Microcontroller (Mouse) VCC USBforPC

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is large enough for it to be placed warning statement on the device as follow: FCC ID: HQXAXM-403 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

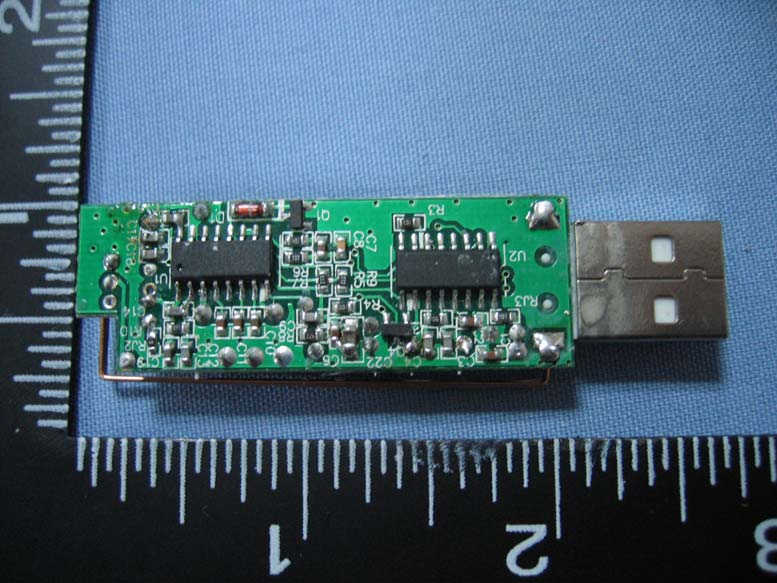

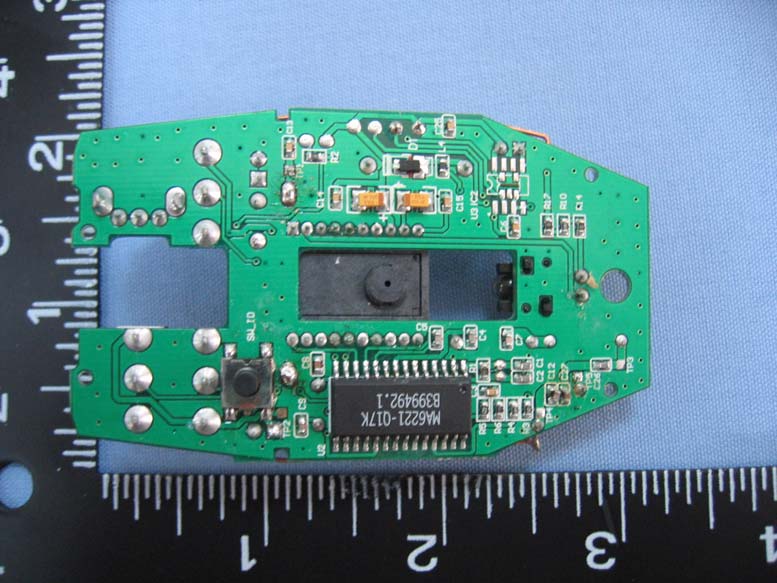

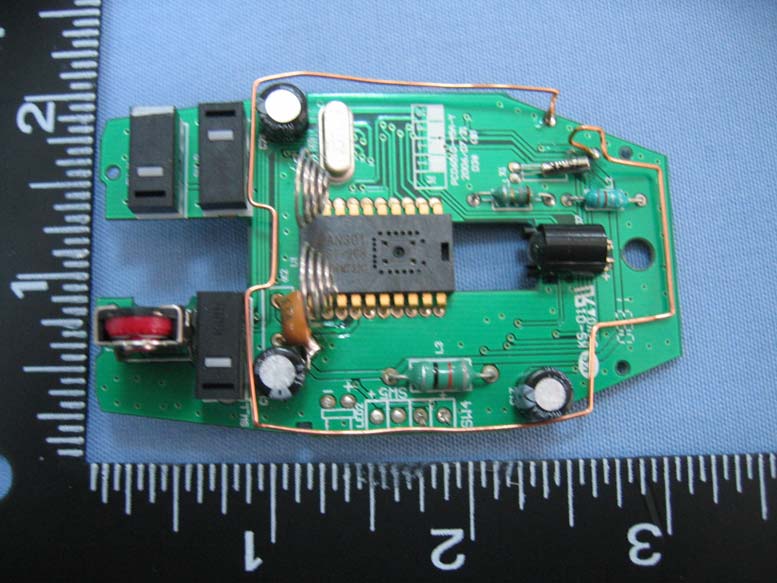

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 2 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 2 PHOTOS OF EUT

RF產品之技術規格表 1. 產品名稱： Wireless Optical Mouse 型號： AXM403IPM,SYMS-403I 2. 電源輸入額定值： █ DC 3 V, <40m A; □ AC V, A 3. Frequency Band： 27Mhz Wide Band Carrier Frequency： 27.045 MHz 4. Number of Channel： 1 5. Channel Spacing： 6. RF Output Power (ERP or EIRP) ： 0 dBm = 1m W 7. I.F.： k Hz; L.O.： kHz 8. Modulation Type： FSK 9. Duty Cycle： 50 % 10. Mode of operation (duplex, simplex) ： simplex 11. Bit Rate of Transmission： 4.8kbps 12. Antenna Type： Loop Antenna mounted on PCB 13. Antenna gain： 14. Operating Temperature Range： °C 15. Channel bandwidth ： 6 k HZ 16. 預定銷售國家：

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:12-Dec-2006Sheet of File:C:\Documents and Settings\Administrator\My Documents\R01電~1.DDBDrawn By: Receiver C1 104 PC03010-11C LED1 3*3 R3 10K R2 560 X1 6.0M S 5 V 1 D - 2 D + 3 G 4 USB Connect CN1 CN-USB CS 1 SK 2 DI 3 DO 4 GND 5 NC 6 NC 7 VCC 8 U393LC46A C433P C333P SWID Q4 2N3906 R4 100 C14 22P C13 15P C11104 C10104 C12104 R8 4.7K C9 22P C28 + C5 100uF R9 2.7K X2 26.59M C16 100P QUAD 8 DEC2 7 DEC1 6 IFI 5 VCC 4 MBCO 3 OSCE 2 OSCB 1 AUTO 9 FI 10 FO 11 SQI 12 SCAN 13 MUTE 14 GND 15 MOCI 16 U1 MC3361_1 CH_CHG 7 RXCB 6 EECK 5 DATA 4 EECS 3 XDLED 2 VSS 1 RFENL 8 NRZIN 9 TEST 10 OSC0 11 OSC1 12 VD3 13 VDD 16 D+ 14 D- 15 U2 MA6162_1 X3 26.64MHz Q2 2N3904 Q3 2N3904 CHR1 220K CHR2 220K CHR3 10K CHR4 10K VCC CH_ID CH_ID VCC VDD VDD VDD EP_CS EP_CS EP_SK EP_SK EP_DIO EP_DIO VDD C17 22P C15 102 JP_GND JAMPER 2 3 4 5 1 FIL1 455K C2 104 R7 3.3K C7 103 C8104 R6 100K Q1 3904 D1 1N4148 R5 27K C6 104 C18 22P R1 10M R10 270 C19 1000P RJ3 ? RJ2 RES1 + C20 100uF DRAWNCHECKEDAPPORVED BY: BY: BY: C22 2.2uF0805 c 3 B 2 1 1 DCJACK DC JACK 版本日期 摘要 主導人 REVISION 陳貴軍A2003/11/15 1.取消RJ 123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:11-Dec-2006Sheet of File:C:\Documents and Settings\Administrator\My Documents\06010-45A-Y.DDBDrawn By: R1 10M X1 76.8K C122P C222P C3 104P C433PFL1 1.8uH L2 0.82uH C7 75PF C26 22PF C2751P C12220PF X3 27.042MHz C9 36PF C8 3PF C533PF C19 100U/10V D1 RB421 R5 220K R6 100K R3 1.2M R4 680K VDD SW_ID VBT OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN0 9 ORFO 10 TXD 11 PD 12 WA 13 WB 14 Z1IN 15 Z2IN 16 X2IN 17 X1IN 18 BATL 19 Y1IN 20 Y2IN 21 TXCB 22 BBUT 23 FBUT 24 SVDIN 25 DCVR 26 VL 27 VL_NM 28 U2 MA6221-Q17K C25 104 C13 104 VDD VBT + C17 100U/10V TP3 TP4 TP2 TP1 SW_M SW_R SW_L VDD 1 1 2 2 3 3 S1 1 1 2 2 LED2NP 主導人版本日期 摘 要 + C20 10uF/10V C14 104 D7 LD C15 0.1uF XA 13 XB 14 CPI 17 NC 15 PD 20 VSS_LD 1 OSCIN 4 YB 12 VREF 10 VSSA 7 VSSD 6 SCLK 18 SDIO 19 VDDD 5 LD 2 OSCOUT 3 YA 11 VDD 8 VDDA 9 NC 16 U1 PAN301B X2 18.432MI C6 103 VDD VDD C18 1uF/10V 仝行航1.012006/12/06 CS 1 SK 2 DI 3 DO 4 GND 5 ORG 6 DC 7 VCC 8 U3 ?(93C46)(NP) VDD SCL 1 SDA 3 NC 4 VCC 5 VSS 2 IC2 24AA00(NP) R2NP R17 0R R14 0R R10 15R SW4 1.將C17.C19.X2的位置有變動. VBAT2 AAA(X2) SW5 D3# IR LASER 27M BATL VDD BTL LB MB RB 4BUT 5BUT Z2 Z1 RB MB LB DCVR SVDIN 4BUT 5BUT BTL YA YB XB XA Z2 Z1 PD PD XB XA YB YA WB WA SVDINDCVR + C21 10uF/10V 06010-45A-Y.SCH AXM-403IPM WA WB BATL 12 ANT1 ANTENNA FR TP5 (A) DRAWN BY: CHECKED BY: APPORVED BY: L3 82uHL4 2K BEAD 2."NP"表示不用安裝

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:2 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 1. DOCUMENT POLICY AND TEST STATEMENT................................................. 3 1.1 DOCUMENT POLICY......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................ 3 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 4 2.3 DESCRIPTION OF TEST MODE ....................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................. 5 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT ........................................................................ 6 4.2 TEST EQUIPMENT ............................................................................................ 6 4.3 TEST SETUP..................................................................................................... 7 4.4 TEST PROCEDURE .......................................................................................... 7 4.5 EUT OPERATING CONDITION ......................................................................... 7 4.6 TEST RESULT ................................................................................................... 8 5. RADIATED EMISSION TEST ............................................................................. 9 5.1 RADIATED EMISSION LIMIT ............................................................................. 9 5.2 TEST EQUIPMENT .......................................................................................... 10 5.3 TEST SET-UP .................................................................................................. 11 5.4 TEST PROCEDURE ........................................................................................ 13 5.5 EUT OPERATING CONDITION ....................................................................... 13 5.6 RADIATED EMISSION TEST RESULT ............................................................ 14 6. BAND EDGE..................................................................................................... 17 6.1 BAND EDGE LIMIT .......................................................................................... 17 6.2 TEST EQUIPMENT .......................................................................................... 17 6.3 TEST SET-UP .................................................................................................. 17 6.4 TEST PROCEDURE ........................................................................................ 17 6.5 EUT OPERATING CONDITION ....................................................................... 17 6.6 BAND EDGE TEST RESULT ........................................................................... 18 7. PHOTOS OF TESTING .................................................................................... 19 8. TERMS OF ABBREVIATION ............................................................................ 22 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:3 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC (3V) from battery was used during the test for EUT transmitting part. - AC 120V /60 Hz from support units was used during the test for EUT receiving part. - Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:4 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT NAME Wireless Optical Mouse BRAND NAME SANYO MODEL NO. AXM403IPM, SYMS-403I POWER REQUIREMENTS DC 3 V; <40 mA FREQUENCY BAND 26.96~27.28 MHz CARRIER FREQUENCY 27.045 MHz CHANNEL BANDWIDTH 6 kHz RF OUTPUT POWER 0 dBm~1 mW MODULATION TYPE FSK DUTY CYCLE Up to 50% NUMBER OF CHANNEL 1 BIT RATE OF TRANSMISSION 4.8 Kbps MODE OF OPERATION Simplex ANTENNA TYPE Loop Antenna NOTE : The difference of model numbers is in different customers. For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE The EUT was tested with a Notebook PC under TX and Link collocation. So, we test conducted emission for mode 1, radiated emission for two modes below and band edge for mode 2. Mode EUT collocation 1 Link 2 TX Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:5 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was conf…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:19 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 7. PHOTOS OF TESTING - Conducted emission test –Link Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:20 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 Radiated emission test –TX (Below 30MHz) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06120703 Report No.: FCCA06120703 Page:21 of 22 Date: Dec. 14, 2006 FCC ID: HQXAXM-403 Radiated emission test – TX (Below 1GHz)
