HQXAXM-5072.4GHz Wireless Mouse

AXM-507 Mouse User Manual AXM-507 User’s Guide 1. Connecting with Computer: Take out this mouse from the packing.Open the afterbody of the mouse, take the receiver out .Plug the Receiver into the PC USB Port . Under Win2000 or higher , wait for the OS to detect the RF device. Under Windows 98 or lower installation of driver for the device is necessary. 2. Inserting Batteries: A. Push the battery cover compartment backwards and open it . B. Insert 2 AAA batteries Into compartment with correct orientation . C. Slide the battery cover into the compartment and close the cover . 3. ID Link: When Factory ID has been changed or wish to be changed , link ID as below : A. Press the ID button on the top of the receiver and the led on it starts blinking . B. Press the ID button on the bottom of the mouse . If blinking of that led turns faster , ID Link is OK . Warning ! ID linking should be completed within 10 seconds or connection would be failed. 4. use of special buttons Press the button on the bottom, then you can change the houseing of the mouse which you like. 5. Trouble Shooting: A. When mouse doesn’t respond, check the battery power status, and link ID again. B. Be sure the two DC Jacks be connected to the right respective mouse or receiver DC sockets C. Check the battery pole if the optical Led is still off after inserting batteries. D .Ask for maintenance solution from your retailer and engineer . Personally taking apart prohibited after trouble happened. 6.Spec. ： 1. CYPRESS6936+CYPRESS60323+Avago50 30 2.General painting with several colors 3. Bulk packaging 4. Receiver out 5.2.4HZ 6.With 2 AAA batteries 7.RoHS 7. FCC Note : This equipment has been tested and comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful intererence to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

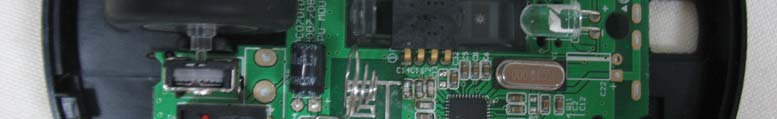

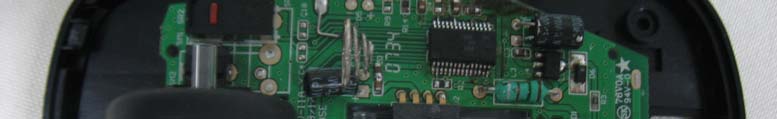

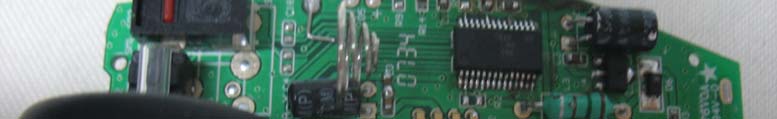

Project No.: 0710C033 Page 2 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 3 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 2 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 3 of 7 Neutron Engineering Inc. 0710C033 0710C033

Project No.: 0710C033 Page 4 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 5 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 6 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 7 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 4 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 5 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 6 of 7 Neutron Engineering Inc. 0710C033 0710C033 Project No.: 0710C033 Page 7 of 7 Neutron Engineering Inc. 0710C033 0710C033

Resistance 0 OHM 5% 0603 location: R14, Resistance 68 OHM 5% 0603 location: R3, Resistance 100K 1% 0603 location: R6, Capacitance SMT 1.5P 0603 NPO 50V ±0.25P location: C14 Capacitance 2P 50V 0603 NPO ±0.25P location: C15 Capacitance 15P 0603 NPO location: C16 Capacitance 0.1U 25V 0603 location: C1,C2,C5,C6,C7,C8,C9,C10,C11,C12,C20,C26,C27,C30,C31,C32 inductance 1.8NH 5% 0603 R50 location: L1 inductance 22NH 5% 0603 R50 location: L2 Diode 1N5817 1A 20V SMD TO-123 location: D6 IC Cypress 60323 SMT 28PIN 2.4V-3.6V location: U1 IC Cypress 6936 SMD 40PIN 1.8V-3.6V loca tion: U3 IC XC6385A301PR SOT-89 (TOREX) location: U4 Crystal oscillation 12MHz 49US DIP 20PPM 10PF R50 location: Y1 inductance 150uH ±10% 1/2 location: L3 ENCODER Kaihua 3P L:9mm T=25gfR50 location: S1 IC Avago Sensor 5030 DIP-8 500/1000DPI R50 location: U2 Capacitance E/C 4.7U 50V 4*7mm location:C21 Capacitance E/C 6.3V 100UF 5*7 ±20% location: C25,C23 Capacitance SMT 1.5P 0603 NPO 50V ±0.25P location: C4 Capacitance 2P 50V 0603 NPO ±0.25P location: C3 Capacitance SMT C/C 15P 0603 NPO location: C1 Capacitance C/C 0.1U 25V 0603 Y5V -20%+80% location: C5,C6,C7,C8,C9,C10,C11,C13,C14 Resistance 0 OHM 1% 0603 location: R1 Resistance 560 OHM 0603 location: R2 LED TSUY-2S 2P SMT 160±30gF location: D1 Crystal oscillation 12MHz 49SS SMT 20PPM 10PF H=2.5mm R50 location: X1 IC Cypress 63803 SMD 16PIN location: U2 ’ IC Cypress 6936 SMD 40PIN 1.8V-3.6V location: U1 ’

Report No.: NEI-FCCP-1-0710C033 Page 2 of 49 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-0710C033 Page 3 of 49 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHz) 24 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 36 4.2.10 TEST RESULTS (Restricted Bands Requirements) 37 5 . BANDWIDTH TEST 41 5.1 MEASUREMENT INSTRUMENTS LIST 41 5.2 TEST PROCEDURE 41 5.3 DEVIATION FROM STANDARD 41 5.4 TEST SETUP 41 5.5 EUT OPERATION CONDITIONS 41 5.6 TEST RESULTS 42 Report No.: NEI-FCCP-1-0710C033 Page 4 of 49 Neutron Engineering Inc. Table of Contents Page 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 MEASUREMENT INSTRUMENTS LIST 44 6.1.2 TEST PROCEDURE 44 6.1.3 DEVIATION FROM STANDARD 44 6.1.4 TEST SETUP 44 6.1.5 EUT OPERATION CONDITIONS 45 6.1.6 TEST RESULTS 46 7 . EUT TEST PHOTO 48 Report No.: NEI-FCCP-1-0710C033 Page 5 of 49 Neutron Engineering Inc. 1. CERTIFICATION E q u i p m e n t : 2.4G Wireless Mouse Trade Name : Sysgration Model Name. : AXM-507 A p p l i c a n t : Sysgration Ltd. Date of Test : Aug. 01, 2007~ Oct. 17, 2007 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249)/ ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-0710C033) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-0710C033 Page 6 of 49 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: NEI-FCCP-1-0710C033 Page 7 of 49 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Report No.: NEI-FCCP-1-0710C033 Page 8 of 49 Neutron Engineering Inc. 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment 2.4G Wireless Mouse Trade Name Sysgration Model Name. AXM-507 OEM Brand/Model Name. ADE-WLOI1/ADVENT Model Difference N/A Product Description The EUT is a 2.4G Wireless Mouse. Product Type Low Power Communication Device Operation Frequency: 2402~2481 MHz Modulation Type: GFSK Number Of Channel 80CH Antenna Designation: Printed antenna Antenna Gain(Peak) 0.56 dBi (Mouse) Output Power: 59.82 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT techni…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-0710C033 Page 48 of 49 Neutron Engineering Inc. 7. EUT TEST PHOTO Conducted Measurement Photos Normal Link Report No.: NEI-FCCP-1-0710C033 Page 49 of 49 Neutron Engineering Inc. Radiated Measurement Photos TX Mode Report No.: NEI-FCCP-1-0710C033 Page 48 of 49 Neutron Engineering Inc. 7. EUT TEST PHOTO Conducted Measurement Photos Normal Link Report No.: NEI-FCCP-1-0710C033 Page 49 of 49 Neutron Engineering Inc. Radiated Measurement Photos TX Mode
