HQXAXM-801BTBluetooth Mouse

2.4G Bluetooth Mouse Users’ Guide Installation. 1. Insert battery into the mouse. 2. This mouse provides factory default ID and so the link will be set up after a while. 3. Click the mouse key and her res ponse will be read on the monitor. Trouble Shooting 1. No connection between the mouse and the receiver. Re-insert the receiver. Try to insert rece iver to another USB port on your computer. 2. No any response on the mouse. Take out the battery from the mouse and reinstall it with correct orientation. Try a new battery if necessary. Power Supply DC3V supplied by the battery(2*1.5V) Frequency Range 2402 ~ 2480 MHz Modulation Technique FHSS(GFSK) Number of Channels 79 Channels Antenna Specification PCB Antenna Gain: -0.32dBi (Max) Note: FCC Caution: Any changes or modification s not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FC C Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Su ch modifications could void the user authority to operate the equipment.

Sysgration Ltd. 10Fl.,No.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C November 18, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：HQXAXM-801BT Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Name/Title: Oracle Chang / Assistant Manager Company Name: Sysgration Ltd. Address: 10Fl.,NO.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C. TEL: +886-2-82217111-202 FAX: +886-2-82217113 Email: [email protected] Signature:

Sysgration Ltd. 10Fl.,No.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C. November 18, 2010 FCC ID：HQXAXM-801BT Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Name: Aven Zhou Job Title: Supervisor Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Sysgration, Polaroid / AXM-801BT,PMI6500 FCC ID: HQXAXM-801BT Product Name: Bluetooth Mouse Signature Name/Title: Oracle Chang / Assistant Manager Company Name: Sysgration Ltd. Address: 10Fl.,NO.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C. TEL: +886-2-82217111-202 FAX: +886-2-82217113 Email: [email protected]

Report No: SZ101103B01 Page 1 / 3 Report No: SZ101103B01 Page 2 / 3 Report No: SZ101103B01 Page 3 / 3

Model: AXM-801BT FCC ID:HQXAXM-801BT RATING 3V- - -,15mA FOR HOME OR OFFICE USE MADE IN CHINA Model: PMI6500 FCC ID:HQXAXM-801BT RATING 3V- - -,15mA FOR HOME OR OFFICE USE MADE IN CHINA

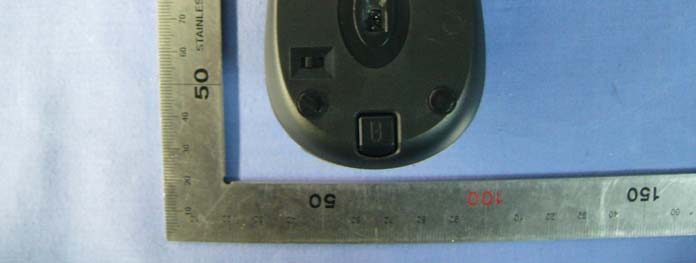

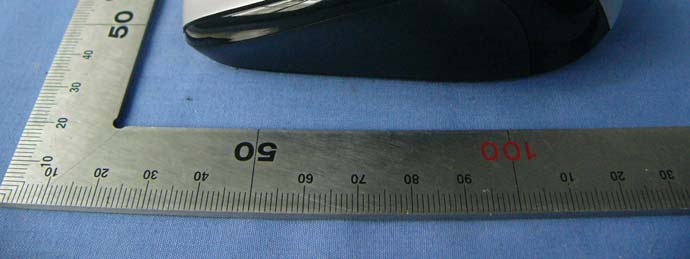

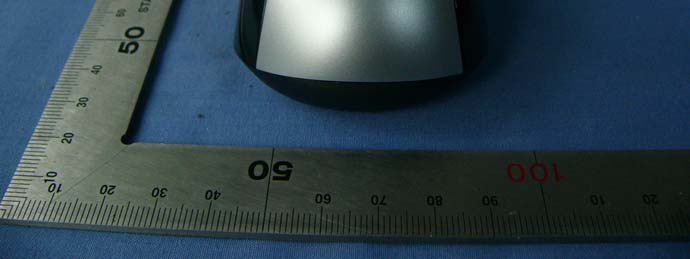

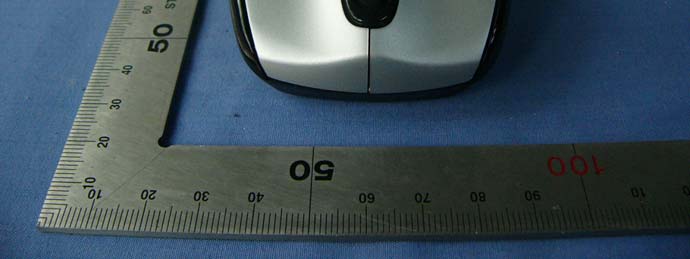

Reference No: Report No: SZ101103B01 Page 1 / 2 Internal Photos of EUT Reference No: Report No: SZ101103B01 Page 2 / 2

Report No: SZ101103B01-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. FCC ID: HQXAXM-801BT Page 1 of 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Mouse MODEL: AXM-801BT/PMI6500 Trade Name: Sysgration / Polaroid Test Report Number: SZ101103B01-RP Prepared for Sysgration Ltd. 10Fl.,NO.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C. Prepared by Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18 Huanguan South Road. Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: November 10, 2010 Report No: SZ101103B01-RP FCC ID: HQXAXM-801BT Page 2 of 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ101103B01-RP Initial Issue ALL Vincent Yao Report No: SZ101103B01-RP FCC ID: HQXAXM-801BT Page 3 of 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES............................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES...............................................................................................................7 4.2 ACCREDITATIONS ..................................................................................................7 4.3 MEASUREMENT UNCERTAINTY............................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT...................................................................................8 5.2 SUPPORT EQUIPMENT .........................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20DB BANDWIDTH................................................................................................................. 9 6.2 PEAK POWER........................................................................................................................ 12 6.3 PEAK POWER SPECTRAL DENSITY....................................................................................... 14 6.4 BAND EDGES MEASUREMENT.................................................................................... 15 6.5 FREQUENCY SEPARATION.......................................................................................... 21 6.6 NUMBER OF HOPPING FREQUENCY......................................................................... 23 6.7 TIME OF OCCUPANCY (DWELL TIME)........................................................................ 25 6.8 SPURIOUS EMISSIONS.................................................................................................... 32 6.9 POWERLINE CONDUCTED EMISSIONS.................................................................................. 42 7. ANNEX DECLARATION FOR BLUETOOTH DEVICE ACC..........................................44 Report No: SZ101103B01-RP FCC ID: HQXAXM-801BT Page 4 of 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Bluetooth Mouse Model: AXM-801BT/PMI6500 Brand: Sysgration / Polaroid Tested: November 03-10, 2010 Applicant: Sysgration Ltd. 10Fl.,NO.868-3,Chung Cheng Rd.,Chung Ho,Taipei,Taiwan,R.O.C. Manufacturer: Sysgration(Shenzhen) Ltd. Egongling Village, Pinghu Town, Longgang District. Shenzhen City. China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Vincent Yao Assistant Manager Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: SZ101103B01-RP FCC ID: HQXAXM-801BT Page 5 of 47 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Bluetooth Mouse Model Number AXM-801BT/PMI6500 Trade Name Sysgration / Polaroid Model Discrepancy N/A Identify Number SZ101103B01-RP Power Supply DC3V supplied by the battery(2*1.5V) Frequency Range 2402 ~ 2480 MHz Transmit Power 1.54dBm Modulation Technique FHSS(GFSK) Number of Channels 79…
