HQXFTR-2000Wireless FM Modulation with DIP Switch
Sysgration Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jun 24, 2004
- Application Purpose
- Original Equipment
- Date of Application
- Jun 24, 2004
- Equipment Note
- Wireless FM Modulation with DIP Switch
- Frequency Range
- 88.10000000 - 88.90000000
- Company
- Sysgration Ltd.
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
User's Manual FTR-2000 Wireless FM Modulator with DIP Switch All Rights Reserved This user manual contains proprietary information, which is protected by copyrights. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written permission of Sysgration Ltd. Sysgration Ltd. 10FL. No. 868-3, Chung Cheng Rd., Chung Ho 235, Taipei, Taiwan, R.O.C. -1- -2- Table of Contents Wiring and Installation-------------------------------------------------------------------------------------------------------------------------------------------3 Input/OutputPorts------------------------------------------------------------------------------------------------------------------------------------------------4 Frequency Table--------------------------------------------------------------------------------------------------------------------------------------------------5 Specifications-----------------------------------------------------------------------------------------------------------------------------------------------------6 Wiring and Installation -3- Red Black 12VDC GND Red White Yellow Input/Output Ports -4- 1. POWER LED The LED turns red when power (12VDC) is provided. 2. DIP SWITCH 4 poles with number 1, 2, 3, and 4 (from bottom to top) 3. AUDIO INPUT (2 RCA Jacks) (1) L (Red): left channel (2) R (White): right channel 4. FREQUENCY TABLE The table that depicts how to arrange the poles in DIP switch for getting the specified frequency on the FM band. There are 7 frequencies available: 88.1, 88.3, and 88.9MHz. Please refer to section 5. POWER LINE (1) RED: 12V DC (2) BLACK: Ground 88.5, 88.7, POWERPOWER LL RR AUDIOAUDIO INPUTINPUT 1 2 3 4 5 MHzMHz 88.188.1 88.388.3 88.588.5 88.788.7 88.988.9 11223344 LB2-404006 Frequency Table -5- MHzMHz 88.188.1 88.388.3 88.588.5 88.788.7 88.988.9 11223344 LB2-404006 Operation Temperature Storage Temperature Power Consumption Specifications o 0-60C o -20-80C 500mW 9-16 VDC from vehicular battery -6-

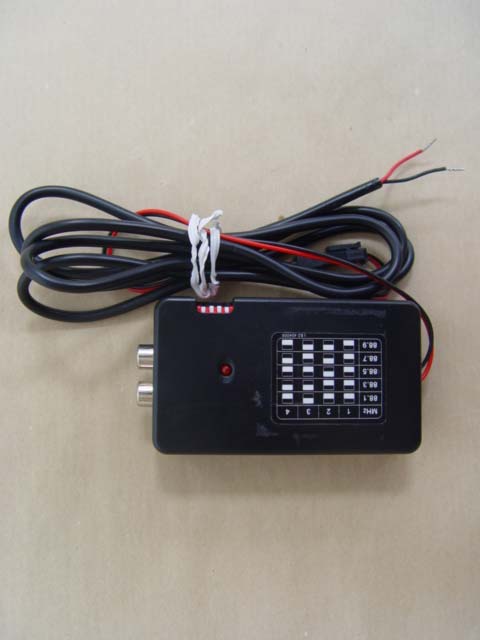

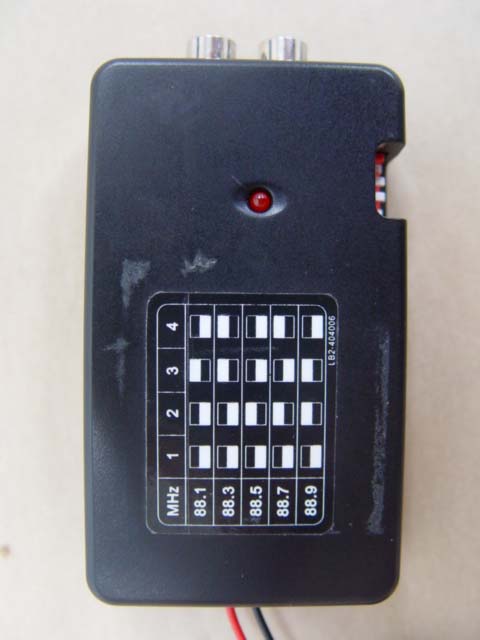

External Photos
Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH External Photo
ID Label/Location Info
ID LABLE ไฝ็ฝฎๅ
ID Label/Location Info
30.4 mm 2mm 17.1 mm FCC ID : HQXFTR-2000
Internal Photos
Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Internal Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Internal Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Internal Photo Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Internal Photo
Test Report
ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID:HQXFTR-2000 Test report no.: W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20405-5178-C-1 FCC ID: HQXFTR-2000 ETS Dr. Genz GmbH, Germany 2 of 28 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY.......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 SUMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 TEST EQUIPMENT LIST.......................................................................................................... 8 2.4 G ENERAL TEST PROCEDURE............................................................................................... 15 3 TEST RESULTS (ENCLOSURE).......................................................................................... 17 3.1 EMISSION BANDWIDTH....................................................................................................... 18 3.2 CARRIER ( FIELD STRENGTH) .............................................................................................. 19 3.3 SPURIOUS EMISSION............................................................................................................ 20 3.4 P OWER LINE CONDUCTED EMISSION.................................................................................. 22 APPENDIX ....................................................................................................................................... 23 APPENDIX A.................................................................................................................................... 24 A PPENDIX B .................................................................................................................................... 25 A PPENDIX C .................................................................................................................................... 26 APPENDIX D.................................................................................................................................... 27 A PPENDIX E .................................................................................................................................... 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20405-5178-C-1 FCC ID: HQXFTR-2000 ETS Dr. Genz GmbH, Germany 3 of 28 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 01.06.2004 Date ETS-Lab. Name Signature Technical responsibility for area of testing: 01.06.2004 Date ETS Name Signature ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20405-5178-C-1 FCC ID: HQXFTR-2000 ETS Dr. Genz GmbH, Germany 4 of 28 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straรe 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status Accredited testing laboratory DAR- REGISTRATION NUMBER: TTI-P-G 126/96 Accredited Competent Body DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983-01 1.3 Details of approval holder Name : SYSGRATION LTD. Street : 10 FL. No. 868-3, Chung Cheng Rd., Town : Chโฆ
Text truncated - open the document above for the full version.
Test Setup Photos
ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Test Setup ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Test Setup ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20405-5178-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Test Setup
Contact Information
Applicant
Arthur Dai(Manager)
Technical Contact
ETS Dr. Genz TAIWAN PS CO., LTDSteven Chuang
[email protected]+886-2-6606-8877
6F., No.58, Lane 188, Ruey Kuang Road, Neihu ยท Taipei ยท Taiwan
Non-Technical Contact
ETS Dr. Genz TAIWAN PS CO., LTDLulu Lin
[email protected]+886-2-6606-8877
Test Firm
Eurofins Product Service GmbHRobert Kschiwan-Kaspar
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 88.1 MHz - 88.9 MHz | - |
