HQXJRVCS1CMJRVCS1 Body Control Module

JRVCS1 RV CONTROL AND MONITORING SYSTEM Installation and O peration Manual JRVCS1 ii CONTENTS CONTENTS ...................................................... ............................................................... ............ ii Introduction .................................................. ............................................................... ................. 4 Thank You! .................................................... ............................................................... ......... 4 Features ...................................................... ............................................................... ........... 4 Precautions ................................................... ............................................................... ......... 4 Packing List .................................................. ............................................................... ......... 4 Installation .................................................. ............................................................... ................... 5 Tools and Supplies ............................................ ............................................................... ..... 5 Disconnecting the Battery ..................................... ............................................................... . 5 Selecting the Mounting Location ............................... ............................................................ 5 Mounting the Digital Commander (DC) ........................... ...................................................... 5 Wiring ........................................................ ............................................................... .................... 6 Troubleshooting ............................................... ............................................................... ............. 9 Specifications ................................................ ............................................................... .............. 11 FCC Notes ..................................................... ............................................................... ...... 11 JRVCS1 iii JRVCS1 4 INTRODUCTION Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to l ook through it, you’ll learn how to use all the features of your new Jensen JRVCS1 for maximum enjo yment. Features Features of Jensen JRVCS1 system include:  Control four zones of lighting.  Monitor all water tank levels.  Control and monitor the Water Heater.  Control and monitor the Generator. Precautions  Use the Proper Power Supply. This product is designed to operate with a 12 volt DC, negative ground battery system (the standard system in a North American vehicle).  Use Authorized Service Centers. Do not attempt to disassemble or adjust this precision product; contact a professional for assistance.  Avoid Moisture. To reduce the risk of fire or electric shock, do not expose thi s equipment to rain or moisture.  Avoid Cleaning Products. The front of this unit should only be cleaned with a slightly d amp cloth. Do not use cleansers.  Use Recommended Accessories. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES. Packing List 1 Cover, 2 Thumb Screws 1 Body Control Module (BCM) 1 Displ ay Commander (DC) JRVCS1 5 INSTALLATION It’s a good idea to read all of the instructions before beginni ng the installation. We recommend having your Jensen JRVCS1 installed by a reputable RV dealershi p Tools and Supplies You will need these tools and supplies to install your JRVCS1:  Phillips screwdriver  Wire cutters and strippers  Electrical tape  Crimping tool  Volt meter/test light  Fork Crimp connectors  10 gauge wire for power and slide connections  14 and 18 gauge wire for all other connections  Four #8 PH (0.164” x 0.75”) screws for the DC  Six #8 PH (0.164” x 1.0”) screws for the BCM Disconnecting the Battery To prevent a short circuit, be sure to turn off 12V power and r emove the negative (-) battery cable prior to installation. Selecting the Mounting Location Select a mounting location, taking care to avoid the following:  Places exposed to heat-radiating appliances such as electric h eaters  Adjacent to other equipment that radiates heat  Poorly-ventilated or dusty places  Moist or humid locations Mounting the Display Commander (DC)  Use the mounting hole diagram to measure and cut a mounting hol e  Route power wires through the hole and connect  Check and ensure correct operation  Mount the unit using four #8 PH (0.164” x 0.75”) screws  Attach Trim ring.  CUTOUT FOR DISPLAY COMMANDER (DC) NOTE: Before cutting the mounting hole, make sure the area behind the mounting location is clear of wires, fuel and vacuum or water lines. 格式化: 字型: 粗體 格式化: 左 0 字元 格式化: 縮排: 左: 0.63 公分 JRVCS1 6 WIRING The wiring diagram depicts all the wiring connections required for proper operation of the unit . DETAIL A BODY CONTROL MODULE (BCM) CONNECTIONS PIN NO. WIRE COLOR/SIZE DESCRIPTION 1 BLUE (18) FRESH TANK 1 (IN) 2 FRESH TANK 2 (IN) 3 BROWN (18) BLACK TANK 1 (IN) 4 LIGHT BLUE (18) BLACK TANK 2 (IN) 5 GRAY ( 18) GRAY TANK 1 (IN) 6 RED (18) GRAY TANK 2 (IN) 7 LIGHT BLUE (18) GRAY TANK 3 (IN) 8 WHITE (18) TANK SENSOR GRO UND (IN) 9 GREEN (14) LIGHT GROUP 1 + (IN) 10 WHITE (14) LIGHT GROUP 1 - (IN/OUT) 11 GREEN (14) LIGHT GROUP 1 + (OUT) 12 GREEN (14) LIGHT GROUP 2 + (IN) 13 WHITE (14) LIGHT GROUP 2 - (IN/OUT) 14 GREEN (14) LIGHT GROUP 2 + (OUT) 15 GREEN (14) LIGHT GROUP 3 + (IN) 16 WHITE (14) LIGHT GROUP 3 – (IN/OUT) 17 GREEN (14) LIGHT GROUP 3 + (OUT) 18 GREEN (14) LIGHT GROUP 4 + (IN) 19 LIGHT WHITE (14) LIGHT GROUP 4 - (IN/OUT) 20 LIGHT GREEN (14) LIGHT GROUP 4 + (OUT) 21 ORANGE (14) EXTERIOR LIGHTS + (IN) 22 WHITE (14) EXTERIOR LIGHTS - (IN/OUT) 23 LIGHT ORANGE (14) EXTERI…

Text truncated - open the document above for the full version.

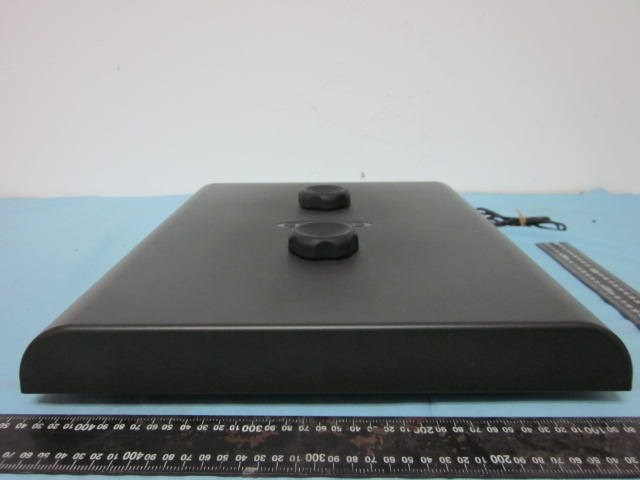

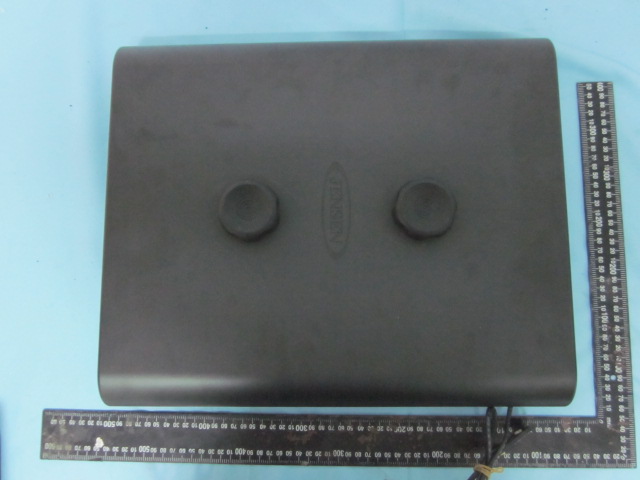

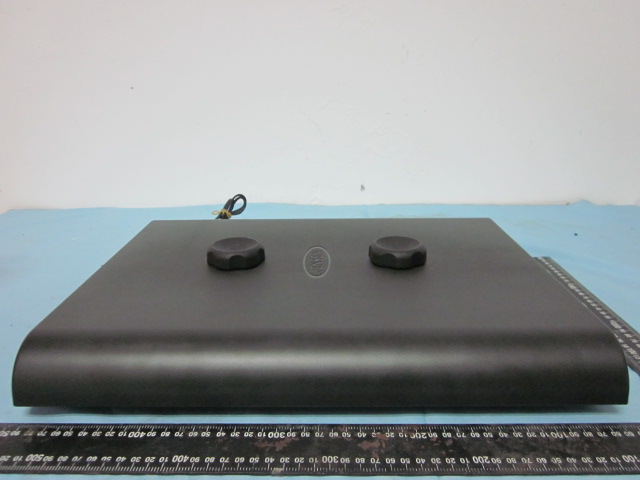

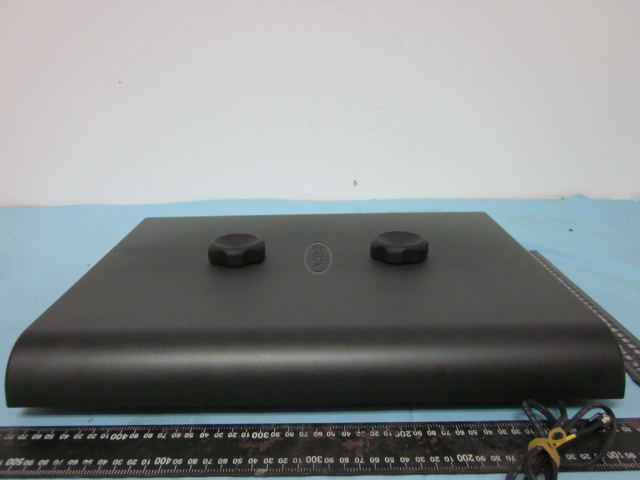

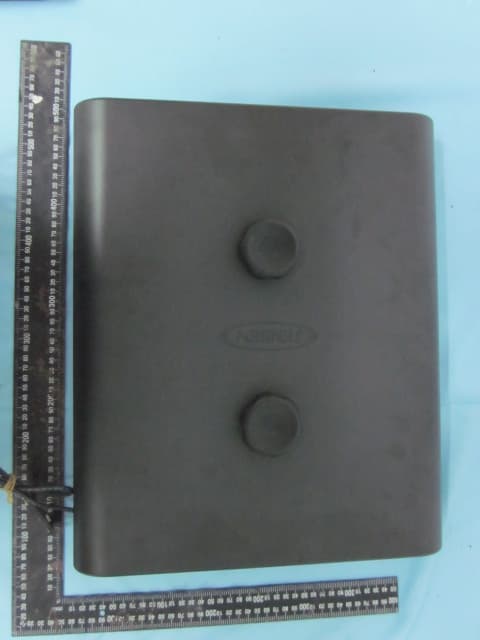

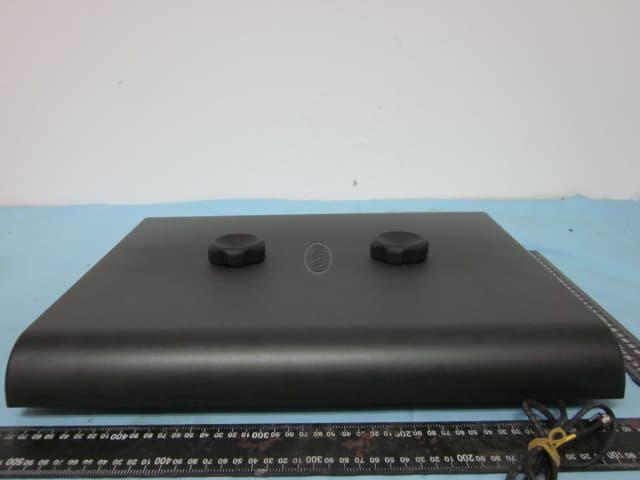

ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 1 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 1. 2. ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 2 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 3. 4. ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 3 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 5. 6.

ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 4 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 7. ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 5 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 8 9. ETC Report No. : 15-05-RBF-038 FCC ID.: HQXJRVCS1CM Sheet 6 of 6 Sheets Rev. No 2.1 CONSTRUCTION PHOTOS OF EUT 10. 11. Antenna

Statement of Justification and Compliance for SAR Test Exclusion Product: JRVCS1 Body Control Module FCC ID: HQXJRVCS1CM Manufacturer: SYSGRATION LTD.(Nan-Kang Factory) Brand: JENSEN Model: JRVCS1CM According to FCC KDB 447498 D01 General RF Exposure Guidance v05 4.3.1. Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. For the present device, the declared output power is 0dBm Max.. So, max. power of channel, including tune-up tolerance = 1.0 mW (0dBm) min. test separation distance = 5 mm f(GHz) = 2.480 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] = (1.0 / 5) · (√2.480) = 0.31 ≤ 3.0 Hence the SAR Exclusion Threshold condition is satisfied and the SAR evaluation for general population exposure conditions is not required.
