HQXR07M2.4G Wireless Transceiver

2.4G Wireless Receiver Users’ Guide System Requirements Hardware USB interface Operationg System Microsoft Windows 7 Microsoft Windows Vista Microsoft Windows XP Microsoft Windows 2000 Installation（Connecting the Receiver） 1. plug the USB receiver into an open USB port on your computer,Yourcomputer’s operating system will identify the receiver and install the default driver. Trouble Shooting 1. No connection between the mouse and the receiver. Re-insert the receiver. Try to insert receiver to another USB port on your computer. 2. No any response on the mouse. Take out the battery from the mouse and reinstall it with correct orientation. Try a new battery if necessary. Note: FCC statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Sysgration Ltd. 10FL, NO.868-3, Chung Rd, Chung Ho, Taipei, Taiwan, R.O.C. FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 . We, (the approval holder) Company name Sysgration Ltd. Addresss 10FL, NO.868-3, Chung Rd, Chung Ho, City Taipei, Taiwan, R.O.C. Country declare that the following representative (agent): Name (person) Aven zhou Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.4G Wireless Receiver Type or Model(s) R07M,R22M Tradename or Brand(s) Sysgration We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process (sign and apply for) this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei, Taiwan, R.O.C. February 16, 2012 Paul Huang Manager

Sysgration Ltd. 10FL, NO.868-3, Chung Rd, Chung Ho, Taipei, Taiwan, R.O.C. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Sysgration Ltd. Addresss 10FL, NO.868-3, Chung Rd, Chung Ho City Taipei, Taiwan, R.O.C. Country FF request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: HQX R07M of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a ) Function: Signature: (or official company stamp) New Taipei, Taiwan, R.O.C. February 16, 2011 Paul Huang Manager

Sysgration Ltd. 10FL, NO.868-3, Chung Rd, Chung Ho Taipei, Taiwan, R.O.C. FCC Declaration of Conformity A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: Sysgration Ltd. Address: 10FL, NO.868-3, Chung Rd, Chung Ho Postal/Zip: City: Taipei State/Province: Country: Taiwan, R.O.C. Contact Person: Mr. Ms. Name: Paul Huang Function: Manager Email: [email protected] Web: www.sysgration.com Phone: +886 282217111215 Fax: +886 282211775 declare for the equipment identified by: Product Description 2.4G Wireless Receiver Type or Model(s) R07M, R22M Tradename or Brand(s) Sysgration that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Accredited Test Firm or Laboratory name: Accreditation Reference: Test Report Number: Date of issue: Compliance Certification Services (Hsinchu), Inc. APEC TEL TW1027 SZ120221B04 Feb. 20. 2012 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Enschede, The Netherlands Feb. 20, 2012 Mark Koop (authorized representative) Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Report No: SZ120105B02-RP Page 1 / 4 Report No: SZ120105B02-RP Page 2 / 4 Report No: SZ120105B02-RP Page 3 / 4 Report No: SZ120105B02-RP Page 4 / 4

FCC DoC logo

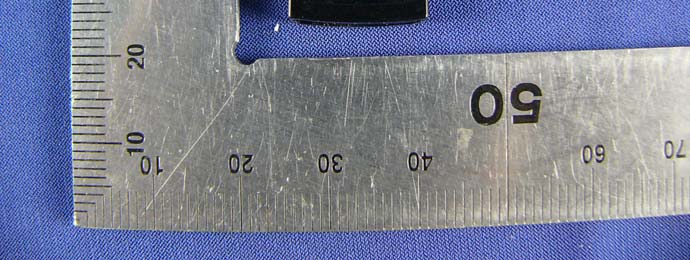

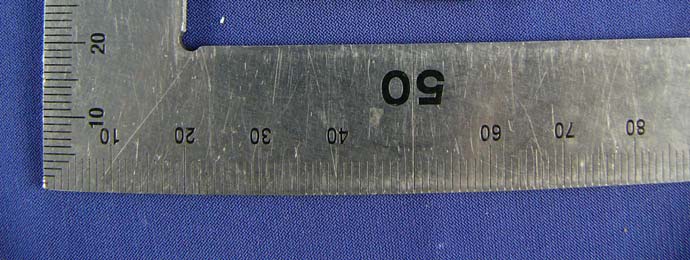

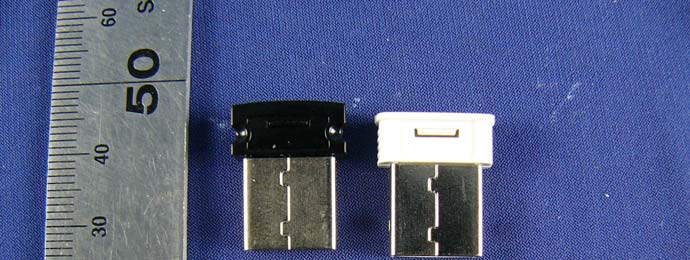

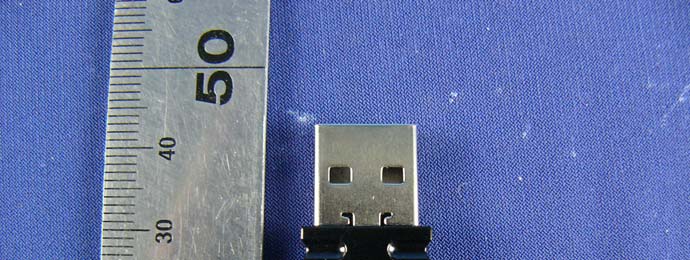

Report No.: SZ120105B02-RP Page 1 / 3 Internal Photos of EUT Report No.: SZ120105B02-RP Page 2 / 3 Report No.: SZ120105B02-RP Page 3 / 3

Report No: SZ120105B02-RP FCC ID: HQXR07M Page 1 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC TEST REPORT for 2.4G Wireless Receiver Model: R07M, R22M Brand: Sysgration Test Report Number: SZ120105B02-RP Issued for Sysgration Ltd. 10FL, NO.868-3, Chung Rd., Chung Ho, Taipei, Taiwan, R.O.C. Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: January 17, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. Report No: SZ120105B02-RP FCC ID: HQXR07M Page 2 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ120105B02-RP Initial Issue ALL Sunny Wang Report No: SZ120105B02-RP FCC ID: HQXR07M Page 3 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ...........................................................................................4 2 EUT DESCRIPTION.................................................................................................5 3 TEST METHODOLOGY...........................................................................................6 3.1. DESCRIPTION OF TEST MODES.......................................................................................6 4 TEST METHODOLOGY...........................................................................................7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 5 INSTRUMENT CALIBRATION ................................................................................8 6 SETUP OF EQUIPMENT UNDER TEST .................................................................8 6.1. DESCRIPTION OF SUPPORT UNITS .................................................................................8 6.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................................8 7 FACILITIES AND ACCREDITATIONS ....................................................................9 7.1. FACILITIES ..........................................................................................................................9 7.2. ACCREDITATIONS ..............................................................................................................9 7.3. MEASUREMENT UNCERTAINTY .......................................................................................9 8 FCC PART 15.249 REQUIREMENTS ...................................................................10 8.1. BAND EDGES MEASUREMENT .......................................................................................10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ...........................................12 8.3. SPURIOUS EMISSIONS MEASUREMENT .......................................................................20 Report No: SZ120105B02-RP FCC ID: HQXR07M Page 4 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product 2.4G Wireless Receiver Model R07M, R22M Brand Sysgration Tested January 5~16, 2012 Applicant Sysgration Ltd. 10FL, NO.868-3, Chung Rd., Chung Ho, Taipei, Taiwan, R.O.C. Manufacturer Sysgration (Shenzhen) Ltd. Egongling Village, Pinghu Town, Longgang Dist. Shenzhen City. China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: SZ120105B02-RP FCC ID: HQXR07M Page 5 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product 2.4G Wireless Receiver Model Number R07M, R22M Trade Name Sysgration Model Discrepancy The models are identical except the appearance is different. Serial Number SZ120105B02-RP Power Supply DC5V supplied by the PC Frequency Range 2408-2474 MHz Transmit Power Peak: 83.98 dBuV/m (Max.) Average: 83.90 dBuV/m (Max.) Modulation Technique FSK Number of Channels 67 Channels Antenna Specification PCB Antenna with 3.53 dBi gain(MAX) Temperature Range 0°C ~ +40°C Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: HQXR07M filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. Report No: …
