HQXWVOM713Digital Wireless 7" Monitor

Sysgration Ltd.
Digital Wireless 7" Monitor - FCC ID HQXWVOM713 - Sysgration Ltd.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
May 17, 2012
Application Purpose
Original Equipment
Date of Application
May 17, 2012
Equipment Note
Digital Wireless 7" Monitor
Frequency Range
2403.00000000 - 2478.00000000
Company
Sysgration Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

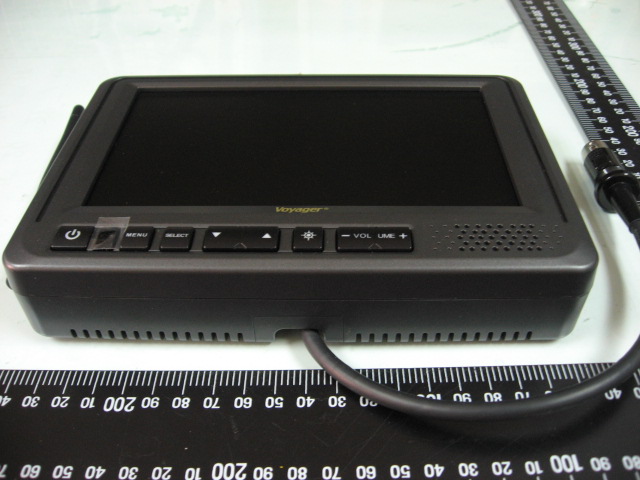

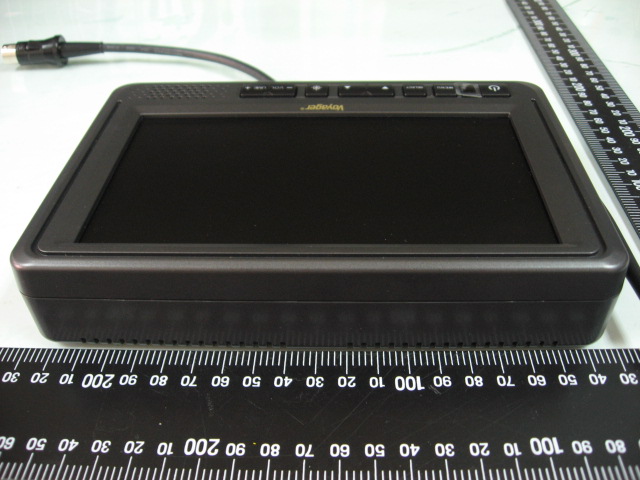

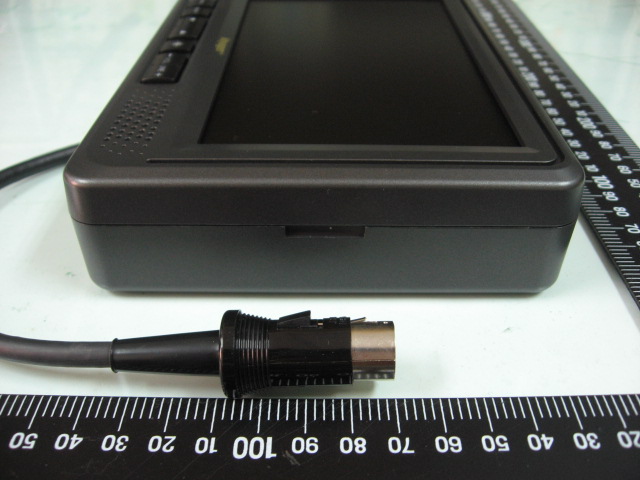

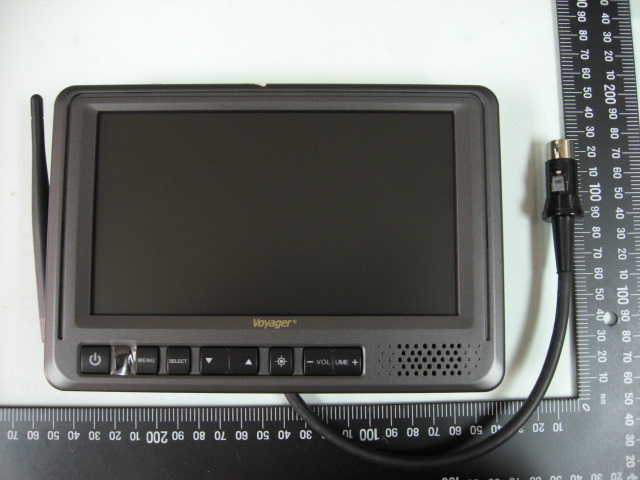

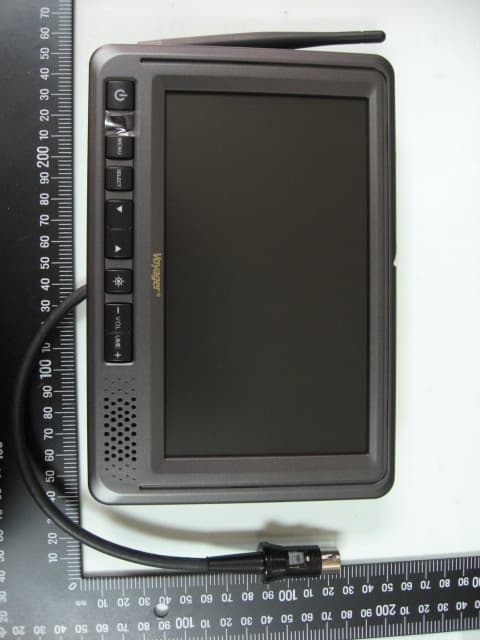

ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 1 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 2 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 3 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ID Label/Location Info

WVOM713 電子 FCC Caution Label X1.00 1 of 1 LC2-1204001-1R 2012.0510 XMMYYSSTN00001 WVOM713MO XMMYYSSTN00001 WVOM713MO WVOM713MO BOX Barcode Label LB2-1111002-1R

Internal Photos

ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 4 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 5 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 6 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. 12. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 7 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 13. 14. ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 8 of 8 Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 15.

RF Exposure Info

FCC ID: WVOM713 RF Exposure Evaluation of E.U.T. : SYSGRATION LTD. FCC ID. : WVOM713 MODEL : HQXWVOM713 for APPLICANT : SYSGRATION LTD. ADDRESS : 10FL, No.868-3, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan, R.O.C. Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-03-RBF-135-MPE FCC ID: WVOM713 Product Information: Type of EUT: Digital Wireless 7” Monitor FCC ID: WVOM713 Manufacturer: SYSGRATION LTD. Model: WVOM713 Description: Digital Wireless 7” Monitor with built-in 2.4GHz band transceiver of FHSS modulation. Working frequency is ranging from 2403 MHz to 2478MHz with channel separation of 3MHz and total 26 channels. Maximum conducted output power (measured): 15.55 dBm or 35.892mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric AN-152NSAU01 Omni-directional 3 2.0 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: WVOM713 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: WVOM713 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4Ο€R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4Ο€S) 1/2 For our device P = 35.892mW G = 2.00 R = 20 cm S = (35.892 * 2.00) / (4*Ο€*20 2 ) = 0.014 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Test Report

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Digital Wireless 7” Monitor Model : HQXWVOM713 FCC ID : WVOM713 for APPLICANT : SYSGRATION LTD. ADDRESS : 10F, NO. 868-3, Zhongzherng Rd, Zhonghe Dist, new Taipei city 235, Taiwan (R.O.C.) Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 12-03-RBF-135 ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : SYSGRATION LTD. 10F, NO. 868-3, Zhongzherng Rd, Zhonghe Dist, new Taipei city 235, Taiwan (R.O.C.) Manufacture : SYSGRATION LTD. (1)No.26,North Industry Rd., Nan-Kan Idustrial Zone,Nan-Tou City, Nan-Tou County, Taiwan (2)10FL,No.868-3,Chung Cheng Rd., Chung Ho 235,Taipei, Taiwan, R.O.C. Description of Device : a) Type of EUT : Digital Wireless 7” Monitor b) Trade Name : Voyager c) Model No. : WVOM713 d) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Hopping Channel Separation Pass Number of Hopping frequencies used Pass Hopping Channel Bandwidth Pass Dwell Time of each frequency Pass Output Power Requirement Pass 100 kHz Bandwidth of Frequency Band Edges Requirement Pass Out-of-Band Conducted Emission Requirement Pass ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Rev. No 1.0 Date Test Item Received : Mar. 16, 2012 Date Test Campaign Completed : Apr. 19, 2012 Date of Issue : Apr. 25, 2012 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation.......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 17 5.1 Description ................................................................................................................................. 17 6 ANTENNA REQUIREMENT .................................................................................................... 18 6.1 Standard Applicable ................................................................................................................... 18 6.2 Antenna Construction................................................................................................................. 18 7 HOPPING CHANNEL SEPARATION..................................................................................... 19 7.1 Standard Applicable ................................................................................................................... 19 7.2 Meas…

Text truncated - open the document above for the full version.

Test Setup Photos

ETC Report No. : 12-03-RBF-135 FCC ID.: HQXWVOM713 Sheet 16 of 57 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup

Contact Information

Applicant

Arthur Dai(Manager)
[email protected]886-2-2790-0088Fax: 886-2-2790-9000

Test Firm

Electronics Testing Center, TaiwanWill Yauo
[email protected]886-3-3280026Fax: 886-3-3280034

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz36.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
