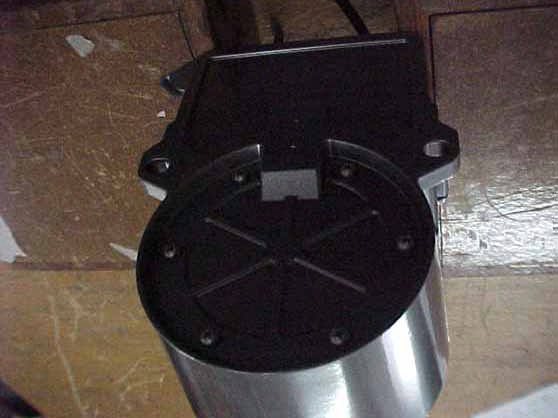

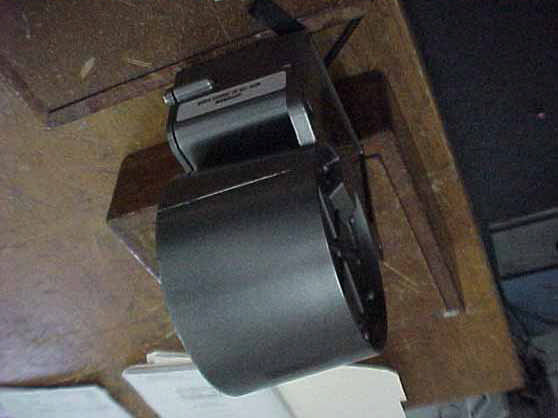

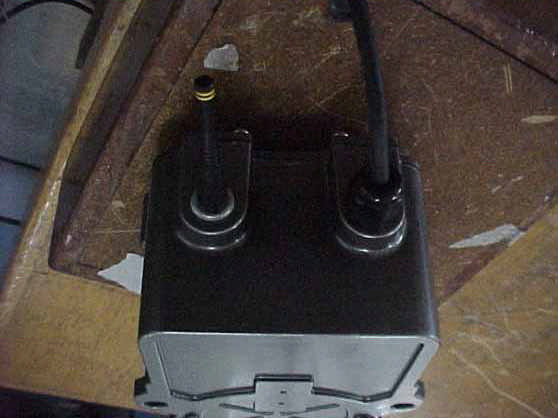

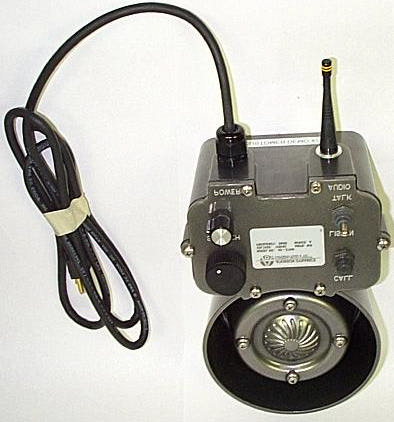

Address all communications and shipments to: 2645 Federal Signal Drive University Park, IL 60466-3195 (888)751-1500 Atkinson Dynamics Wireless Intercom Model AD-27W Installation and Service Instructions -1- INSTALLATION AND SERVICE INSTRUCTIONS FOR ATKINSON DYNAMICS WIRELESS HEAVY-DUTY INTERCOMS SAFETY MESSAGE TO INSTALLERS, USERS AND MAINTENANCE PERSONNEL It is important to follow all instructions shipped with this product. This device is to be installed by a trained electrician who is thoroughly familiar with the National Electrical Code and will follow NEC Guidelines as well as local codes. Marine installa- tions shall be in accordance with Title 46, CFR, Parts 110-113. The selection of the mounting location for the device is to be accomplished under the direction of the facilities engineer and the safety engineer. In addition, listed below are some other important safety instructions and precautions you should follow: • This is not a listed safety device and is not intended to be used as such. • Read and understand all instructions before installing or operating this equipment. • Disconnect power before connecting or doing any maintenance on this intercom. • All effective warning speakers produce loud sounds which may cause in certain situations, permanent hearing loss. You should take appropriate precautions such as wearing hearing protection. • After testing is complete, provide a copy of this instruction sheet to all operating personnel. • Establish a procedure to routinely check the intercom installation for integrity and proper operation. Any maintenance must be performed by a trained electrician in accordance with NEC guidelines and local codes. Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death to you or others. A.GENERAL FEATURES. The Atkinson Dynamics wireless intercom is a heavy-duty, 2-way, communications device designed for industrial applications. The nominal operating voltage is 120VAC, 50/60 Hz. A “whip” style 1/4-wave antenna is built into the bottom of each unit. The intercoms operate in the 902-928 MHz band and offer the user eight selectable channels. A 4-position switch, located on the printed circuit board inside the unit, allows the user to select the channel of operation. All units in a system must be set to the same channel of frequency to communicate with each other. Refer to section E for details on setting the channel of operation. The range of the intercom is 500 feet under optimum conditions. The range is dependent on the environment and decreases when obstacles are in the way. Line-of-sight between intercoms will provide the best range. Each unit is equipped with a squelch control knob located on the front cover. The AC power line is fused with a 1/2-amp, 250-volt type GMC fuse. A description of the available models follows. -2- Basic Model Specifications Model AD-27W Supply Voltage120VAC, 50/60 Hz Audio Power Output (Max.)11.3 Watts Power Consumption (Max.)28.8 Watts Operating Current (nominal)0.240 A Operating Temperature+32°F to 150°F Shipping Weight10 lbs. 6.5 oz DimensionsSee Figure 2. RatingsUL, cUL, Marine-Listed, FCC (Part 15) NEMA-Type 4X Table 1. Additional Model Information Letter Group Function/Feature “A”Call button Table 2. CALL BUTTON: “A” Models are equipped with a Call switch. Depressing the call switch transmits an 890Hz tone to all units in the intercom system. CAUTION The call signal is louder than normal voice messages being carried on the line. Do not depress the call switch while carrying on a conversation with someone on the system. This will subject the listener to very loud sound levels. The volume of the call signal is affected by the volume control on the receiving unit, so if volume is turned all the way down at a receiving station, the call signal will not be heard. B.UNPACKING. After unpacking the Atkinson Dynamics Intercom, examine it for damage that may have occurred in transit. If the equipment has been damaged, do not attempt to install or operate it, and file a claim immediately with the carrier stating the extent of the damage. Carefully check all envelopes, shipping labels and tags before removing or destroying them. -3- C.MOUNTING. CAUTION The selection of the mounting location for the device is to be accomplished under the direction of the facilities and the safety engineer. NOTE Intercoms supplied with flexible cords for connection to field wiring are not intended for permanent mounting. The intercom is intended to be mounted on any relatively flat and rigid surface by the two mounting ears on the exterior of the housing. Figure 2 is a dimensional outline drawing showing the proper mounting configuration. The two mounting ears are 13/32" diameter holes spaced 5.68" apart. Hardware for mounting the intercom to the surface shall be provided by the installer. NOTE The unit should be mounted right side up with the antenna pointed down- ward. Failure to do so may void FCC compliance. WARNING This unit is heavy and should be mounted on a rigid surface capable of supporting the weight of the intercom. WARNING For shipboard applications, installations shall be in accordance with the United States Coast Guard, Title 46 CRF, Parts 110-113. D.ELECTRICAL CONNECTIONS. Plug each intercom into a nearby power source. Each unit is equipped with a power cord with a NEMA 5-15P molded plug. See figure 1 for a typical intercom configuration. E.CHANNEL SELECTION. Each unit is factory set to channel 3 (909.37 MHz). To select another channel, it is necessary to reconfigure the 4-position switch located on the printed circuit board inside the unit. To select another channel, perform the following steps; 1. Disconnect power from the unit. 2. Remove and retain the six screws and lock washers from the front cover. 3. Carefully lift the front cover from the housing. 4. Locate the 4-position switch on the circuit board. Use a nylon probe tool to change position of switch. Refer to …

Text truncated - open the document above for the full version.

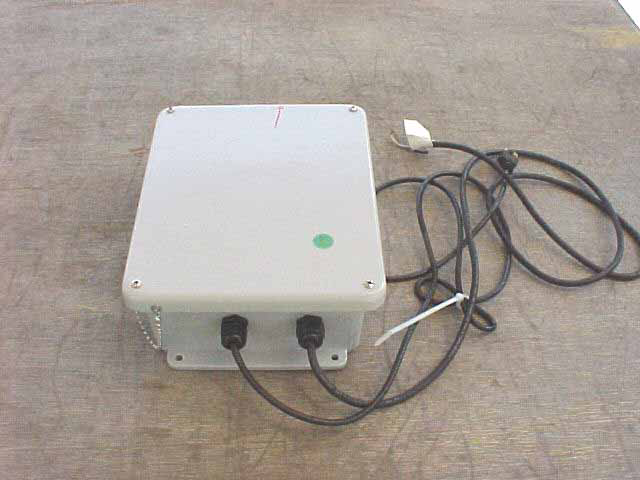

FEDERAL SIGNAL CORPORATION Electrical Products August 28, 2003 Federal Communications Commission 7435 Oakland Mills RoadColumbia, MD 21046 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc. as an agent for Federa! Signal Corporation (2645 Federal Signal Drive, University Park, IL 60466), for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Federal Signal product: Wireless Interface Unit under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Federal Signal Corporation nor any of itsofficers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Federal Signal Corporation will notify the Federal Communications Commission if, at any time, the situation changes causing Federal Signal Corporation to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 708-534-3400. Sincerely,(:~~u cr( ~ J .--' Stephen Niemczak '(7'"-'- Director of Engineering Federal Signal Corporation 2645 Federal Signal Drive. University Park, Illinois 60466-3195. Phone: (708) 534-3400. www.federalsignal-indust.com

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 April 12, 2004 CETCB 114 Olinda Drive Brea, CA 92823 Subject: Request for withholding from public disclosure of Federal Signal Corporation documents. Gentlemen: As appointed agent for Federal Signal Corporation, 2645 Federal Signal Drive, University Park, Illinois 60466-3195 we would like to request that the Block Diagrams, Schematics, and Theory of Operation submitted with the application for certification be withheld from public disclosure as per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457 (d) of the FCC Rules and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize a withholding from public inspection materials, which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (714) 579-0500. Regards, Kyle Fujimoto Test Engineer

1 scott To: [email protected] Subject: FCC ID: HVVAD27W1 Mr. Fujimoto: In order for processing of this application (FCC ID: HVVAD27W1) to continue, the following issue(s) will have to be addressed: 1) The user's manual must contain the statement contained in section 15.21 of the FCC rules, regarding modifications to the equipment. 2) Please submit a letter requesting confidentiality of the requested exhibits. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please submit your response(s) as correspondence on our electronic filing website, using correspondence number: HVVAD27W1-1 Any questions about the content of this correspondence should be directed to [email protected]. If you have any questions, feel free to contact me. Best Regards, Scott McCutchan Operations Manager Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Main (714) 579-0500 Direct (714) 579-1489 Fax (714) 579-1850 [email protected] www.celectronics.com Correspondence by Project Project Number: 176668611 Correspondence Number Memo HVVAD27W1-1 1) The user's manual must contain the statement contained in section 15.21 of the FCC rules, regarding modifications to the equipment. Response: The user's manual has been revised. Please see upload exhibit. 2) Please submit a letter requesting confidentiality of the requested exhibits. Response: The letter will be done by us. We have contacted the client regarding this, and we will write a letter stating as an authorized agent for Federal Signal that Federal Signal would like confidentiality. This will be uploaded also.

Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Intercom Model: AD-27AW Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for WIRELESS INTERCOM MODEL: AD-27AW Prepared for FEDERAL SIGNAL CORPORATION 2645 FEDERAL SIGNAL DRIVE UNIVERSITY PARK, ILLINOIS 60466-3195 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 09, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 15 25 61 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Intercom Model: AD-27AW Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Conducted Emissions Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test 14 8. CONCLUSIONS 15 Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Intercom Model: AD-27AW Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Site Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Intercom Model: AD-27AW Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Wireless Intercom Model: AD-27AW S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Federal Signal Corporation 2645 Federal Signal Drive University Park, Illinois 60466-3195 Test Dates: March 5 and 8, 2004 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15207, 15.209 and 15.249 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, section 15.207. 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B40308D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Wireless Intercom Model: AD-27AW Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Wireless Intercom Model: AD-27AW. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2001. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.249. Report Number: B40308D1 FCC Part 15 Subpart B and FCC Sec…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE FEDERAL SIGNAL CORPORATION WIRELESS INTERCOM MODEL: AD-27AW The fundamental was maximized on the Lab D test site using a normal test setup with the EUT’s AC Adapter connected directly to the AC public mains (115 Vac). Next, the EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 51350019, Calibration Due Date: July 11, 2004. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
