I28-P330IPlastic Card Printer

980459-001 Rev C Prelim 1 User’s Manual Zebra ® P330i Card Printer 980459-001 Rev C Prelim 1P330i User’s Manualiii Foreword This manual contains installation and operation information for the Zebra P330i Card Printers manufactured by Zebra Technologies Corporation, Camarillo, California. Return Materials Authorization Before returning any equipment to Zebra Technologies Corporation for in-warranty or out- of-warranty repair, contact Repair Administration for a Return Materials Authorization (RMA) number. Repack the equipment in the original packing material and mark the RMA number clearly on the outside. Ship the equipment, freight prepaid, to the address listed below: •For USA, Latin America, and Asia / Pacific: Zebra Technologies Corporation Zebra Card Printer Solutions 1001 Flynn Road Camarillo, CA. 93012-8706.USA Phone: +1 (805) 578-5001 FAX: +1 (805) 579-1808 •For Europe and Middle East: Zebra Technologies Corporation Zebra Card Printer Solutions Pittman Way, Fulwood Preston, PR2 9ZD Lancashire, U.K. Phone: +44 - 1 - 772 - 797555 FAX: +44 - 1 - 772 - 693000 Copyright Notice © 2004, 2005 ZIH Corp. ivP330i User’s Manual980459-001 Rev C Prelim 1 Foreword This document contains information proprietary to Zebra Technologies Corporation. This document and the information contained within is Copyrighted by Zebra Technologies Corporation and may not be duplicated in full or in part by any person without written approval from Zebra. While every effort has been made to keep the information contained within current and accurate as of the date of publication, no guarantee is given that the document is error-free or that it is accurate with regard to any specification. Zebra reserves the right to make changes, for the purpose of product improvement, at any time. Trademarks P330i is a trademark and Zebra is a registered trademark of Zebra Technologies Corporation. Windows and MS.DOS are registered trademarks of Microsoft Corp. All other trademarks or registered trademarks are marks of their respective holders. Product Disposal Declarations of Conformity For a formal certificate, please contact the Compliance Office at Zebra’s Camarillo facility. Product Disposal Information • Do not dispose of this product in unsorted municipal waste. This product is recyclable, and should be recycled according to your local standards. For more information, please see our web site at: http://www.zebra.com/environment 89/336/EEC modified by 92/31/EEC and 93/68/EEC EMC Directive EN 55022 (1998)RF Emissions control EMC Directive EN 301489-3 V1.4.1 RF Emissions and Immunity for radio equipment EMC DirectiveEN55024 (2001) Immunity to Electro-Magnetic Disturbances 73/23/EEC modified by 93/68/EEC Low voltage Directive EN 60950-1 (2001)Product safety 1999/5/CE R&TTE Directive EN300330-2 V1.1.1Radio Frequency Interferences Foreword 980459-001 Rev C Prelim 1P330i User’s Manualv EUROPE: Norway Only: This product is also designed for IT power system with phase to phase voltage 230V. Earth grounding is via the polarized, 3-wire power cord. FI: “Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan” SE: “Apparaten skall anslutas till jordat uttag” NO: “Apparatet må tilkoples jordet stikkontakt” FCC Regulations Model P330i has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and operated in accordance with the P330i User’s Manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by Zebra may cause harmful interference and void the FCC authorization to operate this equipment. Industry Canada Notice This device complies with Industry Canada ICES-003 class A requirements. Cet equipement est conforme a l’ICES-003 classe A de la norm Industrielle Canadian. viP330i User’s Manual980459-001 Rev C Prelim 1 Foreword P330i Printer Model The Zebra Product Number tells a story: Here is a quick review of the Zebra Card Printer Series numbering and lettering system to help you. Model numbers include identifiers that specify options using the following lettering conventions: Part NumberDescription P 3 3 0 i - _ _ _ _ _ - _ _ _ Base Printer P330i Color Card Printer _ _ _ _ _ - 0 _ _ _ _ - _ _ _ _ _ _ _ _ - A _ _ _ _ - _ _ _ _ _ _ _ _ - B _ _ _ _ - _ _ _ _ _ _ _ _ - C _ _ _ _ - _ _ _ _ _ _ _ _ - D _ _ _ _ - _ _ _ _ _ _ _ _ - E _ _ _ _ - _ _ _ _ _ _ _ _ - F _ _ _ _ - _ _ _ _ _ _ _ _ - G _ _ _ _ - _ _ _ _ _ _ _ _ - H _ _ _ _ - _ _ _ Smart Card Options None Contact encoder & MIFARE contactless & HID iCLASS Contact Encoder Contact encoder & HID iCLASS Contact encoder & MIFARE contactless Contact station HID iCLASS MIFARE contactless & HID iCLASS MIFARE contactless _ _ _ _ _ - _ 0 _ _ _ - _ _ _ _ _ _ _ _ - _ M _ _ _ - _ _ _ Magnetic Encoder None Yes (select defaults below) _ _ _ _ _ - _ _ 0 _ _ - _ _ _ _ _ _ _ _ - _ _ 1_ _ _ - _ _ _ _ _ _ _ _ - _ _ 3 _ _ - _ _ _ Magnetic Encoder Defaults None Stripe Down, HiCo Stripe Up, HiCo _ _ _ _ _ - _ _ _ 0 _ - _ _ _ Memory Expansion None _ _ _ _ _ - _ _ _ _ A - _ _ _ _ _ _ _ _ - _ _ _ _ C - _ _ _ Interface USB Only USB and Ethernet _ _ _ _ _ - _ _ _ _ _ - I _ _ _ _ _ _ _ - _ _ _ _ _ - U _ _ Power Cords U. S. and Europe U. K. and Australia _ _ _ _ _ - _ _ _ _ _ - _ D 0 Windows Drivers and User Documentation / Training CD Windows Drivers and User Documentation / Training included on one CD (Software & Documentation Package) which contains Multi-language documentation. Foreword 980459-001 Rev C Prelim…

Text truncated - open the document above for the full version.

Installation and Setup Unpacking the Printer 980459-001 Rev C Prelim 1P330i User’s Manual9 b.Locate the Print Head protection pad and the Card Cleaning Cartridge location tape (see below). c.Release the Print Head Carriage by pushing the Print Head Carriage Latch to the left, and raise the Print Head Carriage. It will remain open at about a 45 ° angle. I N S T A L L Remove me Print Head Protection Pad Card Cleaning Cartridge Location Tape Print Head Carriage Latch 10P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Installing the Print Driver Software and Setting Driver Options d.Remove the print head protection pad. Keep the pad, as well as the other packing material and the shipping carton, in case the printer is shipped or moved. If the original material is lost, a replacement Shipping Kit can be ordered from Zebra; please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer. Installing the Print Driver Software and Setting Driver Options Printing with the P330i Printer requires the Windows Printer Driver and your card design/ issuing software or printer command level programming through the printer interface. The P330i Card Printer can be used with any Windows 2000 or Windows XP computer, using the drivers provided on CD with the printer. This section contains information on the printing of a sample card in color (using the 5-panel color ribbon YMCKO and the Windows Printer Driver). Installing the P330i Print Driver To install the P330i Printer Driver automatically on all Operating Systems, use the Zebra Install Wizard. The Install Wizard will walk you through the appropriate installation steps. The Wizard will: •Automatically launch when the driver CD is inserted. Note • If updating the printer driver from a previous version, before installing the updated printer driver version, always delete the existing version from your computer. Note • Ensure that you have administrative privileges to perform this installation, or contact your IT department. Installation and Setup Loading a Ribbon 980459-001 Rev C Prelim 1P330i User’s Manual11 •From the main menu of your documentation CD, select your desired language and then select “DRIVERS” from the subsequent menu. The Install Wizard will walk you through the appropriate steps. •Delete previous versions of the driver and clean up any necessary Registry entries. You must select “Remove” from the install options to remove any previous driver versions. Loading a Ribbon i Series Printers require the use of i Series ribbons for full color printing. The Resin Thermal Transfer and Dye Sublimination ribbons for P330i are specifically designed for your P330i Printer. 1.Place the printer power switch in the OFF (0) position. 2.If the printer’s Main Cover is closed: a.Open the printer’s Main Cover; lift it by the lip at the bottom front as shown in the figure below left. b.Raise the Print Head Carriage by pressing the release latch to the left (toward the output hopper) and lifting as shown below to about a 45 ° angle. The Print Head Carriage will stay in that position, as shown at the right below. Electrostatic Discharge Caution • DO NOT TOUCH the Print Head or the electronic components on the Print Head Carriage. Discharges of electro-static energy that accumulate on the human body or other surfaces can damage the Print Head or other electronic components used in the printer. Note • Avoid any direct contact with the print head to prevent transfer of oils or contamination. Outside of normal operation, only the Zebra-approved cleaning materials should come in contact with the print head. 12P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Loading a Ribbon 3.Locate the Ribbon Supply Spindle and the Ribbon Take-up Spindle (see above). Load ribbon onto the supply spindle (under the print head carriage) flange side in, and load the empty core (with tape attached) onto the take-up spindle. Make sure the ribbon comes off the top of the supply spindle and feeds to the top of the take-up spindle. Ribbon Supply Spindle Ribbon Take-up Spindle Flange Supply Spool Ta k e - u p Spool Installation and Setup Loading a Ribbon 980459-001 Rev C Prelim 1P330i User’s Manual13 4.Gently press the print head carriage down until it is fully lowered, as shown below. Very little force is neccessary to perform this step. Caution • Do not touch the print head if the printer has been in service within the last 10 minutes. It could be very hot and cause a burn. Electrostatic Discharge Caution • A static discharge is possible if you touch any exposed metal parts. Use of an anti-static wrist strap or comparable anti-static protection is required. Note • During normal operation (with power connected and turned on), the ribbon would automatically synchronize when the Print Head is restored to its fully-down position. The ribbon would be identified and the corresponding parameters sent to the driver. Since power is not connected at this point in the Installation and Setup Procedure, nothing will happen when the Print Head Carriage is closed. The ribbon will synchronize when power is turned on. 14P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Installing the Card Cleaning Cartridge Installing the Card Cleaning Cartridge The Card Cleaning Cartridge cleans the cards entering the printer. The Card Cleaning Cartridge consists of a Cartridge Frame and an Adhesive Roller, which are packed together. 1.Remove the Cartridge Frame and the Adhesive Roller from their packaging. Insert the Adhesive Roller into the Cartridge Frame, as shown below. To avoid contamination, always hold the frame and the roller by the ends. . 2.Peel the protective wrapper from the Adhesive Roller. 3.If the printer’s main cover is closed, open it. Locate the area where the Card Cleaning Cartridge will be installed (initially, this area was covered by a warning tape). Card Cleaning Cartridge Mounting Location Installation a…

Text truncated - open the document above for the full version.

Installation and Setup Loading Cards 980459-001 Rev C Prelim 1P330i User’s Manual19 2.Remove all wrapping from the card deck. 3.Holding the card deck by the sides, hold it vertically against a flat surface such as a desktop. If the deck is too thick for your hand to hold it comfortably, use about half a deck at a time. 4.Push the stack back and forth to an angle of about 45° from vertical, so as to separate all of the cards. 5.Restore the card stack to its original squared-off condition, and place the cards in the input hopper. 6.Note that there will be a “gap” in the card stack, with several cards lying flat and the cards above angled upward, as shown in the exaggerated drawing below. This is normal and ensures proper feeding. Caution • Do not touch print surfaces of the cards; this can reduce print quality Note • Static charges and edge burrs from the card die-cutting process can render individual cards stuck together with significant adhesion force. These cards must be physically separated from each other before inserting into the feeder; if not separated, feeding or printing problems may occur. 20P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Card Output Hopper Card Output Hopper The card output hopper is normally extended to receive the printed cards. The printer may be operated with the card output hopper in its closed position; in this case the cards will not be collected in the output hopper. 1.Pull the card output hopper out to place it in its functional position. 2.When not using the printer, slide the card output hopper back into its closed position to protect the printer from dust and protect the output hopper from damage. 3.The output hopper can be completely removed from the printer if necessary by inserting a thin, blunt object (such as a pencil) up through the hole in the bottom of the printer enclosure and pressing (up) to release the hopper while simultaneously pulling the hopper out. To re-install the output hopper, simply slide the output hopper in until it locks in place. Note • Do not try to eliminate the gap by pressing down on the card stack in the input hopper; this can cause misfeeds. Note • The output hopper is a very snug fit to prevent it from moving during shipping or operation; firm force is required to change its position. Installation and Setup Connecting the Printer to your Computer 980459-001 Rev C Prelim 1P330i User’s Manual21 Connecting the Printer to your Computer The P330i Printer includes a standard USB interface. As an option, the printer can be ordered with a 10/100base-T Ethernet Adapter (in addition to the USB interface). The Ethernet Adapter can also be ordered as an add-on option and installed in the field by a Zebra factory certified technician. 1.If using the USB interface, use the supplied USB cable to connect between the USB connector on the printer and a USB port on the computer, as shown below. (Note that the figure below shows the optional Ethernet Adapter directly above the USB Connector; this may not be present on your printer.) 2.If your printer includes the optional Ethernet Adapter as well as the standard USB connection, use either the supplied USB cable or a standard Ethernet cable to connect the printer to a corresponding port on the computer or network. USB Connector Power Connector Power Switch (Optional) Ethernet Connector Important • Do not use both USB and Ethernet connections at the same time! Important • Intermittent or unpredictable operation may occur from unsecured connectors. If damaged, the power cable must be replaced by an exact equivalent. 22P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Connecting Power Connecting Power The P330i Printer includes an internal AC power supply that accepts nominal input voltage in the range from 110 to 230 volts at 50 to 60 Hertz. The power source must be grounded. Depending on specific model number, your P330i Printer will include one or two power cords; use the one that is appropriate for the AC power source connection at your location. If neither has an appropriate connector, AC power cords may be purchased locally; make sure it is a three-wire (grounded) cord. 1.Place the Printer’s power switch in the OFF ( O ) position. 2.Depending on your local AC voltage, plug the appropriate power cord into the printer’s power connector and a grounded AC power source connection. 3.To turn the Printer on, set the Printer’s power switch to the ON ( | ) position. Power Connector Power Switch Caution • If the power cord appears damaged in any way, or if the power cord will not securely plug into the Printer’s power connector or the AC power source connection, STOP! Use of a damaged or incorrect power cord could cause equipment damage, result in an electrical fire, or possibly cause injury. Installation and Setup Printing a Test Card 980459-001 Rev C Prelim 1P330i User’s Manual23 Printing a Test Card With ribbon and cards loaded, your P330i Printer is ready to print. To check the operation of the printer, you should print a test card. (Printing a test card does not require that the printer be connected to your computer or network, but power must be applied.) 1.Set the printer’s power switch (on the back of the printer) to the OFF ( O ) position. 2.While pressing the Printer’s front panel button (next to the LCD display panel), switch the printer ON ( | ). 3.Hold the panel button until the LCD display panel reads “SELF TEST”. 4.Release the panel button, and the test card will print. This is an example of the test card: Packing the P330i Printer for Shipment If the P330i Printer is to be shipped, it is important to use the original packing and shipping material to prevent damage to the Printer. If the original material is lost, a replacement Shipping Kit can be ordered from Zebra; please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer. 1.Remove cards in the card feeder: a.While the printer still has power …

Text truncated - open the document above for the full version.

28P330i User’s Manual980459-001 Rev C Prelim 1 Printing a Card Feeding One Card at a Time 980459-001 Rev C Prelim 1P330i User’s Manual29 4 Cleaning Cleaning the Printer Clean your P330i Printer using Pre-Saturated Cleaning Cards provided. The regular use of these cards will clean and maintain important parts of your printer that cannot be reached, including the Print Head, Transport Rollers, and optional Magnetic Encoder Station. When to Clean When the LCD Panel displays the message CLEAN PRINTER. Approximately every 1000 cards when using 5-panel color ribbon, or every 5000 cards when using a monochrome ribbon. Caution • PROTECT YOUR FACTORY WARRANTY! The recommended cleaning procedures must be performed to maintain your factory warranty. Other than the recommended cleaning procedures described in this manual, allow only Zebra authorized technicians to service the P330i Printer. NEVER loosen, tighten, adjust, bend, etc., any part or cable inside the printer. NEVER use a high pressure air compressor to remove particles in the printer. 30P330i User’s Manual980459-001 Rev C Prelim 1 Cleaning Cleaning the Printer How to Clean 1.Leave the Printer power on, or turn it on if it was off. 2.Initiate the cleaning process by either of the following methods: •At the printer, press and hold the panel button for several seconds, until the LCD Panel displays the message REMOVE RIBBON THEN CLOSE HEAD. •From the computer, enter the P330i Printer Tools software, and click on the CLEAN button. The LCD Panel will display the message REMOVE RIBBON THEN CLOSE HEAD. 3.Open the Main Cover, release the Print Head Carriage, and remove the ribbon. Then close the Print Head Carriage. (For details, see Chapter 2.) The LCD Panel will display the message EMPTY FEEDER & PRESS BUTTON. 4.Open the Card Feeder Cover and remove cards from the Card Feeder. The last card is difficult to remove; leave it in place. Press the Panel Button on the front of the printer. The card remaining in the feeder will be ejected. The LCD Panel will then display the message LOAD CLEANING CARD IN FEEDER. 5.Place a pre-saturated Cleaning Card into the Card Feeder. The Cleaning Card will automatically feed into the printer and the cleaning process will start (there is a several second delay after the Cleaning Card feeds before the cleaning movement starts). While the cleaning process is underway, the LCD Panel will display the message CLEANING PRINTER. 6.At the conclusion of this part of the cleaning process, the Cleaning Card will be ejected, and the LCD Panel will display the message PRESS BUTTON TO CONTINUE. 7.After the user presses the panel button, the LCD Panel will display the message FEED LONG CLEANING CARD IN EXIT. Insert the long end of the long cleaning card into the card exit (directly above the Output Hopper). If the user inserts a “regular” cleaning card into the card exit, the LCD Panel will display the message INVALID CARD, PRESS BUTTON until the user presses the panel button and inserts the long cleaning card into the card exit. Note • This cleaning procedure uses two cleaning cards. One cleaning card is the size of a regular plastic card, and is referred to as the “cleaning card.” The other is elongated, with a wider section at one end; it is referred to as the “long cleaning card.” Note • If the user does nothing at this point (i.e., does not insert the long cleaning card), after a timeout the LCD Panel display will change to CLEAN PRINTER. The printer will be able to print, but the LCD Panel will continue to display CLEAN PRINTER. This limited cleaning does not do a thorough cleaning, but may be performed if no “long cleaning cards” are available. To restore the display to READY, you will need to perform a complete cleaning process, using both short and long cleaning cards, from step 2 above through step 9 below. Cleaning Cleaning the Print Head 980459-001 Rev C Prelim 1P330i User’s Manual31 8.The long cleaning card will automatically feed into the printer and the printing process will continue. The LCD Panel will again display the message CLEANING PRINTER. 9.When the cleaning process is completed, the long cleaning card will be ejected and the LCD Panel will display the message READY, indicating that the printer is ready to resume normal printing operations. 10.Discard both cleaning cards after a single use. Cleaning the Print Head A cleaning using the Cleaning Cards usually suffices. However, a separate Print Head cleaning can remove more stubborn deposits when print anomalies persist. To avoid deposits, only use foam-tipped swabs. 1.Place the printer power switch in the OFF ( O ) position. 2.Open the Main Cover, release the Print Head Carriage, and remove the ribbon. Leave the Print Head Carriage in its raised position. (For details, see Chapter 2.) 3.Clean Print Head by moving an alcohol-moistened swab tip side-to-side across the Print Head elements. Only use moderate force. To re-order swabs, please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer. 4.The swabs can also be used in a similar manner to clean the optional magnetic encoding head. Note • Do not use previously used cleaning cards. Caution • Never use a sharp object or any abrasive to scrape deposits from the print head. Permanent damage to the print head will result. Caution • Do not touch the print head if the printer has been in service in the last 10 minutes. It could be very hot and cause a burn. 32P330i User’s Manual980459-001 Rev C Prelim 1 Cleaning Card Cleaning Cartridge Card Cleaning Cartridge Your P330i Printer includes a Card Cleaning Cartridge. This item cleans the cards entering the printer through the card feeder. To ensure print quality, the cleaning roller requires periodic replacement. New cleaning rollers are included with each ribbon or may be purchased separately. (To reorder, please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer.) Installa…

Text truncated - open the document above for the full version.

P330i BLOCK DIAGRAM with Smart Card Options RFID PCBA & ANT 10 MHz 13.56 MHz EXT CONTACT ENCODER I/O PCBA INTERNAL SMART CARD I/O PCBA GEM+ CONTACT STATION PCBA 13.56MHz COVER OPEN SENSOR FEEDER SENSORS PRINT HEAD ASSEMBLY MAGNETIC ENCODER ASSEMBLY 120/240 AC INPUT & EMI FILTER POWER SUPPLY 24VDC OUT I/O DAUGHTER PCBA CARD SYNC SENSOR RIBBON COLOR SENSOR PCBA DC MOTOR #1 DC MOTOR #2 STEPPER MOTOR FILM & BRACKET SENSOR PCBA CARD FEEDER HID/MIFARE ENCODER MODULE 1.8432 MHz 13.56 MHz LOOP ANTENNA MODULE 24VDC INPUT E-NET I/O USB I/O OPTIONAL CONTACT LESS SMART CARD ENCODERS OPTIONAL GEM+ CONTACT ENCODER OPTIONAL EXTERNAL CONTACT ENCODER EXT CONTACT STATION PCBA SMART CARD I/O I²C BUSS MAIN PCBA LCD DISPLAY ~4 MHz RC 32.00 MHz MCU 25.00 MHz e-net 24.00 MHz USB 14.7456 MHz TPH I²C buss #2 I²C buss #1

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Monday, November 13, 2006 2:52 PM To: '[email protected]' Cc: 'Ruby' Subject: FCC ID: I28-P330I 1/4/2007 Mr. Ramirez: In order for processing of this certification application (FCC ID: I28-P330I) to continue, the following issue(s) will have to be addressed: 1) There are two sets of radiated emissions included in the report. One set is labeled “RFID”, and the other is labeled “HID”, both with a 13.56 MHz transmit frequency. Are these two transmitters capable of operating simultaneously, and if so, were investigations made to determine the amplitude of the emissions while both were active? 2) On the band-edge data sheets, the limit is shown as 91.46 dBuV/m (37,411 uV/m). As per section 15.225(d), the limits outside of the transmit band are contained section 15.209. Please correct the data sheet. 3) The spurious emission data sheet for the frequency range of 9 kHz to 30 MHz shows a limit of 60 dBuV/m. Please explain how this limit was calculated. 4) Please submit a signed, current copy of the certification contract. 5) The sample FCC label appears to have a small “I” as the last character. All characters in the FCC ID must be capital. 6) The appointment letter must be addressed to Compatible Electronics TCB, and not the FCC. 7) The user’s manual must contain the statement required under section 15.21 of the FCC rules. 8) There is only one set of conducted emissions data. Was the RFID and/or HID active during this test? 9) There is only one set of temperature/power variation data. Was the RFID and/or HID active during this test? 10) It should be noted that since confidentiality has not been requested, all schematics, block diagrams and operational descriptions will be available for public inspection on the FCC website. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is I28-P330I-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB

Correspondence by Project Project Number: Correspondence NumberMemo I28-P330I-1 1) EUT is not capable of running both transmitters at the same time. 2)Bandedge data was corrected and can be found in the test report. 3) The calculation of the limit for 9KHz-30MHz can be found in the test report. 4)A current copy of the certification contranct can be found with the uploads. 5) The FCC ID was corrected and can be found with the uploads. 6) The appointment letter was corrected and can be found with the uploads. 7)The users manual was corrected and can be found with the uploads. 8)The RFID was active during the conducted emissions test. 9) The RFID and HID was active during the temp/power variation test. 10) Confidentiality was not requested. -561533337

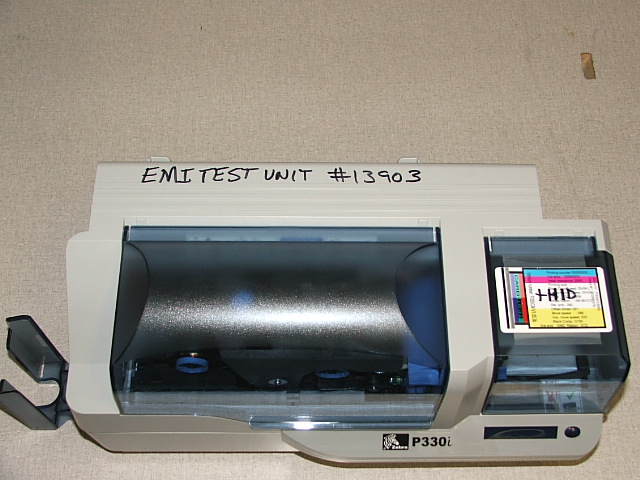

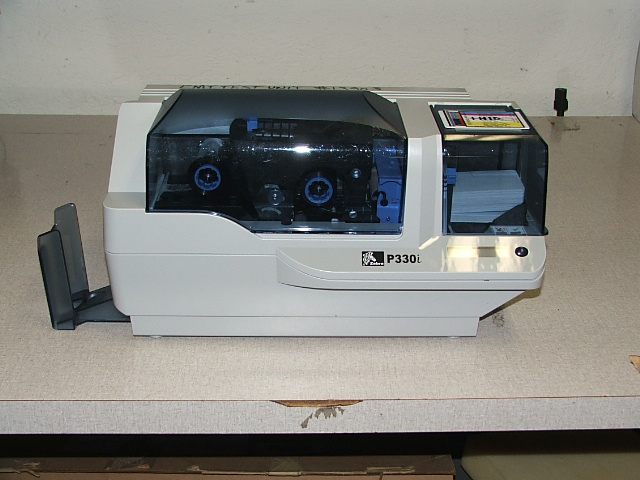

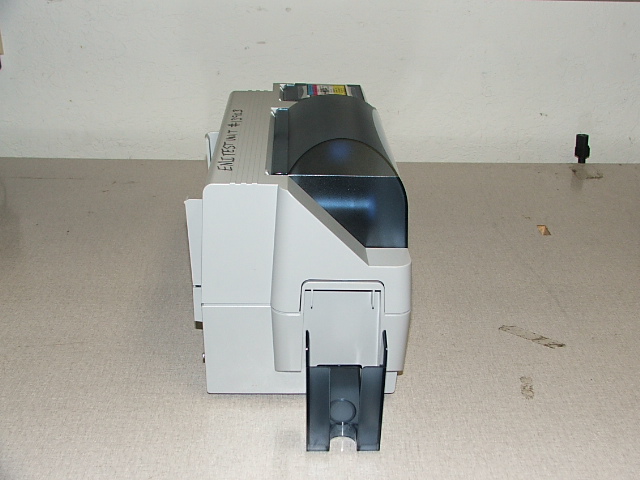

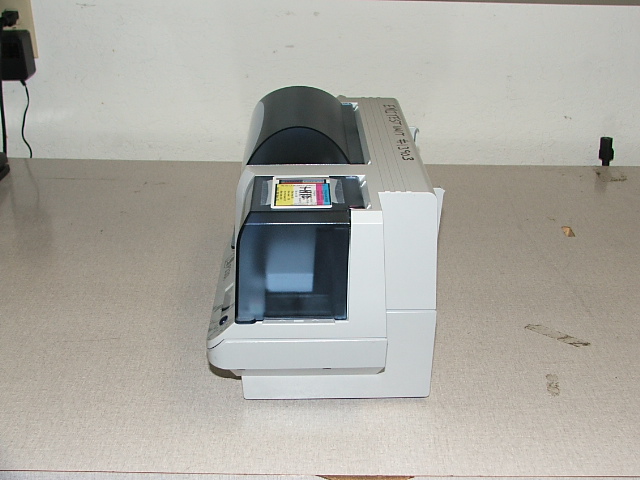

FRONT RIGHT SIDE REAR LEFT SIDE BOTTOM TOP

LABEL LOCATION

NO TOP COVER FRONT NO COVER HID TOP HID BOTTOM HID LOCATION RFID LOCATION ANTTENNA BOARD TOP ANTENNA BOARD BOTTOM RFID BOARD BOTTOM RFID BOARD BOTTOM

Zebra Technologies P330I Printer Description 10/10/2006 The Zebra P330i is a card printer that can print a full color image on a PVC card in one pass through the printer. The Zebra P330i uses color dye-sublimation ribbons or thermal transfer ribbons to transfer digital images to a PVC card. These cards can be used for identification, loyalty cards, or marketing purposes. Options for this printer include Ethernet, magnetic card encoding, contact and contact-less smart card encoding. Ribbon recognition and security is maintained through RFID technology within the printer. The RFID board and the contactless smartcards use separate transmitters each operating at a frequency of 13.56 MHz in the ISM band. The RFID system uses an I●CODE1 format and conforms to ISO 15693 specifications. The RFID system is contained on a single PCBA which holds the loop antenna, impedance matching network, RF interface IC and digital controller IC. The design is optimized for short range lower power operation. Two types of Contact-less smart cards are supported which require a different modules to be installed. These are HID I-Class and MIFARE format smart cards, which conform to the ISO14443 specification. The system consists of a transceiver module and an antenna module mounted in the card exit area of the printer. The same antenna module with integral matching network is used for both types of smart card systems. The HID I-Class system uses HID OEM50 modules. The iClass OEM50 exciter modulates a 13.56MHz carrier signal in accordance with ISO/IEC 14443-2 and ISO/IEC 15693-2. The modulated carrier is then filtered to suppress harmonics before driving the antenna. The output impedance of the exciter is 50 ohms for driving remote antennas through a coax cable and the impedance matching network of the antenna matches the impedance for maximum power t…

Text truncated - open the document above for the full version.
