I28MD-ZBRBLEBluetooth Low Energy Module

Installation Guide Bluetooth LE Radio Module Bluetooth Low Energy module Compliance and Regulatory Statements FCC Compliance Statement (USA) This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to do one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced RF service technician for help. The end product must be labeled, in a visible area, with the following: Modification Warning The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the user’s authority to operate the equipment. To ensure compliance, this printer must be used with fully shielded communication cables. RF Exposure Statement This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. Contains FCC ID: I28MD-ZBRBLE Canadian DOC Compliance Statement Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This Class B digital apparatus complies with Canadian ICES-003. Industry Canada (IC) Warning Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause interference., 2) This device must accept any interference, including interference that may cause undesired operation of the device. Approved Antenna information The end product must be labeled, in a visible area, with the following: Contains IC: 3798B-ZBRBLE Only Zebra approved antennas are allowed and cannot be user replaceable. Antenna Type: Chip: Gain: 1d Bi (2.4G); General Installation Instructions for Zebra printers hosts in which the module has been evaluated. The Bluetooth Low Energy radio module has been certified as a Full Modular. Additional evaluation is required for use in all host devices. The following describes the installation procedures for the various The Bluetooth Low Energy radio module is not intended for OEM Integrators or end users. it can only be installed at the grantee manufacturing facility.

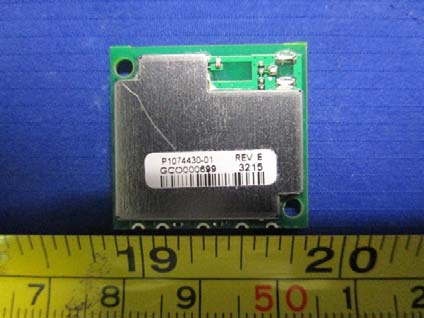

Test report No. FCC_IC_RF_SL15080501-ZBR-027 Page 1 of 1 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: EUT Photos - External EUT Top View EUT Bottom View

Label & Location Label Location

Test report No. FCC_IC_RF_SL15080501-ZBR-027 Page 1 of 1 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: EUT Photos - Internal Crystal Main Chip

MPE CALCULATION FCC ID: I28MD-ZBRBLE RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2402 - 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 - 100,000 MHz Power Density Limit: 1 mW / cm 2 Equation: S = PG / 4R 2 or R = √PG / 4S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm EUT: Bluetooth Low Energy Module (2.4GHz Band): Power = -1.85dBm, Antenna Gain = 1dBi, Power density = 0.000164mW/ cm 2 The Above Result had shown that the Device complied with MPE requirement. Completed By: Gary Zhou SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 Date: 11/02/ 2015

Applicant: Zebra Technologies Corporation Report: FCC_IC_RF_SL15080501‐ZBR‐027 SIEMIC | 775 Montague Expressway, Milpitas, CA 95035 | Ph.+1 408‐526‐1188 | Fax: +1 408‐526‐1088 | www.siemic.com Page 1 of 36 RF TEST REPORT Report: FCC_IC_RF_SL15080501‐ZBR‐027 Supersedes: N/A Applicant: Zebra Technologies Corporation Product name: Bluetooth Low Energy Module Model: ZBRBLE Test standard: FCC 15.209; 15.247(d); IC RSS 247 Test method: ANSI C63.10 – 2013, 558074 D01 DTS Meas Guidance V03r03 FCC ID: I28MD‐ZBRBLE IC ID: 37981B‐ZBRBLE Date of test: 10/8/2015 Issue date: 10/15/2015 Test result: PASS Equipment complied with the specifications: ☒ Equipment did not comply with the specifications: ☐ This test report is issued under the authority of: Full Name: Gary Chou Full Name: Nima Molaei Title: Test Engineer Title:Engineer Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the tested sample only. ISSUED BY: SIEMIC Laboratories 775 Montague Expressway, Milpitas, CA 95035 USA Applicant: Zebra Technologies Corporation Report: FCC_IC_RF_SL15080501‐ZBR‐027 SIEMIC | 775 Montague Expressway, Milpitas, CA 95035 | Ph.+1 408‐526‐1188 | Fax: +1 408‐526‐1088 | www.siemic.com Page 2 of 36 Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one‐stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for conformity assessment Country/Region Accreditation BodyScope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NISTEMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, CanietySafety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for conformity assessment Country/Region Accreditation BodyScope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Applicant: Zebra Technologies Corporation Report: FCC_IC_RF_SL15080501‐ZBR‐027 SIEMIC | 775 Montague Expressway, Milpitas, CA 95035 | Ph.+1 408‐526‐1188 | Fax: +1 408‐526‐1088 | www.siemic.com Page 3 of 36 Table of Contents 1. Report revision history ........................................................................................................... 4 2. Executive summary ................................................................................................................. 4 3. Customer information ............................................................................................................ 4 4. Test site information ............................................................................................................... 4 5. Modification ............................................................................................................................ 5 6. EUT Information ...................................................................................................................... 5 6.1. EUT Description ............................................................................................................................. 5 6.2. Radio description .......................................................................................................................... 6 6.3. EUT Power level setting ................................................................................................................ 6 6.4. EUT Photos | External ................................................................................................................... 7 6.5. EUT Photos | Internal .................................................................................................................... 8 6.6. EUT Photos | Test setup ............................................................................................................... 9 7. Supporting equipment / Software / Cabling information ................................................... 10 7.1. Support equipment ..................................................................................................................... 10 7.2. Cabling description ..................................................................................................................... 11 7.3. Test software description ........................................................................................................... 12 8. Test summary ........................................................................................................................ 13 9. Measurement uncertainty .................................................................................................... 14 10. Measurements, Examination and Derived results ........................................................... 15 10.1. 6dB Bandwidth and 99% Occupied Bandwidth ...................................................................... 15 10.2. Output power .......................................................................................................................... 19 10.3. Band edge ............................................................................................................................... 21 10…

Text truncated - open the document above for the full version.

Applicant: Zebra Technologies Corporation Report: FCC_IC_RF_SL15080501‐ZBR‐027 SIEMIC | 775 Montague Expressway, Milpitas, CA 95035 | Ph.+1 408‐526‐1188 | Fax: +1 408‐526‐1088 | www.siemic.com Page 9 of 36 6.6. EUT Photos | Test setup Radiated Emission Test setup (<1GHz) – Front View Radiated Emission Test setup (<1GHz) – Rear View Radiated Emission Test setup (>1GHz) – Front View Radiated Emission Test setup (>1GHz) – Rear View
