I28MD-ZBR7BTLEBluetooth 4.0 LE Module

Installation Guide BT40LE-ZQ500 Compliance and Regulatory Statements FCC Compliance Statement (USA) This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to do one or more of the following measures: • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced RF service technician for help. • The end product must be labeled, in a visible area, with the following: Contains FCC ID: I28MD-ZBR7BTLE Modification Warning The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the user's authority to operate the equipment. To ensure compliance, this printer must be used with fully shielded communication cables. RF Exposure Statement This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. Canadian DOC Compliance Statement Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. This Class B digital apparatus complies with Canadian ICES-003. Industry Canada (IC) Warning Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause interference., 2) This device must accept any interference, including interference that may cause undesired operation of the device. The end product must be labeled, in a visible area, with the following: Contains IC: 3798B-ZBR7BTLE Approved Antenna information Only Zebra approved antennas are allowed and cannot be user replaceable. Antenna PN: P1027365-01 Type: F-PCB Gain: 2.8dBi General The BT40LE-ZQ500 Bluetooth module has been certified as a Full Modular. Additional evaluation is required for use in portable host devices. The following describes the installation procedures for the various hosts in which the module has been evaluated. Installation Instructions for ZQ510 and ZQ520 The BT40LE-ZQ500 is not intended for OEM integrators or end users. It can only be installed in the ZQ510 and ZQ520 printers at the grantee manufacturing facility.

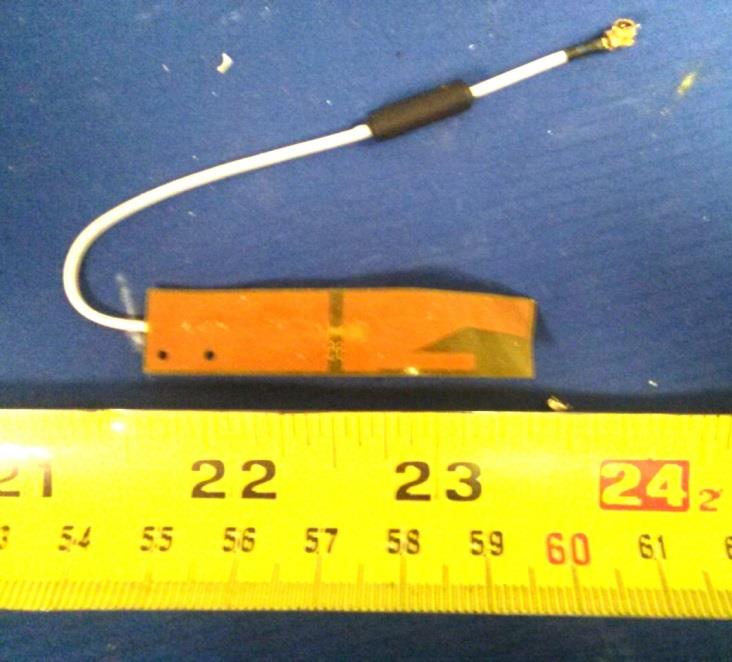

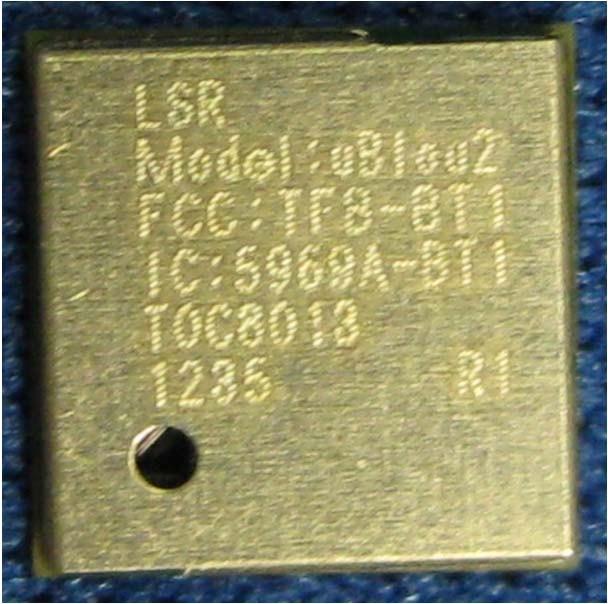

EUT - Top EUT – Bottom Antenna Top View Antenna Bottom View

Label & Location

EUT - Top EUT – Bottom

RF EXPOSURE & MPE CALCULATION FCC ID: I28MD-ZBR7BTLE, IC ID: 3798B-ZBR7BTLE RF EXPOSURE CALCULATION ______________________________________________________________________________________________________________________ According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05r02 Part 4.3.1, no SAR Test required if [(max. power of channel, including tune6up tolerance, mW)/(min. test separation distance, mm)] —[√f(GHz)] ≤ 3.0 Maximum measured transmitter power: Mode Target Power (dBm) Tune up power tolerance (dB) Max Tune up Power (dBm) Max Antenna Gain (dBi) EIRP (dBm) DSS band BT BDR/EDR 8.5 1 9.5 2.8 12.3 DTS band BT LE 8.5 1 9.5 2.8 12.3 Minimum Test separation distance=5mm [(max. power of channel, including tune6up tolerance, mW)/(min. test separation distance, mm)] —[√f(GHz)] =19.05/10*(√2.4)=2.80≤ 3.0 Conclusion: No SAR is required. Completed By: David Zhang SIEMIC, Inc 775 Montague Expressway, Milpitas, CA 95035 Phone: (408) 52661188 Date: Jan 16, 2015 MPE CALCULATION _____________________________________________________________________________________________________________________ RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 240262480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 6 100,000 MHz Power Density Limit: 1 mW / cm 2 Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm Mode Prediction distance (cm) Target Power (dBm) Tune up power tolerance (dB) Max Tune up Power (dBm) Max Antenna Gain (dBi) Power density (mW/ cm 2 ) DSS band BT BDR/EDR 20 8.5 1 9.5 2.8 0.0038 DTS band BT LE 20 8.5 1 9.5 2.8 0.0038 Maximum MPE is 0.0048 mW/cm 2 , which is less than 1. The Above Result had shown that Device complied with MPE requirement. Completed By: David Zhang SIEMIC, Inc 775 Montague Expressway, Milpitas, CA 95035 Phone: (408) 52661188 Date: Jan 16, 2015

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com Report No.: FCC_RF_SL140 91201 Supersede Report No.: FCC_RF_SL140 Applicant Zebra Technologies Product Name Bluetooth 4.0 LE Module Model No. BT40LE-ZQ500 Test Standard 47CFR15.247 RSS 210 ISSUE 8, Dec Test Method ANSI C63.4: 2014 DA 00-705 FCC ID I28MD-ZBR7BTLE IC ID 3798B-ZBR7BTLE Date of test 12/01/2014 - 12/09/2014 Issue Date 01/19/2015 Test Result Pass Equipment complied with the specification Equipment did not comply with the specification Ricky Wang Test Engineer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 www.siemic.com; Follow us at: 91201-ZBR-031_BT_DSS Rev1.0 SL14091201-ZBR-031_BT_DSS Zebra Technologies Corporation Module RSS 210 ISSUE 8, Dec 2010, RSS Gen Issue 4, Nov 2014 /2014 Fail Equipment complied with the specification [ x ] Equipment did not comply with the specification [ ] David Zhang Engineer Reviewer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 David Zhang Engineer Reviewer Test result presented in this test report is applicable to the tested sample only 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independ and certification facilities providing customers with one In addition to testing and certification, SIEMIC provides initial design reviews and extensive experience with China, Asia Pacific fastest, most cost effective way to attain regulatory compliance for the Accreditations for Conformity Assessment Country/Region Accreditation Body USA Canada Taiwan Hong Kong Australia Korea Japan VCCI, JATE, TELEC, RFT Mexico NOM, COFETEL, Europe Israel Accreditations for Product Certifications Country Accreditation Body USA Canada Singapore EU Japan HongKong Test report No. FCC_RF_SL14091201 Page 1 of 41 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independ and certification facilities providing customers with one6stop shop services for Compliance Testing and Global Certifications. , SIEMIC provides initial design reviews and compliance management ia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Accreditation Body Scope FCC, A2LA EMC , RF/Wireless , Telecom IC, A2LA, NIST EMC, RF/Wireless , Telecom BSMI , NCC , NIST EMC, RF, Telecom , Safety OFTA , NIST RF/Wireless ,Telecom NATA, NIST EMC, RF, Telecom , Safety KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom A2LA, NIST EMC, RF, Telecom , Safety MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Accreditation Body Scope FCC TCB, NIST EMC , RF , Telecom IC FCB , NIST EMC , RF , Telecom iDA, NIST EMC , RF , Telecom NB EMC & R&TTE Directive MIC (RCB 208) RF , Telecom OFTA (US002) RF , Telecom FCC_RF_SL140912016ZBR6031_BT_DSS Rev1.0 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing Testing and Global Certifications. compliance management throughout a project. Our compliance requirements, assures the Scope EMC , RF/Wireless , Telecom EMC, RF/Wireless , Telecom EMC, RF, Telecom , Safety RF/Wireless ,Telecom EMC, RF, Telecom , Safety EMI, EMS, RF , Telecom, Safety EMI, RF/Wireless, Telecom Safety, EMC , RF/Wireless, Telecom EMC, RF, Telecom , Safety EMC, RF, Telecom, Safety Scope EMC , RF , Telecom EMC , RF , Telecom EMC , RF , Telecom EMC & R&TTE Directive RF , Telecom RF , Telecom 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com CONTENTS 1 REPORT REVISION HISTORY ................................ 2 EXECUTIVE SUMMARY ................................ 3 CUSTOMER INFORMATION ................................ 4 TEST SITE INFORMATION ................................ 5 MODIFICATION ................................ 6 EUT INFORMATION ................................ 6.1 EUT Description ................................ 6.2 Radio Description ................................ 6.3 EUT test modes/configuration Description 6.4 EUT Photos ................................ 6.5 EUT Test Setup Photos ................................ 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLIN 7.1 Supporting Equipment ................................ 7.2 Cabling Description ................................ 7.3 Test Software Description ................................ 8 TEST SUMMARY ................................ 9 MEASUREMENT UNCERTAINTY ................................ 10 MEASUREMENTS, EXAMINATION AND DERIVED RE 10.1 Antenna Requirement................................ 10.2 Conducted Emission Test Result 10.3 RF Conducted Measurement ................................ 10.4 Radiated Measurement .................…

Text truncated - open the document above for the full version.

Conducted Emission Test setup - Front Conducted Emission Test setup - Rear Radiated Emission Test Setup (30MHz-1GHz) - Front Radiated Emission Test Setup (30MHz-1GHz) – Rear Radiated Emission Test Setup (>1GHz) - Front Radiated Emission Test Setup (>1GHz) – Rear Setup between EUT and Antenna
