Installation and Setup Unpacking the Printer 980459-001 Rev C Prelim 1P330i User’s Manual9 b.Locate the Print Head protection pad and the Card Cleaning Cartridge location tape (see below). c.Release the Print Head Carriage by pushing the Print Head Carriage Latch to the left, and raise the Print Head Carriage. It will remain open at about a 45 ° angle. I N S T A L L Remove me Print Head Protection Pad Card Cleaning Cartridge Location Tape Print Head Carriage Latch 10P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Installing the Print Driver Software and Setting Driver Options d.Remove the print head protection pad. Keep the pad, as well as the other packing material and the shipping carton, in case the printer is shipped or moved. If the original material is lost, a replacement Shipping Kit can be ordered from Zebra; please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer. Installing the Print Driver Software and Setting Driver Options Printing with the P330i Printer requires the Windows Printer Driver and your card design/ issuing software or printer command level programming through the printer interface. The P330i Card Printer can be used with any Windows 2000 or Windows XP computer, using the drivers provided on CD with the printer. This section contains information on the printing of a sample card in color (using the 5-panel color ribbon YMCKO and the Windows Printer Driver). Installing the P330i Print Driver To install the P330i Printer Driver automatically on all Operating Systems, use the Zebra Install Wizard. The Install Wizard will walk you through the appropriate installation steps. The Wizard will: •Automatically launch when the driver CD is inserted. Note • If updating the printer driver from a previous version, before installing the updated printer driver version, always delete the existing version from your computer. Note • Ensure that you have administrative privileges to perform this installation, or contact your IT department. Installation and Setup Loading a Ribbon 980459-001 Rev C Prelim 1P330i User’s Manual11 •From the main menu of your documentation CD, select your desired language and then select “DRIVERS” from the subsequent menu. The Install Wizard will walk you through the appropriate steps. •Delete previous versions of the driver and clean up any necessary Registry entries. You must select “Remove” from the install options to remove any previous driver versions. Loading a Ribbon i Series Printers require the use of i Series ribbons for full color printing. The Resin Thermal Transfer and Dye Sublimination ribbons for P330i are specifically designed for your P330i Printer. 1.Place the printer power switch in the OFF (0) position. 2.If the printer’s Main Cover is closed: a.Open the printer’s Main Cover; lift it by the lip at the bottom front as shown in the figure below left. b.Raise the Print Head Carriage by pressing the release latch to the left (toward the output hopper) and lifting as shown below to about a 45 ° angle. The Print Head Carriage will stay in that position, as shown at the right below. Electrostatic Discharge Caution • DO NOT TOUCH the Print Head or the electronic components on the Print Head Carriage. Discharges of electro-static energy that accumulate on the human body or other surfaces can damage the Print Head or other electronic components used in the printer. Note • Avoid any direct contact with the print head to prevent transfer of oils or contamination. Outside of normal operation, only the Zebra-approved cleaning materials should come in contact with the print head. 12P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Loading a Ribbon 3.Locate the Ribbon Supply Spindle and the Ribbon Take-up Spindle (see above). Load ribbon onto the supply spindle (under the print head carriage) flange side in, and load the empty core (with tape attached) onto the take-up spindle. Make sure the ribbon comes off the top of the supply spindle and feeds to the top of the take-up spindle. Ribbon Supply Spindle Ribbon Take-up Spindle Flange Supply Spool Ta k e - u p Spool Installation and Setup Loading a Ribbon 980459-001 Rev C Prelim 1P330i User’s Manual13 4.Gently press the print head carriage down until it is fully lowered, as shown below. Very little force is neccessary to perform this step. Caution • Do not touch the print head if the printer has been in service within the last 10 minutes. It could be very hot and cause a burn. Electrostatic Discharge Caution • A static discharge is possible if you touch any exposed metal parts. Use of an anti-static wrist strap or comparable anti-static protection is required. Note • During normal operation (with power connected and turned on), the ribbon would automatically synchronize when the Print Head is restored to its fully-down position. The ribbon would be identified and the corresponding parameters sent to the driver. Since power is not connected at this point in the Installation and Setup Procedure, nothing will happen when the Print Head Carriage is closed. The ribbon will synchronize when power is turned on. 14P330i User’s Manual980459-001 Rev C Prelim 1 Installation and Setup Installing the Card Cleaning Cartridge Installing the Card Cleaning Cartridge The Card Cleaning Cartridge cleans the cards entering the printer. The Card Cleaning Cartridge consists of a Cartridge Frame and an Adhesive Roller, which are packed together. 1.Remove the Cartridge Frame and the Adhesive Roller from their packaging. Insert the Adhesive Roller into the Cartridge Frame, as shown below. To avoid contamination, always hold the frame and the roller by the ends. . 2.Peel the protective wrapper from the Adhesive Roller. 3.If the printer’s main cover is closed, open it. Locate the area where the Card Cleaning Cartridge will be installed (initially, this area was covered by a warning tape). Card Cleaning Cartridge Mounting Location Installation a…

Text truncated - open the document above for the full version.

980459-001 Rev C Prelim 1P330i User’s Manual29 4 Cleaning Cleaning the Printer Clean your P330i Printer using Pre-Saturated Cleaning Cards provided. The regular use of these cards will clean and maintain important parts of your printer that cannot be reached, including the Print Head, Transport Rollers, and optional Magnetic Encoder Station. When to Clean When the LCD Panel displays the message CLEAN PRINTER. Approximately every 1000 cards when using 5-panel color ribbon, or every 5000 cards when using a monochrome ribbon. Caution • PROTECT YOUR FACTORY WARRANTY! The recommended cleaning procedures must be performed to maintain your factory warranty. Other than the recommended cleaning procedures described in this manual, allow only Zebra authorized technicians to service the P330i Printer. NEVER loosen, tighten, adjust, bend, etc., any part or cable inside the printer. NEVER use a high pressure air compressor to remove particles in the printer. 30P330i User’s Manual980459-001 Rev C Prelim 1 Cleaning Cleaning the Printer How to Clean 1.Leave the Printer power on, or turn it on if it was off. 2.Initiate the cleaning process by either of the following methods: •At the printer, press and hold the panel button for several seconds, until the LCD Panel displays the message REMOVE RIBBON THEN CLOSE HEAD. •From the computer, enter the P330i Printer Tools software, and click on the CLEAN button. The LCD Panel will display the message REMOVE RIBBON THEN CLOSE HEAD. 3.Open the Main Cover, release the Print Head Carriage, and remove the ribbon. Then close the Print Head Carriage. (For details, see Chapter 2.) The LCD Panel will display the message EMPTY FEEDER & PRESS BUTTON. 4.Open the Card Feeder Cover and remove cards from the Card Feeder. The last card is difficult to remove; leave it in place. Press the Panel Button on the front of the printer. The card remaining in the feeder will be ejected. The LCD Panel will then display the message LOAD CLEANING CARD IN FEEDER. 5.Place a pre-saturated Cleaning Card into the Card Feeder. The Cleaning Card will automatically feed into the printer and the cleaning process will start (there is a several second delay after the Cleaning Card feeds before the cleaning movement starts). While the cleaning process is underway, the LCD Panel will display the message CLEANING PRINTER. 6.At the conclusion of this part of the cleaning process, the Cleaning Card will be ejected, and the LCD Panel will display the message PRESS BUTTON TO CONTINUE. 7.After the user presses the panel button, the LCD Panel will display the message FEED LONG CLEANING CARD IN EXIT. Insert the long end of the long cleaning card into the card exit (directly above the Output Hopper). If the user inserts a “regular” cleaning card into the card exit, the LCD Panel will display the message INVALID CARD, PRESS BUTTON until the user presses the panel button and inserts the long cleaning card into the card exit. Note • This cleaning procedure uses two cleaning cards. One cleaning card is the size of a regular plastic card, and is referred to as the “cleaning card.” The other is elongated, with a wider section at one end; it is referred to as the “long cleaning card.” Note • If the user does nothing at this point (i.e., does not insert the long cleaning card), after a timeout the LCD Panel display will change to CLEAN PRINTER. The printer will be able to print, but the LCD Panel will continue to display CLEAN PRINTER. This limited cleaning does not do a thorough cleaning, but may be performed if no “long cleaning cards” are available. To restore the display to READY, you will need to perform a complete cleaning process, using both short and long cleaning cards, from step 2 above through step 9 below. Cleaning Cleaning the Print Head 980459-001 Rev C Prelim 1P330i User’s Manual31 8.The long cleaning card will automatically feed into the printer and the printing process will continue. The LCD Panel will again display the message CLEANING PRINTER. 9.When the cleaning process is completed, the long cleaning card will be ejected and the LCD Panel will display the message READY, indicating that the printer is ready to resume normal printing operations. 10.Discard both cleaning cards after a single use. Cleaning the Print Head A cleaning using the Cleaning Cards usually suffices. However, a separate Print Head cleaning can remove more stubborn deposits when print anomalies persist. To avoid deposits, only use foam-tipped swabs. 1.Place the printer power switch in the OFF ( O ) position. 2.Open the Main Cover, release the Print Head Carriage, and remove the ribbon. Leave the Print Head Carriage in its raised position. (For details, see Chapter 2.) 3.Clean Print Head by moving an alcohol-moistened swab tip side-to-side across the Print Head elements. Only use moderate force. To re-order swabs, please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer. 4.The swabs can also be used in a similar manner to clean the optional magnetic encoding head. Note • Do not use previously used cleaning cards. Caution • Never use a sharp object or any abrasive to scrape deposits from the print head. Permanent damage to the print head will result. Caution • Do not touch the print head if the printer has been in service in the last 10 minutes. It could be very hot and cause a burn. 32P330i User’s Manual980459-001 Rev C Prelim 1 Cleaning Card Cleaning Cartridge Card Cleaning Cartridge Your P330i Printer includes a Card Cleaning Cartridge. This item cleans the cards entering the printer through the card feeder. To ensure print quality, the cleaning roller requires periodic replacement. New cleaning rollers are included with each ribbon or may be purchased separately. (To reorder, please refer to the Media List on the Windows Drivers and User Documentation CD supplied with this printer.) Installation of the Card Cleaning Cartridge is described in Chapter 2 and is not repeated in detai…

Text truncated - open the document above for the full version.

Apr 26, 2007 Federal Communication Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC ID: I28-P330I-MIFARE TIMCO Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 To Whom It May Concern: This letter is to ascertain that the Zebra’s Card Printer P330i has been the unit used for conducting FCC compliance testing. If you have any question or concerns, please contact me. Sincerely, George Anjargolian Compliance Manager

April 26, 2007 To: Federal Communications Commission 7435 Oakland Mills Road Colubia, MD Dear Examiner: Zebra Technologies Corporation is submitting this petition to avoid the possibility of any inadvertent disclosure of AWID proprietary information as a result of document submission to the Federal Communications Commission (FCC). Zebra Technologies Corporation hereby requests confidentiality with regard to the following documents in the filling package for equipment approval identified by FCC Identification Number: I28-P330I-MIFARE as provided under FCC Section 0.459. - P330i-Block Diagram - 404361G-101A (Main PCBA Schematic) - 402932-001A (RFID PCBA Schematic) - G8378000-001-SCH (Mifare Radio Schematic) It is the opinion of Zebra Technologies Corporation that disclosure of this information will result in significant loss of market competitiveness, and revenue. This information should therefore be kept confidential. Sincerely, George Anjargolian Compliance Manager Zebra Technologies, CPS Division 805-578-1340

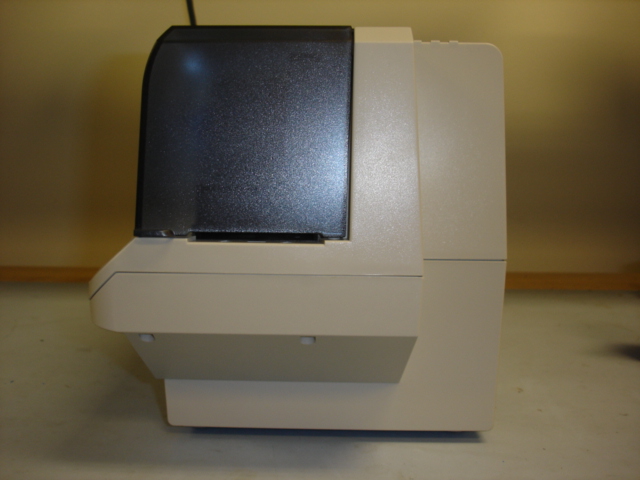

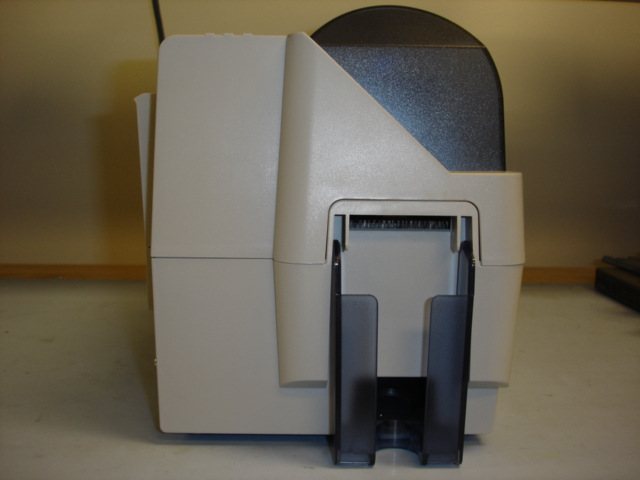

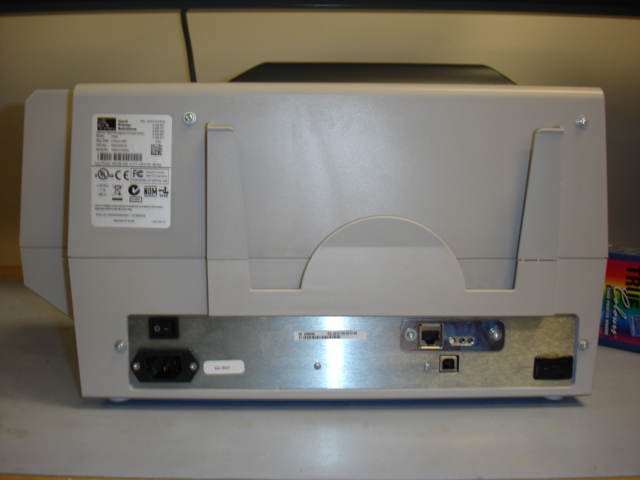

P330i External View Front View Rear View Right View Left View

P330i Internal View Cover Off front View Cover off Rear View Ethernet Board Top View Ethernet Board Bottom View Mifare radio and antenna Top View Mifare radio and antenna Bottom View RFID Radio board Top View RFID Radio board Bottom View Main Board 1 with USB Top View Main Board 1 with USB Bottom View

GemProx-Module Easy-to-use contactless technology Cost-effective smart card interfaces for the growing contactless market A complete range of products GemProx is the name of the Gemalto range of contactless interfaces. It includes OEM couplers, packaged readers, chip sets and Development Kits. A macro component for hand-held terminals The GemProx-Module is an OEM coupler which embeds all the key components of a very small size contactless interface: 3 cm x 3 cm. It is based on the Gemalto GemProx Chipset High Speed. This coupler can be seen as macro component that is plugged on the mother Printed Circuit Board. Consequently, GemProx-Module is well suited for hand-held terminals such as POS terminals, PDAs or any other portable devices. It also allows the user to turn the RF field off, when not in operation, in order to save battery operating life. The markets targeted are the Proximity Payments, Identity, Access Control and Mass Transit. Technical support An external antenna is connected to GemProx-Module. Gemalto supplies off-the-shelf antennas but also provides: • the appropriate documentation to help its customers to design their own antenna • the technical support to get PayPass, ExpressPay, FIPS 201 / PIV certifications or Electro-Magnetic Compatibility approvals. GemProx-Module OEM coupler Easy to use With GemProx, the contactless technology has now reached the same level of accessibility as the contact one. The application software is dramatically simplified by the use of a high level command set, API library and PC/SC v2.0 driver. Automatic operating modes such as the card insertion / removal, the PayPass card recognition algorithm or the Mifare ® Application Directory (MAD) are implemented on-board and provide the highest possible performances. Market standards and interoperability GemProx technology is fully compliant with the ISO 14443 A and B standard. The T=CL protocol is handled directly by the reader. The Mifare protocol and security scheme are also supported. GemProx readers are ranked among the very best readers in terms of interoperability, thanks to the unique experience of Gemalto both in smart card and reader technologies. www.gemalto.com Specifications Contactless card interface • Operating frequency: 13.56 MHz • Embedded ISO 14443–4 T=CL protocol • Baud rate: 106 Kbps to 848 Kbps • Reading distance: up to 10 cm depending on antenna size • Remote antenna (not included): Antenna connection distance up to 50 cm Host interface • Type of interface: RS232 - TTL levels • Protocol: GBP • Baud rate: 1.2 Kbps to 460 Kbps • Option: Wiegand 32 bits (Mifare and type A cards) External SAM interfaces • Number of SAM interfaces: 4 • ISO 7816 –1 to –3, T=0, T=1 protocols • SAM power supply: +5 VDC +/- 10% • Baud rate: 9.6 Kbps to 115 Kbps Power supply • Voltage: +5 VDC +/- 10% • Current: 200 mA • Low power management functions Other features • Output signals for 3 remote LED indicators and one remote buzzer • Dimensions: 31 mm x 31 mm x 9 mm • Weight : 6 g Main functions • Read/write the following Smart Cards: − ISO 14443 A, B, T=CL cards − Mifare ® cards (including DESFire) − SR176, SRIX512 and SRIX4K − Other cards on request • High level command set • Firmware up grade in Flash memory • Mifare ® Application Directory (MAD) • PayPass, Visa contactless and ExpressPay level 1 compliance • ICAO and FIPS 201 / PIV specifications compliance • Card insertion/removal detection • E-purse command set • Self test Associated tools • GemProx Development Kit • PC/SC v2.0 driver for Windows 2000/XP • C language source code API • Firmware download tools Environment • Operating temperature range: -20 °C to +70 °C (-4 °F to +158 °F) • Storage temperature range: -40 °C to • +85 °C (-40 °F to +185 °F) • Humidity: 0 % to 95 % non condensing • EMC: 89/336/CEE • Safety: UL 1950, cUL CSA 950, EN 60950 • MTBF: 800,000 H at +20 °C Gemalto services Gemalto is recognized as the world’s leading supplier of Smart Cards readers (Frost & Sullivan 2006). Gemalto is an active participant to international standardization groups (ISO, PC/SC, etc.) and offers its unique experience in consulting services such as: Security schemes, interoperability issues, test specifications and tools, feasibility analysis, demonstrations. For payment applications, Gemalto can take in charge the PayPass and ExpressPay certifications of the equipment that embeds GemProx-Module and its antenna. Information subject to change without prior notice

Zebra Technologies P330I Printer Description 04/25/2007 The Zebra P330i is a single sided card printer that can print monochrome or full color images on a PVC card in one pass through the printer. The Zebra P330i uses color dye-sublimation ribbons or thermal transfer ribbons to transfer digital images to a PVC card. These cards can be used for identification, loyalty cards, or marketing purposes. Options for this printer include Ethernet, magnetic card encoding, contact and contact-less smart card encoding. Ribbon recognition and security is maintained through RFID technology within the printer. The RFID board and the contactless smartcards use separate transmitters each operating at a frequency of 13.56 MHz in the ISM band. The RFID system uses an I●CODE1 format and conforms to ISO 15693 specifications. The RFID system is contained on a single PCBA which holds the loop antenna, impedance matching network, RF interface IC and digital controller IC. The design is optimized for short range lower power operation. Contact-less smart cards are supported using the popular MIFARE format smart cards, which conform to the ISO14443 specification. The system consists of a transceiver module and an antenna module mounted in the printer case. The antenna module with integral matching network connects via coaxial cable and MMCX connector to the transmitter module. The Mifare Contact Less reader uses a GemAlto GemProx module. The GemAlto GemProx exciter modulates a 13.56MHz carrier signal in accordance with ISO/IEC 14443 A&B and ISO/IEC 15693-2. The modulated carrier is then filtered to suppress harmonics before driving the antenna. The output impedance of the exciter is 50 ohms for driving remote antennas through a coax cable and the impedance matching network of the antenna matches the impedance for maximum power transfer. The OEM50 generates a 13.56MHz signal, referred as the carrier, at the input of the reader antenna that is transmitted in the form of magnetic fields. The magnetic field generates a voltage across the card antenna and when that voltage reaches sufficient magnitude the chip on the card will power up and begins communicating with the reader by modulating the impedance seen by its antenna. The changing impedance on the card changes the mutual inductance between the antennas, which in turn, causes a change in the magnitude of the exciter signal that drives the reader antenna. It is this change in the exciter signal amplitude that allows reverse communications form the contact-less card. The GemProx module MIFARE system is based upon a Phillips RF ASIC to support the MIFARE encoding format, more detail data is available on the Phillips website and in the attached G8378000-001 data sheet.

TEST REPORT FROM FOR Zebra Technologies Corp. Thermal Card Printer Model: P330i TO 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Test Report Serial No.: SL07041702-ZBR-022/P330i This report supersedes None Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: ............................................................................................................. Tested by: Kerwinn Corpuz, Test Engineer ............................................................................................................. Reviewed by: Snell Leong, Reviewer Issue date: 01 May 2007 Manufacturer: Zebra Technologies Corp. This test report may be reproduced in full only. This test report may be reproduced in full only. Registration No. 783147 Registration No. 2195 Registration No. 4842 RTA No. D23/16V Lab Code: KR0032 Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 2 of 32 www.siemic.com This page has been left blank intentionally. Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 3 of 32 www.siemic.com CONTENTS EXECUTIVE SUMMARY ................................................................................................................................................. 5 1 TECHNICAL DETAILS ............................................................................................................................................. 6 2 TESTS REQUIRED ..................................................................................................................................................... 7 3 ANTENNA REQUIREMENT .................................................................................................................................... 8 4 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS .................................................................. 9 5 TEST INSTRUMENTATION .................................................................................................................................. 24 APPENDIX A: EUT TEST CONDITIONS.................................................................................................................... 25 APPENDIX B: EXTERNAL PHOTOS .......................................................................................................................... 26 APPENDIX C: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................... 27 APPENDIX D: INTERNAL PHOTOS ........................................................................................................................... 28 APPENDIX E: PRODUCT DESCRIPTION.................................................................................................................. 29 APPENDIX F: FCC LABEL LOCATION ..................................................................................................................... 30 APPENDIX G: USER MANUAL .................................................................................................................................... 31 Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 4 of 32 www.siemic.com This page has been left blank intentionally. Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 5 of 32 www.siemic.com Executive Summary The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corp., Thermal Card Printer, model P330i against the current 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 . The Thermal Card Printer demonstrated compliance with the 47 CFR 15.225:2006 & RSS- 210 Issue 6:2005 . Zebra Technologies Corp. is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the Thermal Card Printer User Manual. The equipment under test operating frequency is 13.56 MHz. Note 1: This EUT has two radios installed, one is RFID and the other is Mifare. The two radios installed will not be operating at the same time when marketed. Note 2: Radiated emissions above 30 MHz, both RFID and Mifare was transmitting at the same time just for testing purpose. The test has demonstrated that this unit complies with stipulated standards. Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 6 of 32 www.siemic.com 1 Technical Details Purpose Compliance testing of Thermal Card Printer with 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Applicant / Client Zebra Technologies Corp. 333 Corporate Woods Parkway Vernon Hills, IL 60061 USA Manufacturer Zebra Technologies Corp. Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL07041702-ZBR-022/P330i Date EUT received 25 April 2007 Standard applied 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Dates of test (from – to) 25 April 2007 to 30 April 2007 No of Units: 1 Equipment Category: DXX Trade/Product Name: P330i Type/Model Name/No: P330i Technical Variants: N/A FCC ID No. I28-P330I-MIFARE IC ID No. 3798A-P330IMIF Title: Zebra Technologies Corp. FCCID: I28-P330I-MIFARE To: 47 CFR 15.225:2006 & RSS-210 Issue 6:2005 Serial# SL07041702-ZBR-022/P330i Issue Date 01 May 2007 Page 7 of 32 www.siemic.com 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the …
