I28-QL420352Portable Printer

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 30, 2003 RE: Zebra Technologies FCC ID: I28-QL420352 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Something appears odd with the internal photographs of the TX card provided. It appears that the TX card is a PCMCIA card by the external photographs and by its FCC ID. However the internal photographs appear to be of a MiniPCI card. Please explain. Response : The incorrect photographs were included with this application. Please refer to the photographs in the revised Internal Photograph exhibit, uploaded with this response. 2) Please provide detailed photographs of the antenna. Response : Please refer to the revised Internal Photograph exhibit uploaded with this response for the antenna photographs. 3) The operational description given by CISCO regarding the PCMCIA card state that the output power is about 100 mW. However, the 731 states about 16 mW, while the test report shows 160 mW. Note that the FCC expects all power information throughout the report to be consistent. Response : The noted inconsistency is addressed in a Cover Letter exhibit uploaded with this response. When a similar application for the Zebra QL320 (FCC ID: I28-QL320352) was under review last year, this discrepancy was noted by the reviewer, and a similar letter of explanation was accepted. 4) Tables 3-2 and 6-4 appear to show N/A for the calibration information on the antennas, cables, and amplifiers. Please provide proper calibration information. Response : Please refer to the tables in the revised test report uploaded with this response. 5) Table 4-1 is missing information regarding the model and serial number of the LISN. Please provide. Response : Please refer to the table in the revised test report uploaded with this response. Continued on the following page..... American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 6) The conducted emissions provided do not show any reading from 150 kHz to 450 kHz. Due to the data given in the tables and the test method specified in section 4 of the test report, it appears that the device was only tested from 450 kHz - 30 MHz to the older FCC limits. Please confirm if additional test data will be provided to show compliance with the new harmonized European limits (including 0.150 - 0.450 MHz that was not previously tested), or if we should proceed using the current data. This is because the grant will be issued with one of the following grant notes depending on which set of limits it is shown to have met: Current Limits NOTE: The manufacture and importation of this device must cease on July 10, 2005 pursuant to 15.37(j) or 18.123 transition provisions adopted under FCC 02-157 (ET Docket 98-80). Future Limits (CISPR) NOTE: This device has shown compliance with the conducted emissions limits in 15.107, 15.207, or 18.307 adopted under FCC 02-157 (ET Docket 98-80) and may be marketed after July 11, 2005 and is not affected by the 15.37(j) or 18.123 transition provisions. Response: The data and the test method have both been updated to show compliance with the new harmonized European limits. Please refer to the revised test report uploaded with this response. If you have any questions on any of these responses, please do not hesitate to contact me. Kathy Grzovic, Rhein Tech Laboratories Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 30, 2003 RE: Zebra Technologies FCC ID: I28-QL420352 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Something appears odd with the internal photographs of the TX card provided. It appears that the TX card is a PCMCIA card by the external photographs and by its FCC ID. However the internal photographs appear to be of a MiniPCI card. Please explain. 2) Please provide detailed photographs of the antenna. 3) The operational description given by CISCO regarding the PCMCIA card state that the output power is about 100 mW. However, the 731 states about 16 mW, while the test report shows 160 mW. Note that the FCC expects all power information throughout the report to be consistent. 4) Tables 3-2 and 6-4 appear to show N/A for the calibration information on the antennas, cables, and amplifiers. Please provide proper calibration information. 5) Table 4-1 is missing information regarding the model and serial number of the LISN. Please provide. 6) The conducted emissions provided do not show any reading from 150 kHz to 450 kHz. Due to the data given in the tables and the test method specified in section 4 of the test report, it appears that the device was only tested from 450 kHz - 30 MHz to the older FCC limits. Please confirm if additional test data will be provided to show compliance with the new harmonized European limits (including 0.150 - 0.450 MHz that was not previously tested), or if we should proceed using the current data. This is because the grant will be issued with one of the following grant notes depending on which set of limits it is shown to have met: Current Limits NOTE: The manufacture and importation of this device must cease on July 10, 2005 pursuant to 15.37(j) or 18.123 transition provisions adopted under FCC 02-157 (ET Docket 98-80). Future Limits (CISPR) NOTE: This device has shown compliance with the conducted emissions limits in 15.107, 15.207, or 18.307 adopted under FCC 02-157 (ET Docket 98-80) and may be marketed after July 11, 2005 and is not affected by the 15.37(j) or 18.123 transition provisions. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 46 of 70 APPENDIX C: AGENCY AUTHORIZATION LETTER Please see the following page.

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 47 of 70 APPENDIX D: CONFIDENTIALITY REQUEST LETTER Please see the following page.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 March 31, 2003 Mr. Tim Johnson American TCB 6731 Whittier Ave, Suite C110 McLean, VA 22101 Ref: Zebra Technologies QL420 / FCC ID: I28-QL420352 Dear Mr. Johnson, In reference to the Zebra Technologies QL420 (FCC ID: I28-QL420352) application, the output power of the Cisco AIR-LMC352 used in this host is higher than the power listed on the original Cisco grant for this device (FCC ID: LDK102040). The Zebra Technologies QL420 controls the Cisco AIR-LMC352 utilizing firmware developed by Zebra Technologies that is based on routines and drivers supplied by Cisco. Because these routines and drivers are customized by Zebra Technologies for use in their device and operating system, there are differences in the way the AIR-LMC352 is controlled and programmed, specifically the PA stage of the AIR-LMC352. These programming differences account for the power discrepancy between the grant issued for FCC ID LDK102040 and the above referenced Zebra Technologies application. Sincerely, Richard B. McMurray Vice President, Operations Rhein Tech Laboratories

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 From: Rhein Tech Labs ([email protected]) Re: FCC ID: I28-QL420352 Applicant: Zebra Technologies Corporation Correspondence Reference Number: 8043 731 Confirmation Number: TC906593 Date of Original Email: 04/28/2003 1) Please explain/verify/demonstrate that output power is not saturated so that SAR results are valid. Cisco has confirmed that the output power measured during testing was within Cisco's manufacturing tolerances and would not be saturated. Please see the following email from Cisco for an explanation: From: Jim Nicholson at Cisco Sent: Tuesday, May 06, 2003 9:31 AM We calibrate these radios in the factory to 100 mW average power, and there is a +/-2 dB tolerance on the calibration. Add in a peak to average ratio of 1-1.5 dB for CCK waveforms, and a 150 mW peak power level is not out of the question.

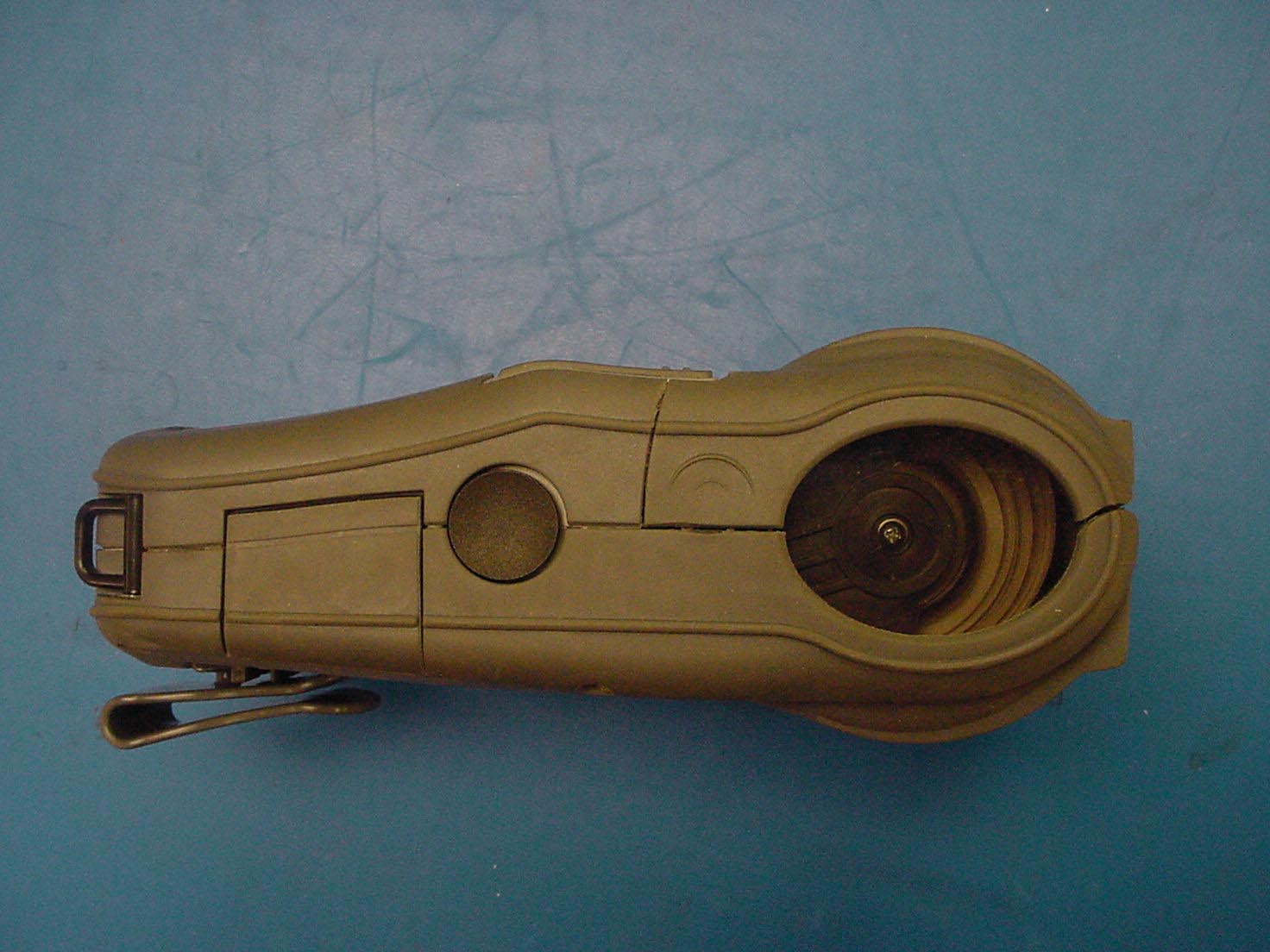

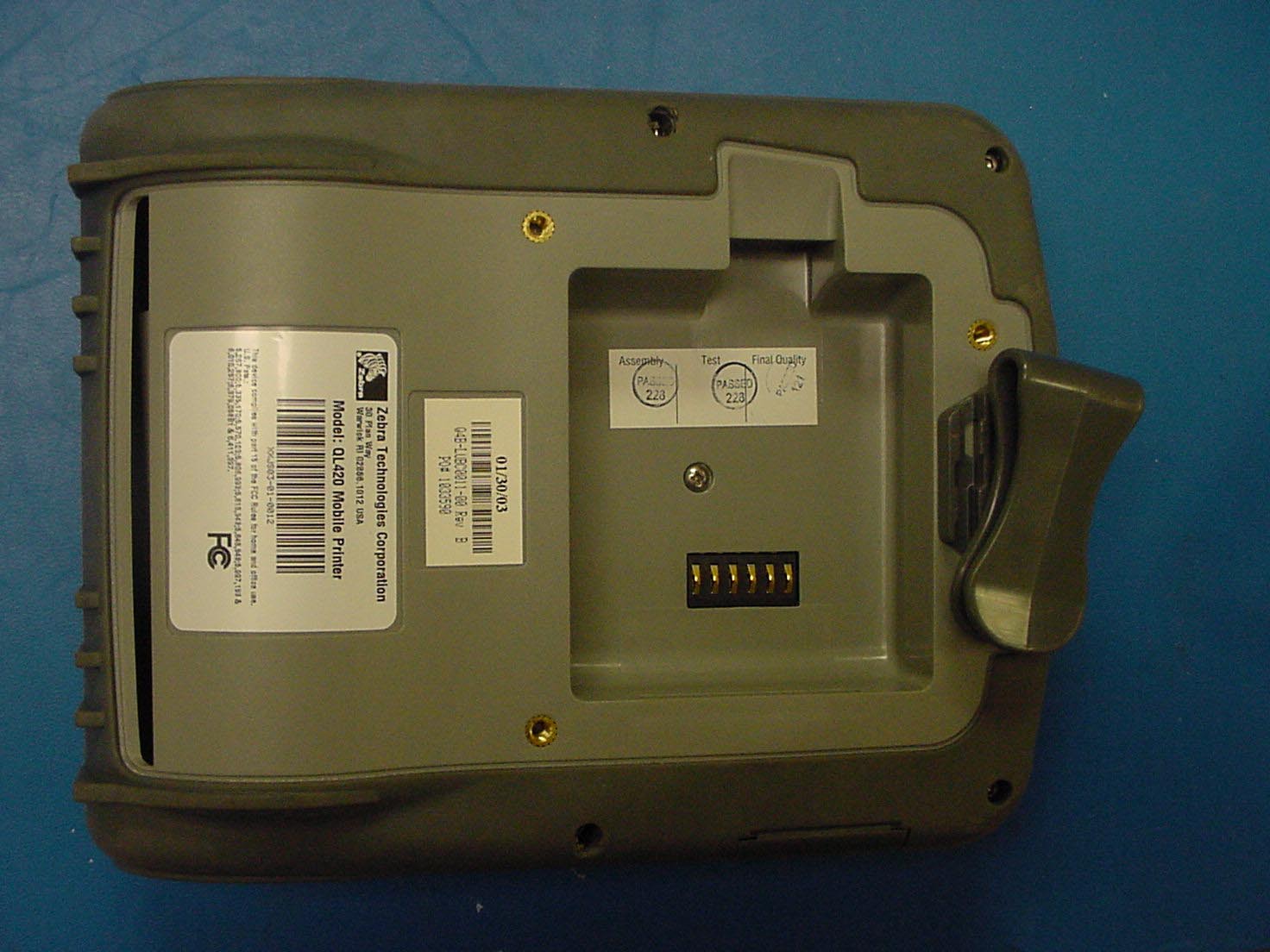

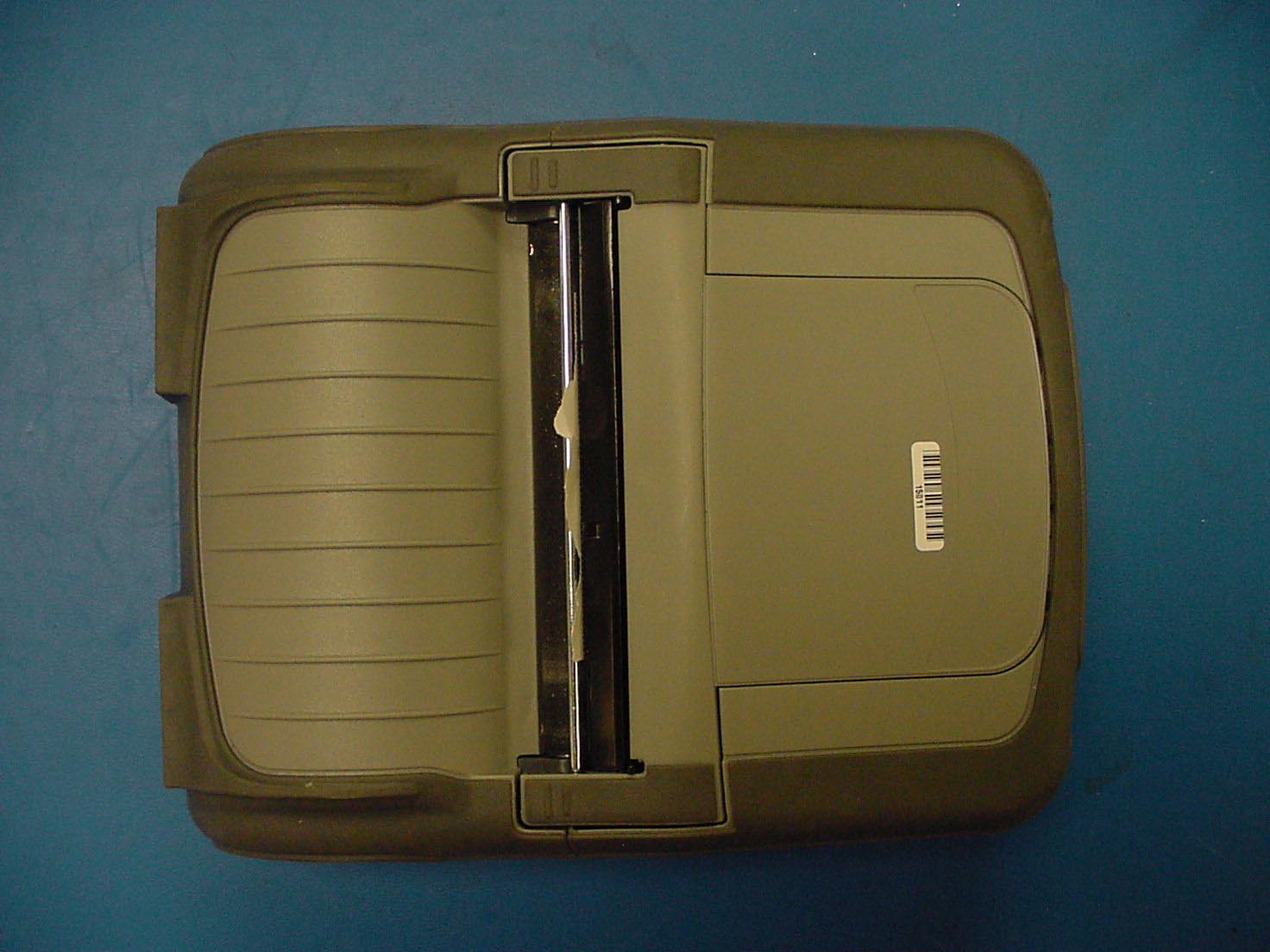

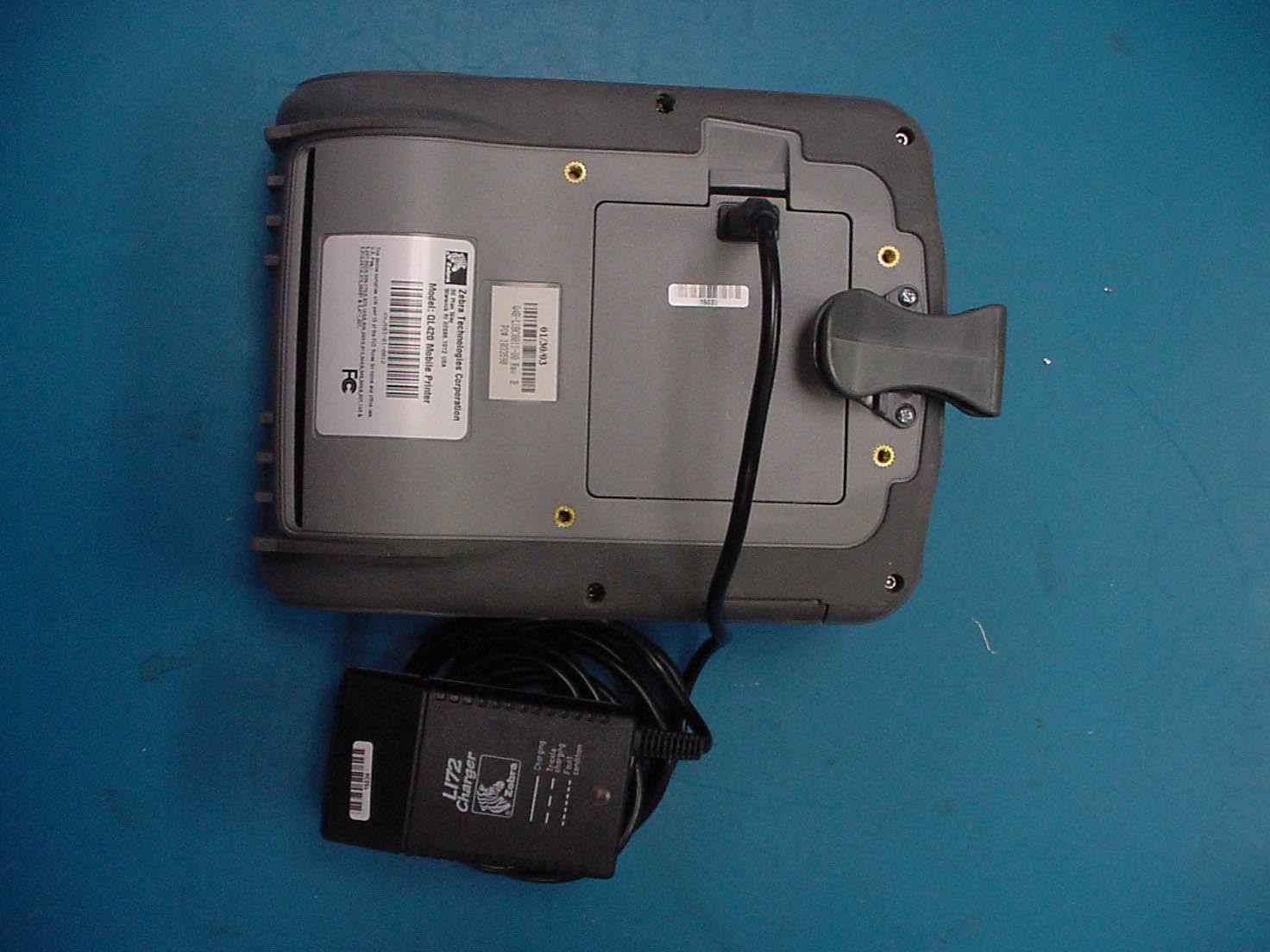

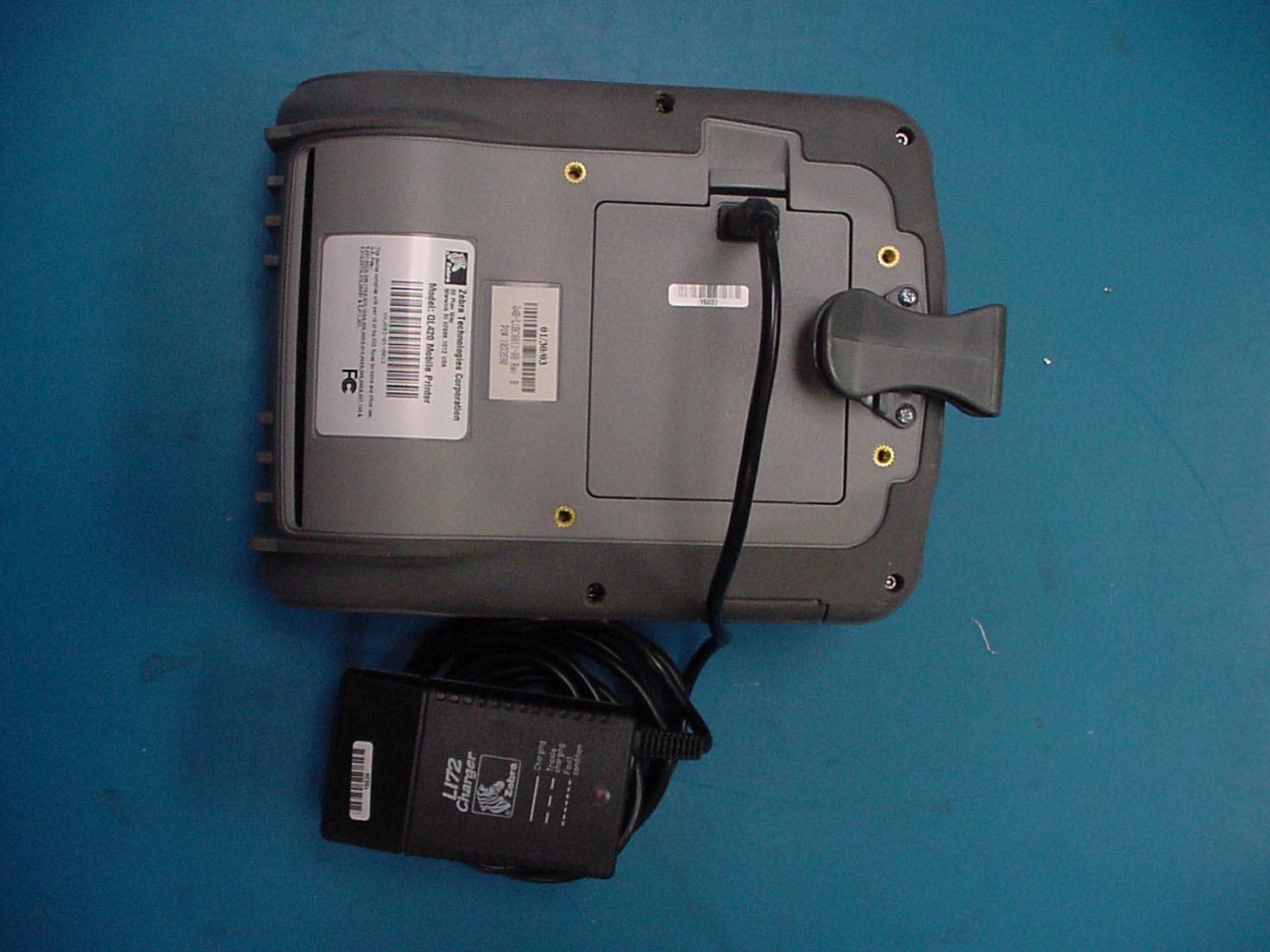

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 57 of 70 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: FRONT OF EUT Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 58 of 70 PHOTOGRAPH 6: TOP OF EUT Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 59 of 70 PHOTOGRAPH 7: BOTTOM OF EUT SHOWING BELT CLIP Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 60 of 70 PHOTOGRAPH 8: BOTTOM WITH AC ADAPTER/CHARGER Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 61 of 70 PHOTOGRAPH 9: LEFT SIDE OF EUT Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 62 of 70 PHOTOGRAPH 10: RIGHT SIDE OF EUT Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 63 of 70 PHOTOGRAPH 11: PRODUCT LABEL ON EUT

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 49 of 75 APPENDIX F: LABEL AND LABEL LOCATION Please see the following pages for a label sample and a photograph of the label location. F C C I D : I 2 8 - Q L 4 2 0 3 5 2 ; I C : 3 7 9 8 A - Q L 4 2 0 3 5 2 Network Printer 802.11b (Cisco PCMCIA) AA16434-8 Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 50 of 75 PHOTOGRAPH 1: FCC ID LABEL LOCATION FCC ID LABEL

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 64 of 79 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 12: INSIDE PCB Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 65 of 79 PHOTOGRAPH 13: INSIDE PRINTER Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 66 of 79 PHOTOGRAPH 14: WLAN ADAPTER AND ANTENNA Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 67 of 79 PHOTOGRAPH 15: ANTENNA TOP VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 68 of 79 PHOTOGRAPH 16: ANTENNA BOTTOM VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 69 of 79 PHOTOGRAPH 17: ANTENNA CONNECTED TO COVER Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 70 of 79 PHOTOGRAPH 18: WLAN ADAPTER TOP VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 71 of 79 PHOTOGRAPH 19: WLAN ADAPTER BACK VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 72 of 79 PHOTOGRAPH 20: WLAN ADAPTER FRONT VIEW OF PCB WITH SHIELD Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 73 of 79 PHOTOGRAPH 21: WLAN BACK VIEW OF PCB WITH SHIELDS Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 74 of 79 PHOTOGRAPH 22: WLAN FRONT VIEW OF PCB WITHOUT SHIELD Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 75 of 79 PHOTOGRAPH 23: WLAN BACK VIEW OF PCB WITHOUT SHIELDS

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 44 of 70 APPENDIX A: SAR MEASUREMENT REPORT Please see the SAR Evaluation S/N 022403-341I28 that follows. Test Report S/N: 022403-341I28 Test Date(s): March 12, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 20 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information ZEBRA TECHNOLOGIES CORP. 30 Plan Way Warwick, RI 02886 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification:Digital Transmission System (DTS) EUT Type:Wireless Mobile Printer with DSSS WLAN Card Modulation:Direct Sequence Spread Spectrum (DSSS) FCC ID:I28-QL420352 Model No.:QL420 Tx Frequency Range:2412 - 2462 MHz Max. Output Power Tested:22.0 dBm (Peak Conducted) Antenna Type:Internal Battery Type(s):7.4V Lithium-Ion (P/N: AT16293-1) Body-Worn Accessories:Belt-Clip, Shoulder Strap Max. SAR Measured:1.04 W/kg (Printer Side) Test Report S/N: 022403-341I28 Test Date(s): March 12, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 20 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................ 7 8.0EQUIVALENT TISSUES........................................................... 8 9.0SAR LIMITS........................................................................... 8 10.0SYSTEM SPECIFICATIONS...................................................... 9 11.0PROBE SPECIFICATION.........................................................10 12.0SAM PHANTOM......................................................................10 13.0DEVICE HOLDER....................................................................10 14.0TEST EQUIPMENT LIST...........................................................11 15.0MEASUREMENT UNCERTAINTIES............................................12 16.0REFERENCES.......................................................................13 APPENDIX A - SAR MEASUREMENT DATA............................................14 APPENDIX B - SYSTEM CHECK DATA....................................................15 APPENDIX C - SYSTEM VALIDATION.....................................................16 APPENDIX D - PROBE CALIBRATION....................................................17 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................18 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............19 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................20 Test Report S/N: 022403-341I28 Test Date(s): March 12, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.Zebra Technologies Corp. FCC ID: I28-QL420352 (Model: QL420)3 of 20 Wireless Mobile Printer with DSSS WLAN Card (2412-2462MHz) 1.0 INTRODUCTION This measurement report demonstrates that the Zebra Technologies Corp. Model: QL420 Mobile Printer with DSSS WLAN Card FCC ID: I28-QL420352 complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s) FCC 47 CFR §2.1093 IC Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) FCC Device Classification Digital Transmission System (DTS) DeviceType Wireless Mobile Printer with DSSS WLAN Card FCC ID I28-QL420352 Model(s) QL420 Serial No. Pre-production Modulation Direct Sequence Spread Spectrum (DSSS) Tx Frequency Range 2412 - 2462 MHz Max. RF Output Power Measured 22.0 dBm (Peak Conducted) Antenna Type(s) Internal Battery Type(s) 7.4V Lithium-Ion (P/N: AT16293-1) Body-Worn Accessories Te…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 CERTIFICATION APPLICATION REPORT FCC PART 15.247 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 E-Mail : [email protected] Applicant Information: Zebra Technologies Phone: 401-739-5800 ext. 352 Contact: Bob Heon Fax: 401-732-0145 30 Plan Way E-Mail: [email protected] Warwick, RI 02886 FCC ID: I28-QL420352 GRANTEE FRN NUMBER: 0006-3040-75 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2003016 MODEL(S): QL420 RTL QUOTE NUMBER: QRTL03-716 DATE OF TEST REPORT: March 31, 2003 Standards and Procedures: ANSI 63.4, DA00-705 (FHSS) and FCC 97-114 (DSSS) FCC Classification: DSSS Direct Sequence Spread Spectrum FCC Rule Part(s): Part 15.247: Operation within the bands 920-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz Direct Sequence System Industry Canada Standard: RSS-210: Low Power License-Exempt Radio Communication Devices (All Frequency Bands) Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Output Power*(W) Frequency Tolerance Emission Designator 2412-2462 0.157 N/A N/A * output power is maximum peak conducted We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. See Modifications, Section 1.4, for information on the changes that were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, Industry Canada RSS-210, ANSI 63.4, DA00-705 (FHSS) and FCC 97-114 (DSSS). Signature: Date: March 31, 2003 Typed/Printed Name: Desmond A. Fraser Position: President Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Version 2 Page 2 of 79 TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................................................................................... 5 1.1 SCOPE .......................................................................................................................................................................... 5 1.2 TEST FACILITY .......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 5 1.4 MODIFICATIONS ....................................................................................................................................................... 5 2 TEST INFORMATION ................................................................................................................................................................................... 6 2.1 TEST JUSTIFICATION ............................................................................................................................................... 6 2.2 EXERCISING THE EUT .............................................................................................................................................. 6 2.3 TEST RESULT SUMMARY ........................................................................................................................................ 6 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 8 3 COMPLIANCE WITH THE RESTRICTED BAND EDGE - §15.205 ............................................................................................................. 9 3.1 TEST PROCEDURE..................................................................................................................................................... 9 3.2 COMPLIANCE WITH THE RESTRICTED BAND EDGE TEST DATA .................................................................. 9 3.3 RESTRICTED BAND EDGE PLOTS ........................................................................................................................ 10 3.4 BAND EDGE TEST EQUIPMENT............................................................................................................................ 18 4 CONDUCTED LIMITS - §15.207 ................................................................................................................................................................. 19 4.1 TEST METHODOLOGY FOR CONDUCTED EMISSIONS MEASUREMENTS .................................................. 19 4.2 CONDUCTED EMISSION TEST .............................................................................................................................. 19 4.3 CONDUCTED EMISSION TEST DATA .................................................................................................................. 20 5 RADIATED EMISSION FOR RECEIVER/DIGITAL INTERFACE - §15.209 .............................................................................................. 23 5.1 RADIATED EMISSION TEST PROCEDURE FOR RECEIVER/DIGITAL INTERFACE ..................................... 23 5.2 RADIATED EMISSION TEST DATA RECEIVER/DIGITAL INTERFACE .......................................................... 23 6 RADIATED EMISSION RADIATED HARMONICS/SPURIOUS NOISE - §15.2…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 53 of 70 APPENDIX J: TEST PHOTOGRAPHS PHOTOGRAPH 1: RADIATED EMISSION FRONT VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 54 of 70 PHOTOGRAPH 2: RADIATED EMISSION REAR VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 55 of 70 PHOTOGRAPH 3: CONDUCTED EMISSION FRONT VIEW Rhein Tech Laboratories Client: Zebra Technologies 360 Herndon Parkway FCC: Part 15.247 Suite 1400 Industry Canada: RSS-210 FCC ID: I28-QL420352 Herndon, VA 20170 http://www.rheintech.com M/N: QL420 Page 56 of 70 PHOTOGRAPH 4: CONDUCTED EMISSION REAR VIEW
