I28-RFIDM6EMTTUHF RFID Module

Installation Guide M6e-MicroTT Compliance and Regulatory Statements FCC Compliance Statement (USA) This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to do one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced RF service technician for help. The end product must be labeled, in a visible area, with the following: Modification Warning The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the user’s authority to operate the equipment. To ensure compliance, this printer must be used with fully shielded communication cables. RF Exposure Statement This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. Contains FCC ID: I28-RFIDM6EMTT Canadian DOC Compliance Statement Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This Class B digital apparatus complies with Canadian ICES-003. Industry Canada (IC) Warning Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause interference., 2) This device must accept any interference, including interference that may cause undesired operation of the device. Approved Antenna information The end product must be labeled, in a visible area, with the following: Contains IC: 3798B-RFIDM6EM TT Only Zebra approved antennas are allowed and cannot be user replaceable. Antenna Type: PCBA Gain: - 36dBi General The M6e‐MicroTT RFID modu le has been certified as a Limited Single Modular. Additional evaluation is required for use in all host devices. The following describes the installation procedures for the various hosts in which the module has been evaluated. Installation Instructions for ZT400 Series The M6e‐MicroTT is not intended for OEM integrators or end users. It can only be installed in the ZT400 Series printer at the grantee manufacturing facility.

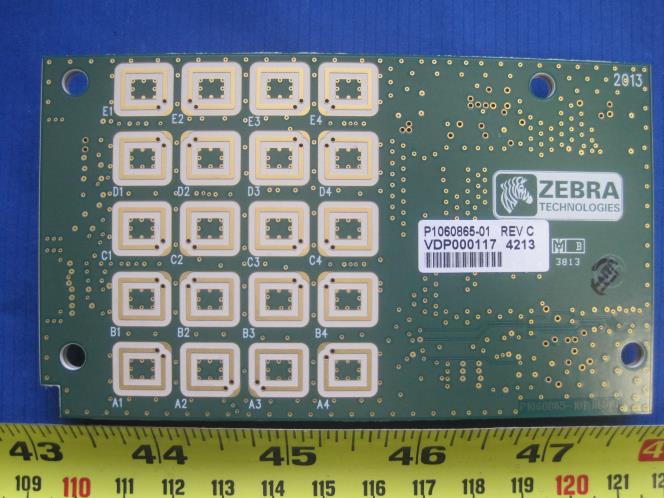

RFID Radio Module & Antenna – Top view RFID Radio Module & Antenna – Bottom view

Top – ZT410 Bottom – ZT410 Front – ZT410 Rear – ZT410 Left Side – ZT410 Right Side – ZT410 Top – ZT420 Bottom – ZT420 Front – ZT420 Rear – ZT420 Left Side – ZT420 Right Side – ZT420

Label Location

RFID Radio Module & Antenna – Top view RFID Radio Module & Antenna – Bottom view

MPE CALCULATION RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 902.75-927.25 MHz, 2402-2480 MHz, 2412 - 2462 MHz; 5180 - 5825MHz Limits for General Population/Uncontrolled Exposure in the band of: 300-1500 MHz, 1500 - 100,000 MHz Power Density Limit: 0.62 mW / cm 2 ( 300-1500 MHz), 1 mW / cm 2 ( 2402- 2480 MHz, 2412 - 2462 MHz; 5180 - 5825MHz) Equation: S = PG / 4R 2 or R = √PG / 4S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm BT-ZBR radio (2402-2480MHz): Power = -4.0 dBm, antenna gain = 3.81 dBi, Power density = 0.00019 mW/cm 2 WLAN N radio (2412-2462MHz): Power = 16.37 dBm , antenna gain = 2.2 dBi , Power density = 0.014 mW/cm 2 WLAN N radio (5180-5825MHz): Power = 16.28 dBm, antenna gain = 5.0 dBi, Power density = 0.0267 mW/cm 2 UHF RFID (902.75-927.25MHz): Power = 28.11dBm, Antenna gain= -36dBi, Power density=0.000032 mW/cm 2 BT and N radio can work simultaneously, so the total ratio of MPE is, Total Ratio of BT + N radio 2.4GHz + RFID = (P RFID /0.62)+(P N Radio /1) +(P BT /1)= 0.00019 /1 + 0.014 /1 + 0.000032 /0.62 = 0.01424< 1 Total Ratio of BT + N radio 5GHz + RFID = (P RFID /0.62)+(P N Radio /1) +(P BT /1)= 0.00019 /1 + 0.0267/1 + 0.000032 /0.62 = 0.02694< 1 Maximum MPE is 0.02694, which is less than 1. The Above Result had shown that Device complied with MPE requirement. Completed By : David Zhang Date : Dec 19th, 2013

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: ee Report No.: FCC_RF_SL13110101-ZBR-051_RFID Supersede Report No.: NONE Applicant Zebra Technologies Corp. Product Name RFID Module Model No. M6e-MicroTT Test Standard 47CFR15.247: 2013, RSS-210 Issue8: 2010 Test Method ANCI C63.4:2009 DA 00-705 Measurement Guidelines for FHSS FCC ID I28MD-RFIDM6EMTT IC ID 3798B-RFIDM6EMTT Date of test 12/02/2013 - 12/17/2013 Issue Date 12/18/2013 Test Resut Pass Fail Equipment complied with the specification [ x ] Equipment did not comply with the specification [ ] David Zhang Choon Sian Ooi Test Engineer Engineer Reviewer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC_RF_SL13110101-ZBR-051_RFID Page 2 of 49 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Test report No. FCC_RF_SL13110101-ZBR-051_RFID Page 3 of 49 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 7 6.3 EUT test modes/configuration Description.................................................................................................................... 7 6.4 EUT Photos - External ............................................................................................................................................... 8 6.5 EUT Photos - Internal ................................................................................................................................................ 9 6.6 EUT Test Setup Photos ........................................................................................................................................... 10 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 13 7.1 Supporting Equipment ............................................................................................................................................. 13 7.2 Test Software Description ........................................................................................................................................ 13 8 TEST SUMMARY ......................................................................................................................................................... 14 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 15 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 16 10.1 Antenna Requirement.......................................................................................................................................... 16 10.2 Conducted Emissions ........................…

Text truncated - open the document above for the full version.

AC Line Conducted Emissions – Front View AC Line Conducted Emissions – Rear View Radiated Emissions (<1GHz) – Front View Radiated Emissions (<1GHz) – Rear View Radiated Emissions (>1GHz) – Front View Radiated Emissions (>1GHz) – Rear View Radiated Emission below 1GHz – ZT410 (Front) Radiated Emission below 1GHz – ZT410 (Rear) Radiated Emission below 1GHz – ZT420 (Front) Radiated Emission below 1GHz – ZT420 (Rear) Radiated Emission above 1GHz – ZT410 (Front) Radiated Emission above 1GHz – ZT410 (Rear) Radiated Emission above 1GHz – ZT420 (Front) Radiated Emission above 1GHz – ZT420 (Rear)
