I28-W2WLAN11G802.11 b/g module

P1035089-001 Rev A Zebra ® ZXP Series 8 ™ Card Printer Wireless Reference Manual Working Draft March 31, 2011 Cover 2 © 2010 ZIH Corp. The copyrights in this manual and the software and/or firmware in the printer described therein are owned by ZIH Corp. and Zebra’s licensors. Unauthorized reproduction of this manual or the software and/or firmware in the printer may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability. Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries. It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies. Product Improvements Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice. Liability Disclaimer Zebra Technologies takes steps to ensure that it’s published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting there from. Limitation of Liability In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Important Use only the supplied antenna. Unauthorized antennas, modifications or attachments could damage the transmitter and may violate FCC regulations or local regulatory requirements in your country. 3 Table of Contents 1 Introduction .......................................................................................................................................... 5 2 Networking Basics ................................................................................................................................. 6 Channels and communication modes ....................................................................................................... 6 Security ..................................................................................................................................................... 7 Authentication .......................................................................................................................................... 8 Network name (SSID) ................................................................................................................................ 8 Encryption ................................................................................................................................................. 8 Media access control address authentication .......................................................................................... 9 3 Installing Printer .................................................................................................................................. 10 4 Configuring the Printer ....................................................................................................................... 11 Network Settings ..................................................................................................................................... 12 Configuring the Printer through the Operator Control Panel ................................................................. 12 Configuring Wireless through the Printer Web Page ............................................................................. 22 Configuring Wireless through the Driver Toolbox .................................................................................. 25 Using ZXP Toolbox Wireless Settings Load/Save Buttons ....................................................................... 30 Using RADIO CONTROL Menu ................................................................................................................. 31 Using SET DEFAULTS Menu ..................................................................................................................... 32 Simple Roaming Used During Connection .............................................................................................. 32 Setting Up an Ad-Hoc (Peer) Network .................................................................................................... 33 Multi-homing Considerations ................................................................................................................. 37 5 Monitor Wireless Performance .......................................................................................................... 39 Wireless Info Pages ................................................................................................................................. 39 Signal Strength ........................................................................................................................................ 40 Noise Floor .............................................................................................................................................. 41 Data Rate................................................................................................................................................. 41 DHCP & MAC Address Info Page ..............................…

Text truncated - open the document above for the full version.

03/16/2011 LMA Declaration Letter We , (Zebra Technology Corp.,) declared that will retain control over the final installation of the device, (FCC ID: I28-W2WLAN11G , IC ID: 3798B-W2WLAN11G) such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must be only approved for use when installed in devices produced by a specific manufacturer. Client’s signature Client’s name / title Contact information / address Client’s signature Client’s name / title: Charles A Derrow / Director, Compliance Engineering Contact information / address 847.793.5719 / 333 Corporate Woods Parkway, Vernon Hills, IL 60061

March 17, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: I28-W2WLAN11G We hereby request confidential treatment of information accompanying this application as outlined below: - WLAN Board Block Diagram - WLAN Board Schematics - WLAN Radio Chip Block Diagram - WLAN Radio Chip Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Charles A. Derrow Director, Compliance Engineering Tel: 847.793.5719 [email protected]

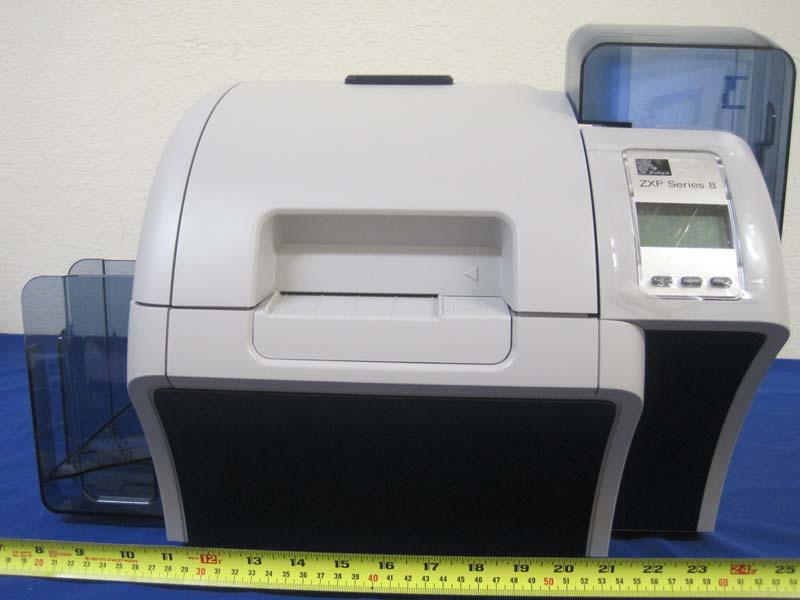

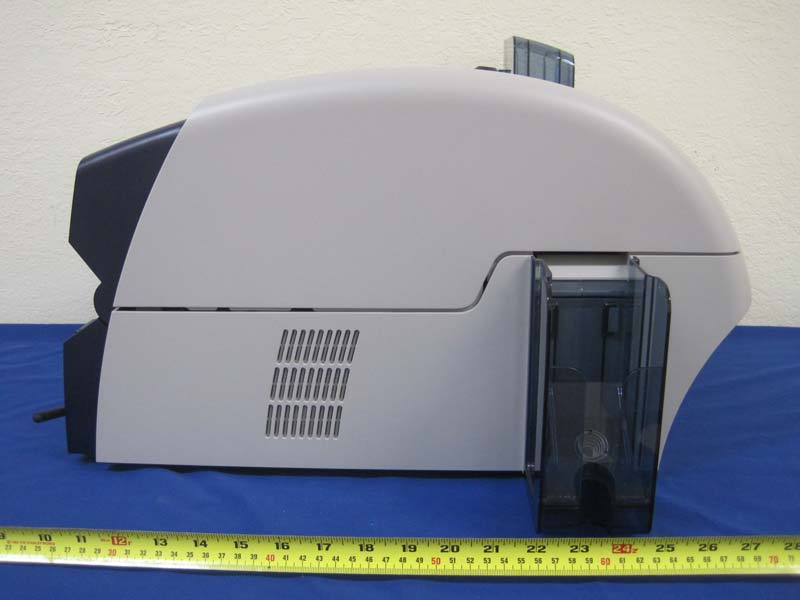

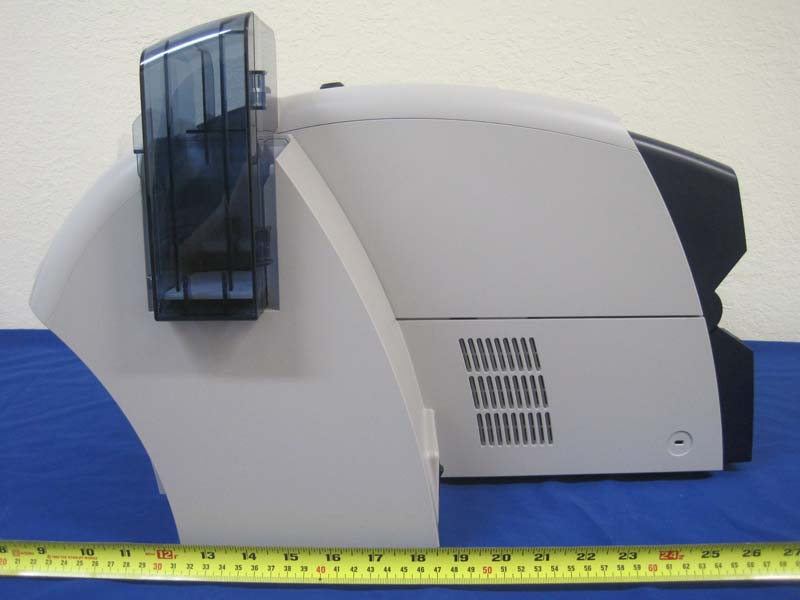

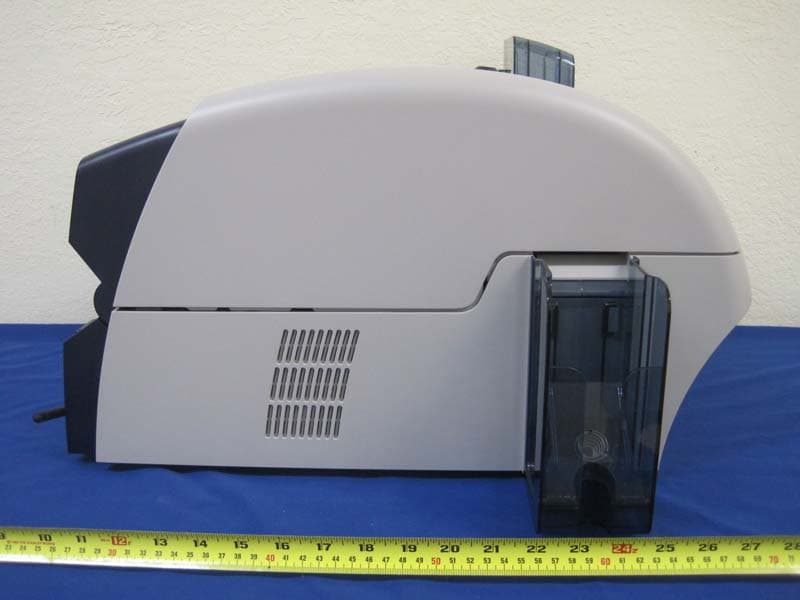

EUT - Front View EUT - Rear View EUT - Right View EUT - Left View

FCC / IC Label details Label dimensions: .75 x .25 max. Label content: Zebra Technologies. Corp. FCC ID: I28-W2WLAN11G IC ID: 3798B-W2WLAN11G Assembled in China Model: W2SW0001 Label Location

Radio Board Top View Radio Board Bottom View Radio Board shielding off View Antenna View

MPE CALCULATION FCC ID: I28-W2WLAN11G RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2412~2462 MHz Limits for General Population/Uncontrolled Exposure in the band of: 300 – 1500 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2412 MHz): Power = 12.3dBm, Antenna Gain = 1.3 dBi, Prediction distance 20cm S = 0.0046 mW/cm 2 Result The Above Result had shown that Device complied with 1 mW/cm 2 Power density requirement for distance of 20cm. Completed By : David Date : March 10, 2011

ZEBRA TECHNOLOGIES CORP 802.11b/g Radio Module Model: W2SW0001 March 17 2011 Report No.: SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 (This report supersedes SL11020403-ZBR-006(15.247)_FCC,IC) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Zhang Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 2 of 87 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 3 of 87 www.siemic.com This page has been left blank intentionally. Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 4 of 87 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................6 2 TECHNICAL DETAILS.....................................................................................................................................................7 3 MODIFICATION...............................................................................................................................................................8 4 TEST SUMMARY.............................................................................................................................................................9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................10 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................51 ANNEX B. TEST SETUP AND SUPPORTING EQUIPMENT......................................................................................................56 ANNEX C USER MANUAL, BLOCK & CIRCUIT DIAGRAM.....................................................................................................60 ANNEX D SIEMIC ACCREDITATION......................................................................................................................................61 Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 5 of 87 www.siemic.com This page has been left blank intentionally. Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 6 of 87 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the 802.11b/g Radio module installed inside host printer ZXP Series 8 with 13.56MHz RFID module against the current Stipulated Standards. The complete system ZXP Series 8 have demonstrated compliance with the FCC 15.247:2010 & IC RSS 210 Issue 8.0. EUT Information EUT Description : 802.11b/g radio module with Host Printer model ZXP Series 8 Model No : W2SW0001 Serial No : JSO000054 Input Power : Input : 100-240V~, 4A Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report 802.11b/g Radio Module Model : W2SW0001 To FCC 15.247:2010,RSS-210 Issue 8:2010 Serial# SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Issue Date March 17 2011 Page 7 of 87 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of 802.11b/g radio module with Host Printer ZXP Series 8 with stipulated standard Applicant / Client ZEBRA Technologies Corp Manufacturer Zebra Technologies Corp 1001 Flynn Road Camarillo, CA 93012 USA Laboratory performing the tests SIEMIC Laboratories Test report reference number SL11020403-ZBR-006(15.247)_FCC,IC Rev1.0 Date EUT received Feb 18 th 2011 Standard applied FCC 15.247:2010 & RSS 210 Issue 8: 2010 Dates of test (from – to) Feb 18th 2011 - Mar 17th 2011 No of Units: 1 Equipment Category: DTS Trade Name: ZEBRA Technologies Corp Model : W2SW0001 RF Operating Frequency (ies) 2412 – 2462 MHz Number of Channels : 11 Modulation : DSSS FCC ID : I28-W2WLAN11G IC ID : 3798B- W2WLAN11G Title: RF Test Report 802.11b/…

Text truncated - open the document above for the full version.

Radiated Emission Radiated Emission Test Setup (below 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Radiated Emission Test Setup (below 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Conducted Emission Conducted Emission Test Setup – Front View Conducted Emission Test Setup – Rear View
