I28-ZBR4CAZebra Embedded Bluetooth Radio

® Zebra GX420d TM ©2007 ZIH Corp . 980603-001 Rev.A 2 3 1 115 VAC230 VAC 4 3 2 1 100-240 VAC 50-60Hz 24 VDC Power Cord statements hereEnsure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in. 3 1 2 4 3 2 1 6 5 7 8 11 10 9 12 LAN USB 2 1 LAN LPT 2 1 LAN COM/SER 2 1 LAN LAN 1 2 3 4 2 1 7 5 8 6 4 3 2 1 68 57 FCC - DECLARATION OF CONFORMITY:Model: GX420d conforms to the following specification: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a) Class B digital deviceSupplemental Information: This device complies with Part 15 of the FCC Rules. Operation i s subject to the following Two Conditions: (1) This device may not cause harmfu l interference, and (2) this device must accept any interference received, including interference that may caus e undesired operation. This equipment has been tested and found to comply with the lim its for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference when the equipment is operated in a residential environment. Th is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accord ance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, the user is encouraged to do one or more of the following measures: R Reorient or relocate the receiving antenna. R Increase the separation between the equipment and receiver. R Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. R Consult the dealer or an experienced radio/TV technician for he lp. FCC - RADIATION EXPOSURE STATEMENT:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distanc e 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunc tion with any other antenna or transmitter. The user is cautioned that any changes or modifications not exp ressly approved by Zebra Technologies could void the user's authority to operate the equipment. To ensure c ompliance, this printer must be used with shielded communication cables. Use only power supplies listed in this manual and/or recommende d and approved by Zebra Technologies. INDUSTRY CANADA NOTICE:This device complies with Industry Canada ICES-003 class B requ irements. Cet equipement est conforme a NMB-003 classe B de la norm Indus trielle Canadian. Utilice sólo adaptadores con las siguientes características elé ctricas y que estén debidamente certificados de acuerdo a la legislación…

Text truncated - open the document above for the full version.

980605-001 Rev.A ©2007 ZIH Corp . ® Zebra GX420tGX430t TMTM 3 1 2 3 2 1 115 VAC230 VAC 4 3 2 1 1 0 0 - 2 4 0 V A C 5 0 - 6 0 H z 2 4 V D C Power Cord statements hereEnsure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in. 2 1 4 3 7 8 5 6 10 9 USB LAN 2 1 LPT LAN 2 1 COM/SER LA N 2 1 LAN LAN 2 1 3 4 2 1 7 5 8 6 2 1 3 4 6 7 5 2 1 3 4 6 5 FCC - DECLARATION OF CONFORMITY:Model: GX420t / GX430t conforms to the following specification: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a) Class B digital deviceSupplemental Information: This device complies with Part 15 of the FCC Rules. Operation i s subject to the following Two Conditions: (1) This device may not cause harmfu l interference, and (2) this device must accept any interference received, including interference that may caus e undesired operation. This equipment has been tested and found to comply with the lim its for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference when the equipment is operated in a residential environment. Th is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accord ance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, the user is encouraged to do one or more of the following measures: R Reorient or relocate the receiving antenna. R Increase the separation between the equipment and receiver. R Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. R Consult the dealer or an experienced radio/TV technician for he lp. FCC - RADIATION EXPOSURE STATEMENT:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distanc e 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunc tion with any other antenna or transmitter. The user is cautioned that any changes or modifications not exp ressly approved by Zebra Technologies could void the user's authority to operate the equipment. To ensure c ompliance, this printer must be used with shielded communication cables. Use only power supplies listed in this manual and/or recommende d and approved by Zebra Technologies. INDUSTRY CANADA NOTICE:This device complies with Industry Canada ICES-003 class B requ irements. Cet equipement est conforme a NMB-003 classe B de la norm Indus trielle Canadian. Utilice sólo adaptadores con las siguientes características elé ctricas y que estén debidamente…

Text truncated - open the document above for the full version.

2.45 GHz AntennaP/N 2450AT45A100 Detail Specification: 07/07/06 Page 1 of 3 General Specifications Part Number2450AT45A100Input Power3W max. Frequency Range2400 - 2500 MhzImpedance50 Ω Peak Gain3.0 dBi typ. (XZ-V)Operating Temperature-40 to +85°C Average Gain1.0 dBi typ. (XZ-V)Reel Quanity1,000 Return Loss9.5 dB min. Mechanical Dimensions Terminal Configuration Inmm No. Function L±± 1 Feeding Point W±± 2 NC T a±± Mounting Considerations Mount these devices with brown mark facing up. Units: mm * Line width should be designed to provide 50Ω impedance matching characteristics. Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved 9.500.20 0.012 0.0471.20+.004/-.008+0.1/-0.2 "High Frequency Ceramic Solutions" 0.0080.079 0.30 2.000.20 0.0200.50 0.3740.008 1 * 1.8 7.5 10.5 1.0 * 1.8 7.5 10.5 1.0 3.9nH 1.5pF a) Without Matching Circuit (moderate bandwidth) 2 L W a T b) With Matching Circuit* (wide bandwidth) *Matching circuit and component values will depend on PCB layout 2.45 GHz AntennaP/N 2450AT45A100 Detail Specification: 07/07/06 Page 2 of 3 Typical Electrical Characteristics (T=25 o C) Test Board Return Loss a) Without Matching Circuita) With Matching Circuit Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) Antenna No Ground Ground 20mm 19mm 40mm12 mm 50Ω Feed Line 2.45 GHz AntennaP/N 2450AT45A100 Detail Specification: 07/07/06 Page 3 of 3 Typical Radiation Patterns Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 2003 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" ) ) ) ) ) ) ) ) ) XY-V/XY-H 180° 270° 0° 90° X Z Y XY-cut scanning direction XY cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H 180° 270° 0° 90° X Z Y XZ-cut scanning direction 180° 270° 0° 90° X Z Y YZ-cut scanning direction XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal

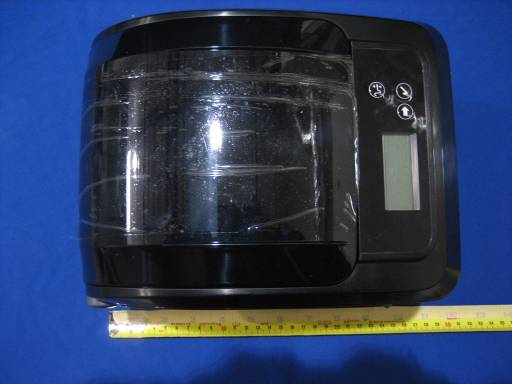

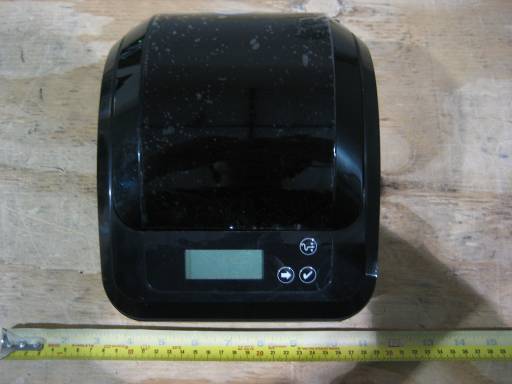

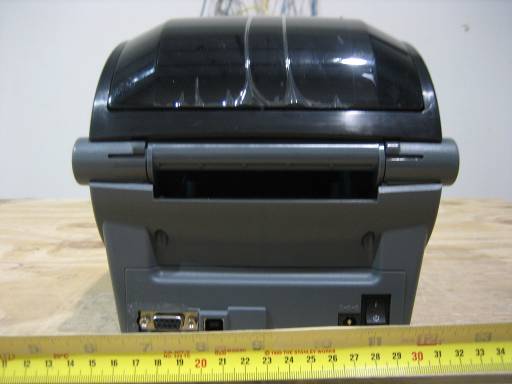

Host EUT Model: GX430t Host EUT Model: GX420t Host EUT Model: GX420d

Label Drawing FCC ID: I28-ZBR4CA IC: 3798B-ZBR4CA Model: ZBR4-CA Made in China Zebra Technologies Corp.

Label Location Label location FCC ID: I28-ZBR4CA IC: 3798B-ZBR4CA Model: ZBR4-CA Made in China Zebra Technolo gies Corp. Host EUT Model: GX430t DoC Mark Location Host EUT Model: GX420t DoC Mark Location Host EUT Model: GX420d

Radio Module & Antenna- Top View Radio Module Bottom View Host EUT Model: GX430t Cover Off -1 Cover Off -2 Main Board -Top View Main Board -Bottom View Display Board-Top View Host EUT Model: GX420t Cover Off -1 Display Board-Bottom View Cover Off -2 Main Board-Top View Main Board-Bottom View Display Board-Top View Host EUT Model: GX420d Display Board-Bottom View Cover Off -1 Cover Off -2 Main Board-Top View Main Board-Bottom View Display Board-Top View Display Board-Bottom View Power Supply

MPE CALCULATION For Zebra – Bluetooth Radio Module; Model: ZBR4-CA FCC ID: I28-ZBR4CA RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC CFR Part 2.1091 & 2.1310 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1.5 – 100 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Power = -7.20dBm , Antenna Gain =3dBi , distance 20cm S = 0.0000756mW/cm 2 The Above Result had shown that Device complied with 1 mW/cm 2 Power density requirement at distance of 20cm. Completed By : Choon Date : March-11-2008

ZEBRA TECHNOLOGIES CORP BLUETOOTH RADIO MODULE Model: ZBR4-CA 21 February 2008 Report No.: SL07021303-ZBR-007 (15.247)( ZBR4CA) (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Choon Sian Ooi Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 2 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: NVLAP Lab Code: 200729-0 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 3 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: FCC Registration No. 783147 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 4 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Industry of Canada Registration No. 4842-1 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 5 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan VCCI Registration No. 2195 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 6 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan RF Technologies Accreditation No. MRF050927 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 7 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea MIC Lab Code: KR0032 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 8 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea CAB ID: US0160 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 9 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan BSMI Accreditation No. SL2-IN-E-1130R Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 10 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan NCC CAB ID: US0160 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 11 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Mexico NOM Recognition Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 12 of 67 www.siemic.com SIEMIC ACREDITATION DETAILS: Hong Kong OFTA Recognition No. D23/16V Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 13 of 67 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 14 of 67 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................11 2 TECHNICAL DETAILS...................................................................................................................................................11 3 MODIFICATION.............................................................................................................................................................11 4 TEST SUMMARY...........................................................................................................................................................11 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................11 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................11 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS..............................................................................................................11 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT......................................................................................................11 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM.....................................................................................................11 Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 15 of 67 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp, model : ZBR4-CA To FCC 15.247 2007 Serial# SL07021303-ZBR-007 (15.247)( ZBR4CA) Issue Date 21 February 2008 Page 16 of 67 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corp, Bluetooth radio Module, model: ZBR4-CA against the current Stipulated Standards. The Bluetooth radio Module have demonstrated compliance with the FCC 15.247 2007. EUT Information EUT Description : Zebra Technologies will only use the ZBR4-CA radio within Zebra products, primarily portable printers. Both the radio and the antenna will be mounted inside the product and will not be user accessible. Nothing that Zebr…

Text truncated - open the document above for the full version.

Radiated Emission below 1GHz Host Printer GX430t Front View Rear View Host Printer GX420d Front View Rear View Host Printer GX420t Front View Rear View Radiated Emission above 1GHz Host Printer 430t Front View Rear View Host Printer 420t Front View Rear View Host Printer 420d Front View Rear View Conducted Emission Front View Rear View
