I28-ZLANGCAZebra Embedded 802.11b/g Radio

® Zebra GX420d TM ©2007 ZIH Corp . 980603-001 Rev.A 2 3 1 115 VAC230 VAC 4 3 2 1 100-240 VAC 50-60Hz 24 VDC Power Cord statements hereEnsure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in. 3 1 2 4 3 2 1 6 5 7 8 11 10 9 12 LAN USB 2 1 LAN LPT 2 1 LAN COM/SER 2 1 LAN LAN 1 2 3 4 2 1 7 5 8 6 4 3 2 1 68 57 FCC - DECLARATION OF CONFORMITY:Model: GX420d conforms to the following specification: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a) Class B digital deviceSupplemental Information: This device complies with Part 15 of the FCC Rules. Operation i s subject to the following Two Conditions: (1) This device may not cause harmfu l interference, and (2) this device must accept any interference received, including interference that may caus e undesired operation. This equipment has been tested and found to comply with the lim its for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference when the equipment is operated in a residential environment. Th is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accord ance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, the user is encouraged to do one or more of the following measures: R Reorient or relocate the receiving antenna. R Increase the separation between the equipment and receiver. R Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. R Consult the dealer or an experienced radio/TV technician for he lp. FCC - RADIATION EXPOSURE STATEMENT:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distanc e 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunc tion with any other antenna or transmitter. The user is cautioned that any changes or modifications not exp ressly approved by Zebra Technologies could void the user's authority to operate the equipment. To ensure c ompliance, this printer must be used with shielded communication cables. Use only power supplies listed in this manual and/or recommende d and approved by Zebra Technologies. INDUSTRY CANADA NOTICE:This device complies with Industry Canada ICES-003 class B requ irements. Cet equipement est conforme a NMB-003 classe B de la norm Indus trielle Canadian. Utilice sólo adaptadores con las siguientes características elé ctricas y que estén debidamente certificados de acuerdo a la legislación…

Text truncated - open the document above for the full version.

980605-001 Rev.A ©2007 ZIH Corp . ® Zebra GX420tGX430t TMTM 3 1 2 3 2 1 115 VAC230 VAC 4 3 2 1 1 0 0 - 2 4 0 V A C 5 0 - 6 0 H z 2 4 V D C Power Cord statements hereEnsure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in.Ensure the appropriate power cord with a three (3) prong plug a nd an IEC 60320-C13 connector are used at all times. These power cords must bear the relevant certificati on mark of the country in which the product is being used in. 2 1 4 3 7 8 5 6 10 9 USB LAN 2 1 LPT LAN 2 1 COM/SER LA N 2 1 LAN LAN 2 1 3 4 2 1 7 5 8 6 2 1 3 4 6 7 5 2 1 3 4 6 5 FCC - DECLARATION OF CONFORMITY:Model: GX420t / GX430t conforms to the following specification: FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a) Class B digital deviceSupplemental Information: This device complies with Part 15 of the FCC Rules. Operation i s subject to the following Two Conditions: (1) This device may not cause harmfu l interference, and (2) this device must accept any interference received, including interference that may caus e undesired operation. This equipment has been tested and found to comply with the lim its for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference when the equipment is operated in a residential environment. Th is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accord ance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, the user is encouraged to do one or more of the following measures: R Reorient or relocate the receiving antenna. R Increase the separation between the equipment and receiver. R Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. R Consult the dealer or an experienced radio/TV technician for he lp. FCC - RADIATION EXPOSURE STATEMENT:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distanc e 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunc tion with any other antenna or transmitter. The user is cautioned that any changes or modifications not exp ressly approved by Zebra Technologies could void the user's authority to operate the equipment. To ensure c ompliance, this printer must be used with shielded communication cables. Use only power supplies listed in this manual and/or recommende d and approved by Zebra Technologies. INDUSTRY CANADA NOTICE:This device complies with Industry Canada ICES-003 class B requ irements. Cet equipement est conforme a NMB-003 classe B de la norm Indus trielle Canadian. Utilice sólo adaptadores con las siguientes características elé ctricas y que estén debidamente…

Text truncated - open the document above for the full version.

March 12, 2008 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 To Whom It May Concern: In reference to the application for FCC ID#: I28-ZLANGCA (Zebra ZLANG-CA radio module using the Samsung SWL-2460 chipset radio), this device is being submitted for LIMITED MODULAR TRANSMITTER APPROVAL based on the guidelines in FCC Publication DA 00-1407. Note that I28- ZLANGCA is a radio module that will be used exclusively within products made by Zebra Technologies Corporation. 1) I28-ZLANGCA is based on a Samsung SWL-2460 radio chipset. The Samsung SWL- 2460 radio chipset is fully shielded. 2) I28-ZLANGCA has buffered inputs on all digital lines. Overdriving one or more of the digital inputs will have no affect on the transmitter output. 3) The I28-ZLANGCA radio module is designed to accept regulated 3.3 VDC at its input. The voltage regulator for the 3.3VDC input is not located on the radio module board itself, thus a Limited Modular Approval is being sought. Further, since the module will only be used in Zebra products, Zebra has full control of the power supply to the radio module and will assure the correct regulated supply voltage is supplied. 4) I28-ZLANGCA antennas which is mounted (with the radio) inside a finished printer. The antenna is not user accessible, nor is the antenna cable / connector user accessible; for these reasons the antennas can be considered to be permanently attached. If the radio is to be used with a new antenna, further testing will be performed and a Class II permissive change will be obtained. 5) I28-ZLANGCA was tested in Zebra host printers (GX420t, GX430t, and GX420d). 6) I28-ZLANGCA will carry a label containing the FCC ID number. As this module will always be mounted on the interior of a Zebra product, it will not be visible to an end user. Thus “Contains FCCID: I28-ZLANGCA” will appear on the external label of the product the radio is mounted into. All products containing this module will have this statement clearly visible. Examples of both the internal and external labels have been provided as part of the application. 7) I28-ZLANGCA will only be used with Zebra Technologies products; this includes printers built by Zebra that are branded for other companies. Thus Zebra will maintain full control over the use of the module and can guarantee that all conditions for use will be met in any product that the module is installed in. 8) The products that I28-ZLANGCA will be used in are not body worn devices so are not subject to Part 2.1093 of the FCC rules. Sincerely, Guzvaldo Medina Compliance Engineer Tel: 847.793.5792 [email protected]

Host EUT Model: GX430t Host EUT Model: GX420t Host EUT Model: GX420d

Label Drawing FCC ID: I28-ZLANGCA IC: 3798B-ZLANGCA Model: ZLANG-CA Made in China Zebra Technologies Corp.

Label location FCC ID: I28-ZLANGCA IC: 3798B-ZLANGCA Model: ZLANG-CA Made in China Zebra Technolo gies Corp. Host EUT Model: GX430t DoC Mark Location Host EUT Model: GX420t DoC Mark Location Host EUT Model: GX420d DoC Mark Location

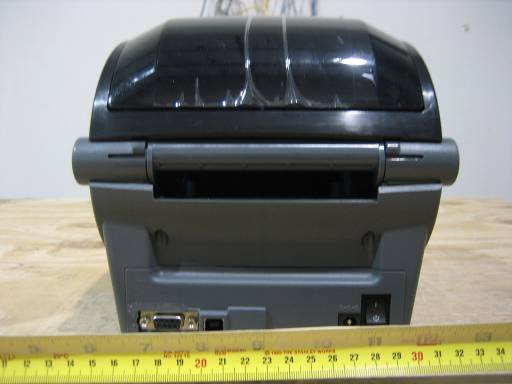

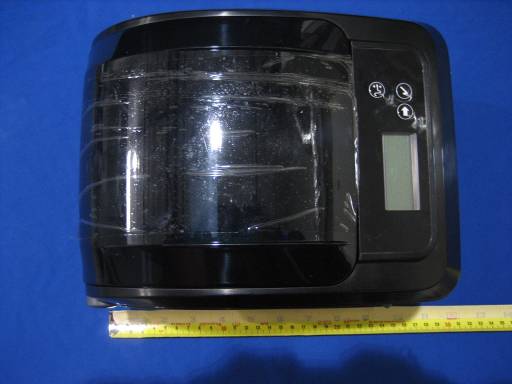

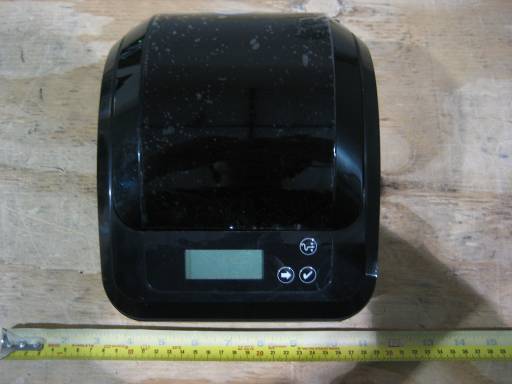

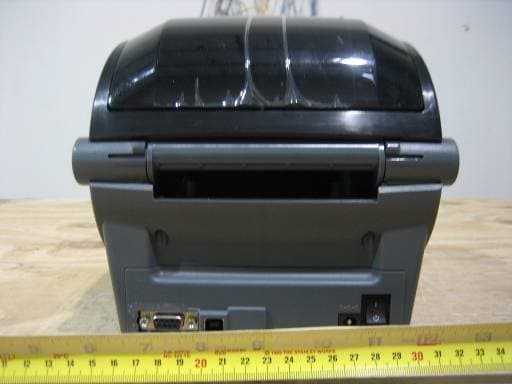

Radio Module- Top View Radio Module Bottom View Host EUT Model: GX430t Antenna View Cover Off -1 Cover Off -2 Main Board -Top View Main Board -Bottom View Display Board-Top View Host EUT Model: GX420t Cover Off -1 Display Board-Bottom View Cover Off -2 Main Board-Top View Main Board-Bottom View Display Board-Top View Host EUT Model: GX420d Display Board-Bottom View Cover Off -1 Cover Off -2 Main Board-Top View Main Board-Bottom View Display Board-Top View Display Board-Bottom View Power Supply

MPE CALCULATION For Zebra – 802.11 a/b/g Dual Radio AP; Model: ZLANG-CA FCC ID: I28-ZLANGCA RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC CFR Part 2.1091 & 2.1310 EUT Frequency Band: 2412 – 2462 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1.5 – 100 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ 802.11b, Power = 16.3dBm , Antenna Gain =0dBi , distance 20cm S = 0.0085 mW/cm 2 802.11g, Power = 11.4dBm, Antenna Gain = 0dBi, Distance = 20cm S = 0.0027 mW/cm 2 The Above Result had shown that Device complied with 1 mW/cm 2 Power density requirement at distance of 20cm. Completed By : Choon Date : March-11-2008

ZEBRA TECHNOLOGIES CORP Printer Model: (GX430t, GX420t and GX420d) with 802.11b/g Module Model: ZLANG-CA 04 March 2008 Report No.: SL07021303-ZBR-007 (15.247)( ZLANG-CA) (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Choon Sian Ooi Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 2 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: NVLAP Lab Code: 200729-0 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 3 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: FCC Registration No. 783147 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 4 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Industry of Canada Registration No. 4842-1 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 5 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan VCCI Registration No. 2195 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 6 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan RF Technologies Accreditation No. MRF050927 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 7 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea MIC Lab Code: KR0032 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 8 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea CAB ID: US0160 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 9 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan BSMI Accreditation No. SL2-IN-E-1130R Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 10 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan NCC CAB ID: US0160 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 11 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Mexico NOM Recognition Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 12 of 105 www.siemic.com SIEMIC ACREDITATION DETAILS: Hong Kong OFTA Recognition No. D23/16V Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 13 of 105 www.siemic.com This page has been left blank intentionally. Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 14 of 105 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................16 2 TECHNICAL DETAILS...................................................................................................................................................17 3 MODIFICATION.............................................................................................................................................................18 4 TEST SUMMARY...........................................................................................................................................................19 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................20 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................97 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS............................................................................................................101 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT....................................................................................................101 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM...................................................................................................105 Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 15 of 105 www.siemic.com This page has been left blank intentionally. Title: RF Test Report Zebra Technologies Corp , model : ZLANG-CA To FCC 15.247 2007, RSS 210 Issue 7: 2007 Serial# SL07021303-ZBR-007 (15.247)( ZLANG-CA) Issue Date 04 March 2008 Page 16 of 105 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corp , Printer Model: (GX430t, GX420t and GX420d) wit…

Text truncated - open the document above for the full version.

Radiated Emission below 1GHz Host Printer GX430t Front View Rear View Host Printer GX420d Front View Rear View Host Printer GX420t Front View Rear View Radiated Emission above 1GHz Host Printer 430t Front View Rear View Host Printer 420t Front View Rear View Host Printer 420d Front View Rear View Conducted Emission Front View Rear View
