I28DG4201-1356MHZCard Printer with RFID

Digimarc SDP1100 Declaration of Conformity Model: DG420i Printers conform to the following specification: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without approval of manufacturer could void the user’s authority to operate this equipment. 980500-001A

Company Confidential Page 2 of 17 1- Hardware description The P310 family CPU board is organized as following: DC Motors (x3) Ribbon, Feeder, Head (up/down) Sensors & measurement Including E2pot to allow self-adjustment Card sensor, Ribbon rotation, color sensor, Head temperature, Power supply, head position (up/down) cover open, Press button MEMORIES FLASH MEMORY 512K bytes DRAM: P310/P320: 2MB P420/P520/P720: 4MB Optional Smart card connection Stepper motor PrintHead management 14.7456MHz Communication serial port : (Tx, Rx) 9600 to 115200 baud Connection to Laminator (P520/P720/Polaroid) Parallel port : standard Centronic uP Coldfire MCF5206 32MHz Optional LCD Board Flip-Over Board Optional Magnetic Board connection Optional Ethernet Board (16.384MHz) connection RFID Board 13.56MHz / 10MHz Optional USB Board (24MHz) Connection

1 Scott McCutchan To: Mike Christensen Subject: FCC ID: I28DG420I-1356MHZ Mr. Christensen, In order for processing of this application (FCC ID: I28DG420I-1356MHZ) to continue, the following issue(s) will have to be addressed: 1) Please submit external pictures of the device. Also, please show where the RF ID board is physically installed in the printer. 2) Some spurious emissions are shown on the data sheets which exceed the level of the fundamental emission. Please indicate whether investigations were made to ensure that these emissions were not generated by the intentional radiator. Reference rule section 15.209(c) 3) Please submit a bandwidth plot showing compliance with the band edges. Please note that this rule section (15.225) has been changed to include a wider frequency band with higher field strength limits. 4) Please submit the user's manual. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload your response to our electronic filing website using a correspondance number of "I28DG420I-1356MHZ-1". If you have any questions, feel free to contact me. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com Correspondence by Project Project Number: -508535030 Correspondence Number Memo I28DG420I-1356MHZ- 1 Hello, The applicant does not supply a user's manual with the device, however, the FCC statement is included with each device. Correspondence Number Memo I28DG420I-1356MHZ- 1 Hello, 1) External photos have been uploaded 2) New data sheets with the requested changes have been uploaded 3) A bandwidth plot showing compliance with the band edge requirements has been uploaded 4) A user's manual is not provided with each device, however, the FCC statement that was previously uploaded is provided with each device

The DG420I printer is based on P310i printer station where a flip over has been added to allow printing on both sides of the card. The DG420I has an LCD display (2 lines of 16 characters) to dialogue with the user. This printer has a metal enclosure also there is a rejected box where printer can eject mis-encoded cards. The DG420i printer is delivered to customer without User Manual. The DG420I is a printer that can print color or monochrome images on plastic cards (ISO 7810 ID-1, "CR-80 ") at 300 dots per inch (DPI) resolution. It offers a range of printing capabilities including multi-panel color, multi-panel monochrome, and standard continuous monochrome ribbon capability. This printer model includes RFID ribbon detection system (i Series Technology) which employs one stationnary RFID board emitting a continuous 13.56MHz and a specific core with transponder and circular antenna molded in the white flange, enhanced color processing, advanced High Color ribbon technology, and utilizes an easy-to-use i Series driver with InstallShield based wizard. Customer specific modifications to this OEM printer include: modified feeder rollers, modified dial arm, modified base plate to support Ethernet, modified flipper with different spring, capability to feed Digimarc DSC plastic cards (CR-80 size), and capability to print with YMCUVK & YMCUVK ribbons.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Description Date Scale Part Number Revision 01/25/02 P310 RFID Reader Board Sheet 1/1 402932-001 / AX2 NC 16 NC 17 VSS 9 NMI 35 P50/WKP0 13 P51/WKP1 14 NC 31 NC 32 NC 33 NC 34 P53/WKP3 20 P54/WKP4 21 P56/SDA 26 P55/WKP5/ADTRG 22 TEST 8 OSC1 11 P52/WKP2 19 OSC2 10 X1 5 X2 4 P10/TMOW 23 P11 24 P12 25 P14/IRQ0 51 P15/IRQ1 52 P16/IRQ2 53 P17/IRQ3/TRGV 54 P74/MRIV 28 P75/MCIV 29 P76/MOV 30 P21/RXD 45 P22/TXD 46 VCL 6 P20/SCK3 44 PB7/AN7 58 PB6/AN6 57 PB5/AN5 56 PB4/AN4 55 PB3/AN3 59 PB2/AN2 60 PB1/AN1 61 PB0/AN0 62 NC 50 NC 63 NC 2 NC 1 NC 64 NC 15 NC 18 P57/SCL 27 NC 48 NC 49 NC 47 VCC 12 RES 7 AVCC 3 P80/FTCI 36 P81/FTOA 37 P82/FTOB 38 P83/FTOC 39 P84/FTOD 40 P86 42 P85 41 P87 43 U2 Flash H83664FP A0 22 A1 23 A2 24 NWR 10 NCS 9 NRD 11 ALE 21 RSTPD 31 IRQ 2 D0 13 D1 14 D2 15 D3 16 D4 17 D5 18 D6 19 RX 29 TX2 7 TVSS 8 TX1 5 OSCIN 1 VMID 30 AUX 27 AVSS 28 DVDD 25 DVSS 12 D7 20 AVDD 26 TVDD 6 OSCOUT 32 RFU 3 SIGOUT 4 U1 MFRC400 C21 100nF X7R C9 10nF X7R C10 10nF X7R R62K7 5% X2 ABSL-10.0 18R70B4YFT R7 1M 5% C2236pF 2% NPOC2536pF 2% NPO VCC 8 SCL 6 WP 7 SDA 5 A0 1 A1 2 A2 3 GND 4 U3 24AA04SN X1HC 4955D 13.56MHz C2336pF 2% NPOC2436pF 2% NPO TP2TEST POINT TP1TEST POINT L3 680nH 5% C13 56pF 2% NPO C1418pF 2% NPO C7 100pF 2% NPOC11 15pF 2% NPO R3NF L4 390nH 2% C15 330pF 2% NPO C16 NF L5 820nH 2% C17 330pF 2% NPO C18NF R4NF L6 390nH 2% C19 220pF NPO 2% C2068pF NPO 2% C8 68pF NPO 2% C12 NF R51R L7 RF ANTENNA R22K7 5%C6 100nF X7R R1 820R 5% C4 15pF 2% NPO VCC L1 Ferrite LI0805H121R C510nF X7R VCC + C1100uF C3100pF 2% NPO + C222uF 1 2 3 4 5 6 7 8 9 10 JP1 T&B 636-1027 12345 JP2 JST B4B-EH-A VCC C30NF C32NF C31NF VCC C29NF C28NF C27NF R80R Eltron Card Printer C26 100nF X7R

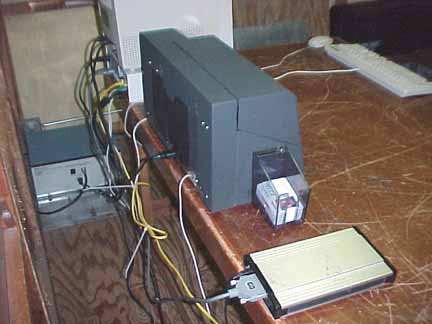

Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for CARD PRINTER with RFID MODEL: DG420i Prepared for ZEBRA TECHNOLOGIES CORPORATION 1001 FLYNN ROAD CAMARILLO, CALIFORNIA 93012 Prepared by:_____________________ MICHAEL CHRISTENSEN Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JULY 14, 2003 REPORT APPENDICES TOTAL BODY A B C D E F PAGES 16 2 2 2 11 15 3 51 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 Frequency Tolerance of Carrier Signal 15 8. CONCLUSIONS 16 Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets F Temperature Testing Graph and Equipment List LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Card Printer with RFID Model: DG420i S/N: 2154609 Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Zebra Technologies Corporation 1001 Flynn Road Camarillo, California 93012 Test Dates: June 9 and 20, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.207, 15.209 and 15.225 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.207. 2 Radiated RF Emissions, 10 kHz - 1000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.225. Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Card Printer with RFID Model: DG420i. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209 and 15.225. Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer with RFID Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. The temperature testing was performed at Environmental Associates located at 2300 Cape Cod Way, Santa Ana, California. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Zebra Technologies Corporation Shlomo Rozen Sr. Reliability Engineer Compatible Electronics, Inc. Benigno Chavez T…

Text truncated - open the document above for the full version.

RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.225) 0.0 COMPANY DATE 6/9/03 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 13.5600 27.0 AH 1.0 0 10.3 0.5 0.0 0.0 0.0 3 7.8 - 4 2.2 80.0 13.5600 29.5 AV 1.0 0 10.3 0.5 0.0 0.0 0.0 4 0.3 - 3 9.7 80.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 1 of PAGE 2 DATA TAKEN AT 3 MNO NEED TO EXTRAPOLATELIMIT FROM 30 METERS Average (A) or Quasi- Peak (QP) 2154609ZEBRA TECHNOLOGIESCARD PRINTERDG420iMichael Christensen Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.225) 0.0 COMPANY DATE 6/9/03 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB A Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 27.1200 23.4 AH 1.0 0 9.3 0.7 0.0 20.0 0.0 13.4 -16.1 29.5 27.1200 23.3 AV 1.0 0 9.3 0.7 0.0 20.0 0.0 13.3 -16.2 29.5 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 2 of PAGE 2 Michael Christensen Average (A) or Quasi- Peak (QP) ZEBRA TECHNOLOGIESCARD PRINTERDG420i2154609 Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E 5 Test Location: Page :Compatible Electronics 1/4 Customer : Date :DIGIMARC 6/09/2003 Manufacturer : Time :ZEBRA TECHNOLOGIES 13:09:15 Eut name: Lab :CARD PRINTER A Model : Test Distance :DG420i 3.0 Serial #: Specification : FCC Class B Distance correction factor (20 * log(test/spec): 0.00 Test Mode:TESTED BY MICHAEL CHRISTENSEN Pol Freq Rdng Cable Ant Amp Cor'd Limit Delta loss factor gain rdg = R = L R-L MHz dBuV dB dB dB dBuV dBuV/m dB 1V 32.111 55.20 0.95 11.26 33.60 33.81 40.00 -6.19 2H 64.068 49.60 1.34 8.55 33.56 25.93 40.00 -14.07 3V 64.081 58.20 1.34 8.55 33.56 34.53 40.00 -5.47 4H 67.849 50.50 1.38 7.80 33.52 26.16 40.00 -13.84 5V 67.862 50.70 1.38 7.80 33.52 26.36 40.00 -13.64 6V 67.862Qp 49.96 1.38 7.80 33.52 25.62 40.00 -14.38 7H 67.872 48.80 1.38 7.80 33.52 24.46 40.00 -15.54 8V 73.782 54.60 1.44 6.89 33.50 29.43 40.00 -10.57 9V 80.061 55.30 1.50 6.11 33.50 29.41 40.00 -10.59 10H 80.104 48.30 1.50 6.11 33.50 22.42 40.00 -17.58 11V 88.571 57.90 1.59 7.22 33.50 33.21 43.50 -10.29 12V 100.062 59.10 1.60 10.21 33.60 37.31 43.50 -6.19 13V 127.058 56.10 1.83 12.27 33.58 36.62 43.50 -6.88 14H 128.505 55.40 1.85 12.25 33.57 35.93 43.50 -7.57 15H 128.574 54.70 1.85 12.25 33.57 35.23 43.50 -8.27 16H 134.964 52.60 1.93 12.16 33.52 33.17 43.50 -10.33 17V 135.664Qp 44.40 1.93 12.16 33.51 24.98 43.50 -18.52 18V 135.664 46.10 1.93 12.16 33.51 26.68 43.50 -16.82 19V 143.463 55.00 2.03 11.78 33.45 35.36 43.50 -8.14 20H 144.099 52.40 2.03 11.72 33.44 32.71 43.50 -10.79 21H 147.518 50.70 2.07 11.42 33.42 30.77 43.50 -12.73 22V 147.559 50.40 2.07 11.41 33.42 30.47 43.50 -13.03 23V 147.874 60.10 2.08 11.39 33.42 40.15 43.50 -3.35 24V 147.880Qp 50.52 2.08 11.39 33.42 30.57 43.50 -12.93 25H 151.606 52.20 2.11 11.35 33.41 32.25 43.50 -11.25 26H 159.190 44.70 2.14 12.03 33.44 25.43 43.50 -18.07 27H 160.079 52.20 2.14 12.12 33.44 33.02 43.50 -10.48 28V 160.107 54.60 2.14 12.12 33.44 35.42 43.50 -8.08 29V 160.108 54.10 2.14 12.12 33.44 34.92 43.50 -8.58 30H 162.157 50.00 2.15 12.56 33.45 31.26 43.50 -12.24 31H 168.868 51.50 2.18 13.97 33.48 34.17 43.50 -9.33 32H 170.826 49.90 2.18 14.36 33.48 32.96 43.50 -10.54 33V 180.081 51.40 2.26 15.90 33.48 36.09 43.50 -7.41 34H 194.746 55.10 2.44 16.72 33.42 40.84 43.50 -2.66 35H 194.766Qp 52.31 2.44 16.72 33.42 38.05 43.50 -5.45 Report Number: B30620Z1 FCC Part 15 Subpart B and FCC Section 15.225 Test Report Card Printer Model: DG420i 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page E6 Test Location: Page :Compatible Electronics 2/4 Customer : Date :DIGIMARC 6/09/2003 Manufacturer : Time :ZEBRA TECHNOLOGIES 13:09:15 Eut name: Lab :CARD PRINTER A Model : Test Distance :DG420i 3.0 Serial #: Specification : FCC Class B Distance correction factor (20 * log(test/spec): 0.00 Test Mode:TESTED BY MICHAEL CHRISTENSEN Pol Freq Rdng Cable Ant Amp Cor'd Limit Delta loss factor gain rdg = R = L R-L MHz dBuV dB dB dB dBuV dBuV/m dB 36H 199.008 57.50 2.49 16.95 33.40 43.53 43.50 0.03 37H 199.011Qp 54.52 2.49 16.95 33.40 40.55 43.50 -2.95* 38H 200.108 52.20 2.50 17.00 33.40 38.30 43.50 -5.20 39H 202.256 56.20 2.51 16.94 33.39 42.26 43.50 -1.24 40H 202.259Qp 52.93 2.51 16.94 33.39 38.99 43.50 -4.51 41H 207.046 58.80 2.53 16.83 33.37 44.79 43.50 1.29 42H 207.047Qp 54.18 2.53 16.83 33.37 40.17 43.50 -3.33 43V 217.000 48.40 2.57 16.60 33.33 34.24 46.00 -11.76 44H 217.000 50.40 2.57 16.60 33.33 36.24 46.00 -9.76 45V 217.001Qp 47.44 2.57 16.60 33.33 33.28 46.00 -12.72 46H 217.003Qp 48.11 2.57 16.60 33.33 33.95 46.00 -12.05 47H 217.018 50.60 2.57 16.60 33.33 36.44 46.00 -9.56 48H 224.071 54.70 2.60 16.44 33.30 40.43 46.00 -5.57* 49V 224.102 51.50 2.60 16.44 33.30 37.23 46.00 -8.77 50H 227.001 53.00 2.61 16.38 33.29 38.69 46.00 -7.31 51V 228.896 49.10 2.62 16.33 33.28 34.77 46.00 -11.23 52V 230.565 47.00 2.62 16.30 33.28 32.65 46.00 -13.35 53V 230.565Qp 46.03 2.62 16.30 33.28 31.68 46.00 -14.32 54H 230.601 52.30 2.62 16.30 33.28 37.94 46.00 -8.06 55H 230.602 46.30 2.62 16.30 33.2…

Text truncated - open the document above for the full version.
