I28MD-1356NFCActive 13.56MHz NFC Module

Installation Guide 1356NFC-ZQ500 Compliance and Statements FCC Compliance Statement (USA) This device complies with Part 15 rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to do one or more of the following measures: • • • Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced RF service technician for help. • The end product must be labeled, in a visible area, with the following: Contains FCC ID: I28MD-1356NFC Modification Warning The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the users authority to operate the equipment. To ensure compliance, this printer must be used with fully shielded communication cables. RF Exposure Statement This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. Canadian DOC Compliance Statement Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. This Class B digital apparatus complies with Canadian ICES-003. Industry Canada (IC) Warning Le present appareil est conforme aux CNR dIndustrie Canada applicables aux appareils radio exempts de licence. Lexploitation est autorisee aux deux conditions suivantes : (1) appareil ne doit pas produire de brouillage, et (2) lutilisateur de lappareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible n compromettre le fonctionnement. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause interference., 2) This device must accept any interference, including interference that may cause undesired operation of the device. The end product must be labeled, in a visible area, with the following: Contains IC: 3798B-1356NFC Approved Antenna information Only Zebra approved antennas are allowed and cannot be user replaceable. Antenna PN: P1027365-01 Type: Mag coupler Coil-PCB General The 1356NFC-ZQ500 NFC module has been certified as a Limited Single Modular. Additional evaluation is required for use in all host devices. The following describes the installation procedures for the various hosts in which the module has been evaluated. Installation Instructions for ZQ510 and ZQ520 The 1356NFC-ZQ500 is not intended for OEM integrators or end users. It can only be installed in the ZQ510 and ZQ520 printers at the grantee manufacturing facility.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 12/12/2014 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Zebra Technologies Corporation, hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description: Active 13.56MHz NFC Module Model name: 1356NFC-ZQ500 FCC ID: I28MD-1356NFC We affirm that between SIEMIC, Inc. and Zebra Technologies Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles Derrow, Director of Compliance Engineering 333 Corporate Woods Parkway Vernon Hills, IL 60061 USA [email protected] / 847-793-5719

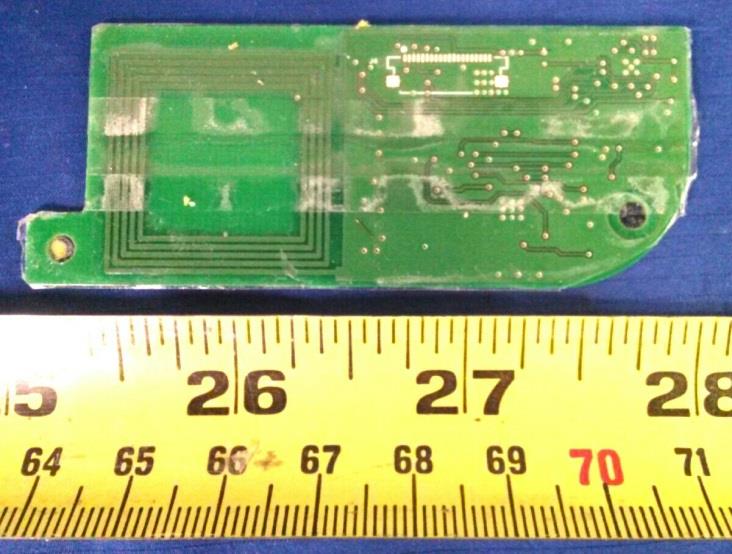

NFC Board Top View NFC Board Bottom View

Label & Location

NFC Board Top View NFC Board Bottom View

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC_RF_SL14091201-ZBR-031_NFC Rev1.0 Supersede Report No.: FCC_RF_SL14091201-ZBR-031_NFC Applicant Zebra Technologies Corporation Product Name NFC Radio Module Model No. 1356NFC-ZQ500 Test Standard 47CFR15.225 RSS210 Issue 8: 2010, RSS Gen Issue 4: 2014 Test Method ANSI C63.4: 2014 FCC ID I28MD-1356NFC IC ID 3798B-1356NFC Date of test 11/26/2014 - 12/06/2014 Issue Date 01/13/2015 Test Result Pass Fail Equipment complied with the specification [ x ] Equipment did not comply with the specification [ ] David Zhang Nima Molaei Test Engineer Engineer Reviewer This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC_RF_SL14091201-ZBR-031_NFC Rev1.0 Page 2 of 36 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Test report No. FCC_RF_SL14091201-ZBR-031_NFC Rev1.0 Page 3 of 36 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 7 6.3 EUT test modes/configuration Description.................................................................................................................... 7 6.4 EUT Photos .............................................................................................................................................................. 8 6.5 Host Printer Photos ................................................................................................................................................... 9 6.6 EUT Test Setup Photos ........................................................................................................................................... 11 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 12 7.1 Supporting Equipment ............................................................................................................................................. 12 7.2 Test Software Description ........................................................................................................................................ 12 8 TEST SUMMARY ......................................................................................................................................................... 13 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 14 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 15 10.1 Antenna Requirement............................................................................................................................…

Text truncated - open the document above for the full version.

AC Line Conducted Emissions – Front View AC Line Conducted Emissions – Rear View Radiated Emissions (<30MHz) – Front View Radiated Emissions (<30MHz) – Rear View Radiated Emissions (<1GHz) – Front View Radiated Emissions (<1GHz) – Rear View
