I28MD-BTC2-EHandheld Printer

UMAN-QL3 Rev. C February, 2002 iiQL 320 User’s Guide Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation. It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written per- mission of Zebra Technologies Corporation. Product Improvements Since continuous product improvement is a policy of Zebra Technologies Corporation, all specifications and signs are subject to change without notice. FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provided reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio fre- quency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. WARNING: Exposure to Radio Frequency radiation. To conform to FCC RF exposure re- quirements this device shall be used in accordance with the operating conditions and instructions listed in this manual. NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded ca- bles must be used with the unit to insure compliance Changes or modifications to this unit not expressly approved by Zebra Technologies Cor- poration could void the user’s authority to operate this equipment. Canadian Compliance Statement "IC:" before the equipment certification number signifies that the Industry Canada techni- cal specifications were met. It does not guarantee that the certified product will operate to the user's satisfaction. Liability Disclaimer Inasmuch as every effort has been made to supply accurate information in this manual, Zebra Technologies Corporation is not liable for any erroneous information or omissions. Zebra Technologies Corporation reserves the right to correct any such errors and dis- claims liability resulting therefrom. No Liability for Consequential Damage In no event shall Zebra Technologies Corporation or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or the results of use of or inability to use such product, even if Zebra Technologies Corporation has been advised of the possibility of such damages. Because some states do not allow the exclusion of liability for consequential or incidental damages, the above limitation may not apply to you. Copyrights The copyrights in this manual and the system described therein are owned by Zebra Technologies Corporation. All rights are reserved. Unauthorized reproduction of this manual or the software in any of the system modules may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability. All products and brand names are trademarks of their respective companies. All rights reserved. © 2002 Zebra Technologies Corporation Mobile Printer User’s Guide UMAN-QL3 Rev. A January 2002 ivQL 320 User’s Guide Contents Introduction ........................................... 7 Unpacking and Inspection .......................................... 7 Reporting Damage ..................................................... 7 Getting Ready to Print............................ 9 Battery ........................................................................ 9 Installing the Battery...................................................... 9 Charging the Battery...................................................... 9 Loading the Media .................................................... 10 Installing the Media ...................................................... 10 Operator Controls ..................................................... 13 Standard Keypad.......................................................... 13 LCD Control Panel ....................................................... 15 Verify the Printer Is Working ..................................... 18 Printing a Configuration Label...................................... 18 Connecting the Printer .............................................. 18 Cable Communications................................................ 19 IR Communications...................................................... 20 SRRF Communications................................................ 21 Zebra SRRF Network Overview................................... 21 Bluetooth™ Networking Overview ............................... 23 Wireless Local Area Network (WLAN) ......................... 25 Setting Up the Software ............................................ 26 Adjustable Shoulder Strap ........................................ 27 Belt Clip .................................................................... 28 Preventive Maintenance ....................... 29 Extending Battery Life ............................................... 29 Cleaning .................................................................... 31 Troubleshooting ................................... 32 Standard Control Panel ............................................. 32 Optional LCD Control Panel ...................................... 32 Troubleshooting Topics ............................................. 33 Troubleshooting Tests ............................................... 34 Printing a Configur…

Text truncated - open the document above for the full version.

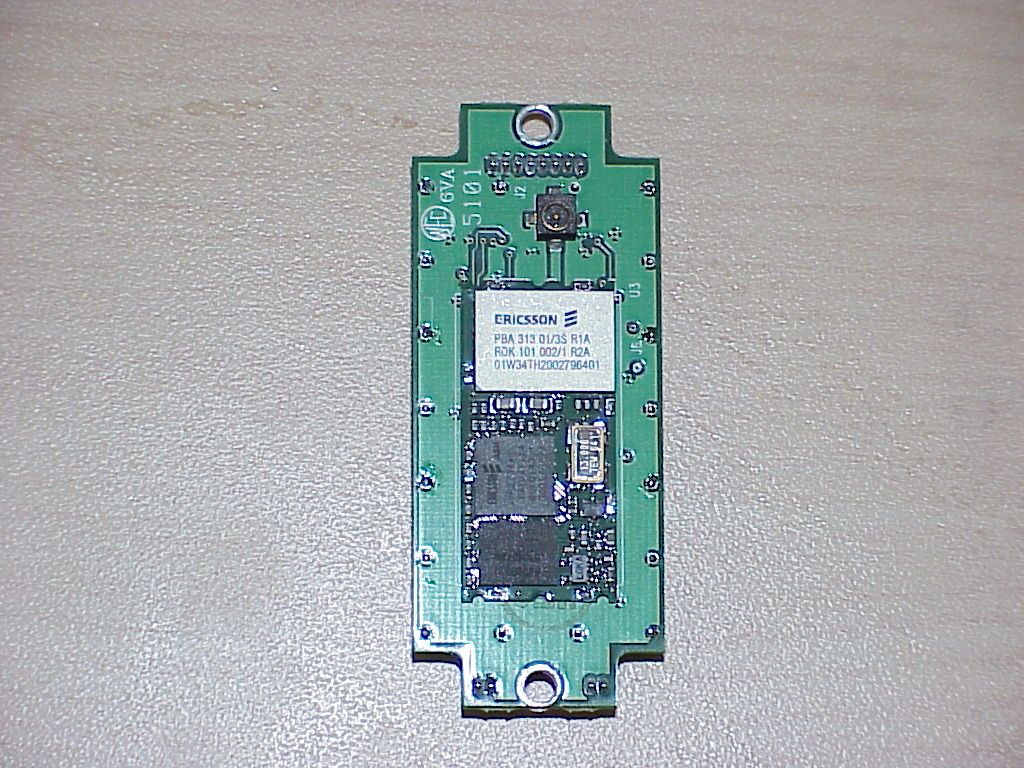

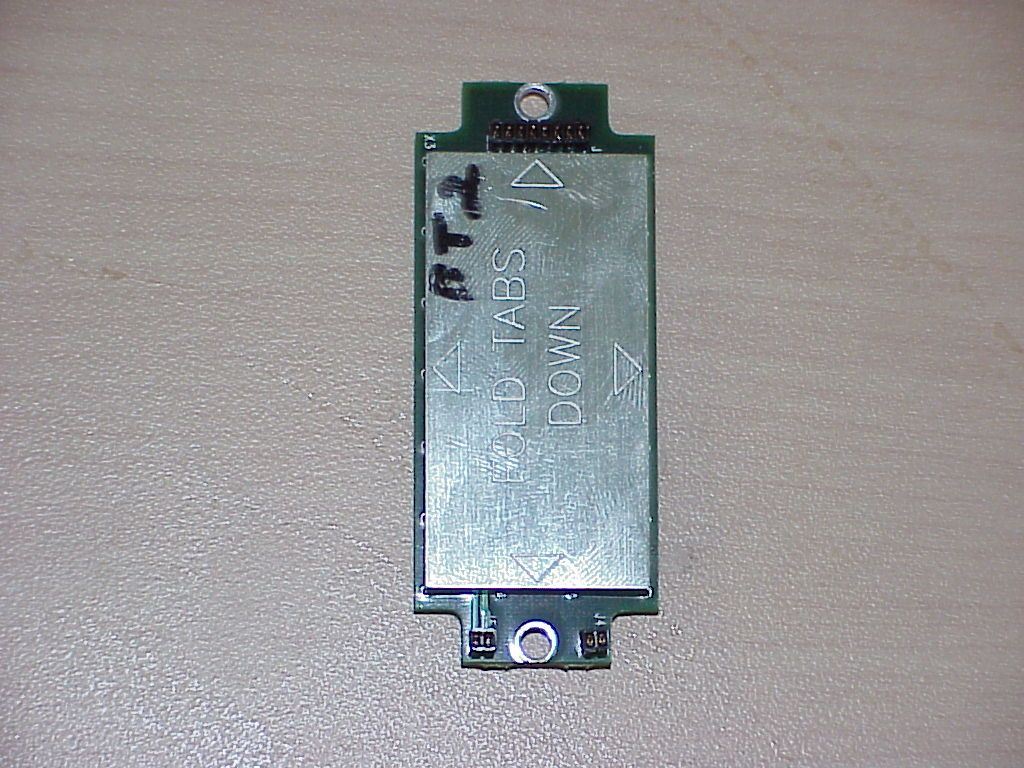

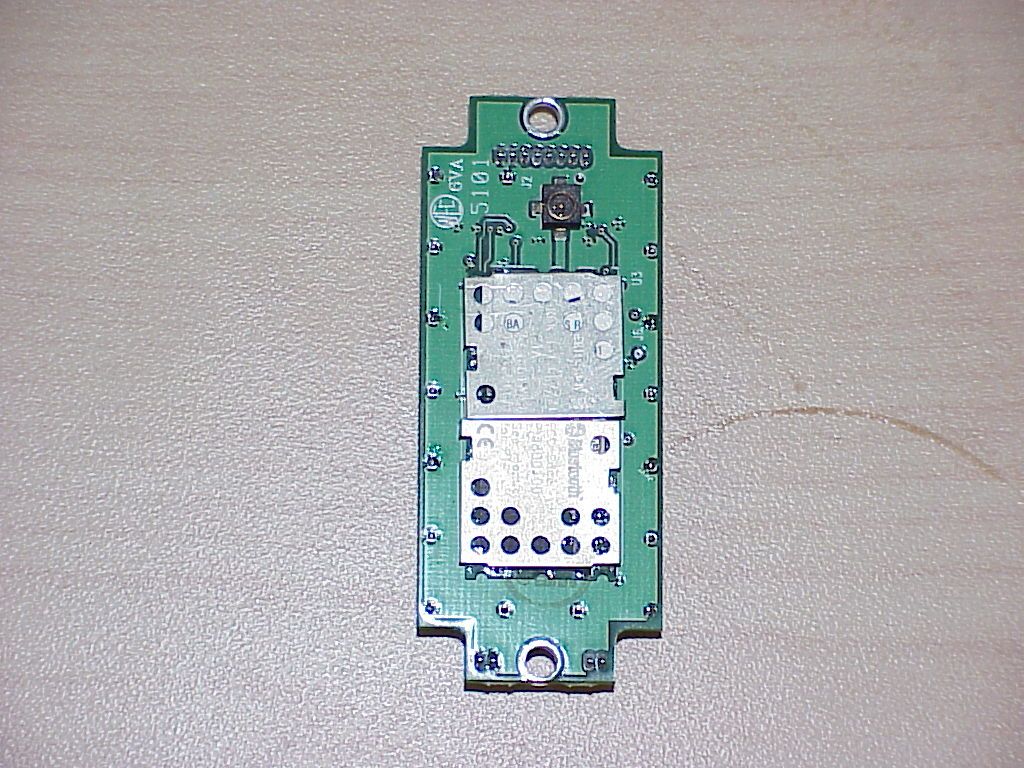

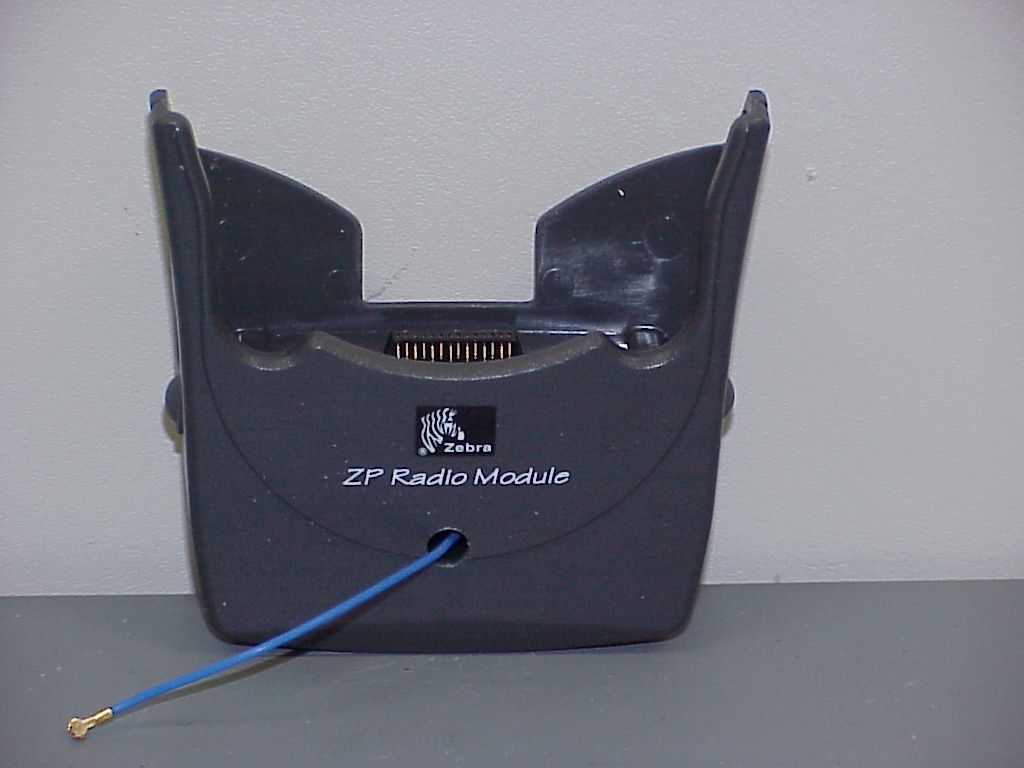

CC15727-1 BLUETOOTH MODULAR RADIO BLOCK DIAGRAM January 11, 2002 Bob Heon TXD TXD RTS RTS RXD RXD Antenna CTS CTS Vcc (+5) Vcc (+3.3) PDOWN TX Buffers and Level Shifters RX Buffers and Level Shifters Voltage Regulator Ericsson ROK 101 007 Bluetooth Module Vcc VccIO On Power Down Control The CC15727-1 module digital interface is at 5-volt CMOS levels. The Ericsson ROK 101 007 module digital interface is at 3.3-volt CMOS levels. All inputs to the CC15727-1 module are buffered. Additional buffering is present at the inputs of the ROK 101 007. There is a voltage regulator on the CC15727-1 module that steps down from 5 volts to 3.3 volts. There is additional voltage regulation on the ROK 101 007 module. The Ericsson module is self-resetting at power-up.

ROK 101 007 Bluetooth Module Description ROK 101 007 is a short-range module for implementing Bluetooth function- ality into various electronic devices. The module consists of three major parts; a baseband controller, a flash memory, and a radio that operates in the globally available 2.4–2.5 GHz free ISM band. Both data and voice transmission is supported by the module. Communica- tion between the module and the host controller is carried out using a high- speed USB interface compliant with USB Specifications 1.1 or an UART/ PCM interface. When using the USB interface, the module appears as a USB slave device and therefore requires no PC resources. ROK 101 007, which is compliant with Bluetooth version 1.0B, is a Class 2 Bluetooth Module (0 dBm) and is type-approved. The module supports all Bluetooth profiles. Key Features • Pre-qualified Bluetooth 1.0B Module • RF output power class 2 • FCC and ETSI approved • 460 kb/s max data rate over UART • Multiple interface for different applications -UART for data -PCM for voice -USB for voice and data •I 2 C interface • Internal crystal oscillator • HCI firmware included • Multi Point Operation • Built-in shielding Suggested Applications • Computers and peripherals • Handheld devices and accessories • Access points ROK 101 007 ROK 101 007 2 Preliminary Figure 1. Block Diagram Figure 2. Actual size of the Ericsson Bluetooth Module, and also showing the HW and FW stack. RX- Balun Radio ASIC ANT T2 TX- Balun Switch Antenna Filter Loop Filter VCO Tank FLASH Memory 13MHz Crystal Voltage Regulation WAKE_UP DETACH GND B3 R1 R2 T1 C6 VCC C4 VCC_IO C2 ON RESET# POR NC NC NC NC NC R4 R5 R6 T4 T5 T6 C3 Radio Module B4 C1 ADDR DATA CTRL R3 C5 NC PBA 313 01/2 Baseband B1 D- D+ B2 USB TXD RTS RXD CTS A5 A6 B5 B6 UART PCM_OUT PCM_CLK PCM_IN PCM_SYNC A1 A2 A3 A4 PCM T3 GND GND GND GND I2C_DATA I2C_CLK 0123 cm Radio Baseband Audio Link Manager HCI ROK 101 007 3 Preliminary Absolute Maximum Ratings ParameterSymbolMinTypMaxUnit Temperature Storage temperatureT Stg -30+85°C Operating temperatureT Amb 0+75°C Power Supply V CC V CC -0.3+5.25V V CC_IO V CC_IO -0.8+3.6V Digital Inputs Input low voltageV IL -0.5V Input high voltageV IH V CC_IO +0.3V Recommended Operating Conditions Temperature Ambient temperature, TestT amb +23°C Power Supply Positive Supply VoltageV CC +3.3V I/O Ports Supply VoltageV CC_IO +3.3V Electrical Characteristics DC Specifications Unless otherwise noted, the specification applies for T Amb = 0 to +75°C, 3.175 < V CC < 5.25V ParameterConditionSymbolMinTypMaxUnit Power Supply Supply VoltageV CC 3.1753.35.25V I/O Ports Supply VoltageSee note 10V CC_IO 2.73.33.6V Digital Inputs Logical Input HighExcept ON signalV IH1 0.7 x V CC_IO V CC_IO V Logical Input LowExcept ON signalV IL2 00.3 x V CC_IO V Logical Input HighON signal onlyV IH2 2.0V CC V Logical Input LowON signal onlyV IL2 00.4V Digital Outputs Logical Output HighV OH 0.9 x V CC_IO V CC_IO V Logical Output LowV OL 00.1 x V CC_IO V ROK 101 007 4 Preliminary 5ParameterConditionSymbolMinTypMaxUnit Average Current ConsumptionAverage I CC + I CC_IO StandbyI STA 5.95mA Shutdown - SWI SSW 2.35mA Shutdown – HWSee note 1I SHW 1μA Page Scan Mode R0Page Scan EnableI PSM1 50mA Page scan window: continuous Page scan interval : n/a (0s) Page Scan Mode R1Page Scan EnableI PSM2 6.35mA Page scan window: 11.25ms Page scan interval : 1.28s Page Scan Mode R2Page Scan EnableI PSM3 6.15mA Page scan window: 11.25ms Page scan interval : 2.56s Inquiry ScanInquiry Scan EnableI ISM1 50mA with Page Scan Mode R0.Page Scan Window : 2.56s –11.25ms Page Scan Interval : 2.56s Inquiry Scan Window : 11.25ms Inquiry Scan Interval : 2.56s Inquiry ScanInquiry Scan EnableI ISM2 6.55mA with Page Scan Mode R1.Page Scan Window : 11.25ms Page Scan Interval : 1.28s Inquiry Scan Window : 11.25ms Inquiry Scan Interval : 2.56s Inquiry ScanInquiry Scan EnableI ISM3 6.35mA with Page Scan Mode R2.Page Scan Window : 11.25ms Page Scan Interval : 2.56s Inquiry Scan Window : 11.25ms Inquiry Scan Interval : 2.56s Connect StateEstablished connectionI CS 26mA with data transfer V CC_IO CurrentOnly I CC_IO , V CC_IO=TBD I CC_IO TBDmA ROK 101 007 5 Preliminary RF Specifications ParameterConditionSymbolMinTypMaxUnit General Frequency Range2.4022.480GHz Double Sided IF Bandwidth1MHz Antenna load50Ω VSWRRX mode3:1 VSWRTX mode, see note 23:1 Receive Performance Sensitivity levelP IN : -70dBm,0.1%BER 75kHz offset (max), Max input levelP IN : -20dBm,0.1%BER 75kHz offset (max), C/I co-channel C: -60 dBm14dB C/I 1MHz C: -60 dBm+4dB C/I 2MHz C: -60 dBm-30dB C/I ≥3MHz C: -67 dBm-40dB Blocking, C/I DC-5GHz See figure 6 Out-of-band blocking30-1910 MHz+4dBm 1910-2000 MHz-10dBm 2000-2399 MHz-27dBm 2484-3000 MHz-27dBm 3.00-12.75 GHz-10dBm Spurious Emissions30 MHz to 1 GHz-57dBm Spurious Emissions1 GHz to 12.75 GHz-47dBm Transmitter Performance Frequency deviationsee notes 3,4f Mod 140175kHz and figure 3 Initial frequency errorsee note 5-48+48kHz TX power-21.54dBm TX carrier drift in 1 slot (366 μs)f Drift1 -2525kHz TX carrier drift in 3 slots (1598 μs)f Drift2 -4040kHz TX carrier drift in 5 slots (2862 μs) see figure 4f Drift3 -4040kHz 20 dB bandwidthMeasured with RBW: 10 kHz and peak detector1.000MHz Spurious Emissions30 MHz – 1GHz-36dBm Spurious Emissions1 GHz – 12.75 GHz-30dBm Spurious Emissions1.8 Hz – 1.9 GHz-47dBm Spurious Emissions5.15 GHz – 5.3 GHz-47dBm Timing performance LPO_CLK frequencyTrimmed, see note 6f LPO _ CLK 3,2kHz Tolerance of LPO_CLKsee note 6-250+250ppm System clock frequencyf SYS _ CLK 13.0000MHz Tolerance of system clocksee note 5-20+20ppm Channel switching timesee figure 5150μs Received Signal Strength Indicator RSSIInput power = -40 dBm1525n/a RSSIInput power = -60 dBm311n/a ROK 101 007 6 Preliminary t D f TX carrier dri ft PHD_OFF t=214 μs +f dev -f dev t=580 μs t=1598 μst=2862 μs SYNT_ON TX_ON TX_DATA: High TX_DATA: Low New ch. Old ch. 50 kHz Channel switching time t f SYNT_ON TX_ON Figure 5. Channel switching time Figure 3. Frequency…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Zebra Technologies Corporation requests confidentiality for the following products: FCC ID Number Product Title/Model I28MD-BTC2-E Printers with Bluetooth module For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Zebra Technologies Corporation. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager EMC/Radio

Lothar Schmidt Bluetooth Qualification Body CETECOM INC 411 Dixon Landing Road Milpitas, CA 95035 USA APPLICATION FOR ASSESSMENT AND LISTING Ericsson Microelectronics AB permits Zebra, to use the PICS and also FCC/ETSI Type Approval reports for the ROK 101 007 for listing of their products using Ericsson Microelectronics MCM ROK 101 007. This is valid both for Bluetooth Qualification and Type Approval. Stockholm, 2002-01-21 Henrik Arfwedson Manager Application Development Isafjordsgatan 16 Kista-Stockholm Sweden +46 8 40 46 244

MEICM3PCC rev. FSheet 20 of 22 CAMEO 3, 3 SC & 3N ASSEMBLY (BELT CLIP & LABELS ) Serial Number Label p/n per PCC Bill of Material Clear Overlay p/n LD-D8ZL7M PCC Label Belt Clip p/n CA15383-1 Assemble only if PCC digit 11 = 0 or 1. M3 x 10 mm Self Tapping Screw (4) p/n TH-PTA023010-1 Clear Overlay p/n LD-D8ZL7M Serial Number Label p/n per PCC Bill of Material PCC Label Cameo 3N Cameo 3/3 sc Cameo 3 Belt Clip Retainer (shown) p/n CA15580-1 Assemble only if PCC digit 11 = 0 or 1. or Cameo 3 SC Belt Clip Retainer p/n CA15384-1 Assemble only if PCC digit 11 = 0 or 1 Shoulder Strap Clip p/n CA15582-tab dash number per PCC BOM only when PCC digit 11 = 1

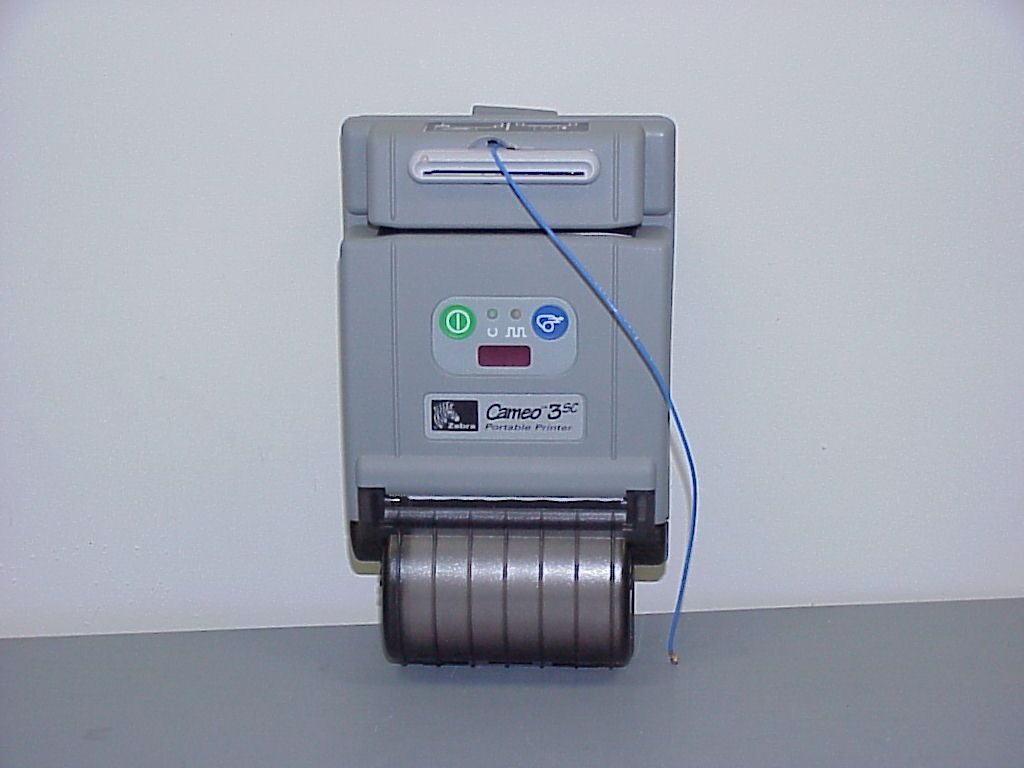

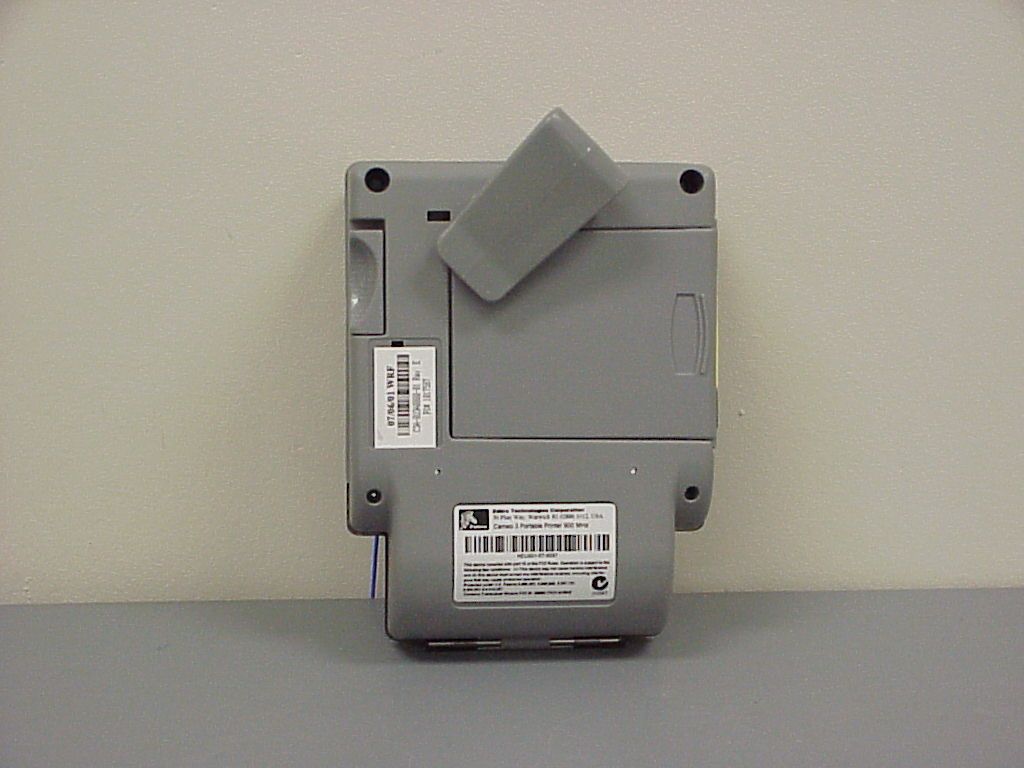

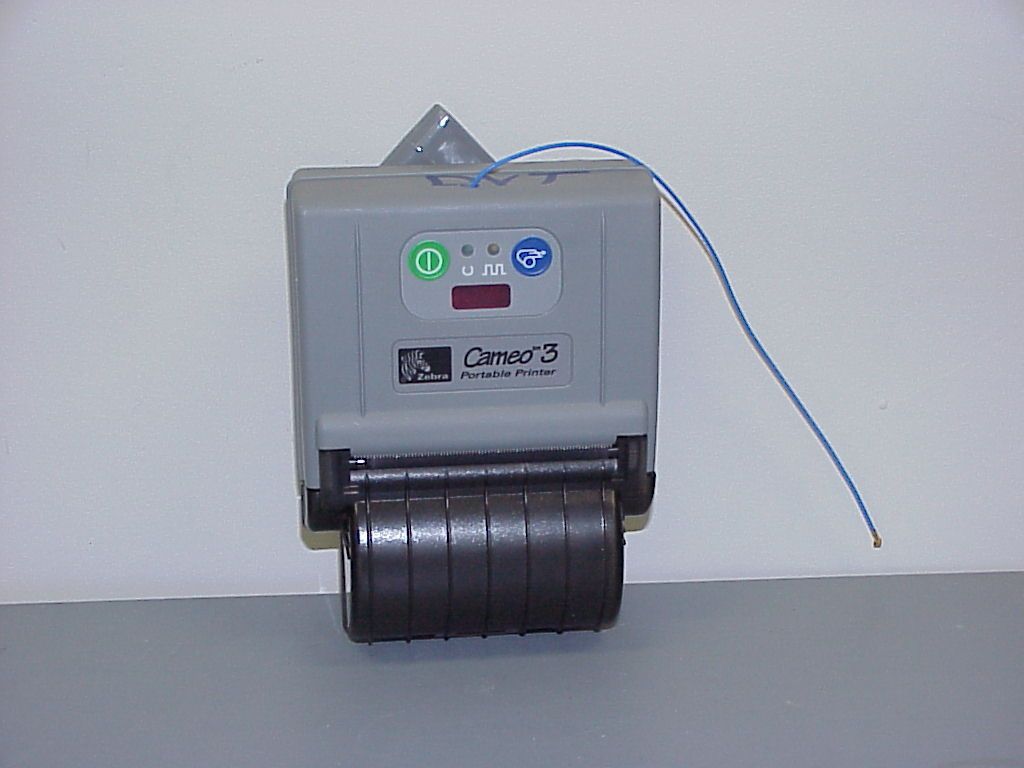

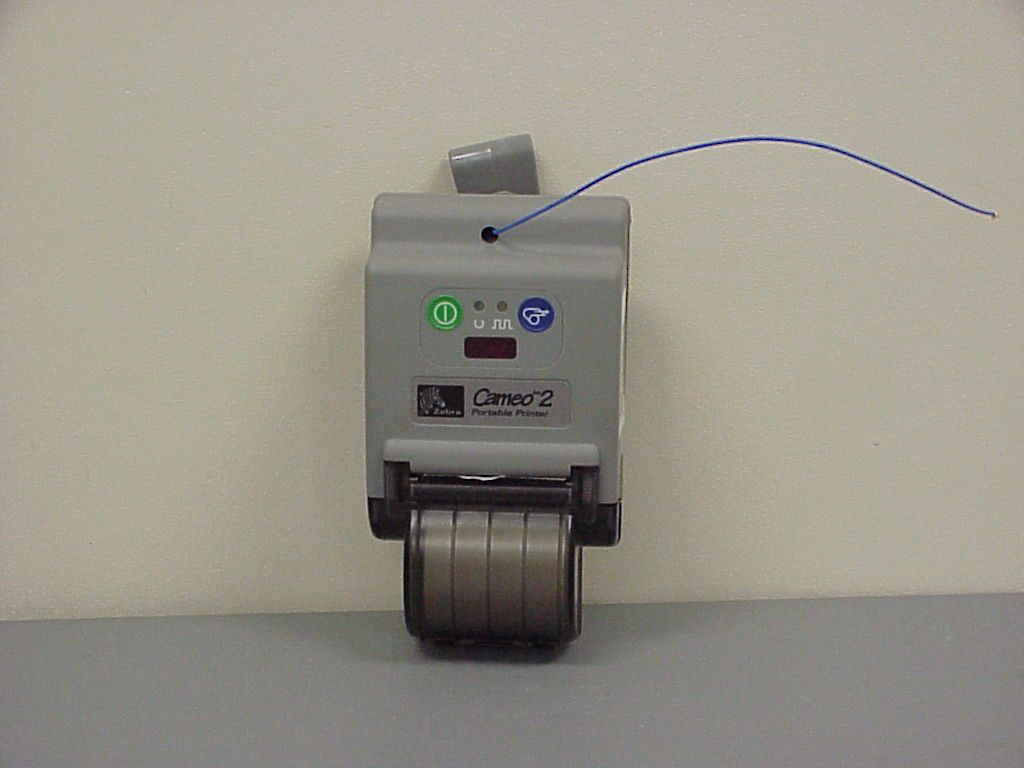

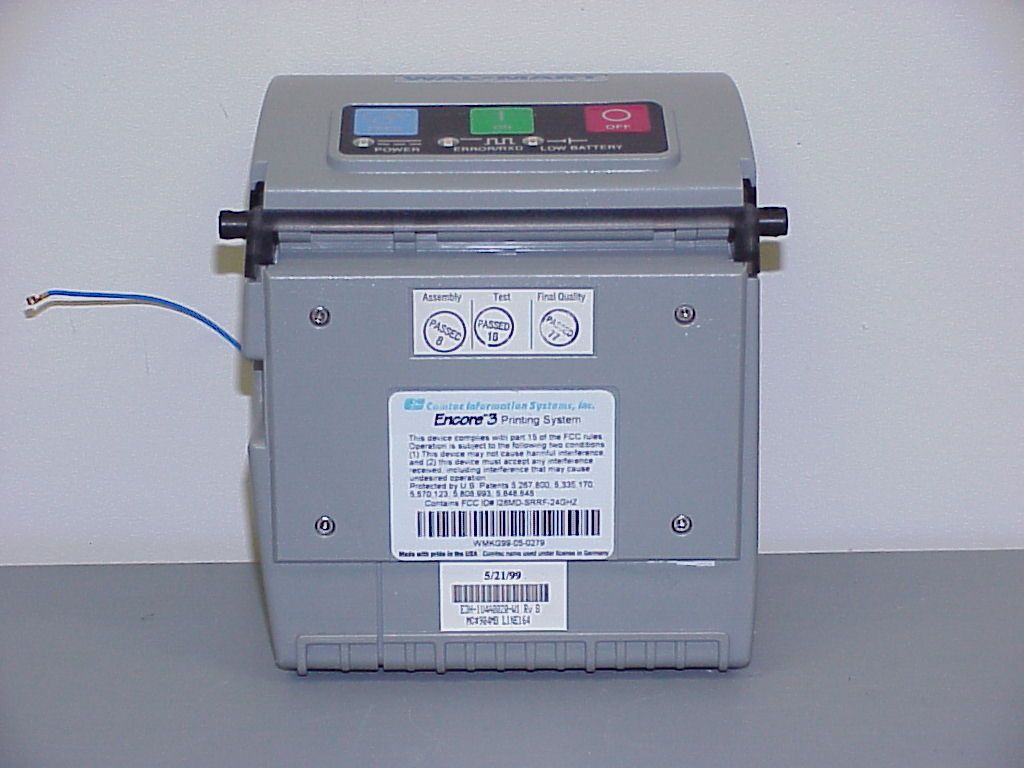

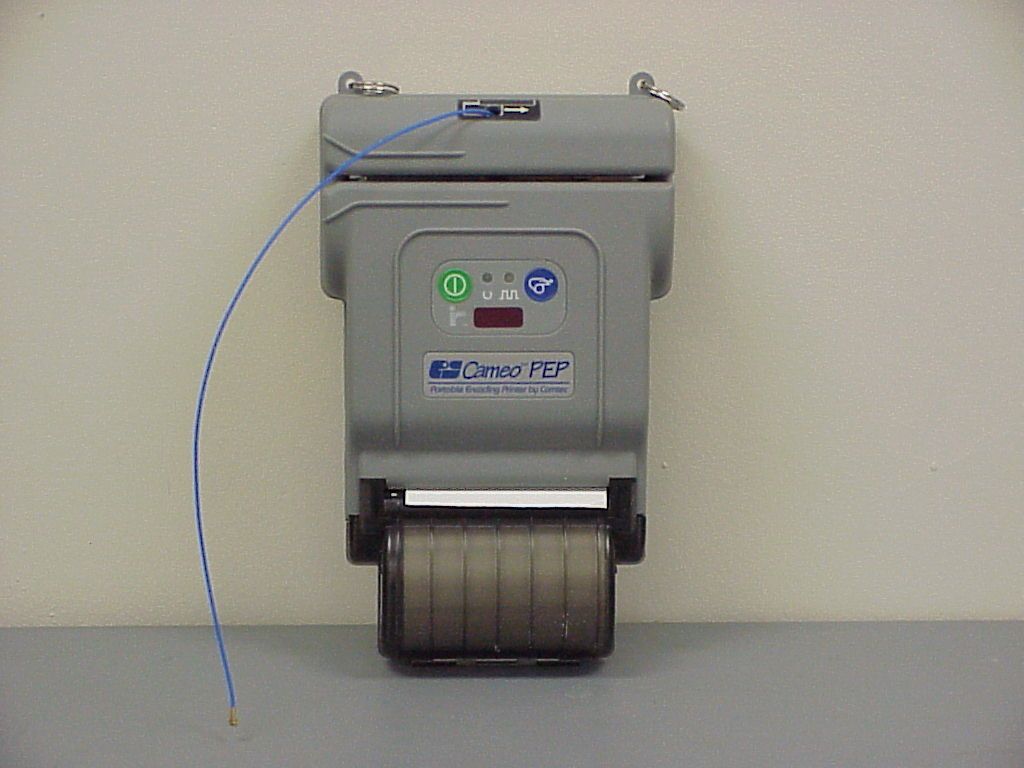

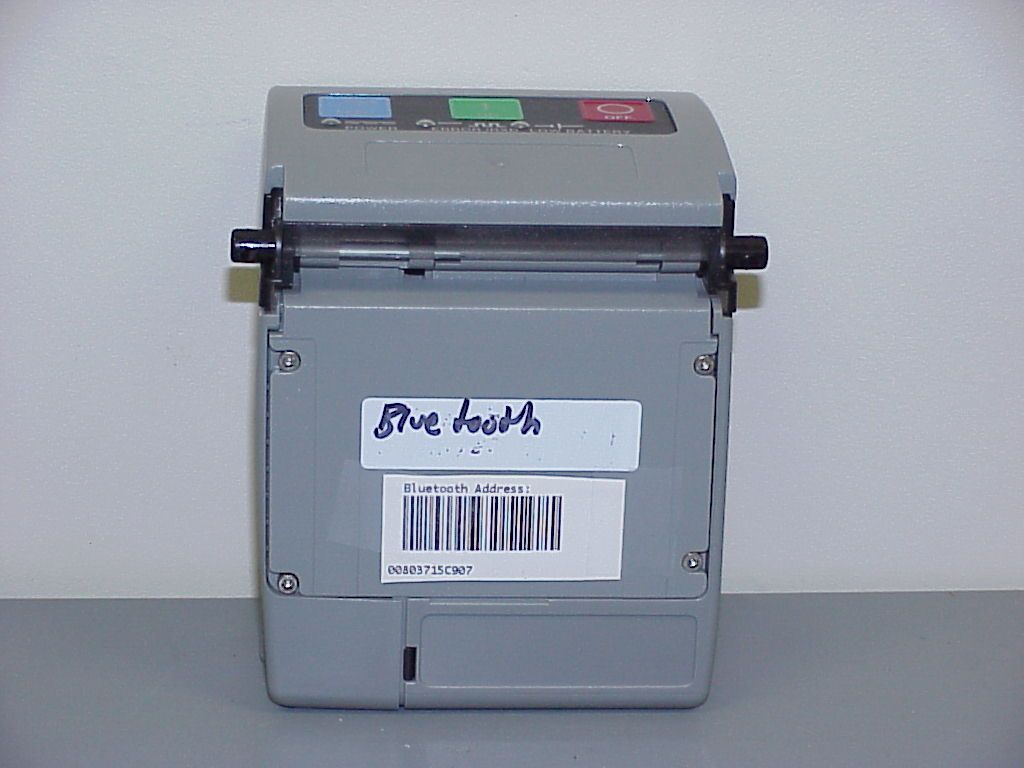

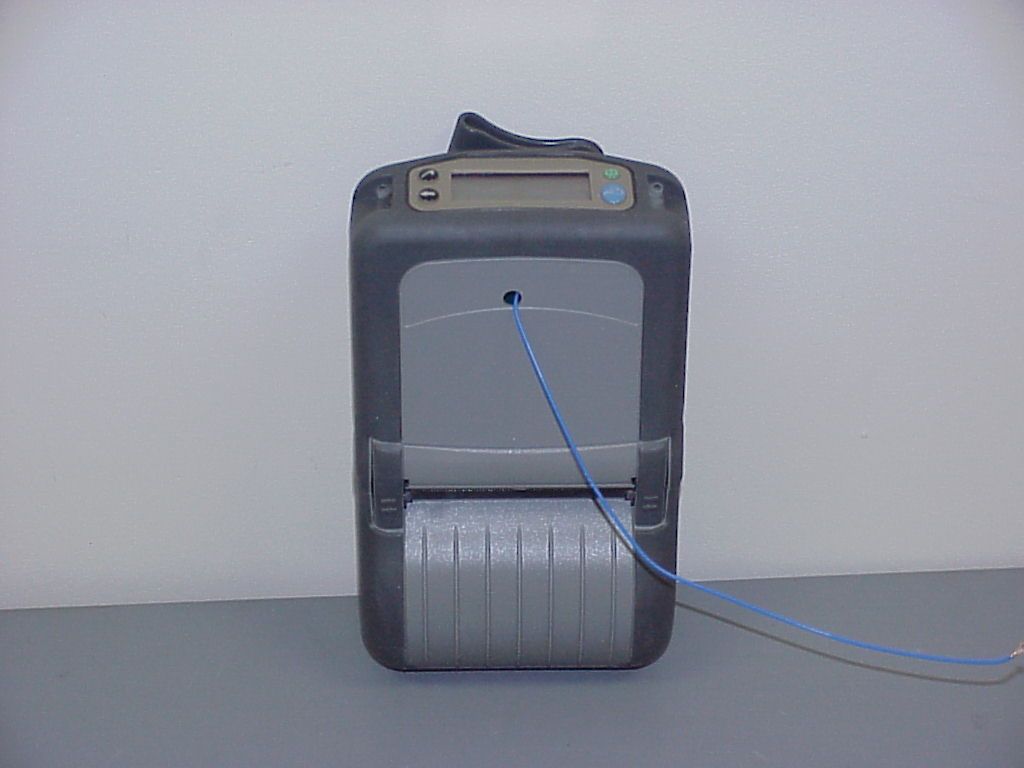

Cameo 3 Portable Printer -12 Approx. Location of S/N Bar Code This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation. U.S. patents 5,806.993; 5,848,848;5,997,193; 6,004,053 & 6,010,257 Contains FCC ID: I28MD-BTC2-E; IC: 3798A-BTC2E N2557 0682

CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer The Bluetooth Radio is using spread spectrum technique for number of handheld printers to connect these to other Bluetooth enabled devices. The data provided and calculated are for the printer with the antenna with the highest EIRP. Due to the construction of the printers and the location of the antennas inside these printers the distance to the body is at least 2.5 cm A warning statement in the users documentations will be placed. This information includes the following: A minimum separation distance of 2.5 cm must be maintained between the antenna and the person for this device to satisfy the RF exposure requirements of the FCC. The maximum output power allowed for the Bluetooth radio is 100 mW. Maximum EIRP of the equipment = 6.05dBm (4.03mW) equivalent to 13.90 V/m in 2.5 cm distance Regarding MPE limits, GPUC environment limits maximum exposure to 1 mW/cm 2. The power density is: at 2.5 centimeters from an antenna S = E 2 /3770=-13 H 2 = 0.0522 mW/cm 2 < 1 mW/cm 2 Where: S = Power density (mW/cm 2) E = electrical field strength (V/m) Calculations are based on standard formula for calculating field strength at a distance and converting power density using free space impedance. Compliance is shown for the built in module, which incorporates the antenna on board of the module even for the distance of 2.5 cm. A statement is included in the manual. If you should have any questions regarding this submission, please feel free to contact the undersigned. Yours truly, Lothar Schmidt Technical Manager EMC/Radio CETECOM Inc.

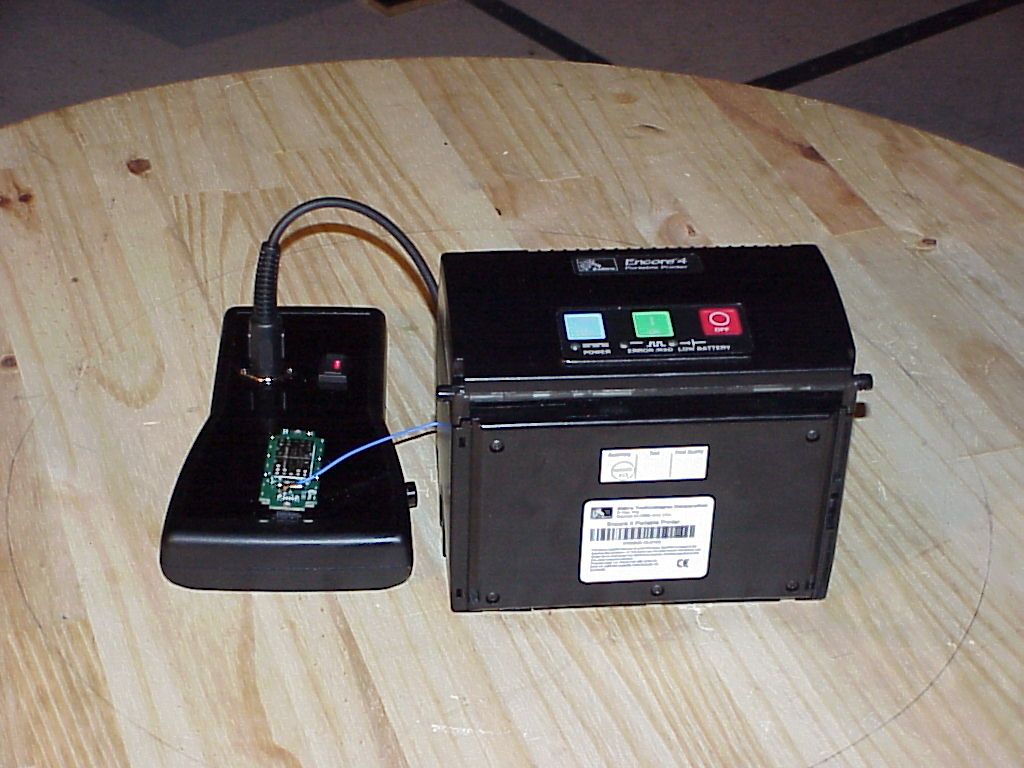

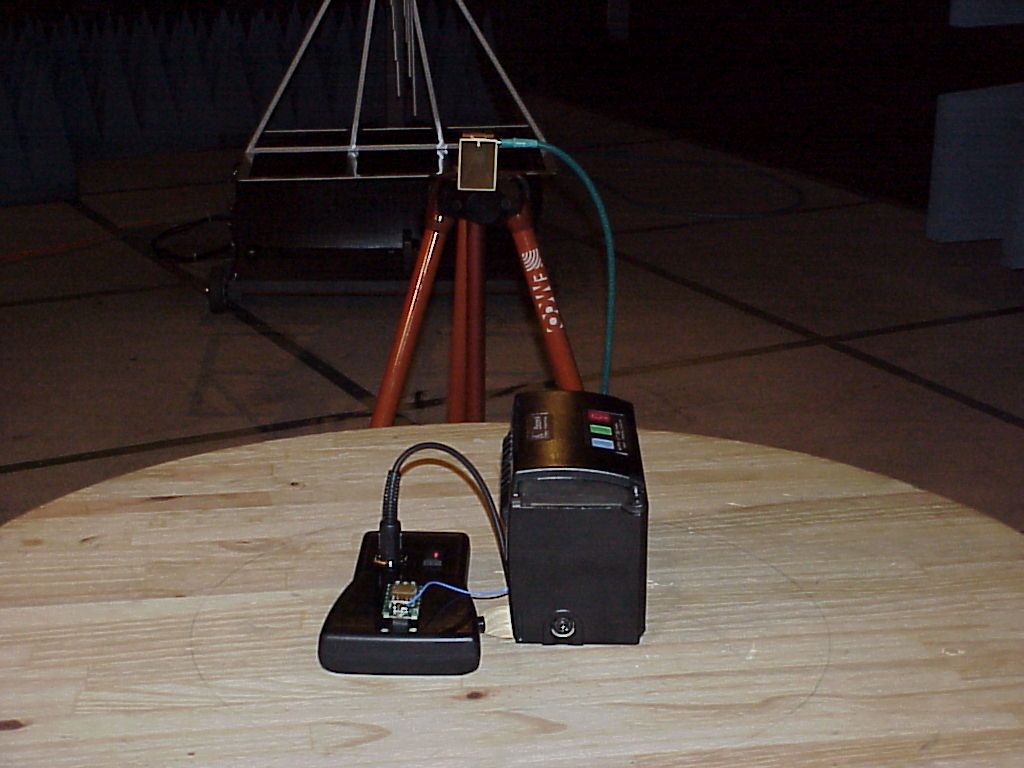

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 25 Pages Page 1 (25) Test report no.: 233FCC/2002 FCC Part 15.247 (Zebra Bluetooth Radio Module) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 2 (25) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC & Radio Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 3 (25) 1.3 Details of applicant Name : Zebra Technologies Corporation Street : 30 Plan Way City : Warwick, RI 02886 Country : USA Contact : Robert D. Heon Telephone : +1 401 739 5800 ext.352 Telefax : +1 401 732 0145 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2001-12-21 Date of receipt of test item : 2002-01-10 Date of test : 2002-01-10/11 1.5 Test item Manufacturer : Zebra Technologies Corporation Street Address : 30 Plan Way City / Country : Warwick, RI 02886, USA Name of EUT : Zebra Bluetooth Radio Module Description : 2.4GHz FHSS radio transceiver module Model No. : CC15727-1 Serial No. : N/A FCC ID. : I28MD-BTC2-E Additional information Frequency : 2402MHz – 2480MHz Type of modulation : GFSK with BT=0.5 Number of channels : 79 Antenna : Modified Dipole Power supply : Battery Output power : 6.05dBm (4.03mW) Extreme vol. Limits : The module requires regulated 5 volts Extreme temp. Tolerance : -20°C - +55°C 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 4 (25) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 2002-01-29 EMC & Radio Lothar Schmidt Date Section Name Signature CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 5 (25) 2.2 Testreport TEST REPORT Test report no. : 233FCC/2002 (Zebra Bluetooth Radio Module) CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 6 (25) TEST REPORT REFERENCE LIST OF MEASUREMENTS Paragraph PARAMETER TO BE MEASURED PAGE Testing Strategy 7 Transmitter parameters § 15.247 (b)(2) Maximum peak output power 8 §15.247 Band edge compliance 9 § 15.247 (c)(1) Emission limitations 11 Receiver parameters § 15.209 Spurious radiations - Radiated 20 Test equipment listing 25 CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 7 (25) TESTING STRATEGY The preliminary testing was carried out on Ericsson Bluetooth Module with nine different Ericsson approved antennas built in small printers. The antenna (ENCORE-4) with max. EIRP was chosen for final radiated testing. The conducted output power was found identical with test results in test report no. 5BT_Ericsson_Qual_02_c and is used as reference. For all other conducted measurements please refer to test report no. 5BT_Ericsson_Qual_02_c. Power in dBm Antenna (built in printer) Tx Antenna Polarity Rx Antenna Polarity Low ch. 2402MHz Mid ch. 2441MHz High ch. 2480MHz Encore 2 Horizontal Vertical -2.19 -0.58 -0.37 Encore 3 Horizontal Horizontal 1.90 1.32 1.93 Encore 4 Vertical Horizontal 2.44 3.71 6.05 Cameo 2 Horizontal Horizontal 0.05 -0.56 -0.77 Cameo 3 Horizontal Horizontal 0.75 -0.99 -1.64 Cameo 3 PEP Vertical Horizontal -2.47 -1.12 -1.83 Cameo 3 SC Horizontal Horizontal -7.14 -5.94 -4.68 QL-320 Vertical Horizontal -0.5 2.65 2.0 ZPR Horizontal Vertical -6.52 -2.63 -2.78 CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 8 (25) MAXIMUM PEAK OUTPUT POWER SUBCLAUSE § 15.247 (b) (1) (RADIATED) EIRP: TEST CONDITIONS MAXIMUM PEAK OUTPUT POWER (dBm) Frequency (MHz) 2402 2442 2480 T nom ( 23 )°C V nom ()V 2.44 3.71 6.05 Measurement uncertainty ±3dB RBW/VBW : 3 MHz LIMIT SUBCLAUSE § 15.247 (b) (1) Frequency range RF power output 2400-2483.5 MHz 1.0 Watt CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 9 (25) BAND EDGE COMPLIANCE §15.247 (c) Low frequency section (2400MHz) (valid for both hopping ON & OFF) A UnitdBm 1.8 dB Offset Ref Lvl 11.8 dBm Ref Lvl 11.8 dBm RF Att 30 dB 1MA SWT 5 ms 1MAX D1 - Start2.398 GHzStop2.403 GHz500 kHz/ RBW 100 kHz VBW 200 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 -88.2 11.8 1 Marker 1 [T1] -0.57 dBm 2.40200802 GHz F1 D1 -20.57 dBm Date: 17.JAN.2002 08:01:09 CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 10 (25) BAND EDGE COMPLIANCE §15.247 (c) high frequency section (spurious in the restricted band 2483.5 – 2500 MHz) (valid for both hopping ON & OFF) ANALYZER SETTINGS: RBW = 100KHz VBW = 200KHz 0 10 20 30 40 50 60 70 80 95 Level [dBμV/m] 2.4795G2.485G2.49G2.495G2.5G Frequency [Hz] Marker: 2.479849699 GHz 76.71 dBμV/m CETECOM Inc. Test report no.:233FCC/2002 Issue date:2002-01-29 Page 11 (25) EMISSION LIMITATIONS - Radiated (Transmitter) SUBCLAUSE § 15.247 (c) (1) LIMITS In any 100 kHz bandwidth outside the frequency band at least 20dB below the highest level of the desired power. In addition, radiated …

Text truncated - open the document above for the full version.

EMC Measurement/Technical Report 5BT_Ericsson_Qual_02_c on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Ericsson Bluetooth Module ROK 101 008 Registergericht - registered in: Ratingen, HRB 3264 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Output Power Spurious Emissions Conducted 5. Testequipment 6. Foto Report 7. Setup Drawings 8. Annex 3 3 5 5 5 5 5 5 7 7 8 8 8 8 9 -- 9 11 13 19 21 25 26 Measurement plots Spurious Emissions Radiated 15 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 6 6 6 Dwell Time Power Density Channel Separation Processing Gain -- -- -- -- -- 4.1 4.2 4.3 4.4 -- -- -- -- Page 2 of 37 Testreport Reference: 5BT_Ericsson_Qual_02_c 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.203 Antenna requirements § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 37 Testreport Reference: 5BT_Ericsson_Qual_02_c 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied BandwidthOccupied Bandwidth OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1antenna portpassed setup 1op-mode 2antenna portpassed setup 1op-mode 3antenna portpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power OutputPeak Power Output OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1antenna portpassed setup 1op-mode 2antenna portpassed setup 1op-mode 3antenna portpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted EmissionsSpurious RF Conducted Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1antenna portpassed setup 1op-mode 2antenna portpassed setup 1op-mode 3antenna portpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated EmissionsSpurious Radiated Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 2op-mode 1enclosurepassed setup 2op-mode 2enclosurepassed setup 2op-mode 3enclosurepassed Responsible for Accreditation Scope: Responsible for Test Report: Page 4 of 37Testreport Reference: 5BT_Ericsson_Qual_02_c 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99-10 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker This facility has been fully described in a report submitted to the FCC and accepted in a letter dated February 07, 2000 under the registration number 96716. - Deutscher Akkreditierungs Rat - Regulierungsbehörde für Telekommunikation und Post (Reg TP) 2000-08-14 Thomas Hoell 2000-09-15 2000-08-14, 2000-09-01, 2000-09-04 Project Leader: Receipt of EUT: Date of Test(s): Date of Report: No. of Pages in Annex: 1.2 Project Data Ericsson Microelectronics AB Mr. Henrik Arfwedson Isafjordsgatan 16, Kista SE-16481 Kista-Stockholm Sweden see applicant 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 37 Testreport Reference: 5BT_Ericsson_Qual_02_c 2.0 Product Labeling 2.1 FCC ID Label: 2.2 Location of Label on the EUT: See 2.1 Page 6 of 37Testreport Reference: 5BT_Ericsson_Qual_02_c 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: ROK 101 008 Spread Spectrum Transceiver Module Ericsson Bluetooth Module DC 3,3 V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart a defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 30 second period…

Text truncated - open the document above for the full version.
