I28MD-BTC2TY4ZEBRA QL+ZBR3 BLUETOOTH RADIO MODULE

30 Plan Way Warwick, RI 02886 U.S.A. Telephone +1401.739.5800 / 800.556.7266 Facsimile +1.401.732.0145 www.zebra.com 9/29/2005 To Whom It May Concern: In reference to the application for IC ID#: 3798A-BTC2TY4 (Zebra BT-ZPR Bluetooth radio module), this device is being submitted for MODULAR TRANSMITTER APPROVAL based on the guidelines in IC RSS-210. We believe that this transmitter meets all 9 criterion listed in Section 5.18 of RSS-210 as detailed in the paragraphs below. Note that 3798A-BTC2TY4 is a radio module that will be used exclusively within products made by Zebra Technologies Corporation. a) 3798A-BTC2TY4 meets all the technical specifications applicable to its frequency band of operation. b) 3798A-BTC2TY4 is based on a Taiyo-Yuden EYSF2CAXX self-contained Bluetooth radio module. The EYSF2CAXX is fully shielded. c) 3798A-BTC2TY4 has buffered inputs on all digital lines. Overdriving one or more of the digital inputs will have no affect on the transmitter output. d) 3798A-BTC2TY4 contains a voltage regulator that powers the transmitter. The unit is designed to accept regulated 3.3 volts DC at it’s input, but transmitter output will not be affected if input voltage is exceeded. Since the module will only be used in Zebra products, Zebra has full control of the power supply to the module. e) 3798A-BTC2TY4 will always be used with one of a family of approved antennas, all of which are mounted (with the radio) inside a finished printer or other product. None of these antennas is user accessible, nor is the antenna cable / connector user accessible; for this reason the antennas can be considered to be permanently attached. All of the antennas in the family have been tested with the radio module as part of the modular approval; test results are included with the application. If the radio is to be used with a new antenna, further testing will be performed and a Class II permissive change will be obtained. f) 3798A-BTC2TY4 is too small to carry a label containing the Industry Canada ID number. As this module will always be mounted on the interior of a Zebra product, this module will not be visible to an end user anyway. To compensate for the small size of the module and the fact that it is buried within an end product, all products containing this module will have the statement “Contains IC: 3798A-BTC2TY4” clearly visible on an external label. Examples of these external labels have been provided as part of the application. g) 3798A-BTC2TY4 will only be used with Zebra Technologies products; this includes printers built by Zebra that are branded for other companies. Thus Zebra will maintain full control over the use of the module and can guarantee that all conditions for use will be met in any product that the module is installed in. All host devices meet applicable IC regulations. h) Most of the products that 3798A-BTC2TY4 will be used in are body worn devices subject to RSS-102 of the Industry Canada rules. However, the output power from this radio module (typically 0 dBm conducted) is so small that it will easily meet all RF exposure requirements and does not require SAR testing. i) Please see f) above. Sincerely, Guzvaldo Medina Compliance Engineer Zebra Technologies Corporation

September 29, 2005 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 To Whom It May Concern: In reference to the application for I28MD-BTC2TY4 the following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary information. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram • Module User Guide The Module User Guide is an internal document used within Zebra. The module is not intended for OEM sale. Sincerely, Mr. Charles A. Derrow Manager, Compliance Engineering

External Photos Top with shield Top without shield Bottom

ID Label/Location Info Label Location Label Sample Label Location FCCID: I28MD-BTC2TY4 IC #: 3798A-BTC2TY4

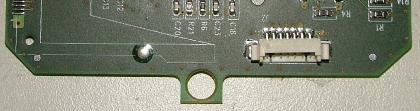

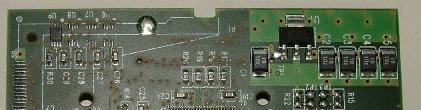

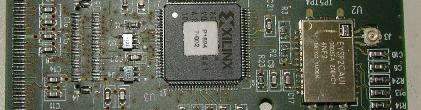

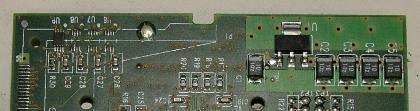

Internal Photos Top with shield Top without shield Bottom

TEST REPORT FROM d For BT-ZPR Bluetooth Radio Module To 47 CFR 15.247 Test Report Serial No.: SL05082301-ZBRA-016 This report supersedes None Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: .......................................................................................................... Tested by: Alvin Ilarina, Test Enginner .......................................................................................................... Reviewed by: Leslie Bai, Lab Manager Issue date: 28 September 2005 Equipment Details: Manufacturer: Zebra Technologies Corporation This test report may be reproduced in full only. Registration No. 783147 Registration No. 2195 Registration No. 4842 RTA No. D23/16V Lab Code: KR0032 Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 2 of 34 www.siemic.com This page has been left blank intentionally. Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 3 of 34 www.siemic.com CONTENTS EXECUTIVE SUMMARY..............................................................................................................................................5 1 TECHNICAL DETAILS..........................................................................................................................................6 2 TESTS REQUIRED..................................................................................................................................................7 3 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.................................................................8 4 TEST INSTRUMENTATION................................................................................................................................27 APPENDIX A: EUT TEST CONDITIONS.................................................................................................................28 APPENDIX B: EXTERNAL PHOTOS........................................................................................................................29 APPENDIX C: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................30 APPENDIX D: INTERNAL PHOTOS.........................................................................................................................31 APPENDIX F: PRODUCT DESCRIPTION...............................................................................................................32 APPENDIX H: FCC LABEL LOCATION..................................................................................................................33 APPENDIX I: USER MANUAL...................................................................................................................................34 Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 4 of 34 www.siemic.com This page has been left blank intentionally. Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 5 of 34 www.siemic.com Executive Summary The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corporation, BT-ZPR Bluetooth Radio Module against the current 47 CFR 15.247. The BT-ZPR Bluetooth Radio Module demonstrated compliance with the 47 CFR 15.247. Zebra Technologies Corporation is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the BT-ZPR Bluetooth Radio Module User Manual. The unit was tested with the following antenna that becomes integral to the host unit: ZEBRA CX17383-1 The test has demonstrated that this unit complies with stipulated standards. Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 6 of 34 www.siemic.com 1 Technical Details Purpose Compliance testing of BT-ZPR Bluetooth Radio Module with 47 CFR 15.247 Applicant / Client Zebra Technologies Corporation 333 Corporate Wood Parkway Vernon Hills, IL 60061 Manufacturer Zebra Technologies Corporation Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL05082301-ZBRA-016 Date EUT received 19 September 2005 Standard applied 47 CFR 15.247 No of Units: 1 Equipment Category: DSS Trade/Product Name: BT-ZPR Bluetooth Radio Module Type/Model Name/No: BT-ZPR Bluetooth Radio Module Technical Variants: None FCC ID No. I28MD-BTC2TY4 Title: Zebra Technologies Corporation BT-ZPR Bluetooth Radio Module To: 47 CFR 15.247 Serial#SL05082301-ZBRA-016 Issue Date 28 September 2005 Page 7 of 34 www.siemic.com 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the tested sample(s). Test Standard Description Pass / Fail 47CFR Part 15, General Conditions 15.207 Power Line Conducted Emissions N/A 15.209 Radiated Spurious Emissions Pass 47CFR Part 15, §15.247 15.247(a)1 Carrier Frequency Separation Pass 15.247(a)1 20 dB Bandwidth Pass 15.247(a)1 Number of Hopping Frequencies Pass 15.247(a)1 Time of Occupancy Pass 15.247(b)(1) Power Output Pass 15.247(c) Conducted Spurious Emissions Pass 15.247(c) Radiated Spurious Emissions Pass 15.205 Radiated Spurious Emissions Bandedge Pass ANSI C63.4: 2003 Notes: Deviations to above standards are outlined in specific test sections if applicable. Cable loss and external attenuation are compensated for in the measurement system when applicable. Title: …

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emissions Radiated Emissions
