I28MD-BTC2TY6Zebra MZ-ZBR3 Bluetooth Radio

Installing the Battery Batteries are shipped uncharged. Remove any protective packaging from new battery packs, install it in the printer and charge completely prior to initial use. Important Safety Information Static Discharge and Thermal Printing Caution • Static Discharge The discharge of electrostatic energy can damage or destroy the printhead or electronic components used in this device. DO NOT TOUCH the printhead or any exposed electronic components. Caution • Printhead The printhead can become hot after prolonged printing. Use only the supplied cleaning pen to perform maintenance on the printhead. Battery Safety Always observe the safety precaution in the Lithium-Ion Battery Technical Bulletin included with each Battery Pack. Caution • Short Circuits Avoid accidental short circuiting of any battery. Allowing battery terminals to contact conduc - tive material will create a short circuit which could cause burns and other injuries or could start a fire. Important • Lithium-Ion (Li-ion) Battery Disposal Always dispose of used printer batteries properly. Disposal regulations may vary by loca - tion. Refer to the MZ series Users Guide for more battery recycling information. Caution • Use Zebra Chargers Use of any charger not approved specifically by Zebra for use with its batteries could cause dam - age to the Battery Pack or the Printer and will void the warranty. Product Support For product support, contact Zebra Technologies at: www.zebra.com In the Americas contact: Zebra Technologies International, LLC 333 Corporate Woods Parkway Vernon Hills, Illinois 60061-3109 USA Phone: +1.847.793.2600 or +1.800.423. 0422 Fax: +1.847.913.8766 In Europe, Africa, the Middle East, and India contact Zebra Technologies Europe Limited Zebra House The Valley Centre, Gordon Road High Wycombe Buckinghamshire HP13 6EQ, UK Phone: +44.1494.472872 Fax: +44.1494.450103 In the Asia Pacific region contact: Zebra Technologies Asia Pacific, LLC 16 New Industrial Road #05-03 Hudson TechnoCentre Singapore 536204 Phone: +65-6858 0722 Fax: +65-6885 0838 MZ 220 MZ 320 1. Feed Switch 2. Media Status Light 3. USB Port 4. Battery Charging Receptacle 5. Media Sensor 6. Media Cover 7. Platen 8. Printhead 9. Latch Release Button 10. Communications Status Indicator 11. IR window 12. Charge Status Indicator 13. Power Switch 14. Power Indicator 15. Belt Clip 16. Battery Door Latch 17. Battery Compartment Cover 18. Battery Pack 19. External Charge Contacts Charging the Battery Printer Controls Loading Media Introduction Thank you for choosing one of our Zebra MZ Series Mobile Printers. These rugged printers will become productive and efficient additions to your workplace thanks to their innovative design. Because they are made by Zebra Technologies Corporation, you can be assured of world-class support for all of your bar code printers, software, and supplies. This document provides an easy reference for operating and maintaining the MZ Series Mobile Printers. Complete documentation for this printer series is provided by the MZ Series User Guide available on the Internet at: http://www.zebra.com . MZ Series Overview (MZ 220 Illustrated) Load the Media Roll Close the Cover Zebra ® MZ Series Mobile Printers Quick Start Guide QSG-MZS-002 rev. A © ZIH Corp. 2006 Over The printer may be used while charging the battery. However, prolonged use of the printer while charging will greatly increase charge times. Using the Charger Power Supply 15 16 7 1 2 4 6 3 8 18 17 9 Power Button Press to turn unit on. Press again to turn unit off Feed Button Press to advance the media a software determined length of journal media. Communication Light (Blue) When lit steadily indicates a wireless communications link is established, when blinking indicates data transmission. Charge Light (Green/ Amber) Green indicates the battery fully charged. Amber indicates the battery is less than 90% charged. IrDA Window This area must be within the line of sight of any other IrDA enabled device for IR communications to occur. Media Status Light (Amber) When off Indicates normal operation, blinking indicates either no media or that the media compartment is open Power Light (Green) Indicates power status and battery condition. A steadily lit indicator means the battery has more than a 30% charge remaining. A blinking indicator means the battery has less than a 30% charge remaining. 10 11 12 13 14 19 1. Use a coin to rotate the Battery Compartment lock 1 / 4 turn as shown. 2. Remove the Battery Compartment Cover 3. Plug the Battery Pack connector into the Printer. Battery Pack Note location of label 4. Re-install the Battery Compartment Cover and rotate the lock back 1 / 4 turn to lock it in place . Ensure battery leads are not pinched prior to replacing battery cover. Charger Power Supply Plug into AC receptacle Plug into printer Charger Jack Verify that the mains adapter shipped with your Printer is the correct one for your region. Install the mains adapter into the Power Supply by hooking the top edge into the mains receptacle cavity, and rotating it until it snaps into place. Preparing the Charger Power Supply Remove the power supply from its box. Remove and discard the shipping ring from the mains receptacle cavity. Mains Adapter Shipping Ring Remove and discard 5 Media Roll Note direction media pulls off the roll. Pull Media out of Printer Close Media Cover Press Latch Button Media Cover Opens Open the Media Cover QSG-MZS-001 rev. A © ZIH Corp. 2006 AreaMethodInterval Printhead Use a Zebra cleaning pen or a 70% isopropyl alcohol solution on a cotton swab to clean the print elements from end to end (the print elements are located in the thin gray line on the printhead). After every five rolls of media (or more often, if needed) Platen Rotate the platen roller and clean it thoroughly with a Zebra cleaning pen or a 70% isopropyl alcohol solution and a cotton swab. Tear bar Clean thoroughly with a Zebra cleaning pen or a 70% isopropyl alcohol solution and a cotto…

Text truncated - open the document above for the full version.

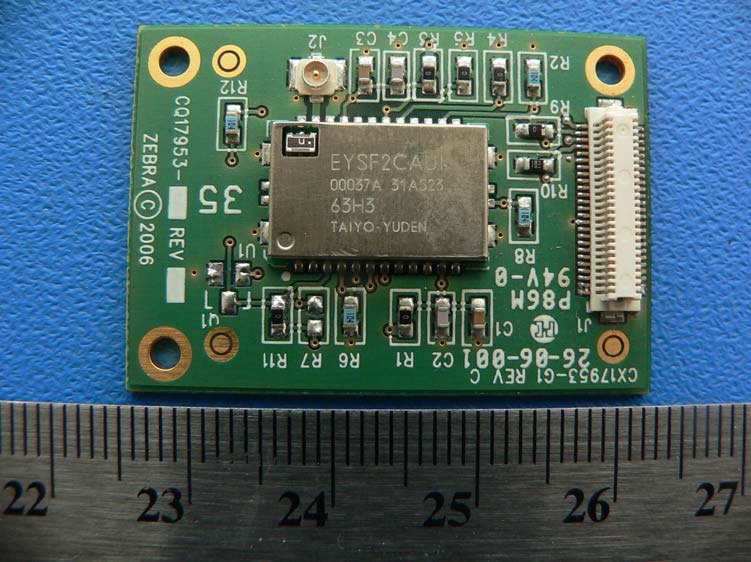

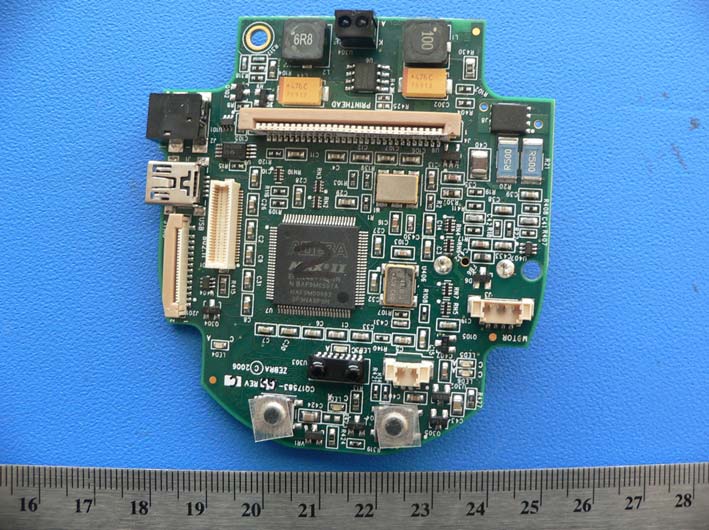

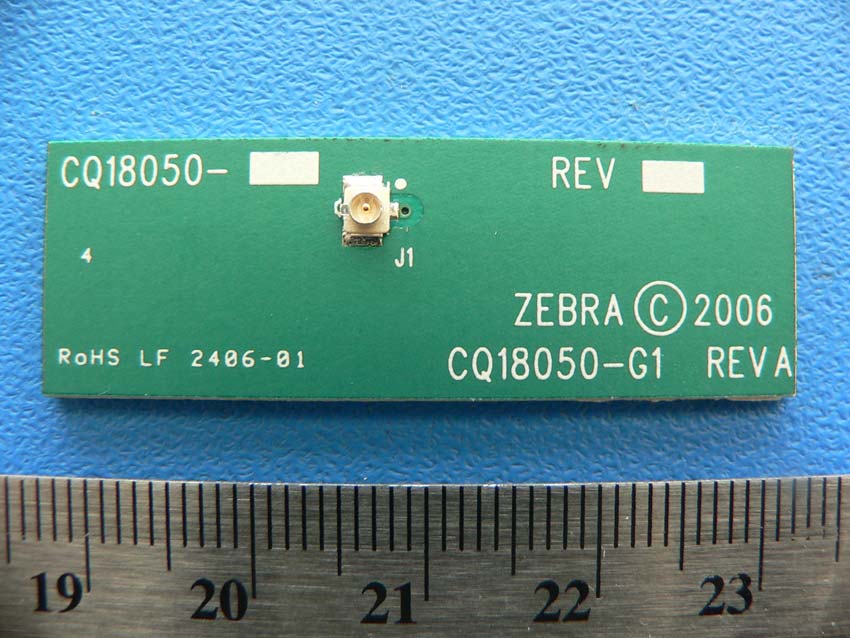

EXHIBIT C - EUT PHOTOGRAPHS EUT –Transceiver component side view EUT –Transceiver solder side view EUT –Transceiver RF shield off view Host – Top View Host – Bottom View Host –side view Host – chassis off view Host – Mainboard View 1 Host – Mainboard View 2 Antenna port view Antenna back side view Power supply view Battery view

MZ-ZBR3 Module ID Label.doc FCCID: I28MD-BTC2TY6 IC: 3798A-BTC2TY6 MZ-ZBR3 Module ID label 8/28/2006 Compliance Engineering 1 of 1

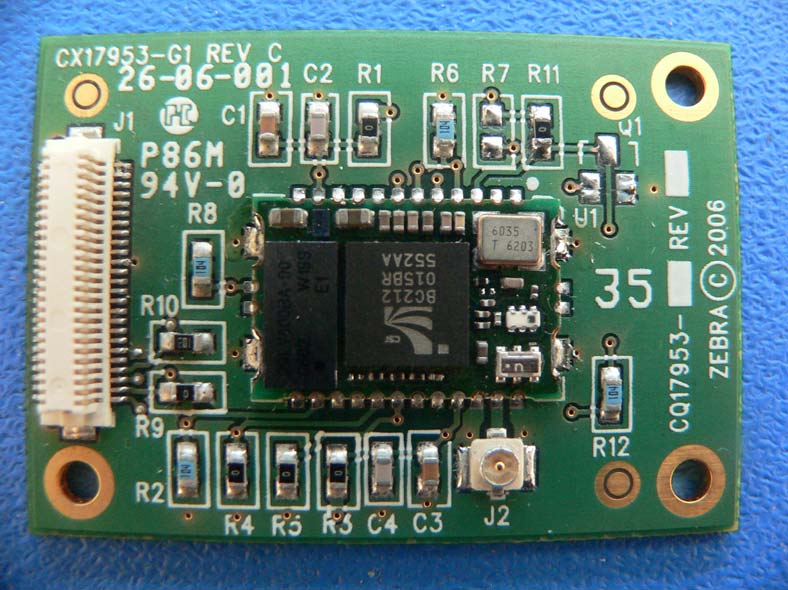

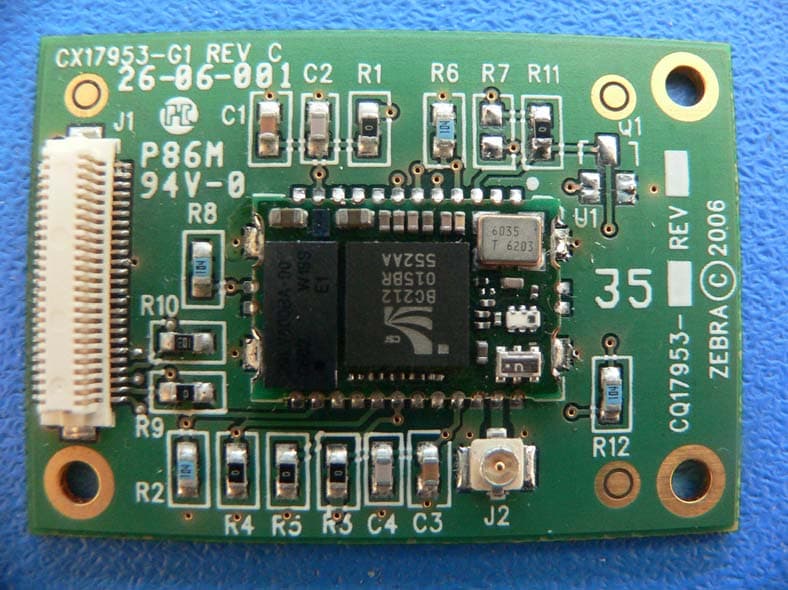

EUT Internal Photograph EUT –Transceiver RF shield off view

Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) -1.34 dB 0.00 deg-12.98 dB174.00 deg89.36 deg-5.96 dB 2405(MHz)-1.62 dB3.00 deg-13.08 dB174.00 deg92.78 deg-6.04 dB 2410(MHz)-1.87 dB9.00 deg-12.85 dB174.00 deg94.11 deg-6.20 dB 2415(MHz)-1.91 dB9.00 deg-12.92 dB177.00 deg93.29 deg-6.29 dB 2420(MHz)-1.97 dB9.00 deg-13.21 dB174.00 deg92.44 deg-6.38 dB 2425(MHz)-2.17 dB-3.00 deg-13.89 dB177.00 deg93.39 deg-6.57 dB 2430(MHz)-2.31 dB0.00 deg-14.61 dB174.00 deg92.58 deg-6.84 dB 2435(MHz)-2.37 dB0.00 deg-15.49 dB174.00 deg91.25 deg-6.99 dB 2440(MHz)-2.59 dB0.00 deg-16.34 dB177.00 deg90.77 deg-7.16 dB 2445(MHz)-2.78 dB-3.00 deg-15.94 dB174.00 deg91.38 deg-7.40 dB 2450(MHz)-3.09 dB-3.00 deg-16.48 dB174.00 deg93.12 deg-7.61 dB 2455(MHz)-3.31 dB0.00 deg-17.57 dB174.00 deg94.44 deg-7.77 dB 2460(MHz)-3.55 dB12.00 deg-17.13 dB174.00 deg93.58 deg-8.03 dB 2465(MHz)-3.84 dB12.00 deg-17.01 dB177.00 deg94.14 deg-8.39 dB 2470(MHz)-3.96 dB12.00 deg-17.51 dB174.00 deg94.31 deg-8.55 dB 2475(MHz)-3.97 dB12.00 deg-18.03 dB177.00 deg91.60 deg-8.65 dB 2480(MHz)-4.30 dB6.00 deg-18.84 dB177.00 deg94.75 deg-8.88 dB 2484(MHz)-4.47 dB9.00 deg-20.89 dB177.00 deg94.91 deg-9.10 dB 2485(MHz)-4.53 dB6.00 deg-20.20 dB174.00 deg94.36 deg-9.16 dB 2490(MHz)-4.71 dB15.00 deg-21.57 dB174.00 deg91.77 deg-9.46 dB 2495(MHz)-5.02 dB3.00 deg-21.75 dB174.00 deg93.42 deg-9.68 dB 2500(MHz)-5.49 dB9.00 deg -22.21 dB 174.00 deg94.95 deg-10.06 dB MZ Series BT and 802.11G antenna (CQ18050) - X-Z Plane Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) 2.64 dB 63.00 deg-20.55 dB-123.00 deg105.38 deg-3.43 dB 2405(MHz)2.49 dB66.00 deg-22.79 dB-123.00 deg106.66 deg-3.61 dB 2410(MHz)2.38 dB66.00 deg-21.74 dB-123.00 deg105.94 deg-3.72 dB 2415(MHz)2.43 dB66.00 deg-21.77 dB-123.00 deg105.67 deg-3.78 dB 2420(MHz)2.31 dB66.00 deg-22.46 dB-123.00 deg107.65 deg-3.95 dB 2425(MHz)2.11 dB66.00 deg-21.55 dB-123.00 deg109.54 deg-4.11 dB 2430(MHz)1.94 dB66.00 deg-20.96 dB-123.00 deg108.42 deg-4.30 dB 2435(MHz)1.87 dB69.00 deg-21.78 dB-123.00 deg109.09 deg-4.45 dB 2440(MHz)1.58 dB66.00 deg-23.22 dB-123.00 deg111.23 deg-4.75 dB 2445(MHz)1.27 dB69.00 deg-22.13 dB-123.00 deg111.03 deg-4.96 dB 2450(MHz)1.15 dB69.00 deg-21.47 dB-126.00 deg110.70 deg-5.07 dB 2455(MHz)1.00 dB69.00 deg-23.09 dB-123.00 deg111.99 deg-5.29 dB 2460(MHz)0.75 dB69.00 deg-22.72 dB-123.00 deg111.06 deg-5.61 dB 2465(MHz)0.38 dB69.00 deg-21.18 dB-126.00 deg110.93 deg-5.88 dB 2470(MHz)0.18 dB69.00 deg-21.57 dB-126.00 deg112.08 deg-6.06 dB 2475(MHz)-0.06 dB69.00 deg-22.91 dB-126.00 deg112.99 deg-6.34 dB 2480(MHz)-0.33 dB69.00 deg-22.20 dB-126.00 deg113.67 deg-6.58 dB 2484(MHz)-0.42 dB69.00 deg-22.34 dB-129.00 deg113.48 deg-6.70 dB 2485(MHz)-0.53 dB69.00 deg-22.49 dB-129.00 deg112.70 deg-6.78 dB 2490(MHz)-0.81 dB69.00 deg-24.00 dB-129.00 deg114.54 deg-7.12 dB 2495(MHz)-1.15 dB69.00 deg -24.34 dB -129.00 deg116.06 deg-7.48 dB 2500(MHz)-1.64 dB69.00 deg-23.59 dB-132.00 deg117.53 deg-7.83 dB MZ Series BT and 802.11G antenna (CQ18050) - Y-Z Plane Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) 2.13 dB 81.00 deg-15.26 dB285.00 deg77.46 deg-5.04 dB 2405(MHz)2.02 dB81.00 deg-15.07 dB285.00 deg77.85 deg-5.16 dB 2410(MHz)1.91 dB81.00 deg-14.53 dB285.00 deg77.46 deg-5.31 dB 2415(MHz)1.91 dB81.00 deg-15.02 dB285.00 deg78.12 deg-5.32 dB 2420(MHz)1.84 dB81.00 deg-15.54 dB285.00 deg78.71 deg-5.37 dB 2425(MHz)1.68 dB81.00 deg-14.85 dB282.00 deg78.12 deg-5.58 dB 2430(MHz)1.45 dB81.00 deg-14.34 dB285.00 deg78.52 deg-5.78 dB 2435(MHz)1.41 dB84.00 deg-15.13 dB288.00 deg79.44 deg-5.82 dB 2440(MHz)1.22 dB81.00 deg-15.74 dB285.00 deg79.91 deg-6.03 dB 2445(MHz)0.91 dB81.00 deg-14.80 dB216.00 deg80.26 deg-6.27 dB 2450(MHz)0.86 dB84.00 deg-14.42 dB291.00 deg80.26 deg-6.29 dB 2455(MHz)0.74 dB84.00 deg-15.58 dB291.00 deg81.91 deg-6.39 dB 2460(MHz)0.42 dB81.00 deg-15.94 dB219.00 deg82.68 deg-6.70 dB 2465(MHz)0.10 dB81.00 deg-16.19 dB216.00 deg82.35 deg-7.02 dB 2470(MHz)0.01 dB81.00 deg-16.22 dB297.00 deg83.42 deg-7.06 dB 2475(MHz)-0.25 dB81.00 deg-16.81 dB294.00 deg85.25 deg-7.27 dB 2480(MHz)-0.48 dB81.00 deg-17.16 dB222.00 deg84.44 deg-7.51 dB 2484(MHz)-0.59 dB78.00 deg-16.17 dB300.00 deg86.06 deg-7.53 dB 2485(MHz)-0.71 dB78.00 deg-16.59 dB222.00 deg86.28 deg-7.67 dB 2490(MHz)-0.97 dB78.00 deg-16.80 dB300.00 deg86.88 deg-7.92 dB 2495(MHz)-1.32 dB78.00 deg-17.83 dB228.00 deg88.16 deg-8.25 dB 2500(MHz)-1.74 dB78.00 deg -19.04 dB 225.00 deg87.39 deg-8.71 dB MZ Series BT and 802.11G antenna (CQ18050) - X-Y Plane

RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Low Frequency (MHz) High Frequency (MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 2441 24.58 Maximum measured transmitter power: Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 0.65 2.64 1.19 Threshold at which no SAR required is 24.58 mw. Maximum Tx power is 1.19 mw EIRP. Conclusion: No SAR is required.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For ZEBRA TECHNOLOGIES CORPORATION 333 Corporate Woods Parkway Vernon Hills, IL 60061 FCC ID: I28MD-BTC2TY6 This Report Concerns: Original Report Product Type: Bluetooth modular Test Engineer: Oscar Au Choon Sian Ooi Report No.: R0608281 Report Date: 2006-09-06 Reviewed By: Test Engineer: James Ma Prepared By: Bay Area Compliance Laboratory Corporation 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732-9164 Zebra Technologies Corporation FCC ID: I28MD-BTC2TY6 Report # R0608281Rpt.doc Page 2 of 54 FCC Part 15 C Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS FOR FCC PART 15 C ........................................................................................8 § 15.247 (E)(I) - RF EXPOSURE ................................................................................................................................9 § 15.203 ANTENNA REQUIREMENTS...................................................................................................................10 §15.207 (A) – AC LINE CONDUCTED EMISSIONS..............................................................................................11 TEST SETUP................................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 SUMMARY OF TEST RESULTS.....................................................................................................................................12 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................13 §2.1051 & 15.247 (D) SPURIOUS EMISSIONS AT ANTENNA PORT ................................................................15 APPLICABLE STANDARD............................................................................................................................................15 MEASUREMENT PROCEDURE......................................................................................................................................15 TEST EQUIPMENT.......................................................................................................................................................15 ENVIRONMENTAL CONDITIONS..................................................................................................................................15 MEASUREMENT RESULTS...........................................................................................................................................15 §15.205, §15.209 & §15.247(C) - RADIATED EMISSIONS ....................................................................................28 TEST SETUP................................................................................................................................................................28 TEST EQUI…

Text truncated - open the document above for the full version.
