I28MD-CXLAN11GZebra Embedded b/g radio

UMAN-QLP-002 rev. A August, 2008 2 QL Plus Series User Guide Table of Contents Proprietary Statements ..............................................................4 Document Conventions ..............................................................6 Introduction to the QL Plus™ Series ..........................................7 Unpacking and Inspection ...............................................................7 Reporting Damage ...........................................................................7 QL 220 Plus Overview ................................................................8 QL 320 Plus Overview ................................................................9 QL 420 Plus Overview ..............................................................10 Getting Ready to Print ..............................................................11 Battery .............................................................................................11 Installing the Battery ...................................................................................11 QL 220 Plus ..................................................................................................11 QL 420 Plus ..................................................................................................11 QL 320 Plus ..................................................................................................11 Charging the Battery with the LI72 Charger ...............................................12 Battery Safety ..............................................................................................17 Charger Safety .............................................................................................17 Loading the Media ..........................................................................18 QL 420 Plus and QL 220 Plus Printers ........................................................18 QL 320 Plus Printers ....................................................................................19 All models ....................................................................................................20 QL 420 Plus Printers Only ...........................................................................21 Operator Controls ..........................................................................23 Keypad Control Panel ..................................................................................23 LCD Control Panel .......................................................................................25 Programmable LCD Settings ......................................................................26 Verify the Printer Is Working..........................................................28 Printing a Configuration Label ....................................................................28 Connecting the Printer ...................................................................28 Cable Communication .................................................................................29 IR Communications .....................................................................................32 Wireless Communications with Bluetooth™ ..............................................33 Bluetooth Networking Overview ................................................................33 WLAN Overview .............................................................................34 Setting Up the Software ................................................................34 Radio Regulatory Information ..................................................36 Zebra Bluetooth Radio QL+ZBR3 ...............................................................36 Zebra Bluetooth Radio 2.0 QL+ZBR4 .........................................................37 WLAN Module Using 802.11b CF Radio (North America) .........................38 WLAN Module Using 802.11b CF Radio (Asia & EU Countries) ................39 Zebra 802.11b WLAN Radio Module ..........................................................41 WLAN Module Using 802.11g Radio .........................................................43 Compact Flash (802.11b) and Bluetooth Co-located Radio Modules .......45 Using the Accessories ...............................................................47 Belt Clip ........................................................................................................47 Kickstand .....................................................................................................48 Desk Stand ...................................................................................................49 Carrying Strap .............................................................................................51 Preventive Maintenance ...........................................................52 Extending Battery Life ...................................................................52 3 QL Plus Series User Guide General Cleaning Instructions .......................................................53 QL 220 Plus Cleaning ...............................................................................54 QL 320 Plus Cleaning ...............................................................................56 QL 420 Plus Cleaning ...............................................................................58 Troubleshooting .........................................................................60 Keypad Control Panel.....................................................................60 LCD Control Panel Indicators ........................................................61 Troubleshooting Topics .................................................................62 Troubleshooting Tests ...................................................................64 Printing a Configuration Label ....................................................................64 Communications Diagnostics ...............................................................…

Text truncated - open the document above for the full version.

0.457 and 0.459 of the Rules, disclosure of this

IC: 3798B-CXLAN11G IC: 3798B-CXLAN11G IC number IC: 3798B-CXLAN11G QL220Plus, QL320Plus, QL420Plus

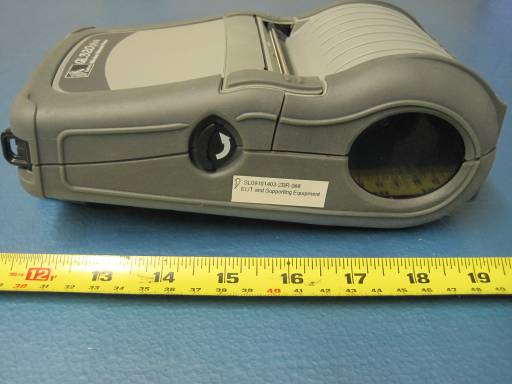

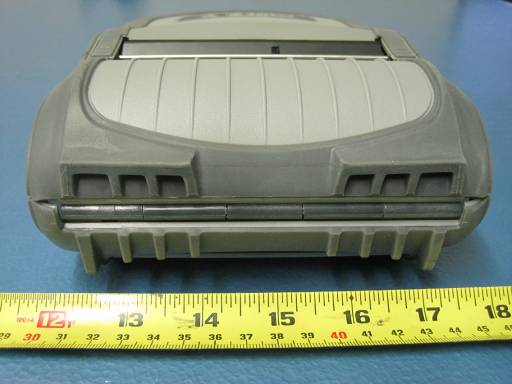

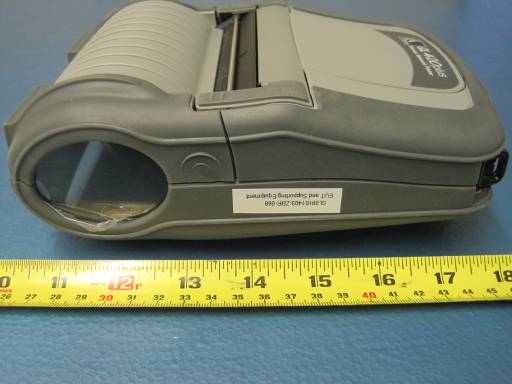

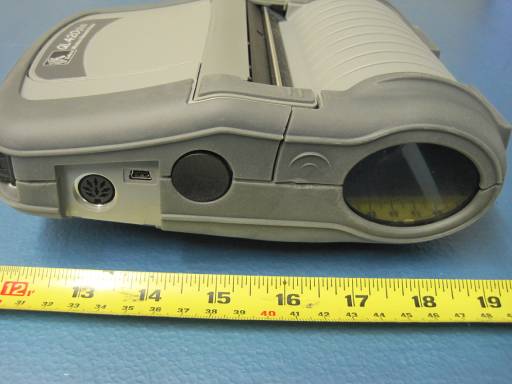

HOST PRINTER MODEL: QL 220plus EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Right View EUT - Left View HOST PRINTER MODEL: QL 320plus EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Right View EUT - Left View HOST PRINTER MODEL: QL 420plus EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Right View EUT - Left View

Label Drawing Label Location Zebra Technologies Corp. Model: XG-182Z FCC ID: I28MD-CXLAN11G IC: 3798B-CXLAN11G Zebra Technologies Corp. Model: XG-182Z FCC ID: I28MD-CXLAN11G IC: 3798B-CXLAN11G

EUT RF Module with Cover On View EUT : RF Module Component View EUT : RF Module Solder View EUT : Antenna Board Component View EUT : Antenna Board Solder View

According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: WLAN Frequency Range Low Frequency (MHz) Low Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mW) 2412 2462 2437 25 Maximum measured transmitter power: 802.11b Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 7.9 3.34 17.10 Maximum measured transmitter power: 802.11g Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 6.5 3.34 13.90 Threshold at which no SAR required is 25 mW. Maximum Tx power is 17.10mW EIRP. Conclusion: No SAR is required. No Simultaneous transmission occurs.

ZEBRA TECHNOLOGIES CORP HOST PRINTER MODEL: (QL220 PLUS, QL320 PLUS, QL420 PLUS) WITH 802.11B/G MODULE Model: XG-182Z 25 November 2009 Report No.: SL09101403-ZBR-068-E (FCC 15.247) (This report supersedes NONE) This Test Report is Issued Under the Authority of: Dan Coronia Compliance Engineer Leslie Bai Director of Certification Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report of Zebra Technologies Corp Model : XG-182Z To FCC 15.247 2008 & RSS-210 Issue 7 : 2007 Serial# SL09101403-ZBR-068-E (FCC 15.247) Issue Date 25 November 2009 Page 2 of 80 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report of Zebra Technologies Corp Model : XG-182Z To FCC 15.247 2008 & RSS-210 Issue 7 : 2007 Serial# SL09101403-ZBR-068-E (FCC 15.247) Issue Date 25 November 2009 Page 3 of 80 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : XG-182Z To FCC 15.247 2008 & RSS-210 Issue 7 : 2007 Serial# SL09101403-ZBR-068-E (FCC 15.247) Issue Date 25 November 2009 Page 4 of 80 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................6 2 TECHNICAL DETAILS.....................................................................................................................................................7 3 MODIFICATION...............................................................................................................................................................8 4 TEST SUMMARY.............................................................................................................................................................9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................10 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................55 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS..............................................................................................................59 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT......................................................................................................59 ANNEX D USER MANUAL, BLOCK DIAGRAM, CIRCUIT DIAGRAM....................................................................................63 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES.............................................................................................................64 Title: RF Test Report of Zebra Technologies Corp Model : XG-182Z To FCC 15.247 2008 & RSS-210 Issue 7 : 2007 Serial# SL09101403-ZBR-068-E (FCC 15.247) Issue Date 25 November 2009 Page 5 of 80 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : XG-182Z To FCC 15.247 2008 & RSS-210 Issue 7 : 2007 Serial# SL09101403-ZBR-068-E (FCC 15.247) Issue Date 25 November 2009 Page 6 of 80 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Zebra Technologies Corp Model: XG-182Z against the current Stipulated Standards. The Host Printer Model: (QL220 Plus, QL320 Plus, QL420 Plus) with 802.11b/g Module have demonstrated compliance with the FCC 15.247 2008 & RSS-210 Issue 7 : 2007. Zebra Technologies Corp is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the Host Printer Model: (QL220 Plus, QL320 Plus, QL420 Plus) with 802.11b/g Module User Manual submitted as another Exhibit to this application. The equipment under test radio operating frequency is 2412 MHz – 2462 MHz. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : Zebra Technologies Corp. will use the XG-182Z radio module within Zebra Host Printer Model: (QL220 Plus, QL320 Plus, QL420 Plus) with 802.11b/g Module . The radio will be installed inside the product and will not be user accessible. The antenna is an internal antenna and will not be user accessible. 802.11b/g radios are designed to operate in the international ISM Band from 2412 to 2462 MHz. Model No : XG-182Z Serial No : N/A Input Power : Input: 100-240VAC; 50-60Hz; 0.3A (FRIWO) Output: 7.4VDC; 0.8A Battery: 7.4V Input: 100-240VAC; 47-63Hz; 180mA (SANYO) Output: 8.4V; 800mA Battery: 7.4V Classification…

Text truncated - open the document above for the full version.

Radiated Emission (30MHz to 1GHz) Host: QL 220plus Radiated Emission Test Setup – Front View Host: QL 220plus Radiated Emission Test Setup – Rear View Host: QL 320plus Radiated Emission Test Setup – Front View Host: QL 320plus Radiated Emission Test Setup – Rear View Host: QL 420plus Radiated Emission Test Setup – Front View Host: QL 420plus Radiated Emission Test Setup – Rear View Radiated Emission (Above 1GHz) Host: QL 220plus Radiated Emission Test Setup – Front View Host: QL 220plus Radiated Emission Test Setup – Rear View Host: QL 320plus Radiated Emission Test Setup – Front View Host: QL 320plus Radiated Emission Test Setup – Rear View Host: QL 420plus Radiated Emission Test Setup – Front View Host: QL 420plus Radiated Emission Test Setup – Rear View Conducted Emission (PS – Friwo) Host: QL 220plus Conducted Emission Test Setup – Front View Host: QL 220plus Conducted Emission Test Setup – Rear View Host: QL 320plus Conducted Emission Test Setup – Front View Host: QL 320plus Conducted Emission Test Setup – Rear View Host: QL 420plus Conducted Emission Test Setup – Front View Host: QL 420plus Conducted Emission Test Setup – Rear View Conducted Emission (PS – Sanyo) Host: QL 220plus Conducted Emission Test Setup – Front View Host: QL 220plus Conducted Emission Test Setup – Rear View Host: QL 320plus Conducted Emission Test Setup – Front View Host: QL 320plus Conducted Emission Test Setup – Rear View Host: QL 420plus Conducted Emission Test Setup – Front View Host: QL 420plus Conducted Emission Test Setup – Rear View
