I28MD-EXLAN11NN Radio Module

N Radio Installation Guide N-radio Module

November 2, 2011 (Product name) FCC ID : I28MD-EXLAN11N is seeking FCC Authorization as a (Please check one). The EUT meets the requirements for Approval (please check one) as detailed in FCC public Notice DA00 Questions are: 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the modu must state that the module is only approved for use when installed in devices When LMA is sought, the application for equipment certification must specifically state how control of the end product into w module will be installed, and will be maintained, such that full compliance of the (2) Host devices which contain separately certified modules do not need to be recertified, provided that they meet the following conditions: (i) The host device, as a stand Standards Specifications. (ii) The host device and all the separately certified modules it contains jointly meet the RF requirements of RSS-102, if applicable. (iii) The host device complies with the certification lab EXLAN11N , Single Modular transmitter / Single Limited Modular Approval The EUT meets the requirements for Single Modular approval / Single Limited Modular e DA00-1407. Compliance to each of the requirements is described below “The modular transmitter must have its own RF shielding.” “The modular transmitter must have buffered modulation/data inputs.” “The modular transmitter must have its own power supply regulation.” “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” “The modular transmitter must be tested in a stand-alone configuration.” “The modular transmitter must be labeled with its own FCC ID number.” “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” “The modular transmitter must comply with any applicable RF exposure requirements.” LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the modu must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into w module will be installed, and will be maintained, such that full compliance of the end product is always ensured. Host devices which contain separately certified modules do not need to be recertified, provided that they meet the following The host device, as a stand-alone unit without any separately certified modules, complies with all applicable Radio The host device and all the separately certified modules it contains jointly meet the RF exposure compliance 102, if applicable. The host device complies with the certification labeling requirements of each of the modules it contains. Single Limited Modular Approval Single Limited Modular 1407. Compliance to each of the requirements is described below: “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the end product is always ensured. Host devices which contain separately certified modules do not need to be recertified, provided that they meet the following ies with all applicable Radio exposure compliance eling requirements of each of the modules it contains. Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Jay Cadiz 333 Corporate Woods Pkwy Vernon Hills, IL 60061 [email protected] 847-793-261…

Text truncated - open the document above for the full version.

November 2, 2011 LMA Declaration Letter We , Zebra Technologies Corp., declared that device, (FCC/IC ID: I28MD-EXLAN11N is assured. In such cases, an operating condition on the LMA for the module must approved for use when installed in devices produced by a specific manufacturer Jay Cadiz 333 Corporate Woods Pkwy Vernon Hills, IL 60061 [email protected] 847-793-2616 LMA Declaration Letter We , Zebra Technologies Corp., declared that will retain control over the final installation of the EXLAN11N, 3798B-EXLAN11N ) such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must approved for use when installed in devices produced by a specific manufacturer. will retain control over the final installation of the such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must be only

Date : Dec 22 2011 DTS-UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : I28MD-EXLAN11N (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412 – 2422 Yes , No Yes , No Yes , No Yes , No 2422 - 2452 Yes , No Yes , No Yes , No Yes , No 5745 – 5825 Yes , No Yes , No Yes , No Yes , No 5755 – 5795 Yes , No Yes , No Yes , No Yes , No 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5190 – 5230 Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5270 – 5310 Yes , No Yes , No Yes , No Yes , No 5500 – 5700 Yes , No Yes , No Yes , No Yes , No 5510 - 5670 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No, end-user cannot select country code If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) The firmware is hard-coded and cannot be changed by the end-user. Charles A. Derrow Director, Compliance Engineering 333 Corporate Woods Pkwy Vernon Hills, Illinois 60061 Tel: 847.793.5719 [email protected]

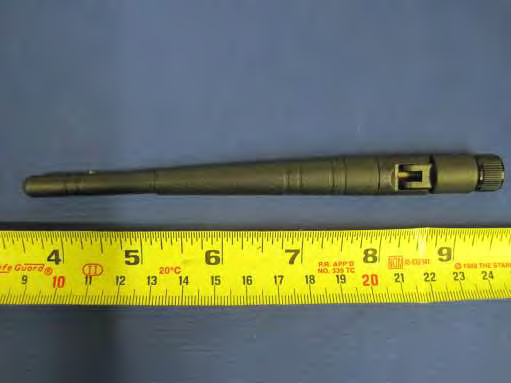

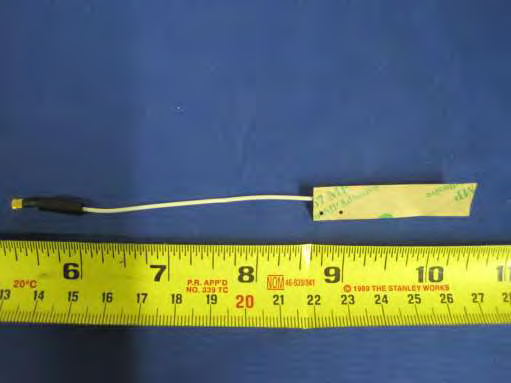

Radio Board Top View Radio Board Bottom View Patch antenna Top View Patch antenna Bottom View Omnidirectional antenna Top View Omnidirectional antenna Bottom View

Label and Label Location Label and Label Location Zebra Technologies Corp. Model: WYSBMVGXB FCC ID: I28MD-EXLAN11N IC: 3798B-EXLAN11N Zebra Technologies Corp. Model: WYSBMVGXB FCC ID: I28MD-EXLAN11N IC: 3798B-EXLAN11N

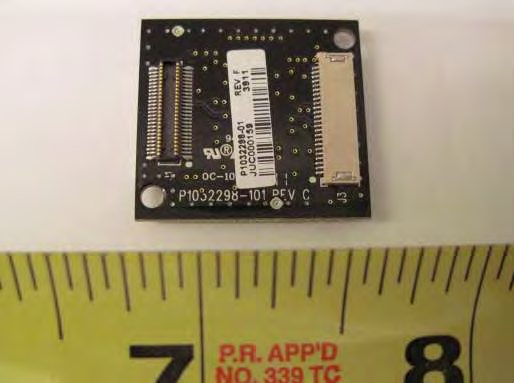

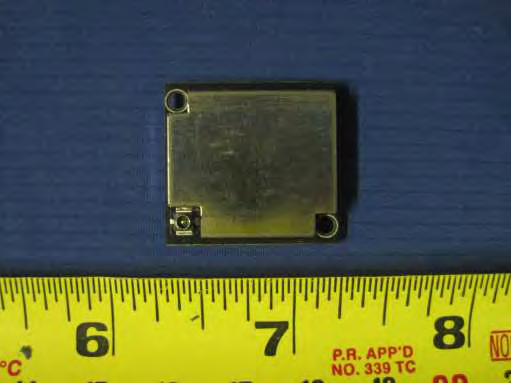

Radio Board Top View Radio Board Bottom View

MPE CALCULATION RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2402-2480 MHz, 2412 - 2462 MHz; 5180 - 5825MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 - 100,000 MHz Power Density Limit: 1 mW / cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Prediction distance 20cm BT (2402-2480MHz): Power = 7.76 dBm, antenna gain = 3.81 dBi, Power density = 0.00286 mW/cm 2 WLAN(2412-2462MHz): Power = 16.37 dBm , antenna gain = 3.81 dBi , Power density = 0.0207 mW/cm 2 WLAN(5180-5825MHz): Power = 16.28 dBm, antenna gain = 5.0 dBi, Power density = 0.0267 mW/cm 2 Maximum MPE is 0.0267 mW/cm 2 , which is less than 1 . The Above Result had shown that Device complied with MPE requirement. Completed By : David Zhang Date : Dec 14, 2011

ZEBRA TECHNOLOGIES CORP N Radio module with 802.11a/b/g/n and BT Model: WYSBMVGXB Jan 11th,2011 Report No.: SL11042701)ZBR)026 (WLAN_15.247) Rev1.0 (This report supersedes SL11042701)ZBR)026 (WLAN_15.247) ) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Zhang Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 2 of 115 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 3 of 115 www.siemic.com This page has been left blank intentionally. Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 4 of 115 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION......................................................................................................................... 6 2 TECHNICAL DETAILS ................................................................................................................................................................. 7 3 MODIFICATION ............................................................................................................................................................................ 8 4 TEST SUMMARY .......................................................................................................................................................................... 9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ............................................................................................... 10 ANNEX A. TEST INSTRUMENT & METHOD ..................................................................................................................................... 38 ANNEX B EUT PHOTOGRAPHS ....................................................................................................................................................... 43 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT .............................................................................................................. 43 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT .............................................................................................................. 43 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM ............................................................................................................. 47 ANNEX E USER MANUAL, BLOCK & CIRCUIT DIAGRAM.............................................................................................................. 48 ANNEX F SIEMIC ACCREDITATION ................................................................................................................................................. 88 Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 5 of 115 www.siemic.com This page has been left blank intentionally. Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 6 of 115 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corp , N Radio module with 802.11a/b/g/n and BT , and Model: WYSBMVGXB against the current Stipulated Standards. The N Radio module with 802.11a/b/g/n and BT have demonstrated compliance with the FCC 15.247:2011 & IC RSS210 Issue 8: 2010. EUT Information EUT Description : N Radio module with 802.11a/b/g/n and BT Model No : WYSBMVGXB Serial No : N/A Input Power : 3.3 VDC Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report N Radio module with 802.11a/b/g/n and BT Model : WYSBMVGXB To FCC 15.247:2011,RSS 210 Issue 8:2010 Serial# SL11042701 ZBR 026 (WLAN_15.247) Rev1.0 Issue Date Jan 11th,2011 Page 7 of 115 www.siemic.…

Text truncated - open the document above for the full version.

Radiated Emission Radiated Emission Test Setup with patch antenna (30MHz – 1GHz) - Front View Radiated Emission Test Setup with patch antenna (30MHz – 1GHz) – Rear View Radiated Emission Test Setup with dipole antenna (30MHz – 1GHz) - Front View Radiated Emission Test Setup with dipole antenna (30MHz – 1GHz) – Rear View Radiated Emission Test Setup with patch antenna (Above 1GHz) - Front View Radiated Emission Test Setup with patch antenna (above 1GHz) – Rear View Radiated Emission Test Setup with dipole antenna (Above 1GHz) - Front View Radiated Emission Test Setup with dipole antenna (above 1GHz) – Rear View Conducted Emission Conducted Emission Test Setup – Front View Conducted Emission Test Setup – Rear View
