I28MD-TRCV-9CMHZModular Low Power Radio Transceiver

916 Wireless 916 MHz Transceiver Part Number: CC15431-1 Features The Comtec Wireless 916 is a 916 Mhz radio designed for OEM applica- tions that operate in the unlicensed FCC band between 902-928 Mhz. The Wireless 916 can be used for commu- nications where physical connection Electrical Input Voltage:Vcc = 5 Volts +,-10% Power Dissipation:50mW (receive mode) 50mW (transmit mode) 5 mW (sleep mode) Current Consumption:10 mA (receive mode) 10 mA (transmit mode) 1 mA (sleep mode) Operating Frequency:916.5 Mhz Transmit Power Output:-5dBm (typical) Receiver Sensitivity:-85 dBm (typical) Out of band interfering signal rejection:60 dB (typical) Baud rate:user selectable, up to 19,200 bps J1 Pin Assignments:Pin #Signal Name 2 Description Pin 1sleep/awake*1 = sleep Pin 2Vcc Pin 3RXDReceive Data Pin 4TX/RX*1 = transmit Pin 5No connect Pin 6TXDTransmit Data Pin 7GND Pin 8GND J2 Pin Assignments:Pin #Signal Name (Optional)Pin 1GND Pin 2GND J3 Pin Assignments:Pin #Signal Name (Optional)Pin 1GND Pin 2GND is not desired. The following objectives can be achieved with the Wireless 916, (i) provides a limited range radio (20-30 feet line of sight), (ii) mini- mizes parts count and associated cost, (iii) acts as a cable replacement when used together with Comtec Wireless printers. When combined with Comtec’s In- telligent Wireless Controller (part number CQ13967), the Wireless 916 can be attached to any RS232C port. To minimize integration headaches, the Wireless 916 has modular FCC approval, which means that no ad- ditional FCC approval is required by the OEM 1 . Actual Size 916 Wireless Block Diagram (Part Number CC13626) SoftwareWhen the Intelligent Wireless Controller (P/N CQ13967) is not used, Comtec can provide C source code for a CS/CDMA collision avoidance communications protocol. This software supports multiple radio pairs operating in proximity to each other, and implements error detection, retries and radio address association. The radio address association algorithm is based on radio or product serial number. RegulatoryApprovals:FCC Modular, ID Number: I28MD-TRCV-9CMHZ Canada T.B.D. PhysicalConnectors: Antenna - SSMT, M/A-COM part number 2367-5002-54 Data - (J1) 8 pin female, Samtec part number SLM-108-01-S-S Ground (J2 & J3)- 2 pin female, Samtec part number SLM-102-01-S-S TX SECTION DATA BUFFERS DATA BUFFERS CONTROL LOGIC TXD RXD SLEEP/ AWAKE* TX/RX* RX SECTION TRANSCIEVER MODULE 0.000 0.0000.000 0.396 0.196 0.275 0.500 0.804 0.725 1.000 0..090 0..2242..223 2..1891.160 2..3572..447 0.000 0.210 0.250 0.062 0.080 J1 J2 J3 1 1 1 8 .125, 2 places Antenna Connector Connectors mate with Samtec MTMS family. Part number is dependent on desired board spacing. Dimensions: ©1996-2000 Comtec Information Systems, Inc. All rights reserved. Specifications for information purposes and are subject to change. All products and brand names are trademarks of their respective companies. Comtec TM is a registered trademark of Comtec Information Systems, Inc. 4/00 Rev. 1.0. 1 Comtec antenna or equivalent is used. 2 All signals operate at CMOS levels.

30 Plan Way, Warwick, Rhode Island 02886 401/739-5800 800/556-7266 Fax: 401/732-0145 Comtec Information Systems, Inc. 4/12/2000 JUSTIFICATION OF MODULAR APPROVAL FCC ID: I28MD-TRCV-9CMHZ is a modular low power radio transceiver designed to operate and FCC Rules Part 15.249. The following steps have been taken to insure that I28MD-TRCV-9CMHZ (referred to below as “the module”) meets the FCC requirements for a modular approval: 1) All electronic components used on the module are on one side of the printed circuit board and are completely covered by metal shielding. There is an internal ground plane in the circuit board itself to complete the shielding. Only the connectors are exposed. 2) The TXDATA input is buffered on the module itself. Input voltage variations on TXDATA will not effect the modulation or the transmitter output power. 3) The module has it’s own on-board 3-volt regulator. All RF circuitry operates from this 3 volts. 4) The antenna connector used on the module has only one manufacturer and is not readily available. We have used the same connector on previous modular approvals and the FCC has considered it a non-standard connector. In addition, the module will only be used in devices with internal antennas of the type specified in the application. These internal antennas are not user serviceable or user replaceable. Therefore the antenna system meets the requirements of Section 15.203. 5) The module was tested in a stand-alone configuration using three different antennas. 6) Each module will be labeled with the FCC ID# and warning message as shown on the AA15431-1 drawing which is included with this application.

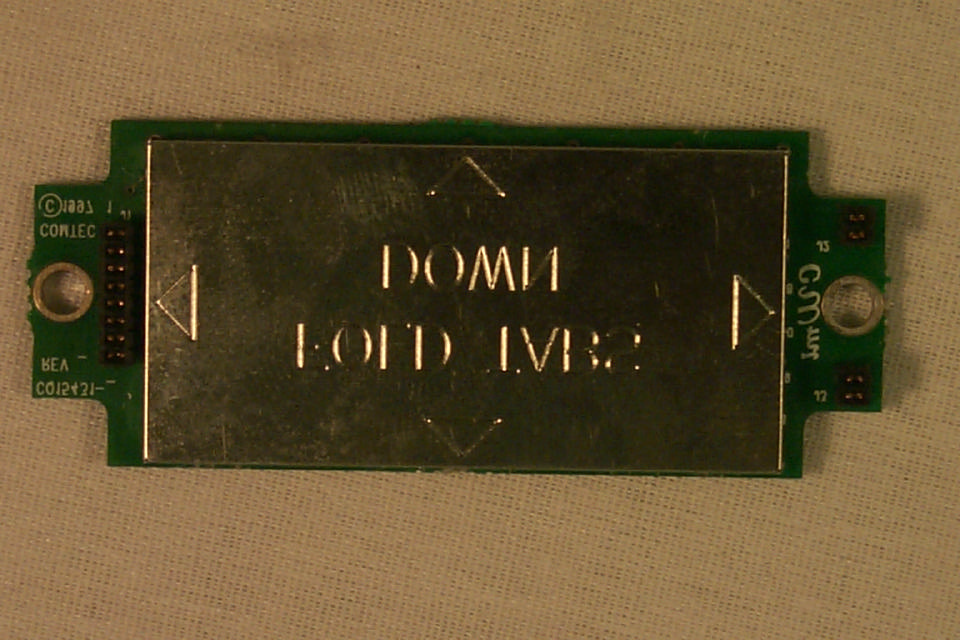

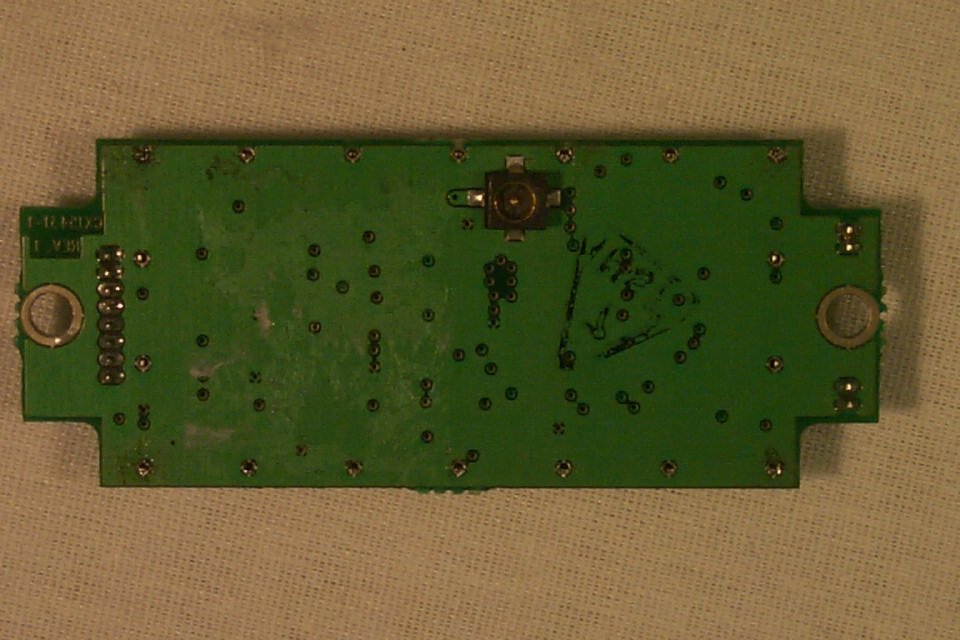

DIPOLE ANTENNA PCB Antenna Monopole Antenna Inside of Monople Antenna 3D of PCB 3D of PCB PCB with shield installed Back of PCB Closeup PCB Close-UP

E D C B A 1 Rev. ECO # 401/739-5800 800/556-7266 Fax: 401/732-0145 Description: 900 MHz F.C.C. ID LABEL Part Number: AA15431-1 Rev. 1 This drawing contains confidential and other data of a proprietary nature owned by Comtec Information Systems, Inc. and may not be used or disclosed to others without the prior written consent of Comtec Information Systems, Inc. Comtec Information Systems, Inc. 30 Plan Way, Warwick, Rhode Island 02886 GF 4/11/00 VENDOR: Identification Products, Inc. TOOL #: 698 MATERIAL: .005" thick polyester w/ polycarbonate overlay, matrix removed ADHESIVE: V156 .0017 Acrylic Artwork per Comtec file A1543111.EPS Background gray per PMS429 or Comtec approved equivalent Text and logo blue per PMS286 or Comtec approved equivalent FILE: A1543111.MAC SCALE: 2x Actual Size FCC ID: I28MD-TRCV-9CMHZ Complies with CAN:XXX-XXX Canada XXXX XXX XXX This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference that may cause undesired operation. .93 1.34 FCC ID: I28MD-TRCV-9CMHZ Complies with CAN:XXX-XXX Canada XXXX XXX XXX This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference that may cause undesired operation. R .12 x 4 DWNAPPVDDATE

SURE THAT THE SHIELD (010) IS TIGHT TO THE BOARD (050). DOWN FOLD TA 2.) APPLY (060) CENTERED ON (010). ORIENT AS SHOWN. FCC ID: INTO THE HOLES IN (050) ORIENT AS SHOWN AND SOLDER AT THE 4 CORNERS. MAKE 1.) PLACE (010) OVER THE COMPONENT SIDE OF (050) SO THAT THE LEGS OF (010) FIT ASSEMBLY INSTRUCTIONS: MIKE D. AUTOCAD A 1 OF 1 2:1 SRRF CC15431-TAB C15431A1.DWG 916 MHZ SRRF ASSEMBLY INCLUDING ALL SHIELDING R.E. GORDON 06-12-97 A 4/13/00 PER ECO 15811 STU FAX(401) 724-0296 REV SHEET (401) 739-5800 TITLE DWG. NO. SCALE PROJ. NO. SIZE FILE: 30 Plan Way, Warwick, Rhode Island 02886 USA Comtec Information Systems, Inc. DATE DRAWN ENG'R. CHECK SIGNATURES ISSUED APPROVED MATERIAL .005 .01 .1 in.in.in. .XXX .XX .X ANGLES •} 1/2 ß OTHERWISE SPECIFIED TOLERANCES UNLESS GIVEN IN INCHES ALL DIMENSIONS ARE USED ON NEXT ASSY APPLICATION PROPRIETARY NOTE AND COMTEC INFORMATION SYSTEMS INC.OTHER PURPOSE EXCEPT AS SPECIFIED BETWEEN THE RECIPIENTINFORMATION SYSTEMS INC. AND SHALL NOT BE USED FOR ANYINFORMATION DISCLOSED HEREIN IS THE PROPERTY OF COMTEC DATE APPD. BY E.C.O. OR CHANGE DESCRIPTION REVISIONS REV. DO NOT SCALE DRAWING 060 1 050 1 010 1

PLACE BAR CODE HERE XXXXXX-XX-XXXX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Protected by U.S. Patents 5,267,800; 5,335,170; 5,570,123; 5,806,993 5,848,848; 5,997,193 & 6,010,257. Comtec name used under licence in Germany Contains FCC ID# I28MD-TRCV-9CMHZ Printing System Made with pride in the USA
