I28MD-ZBR4WAZebra Embedded Bluetooth 2.0 radio

UMAN-MZS-001 rev. A September, 2006 3 MZ Series User Guide continued Table of Contents Proprietary Statements ..............................................................5 Document Conventions ..............................................................7 Introduction to the MZ Series ....................................................8 Unpacking and Inspection ...............................................................8 Reporting Damage ...........................................................................8 MZ Series Introduction ...................................................................9 Getting Ready to Print ..............................................................10 Battery .............................................................................................10 Installing the Battery ..................................................................................10 MZ Series Quad Docking Station ..............................................................13 Battery Safety .............................................................................................14 Charger Safety ............................................................................................14 Charging the Battery ..................................................................................11 Loading the Media (All models) ....................................................15 Operator Controls ..........................................................................17 Verify the Printer Is Working .........................................................19 Printing a Configuration Label ...................................................................19 Connecting the Printer ...................................................................19 Cable Communication ................................................................................20 IR Communications ....................................................................................21 Wireless Communications with Bluetooth™ .............................................22 Bluetooth Networking Overview ...............................................................22 WLAN Overview .............................................................................23 Setting Up the Software .............................................................................23 Radio Regulatory Information ..................................................24 Zebra Bluetooth Radios MZ-ZBR3 .............................................................24 WLAN Module Using 802.11b/g Radio .....................................................25 Wearing the Printer ...................................................................27 Belt Clip .......................................................................................................27 Adjustable Shoulder Strap .........................................................................28 Preventive Maintenance ...........................................................29 Extending Battery Life ...................................................................29 General Cleaning Instructions .......................................................30 Troubleshooting .........................................................................33 Interpreting Indicators ...................................................................33 Troubleshooting Topics .................................................................33 Resetting an MZ Series Printer .....................................................34 Troubleshooting Tests ...................................................................35 Printing a Configuration Label ...................................................................35 Communications Diagnostics ....................................................................35 Calling Technical Support ..........................................................................36 Specifications .............................................................................40 Printing Specifications ..............................................................................40 Memory and Communications Specifications, MZ series .......................40 Media Specifications ..................................................................................40 Font and Bar Code Specifications for MZ Series ......................................41 USB Communications Port ........................................................................42 Physical, Environmental and Electrical Specifications .............................42 MZ Series Accessories ..............................................................................44 4 MZ Series User Guide Appendix A .................................................................................45 USB Interface Cables .................................................................................45 Cable ..........................................................................................................45 More Interface Cables ...............................................................................45 Appendix B Media Supplies ..........................................................46 Appendix C Maintenance Supplies .................................................46 Appendix D .................................................................................47 Battery Disposal .........................................................................................47 Product Disposal ........................................................................................47 Appendix E .................................................................................48 Product Support .........................................................................................48 Product Support Contacts .........................................................................49 Appendix F Usin…

Text truncated - open the document above for the full version.

Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) -1.34 dB 0.00 deg-12.98 dB174.00 deg89.36 deg-5.96 dB 2405(MHz)-1.62 dB3.00 deg-13.08 dB174.00 deg92.78 deg-6.04 dB 2410(MHz)-1.87 dB9.00 deg-12.85 dB174.00 deg94.11 deg-6.20 dB 2415(MHz)-1.91 dB9.00 deg-12.92 dB177.00 deg93.29 deg-6.29 dB 2420(MHz)-1.97 dB9.00 deg-13.21 dB174.00 deg92.44 deg-6.38 dB 2425(MHz)-2.17 dB-3.00 deg-13.89 dB177.00 deg93.39 deg-6.57 dB 2430(MHz)-2.31 dB0.00 deg-14.61 dB174.00 deg92.58 deg-6.84 dB 2435(MHz)-2.37 dB0.00 deg-15.49 dB174.00 deg91.25 deg-6.99 dB 2440(MHz)-2.59 dB0.00 deg-16.34 dB177.00 deg90.77 deg-7.16 dB 2445(MHz)-2.78 dB-3.00 deg-15.94 dB174.00 deg91.38 deg-7.40 dB 2450(MHz)-3.09 dB-3.00 deg-16.48 dB174.00 deg93.12 deg-7.61 dB 2455(MHz)-3.31 dB0.00 deg-17.57 dB174.00 deg94.44 deg-7.77 dB 2460(MHz)-3.55 dB12.00 deg-17.13 dB174.00 deg93.58 deg-8.03 dB 2465(MHz)-3.84 dB12.00 deg-17.01 dB177.00 deg94.14 deg-8.39 dB 2470(MHz)-3.96 dB12.00 deg-17.51 dB174.00 deg94.31 deg-8.55 dB 2475(MHz)-3.97 dB12.00 deg-18.03 dB177.00 deg91.60 deg-8.65 dB 2480(MHz)-4.30 dB6.00 deg-18.84 dB177.00 deg94.75 deg-8.88 dB 2484(MHz)-4.47 dB9.00 deg-20.89 dB177.00 deg94.91 deg-9.10 dB 2485(MHz)-4.53 dB6.00 deg-20.20 dB174.00 deg94.36 deg-9.16 dB 2490(MHz)-4.71 dB15.00 deg-21.57 dB174.00 deg91.77 deg-9.46 dB 2495(MHz)-5.02 dB3.00 deg-21.75 dB174.00 deg93.42 deg-9.68 dB 2500(MHz)-5.49 dB9.00 deg -22.21 dB 174.00 deg94.95 deg-10.06 dB MZ Series BT and 802.11G antenna (CQ18050) - X-Z Plane Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) 2.64 dB 63.00 deg-20.55 dB-123.00 deg105.38 deg-3.43 dB 2405(MHz)2.49 dB66.00 deg-22.79 dB-123.00 deg106.66 deg-3.61 dB 2410(MHz)2.38 dB66.00 deg-21.74 dB-123.00 deg105.94 deg-3.72 dB 2415(MHz)2.43 dB66.00 deg-21.77 dB-123.00 deg105.67 deg-3.78 dB 2420(MHz)2.31 dB66.00 deg-22.46 dB-123.00 deg107.65 deg-3.95 dB 2425(MHz)2.11 dB66.00 deg-21.55 dB-123.00 deg109.54 deg-4.11 dB 2430(MHz)1.94 dB66.00 deg-20.96 dB-123.00 deg108.42 deg-4.30 dB 2435(MHz)1.87 dB69.00 deg-21.78 dB-123.00 deg109.09 deg-4.45 dB 2440(MHz)1.58 dB66.00 deg-23.22 dB-123.00 deg111.23 deg-4.75 dB 2445(MHz)1.27 dB69.00 deg-22.13 dB-123.00 deg111.03 deg-4.96 dB 2450(MHz)1.15 dB69.00 deg-21.47 dB-126.00 deg110.70 deg-5.07 dB 2455(MHz)1.00 dB69.00 deg-23.09 dB-123.00 deg111.99 deg-5.29 dB 2460(MHz)0.75 dB69.00 deg-22.72 dB-123.00 deg111.06 deg-5.61 dB 2465(MHz)0.38 dB69.00 deg-21.18 dB-126.00 deg110.93 deg-5.88 dB 2470(MHz)0.18 dB69.00 deg-21.57 dB-126.00 deg112.08 deg-6.06 dB 2475(MHz)-0.06 dB69.00 deg-22.91 dB-126.00 deg112.99 deg-6.34 dB 2480(MHz)-0.33 dB69.00 deg-22.20 dB-126.00 deg113.67 deg-6.58 dB 2484(MHz)-0.42 dB69.00 deg-22.34 dB-129.00 deg113.48 deg-6.70 dB 2485(MHz)-0.53 dB69.00 deg-22.49 dB-129.00 deg112.70 deg-6.78 dB 2490(MHz)-0.81 dB69.00 deg-24.00 dB-129.00 deg114.54 deg-7.12 dB 2495(MHz)-1.15 dB69.00 deg -24.34 dB -129.00 deg116.06 deg-7.48 dB 2500(MHz)-1.64 dB69.00 deg-23.59 dB-132.00 deg117.53 deg-7.83 dB MZ Series BT and 802.11G antenna (CQ18050) - Y-Z Plane Frequency (MHz)Max Gain (dBi)Position Min Gain (dBi)PositionBeamWidth Average Gain (dBi) 2400(MHz) 2.13 dB 81.00 deg-15.26 dB285.00 deg77.46 deg-5.04 dB 2405(MHz)2.02 dB81.00 deg-15.07 dB285.00 deg77.85 deg-5.16 dB 2410(MHz)1.91 dB81.00 deg-14.53 dB285.00 deg77.46 deg-5.31 dB 2415(MHz)1.91 dB81.00 deg-15.02 dB285.00 deg78.12 deg-5.32 dB 2420(MHz)1.84 dB81.00 deg-15.54 dB285.00 deg78.71 deg-5.37 dB 2425(MHz)1.68 dB81.00 deg-14.85 dB282.00 deg78.12 deg-5.58 dB 2430(MHz)1.45 dB81.00 deg-14.34 dB285.00 deg78.52 deg-5.78 dB 2435(MHz)1.41 dB84.00 deg-15.13 dB288.00 deg79.44 deg-5.82 dB 2440(MHz)1.22 dB81.00 deg-15.74 dB285.00 deg79.91 deg-6.03 dB 2445(MHz)0.91 dB81.00 deg-14.80 dB216.00 deg80.26 deg-6.27 dB 2450(MHz)0.86 dB84.00 deg-14.42 dB291.00 deg80.26 deg-6.29 dB 2455(MHz)0.74 dB84.00 deg-15.58 dB291.00 deg81.91 deg-6.39 dB 2460(MHz)0.42 dB81.00 deg-15.94 dB219.00 deg82.68 deg-6.70 dB 2465(MHz)0.10 dB81.00 deg-16.19 dB216.00 deg82.35 deg-7.02 dB 2470(MHz)0.01 dB81.00 deg-16.22 dB297.00 deg83.42 deg-7.06 dB 2475(MHz)-0.25 dB81.00 deg-16.81 dB294.00 deg85.25 deg-7.27 dB 2480(MHz)-0.48 dB81.00 deg-17.16 dB222.00 deg84.44 deg-7.51 dB 2484(MHz)-0.59 dB78.00 deg-16.17 dB300.00 deg86.06 deg-7.53 dB 2485(MHz)-0.71 dB78.00 deg-16.59 dB222.00 deg86.28 deg-7.67 dB 2490(MHz)-0.97 dB78.00 deg-16.80 dB300.00 deg86.88 deg-7.92 dB 2495(MHz)-1.32 dB78.00 deg-17.83 dB228.00 deg88.16 deg-8.25 dB 2500(MHz)-1.74 dB78.00 deg -19.04 dB 225.00 deg87.39 deg-8.71 dB MZ Series BT and 802.11G antenna (CQ18050) - X-Y Plane

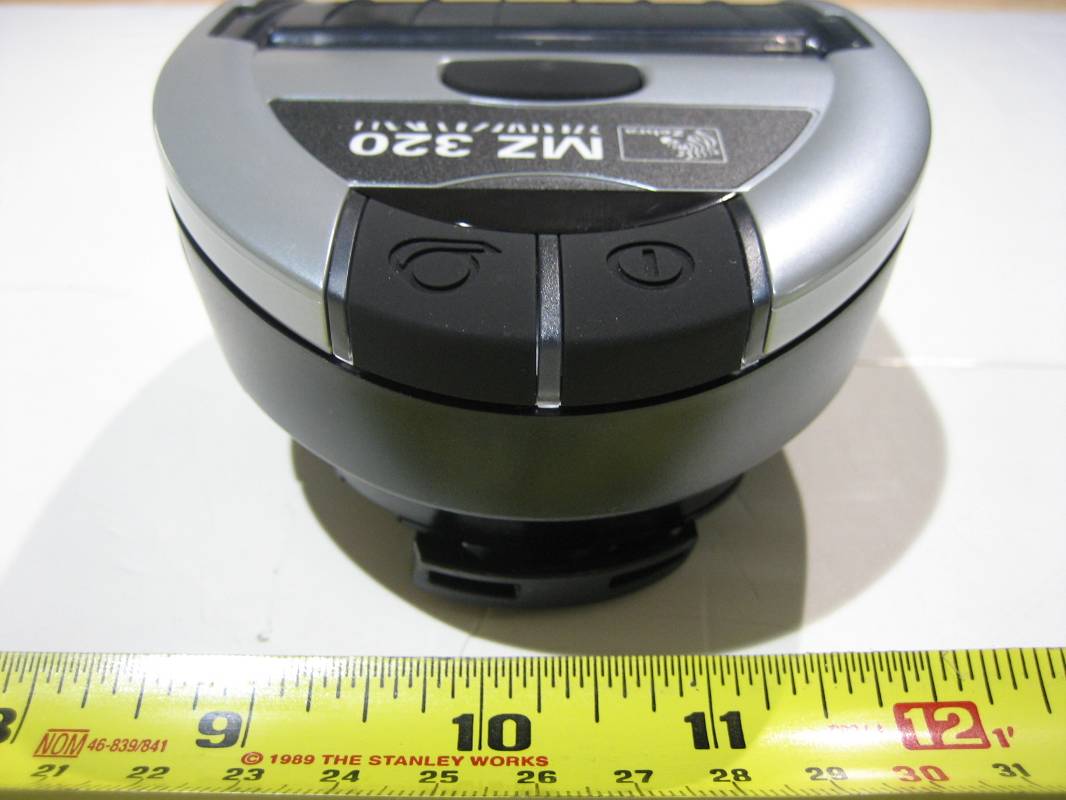

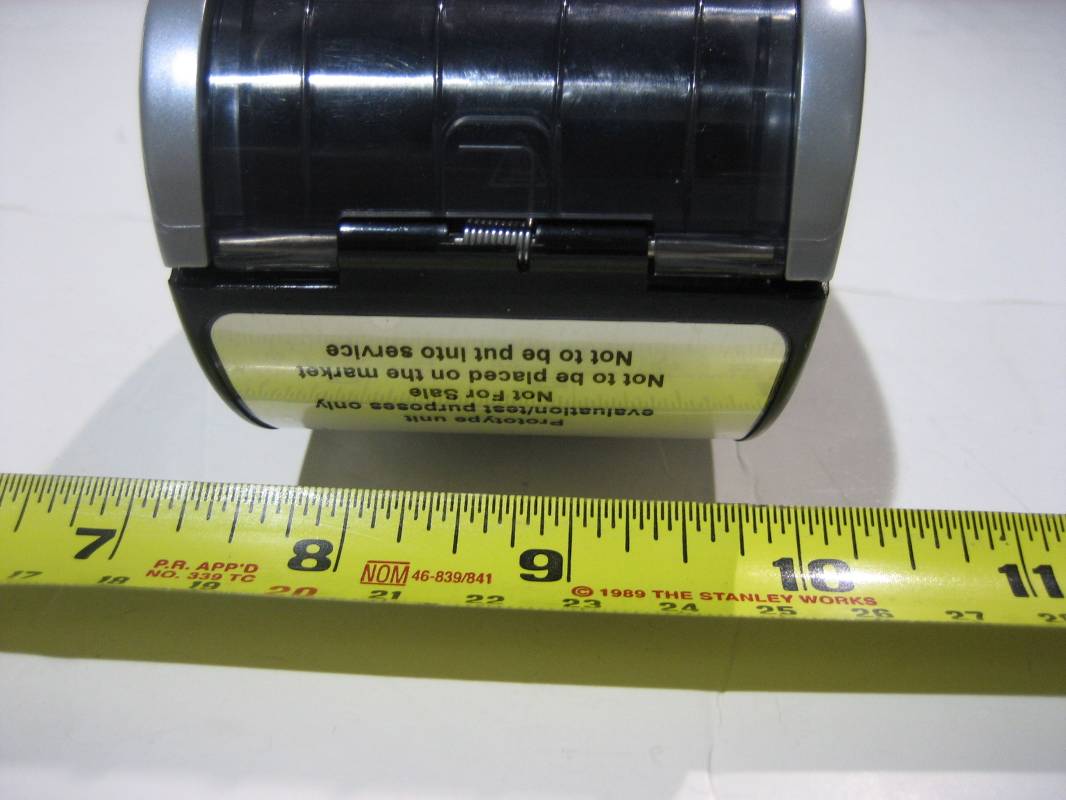

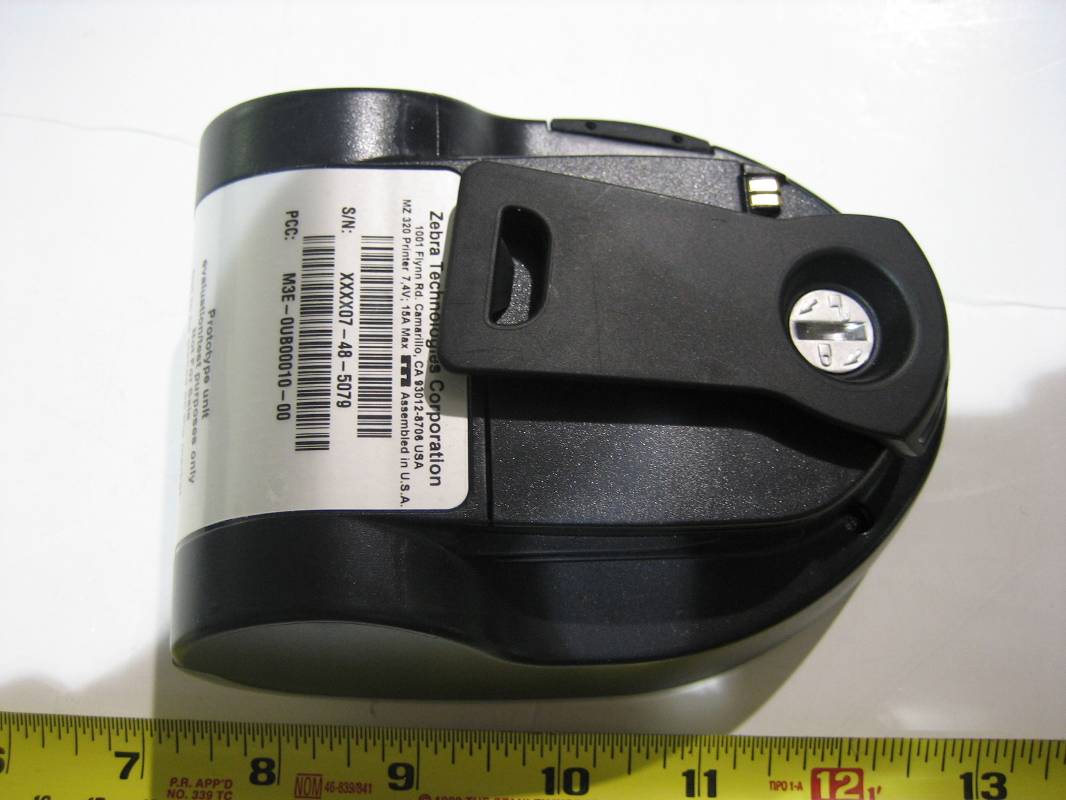

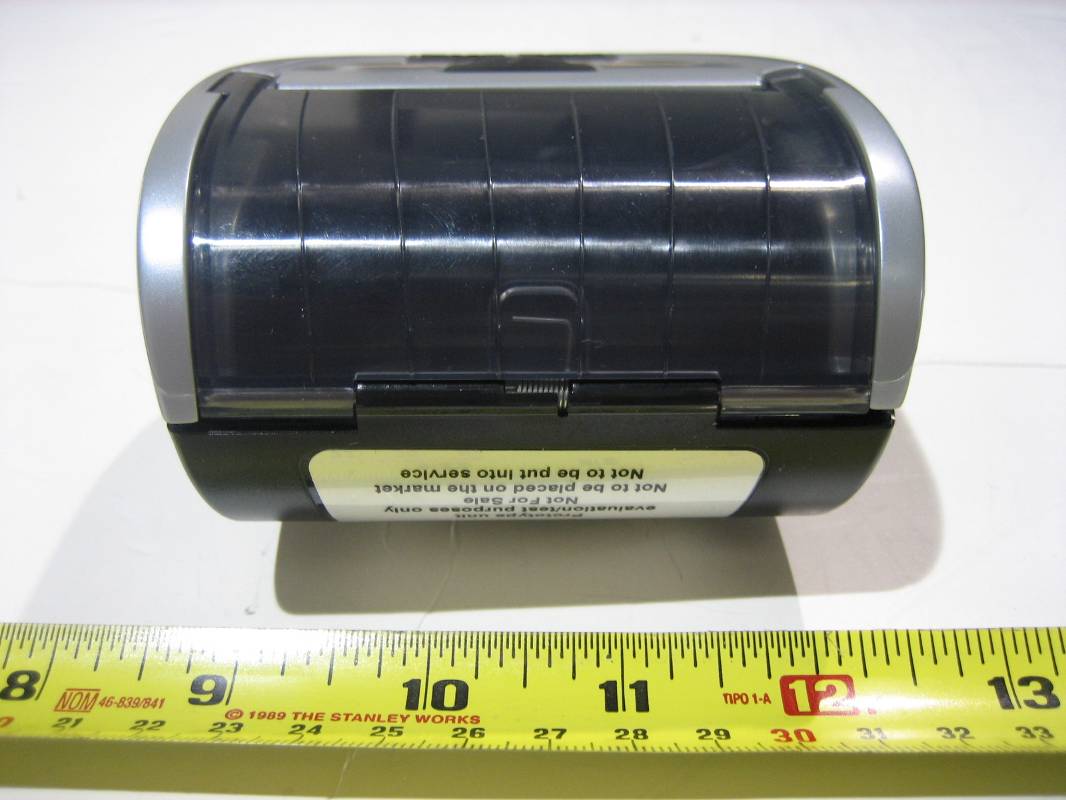

HOST EUT- MZ320 Top Side Bottom Side Right Side Left Side Front View Rear View HOST EUT- MZ220 Top Side Bottom Side Right Side Left Side Front View Rear View

Zebra Technologies Corp. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: I28MD-ZBR4WA IC: 3798B-ZBR4WA Model: ZBR4WA, Brand name: Zebra

Zebra Technologies Corp. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: I28MD-ZBR4WA IC: 3798B-ZBR4WA Model: ZBR4WA, Brand name: Zebra

EUT Photo Component View Solder View Zebra Technologies Corp. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: I28MD-ZBR4WA IC: 3798B-ZBR4WA Model: ZBR4WA, Brand name: Zebra Host Main Board Top Vie w Bottom View Antenna Top View Bottom View Host EUT Cover Off

According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Low Frequency (MHz) Low Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 2441 24.58 Maximum measured transmitter power: Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 0.79 2.64 1.46 Threshold at which no SAR required is 24.58 mw. Maximum Tx power is 1.46 mw EIRP. Conclusion: No SAR is required.

ZEBRA TECHNOLOGIES CORP BLUETOOTH RADIO MODULE Model: ZBR4WA 10 January 2008 Report No.: SL07111303-ZBR-059 (15.247)( ZBR4WA) (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Choon Sian Ooi Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 2 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: NVLAP Lab Code: 200729-0 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 3 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: FCC Registration No. 783147 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 4 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Industry of Canada Registration No. 4842-1 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 5 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan VCCI Registration No. 2195 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 6 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Japan RF Technologies Accreditation No. MRF050927 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 7 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea MIC Lab Code: KR0032 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 8 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Korea CAB ID: US0160 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 9 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan BSMI Accreditation No. SL2-IN-E-1130R Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 10 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Taiwan NCC CAB ID: US0160 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 11 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Mexico NOM Recognition Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 12 of 63 www.siemic.com SIEMIC ACREDITATION DETAILS: Hong Kong OFTA Recognition No. D23/16V Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 13 of 63 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 14 of 63 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION..........................................................................................................16 2 TECHNICAL DETAILS................................................................................................................................................17 3 MODIFICATION.........................................................................................................................................................18 4 TEST SUMMARY.......................................................................................................................................................19 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS......................................................................................20 ANNEX A. TEST INSTRUMENT & METHOD........................................................................................................................55 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................59 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT....................................................................................................59 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM...................................................................................................63 Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 15 of 63 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technology Corp, model : ZBR4WA To FCC 15.247 2007 Serial# SL07111303-ZBR-059(15.247)(ZBR4WA) Issue Date 10 January 2008 Page 16 of 63 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Zebra Technologies Corp, Bluetooth radio Module, model : ZBR4WA against the current Stipulated Standards. The Bluetooth radio Module have demonstrated compliance with the FCC 15.247 2007. EUT Information EUT Description : Zebra Technologies will only use the ZBR4WA radio within Zebra products, primarily portable printers. Both the radio and the antenna will be mounted inside the product and will not be user accessible. Nothing that Zebra does in the external circuitry surrounding the ZBR4WA module will have any affect on either the transmitter or recei…

Text truncated - open the document above for the full version.

Radiated Emission 30MHz to 1GHz Host EUT MZ320 Front View Rear View 30MHz to 1GHz Host EUT MZ220 Front View Rear View Above 1GHz Host EUT MZ320 Front View Rear View Above 1GHz Host EUT MZ220 Front View Rear View Conducted Emission
