I28MD-ZBR5MZZebra BT radio

1. Install the MLB in printer housing. Tighten the screw highlighted in red (see figure 1). Figure 1 2. On the print head/radio module chassis, install coaxial cable as shown in figure 2 and move it away from the motor as shown in figure 3. Figure 2 Figure 3 3. Pull the coaxial cable from the bottom of chassis so that the open end of the cable comes out from bottom side of radio module. See figures 4 and 5 for details. Figure 4 Figure 5 4. Install the print head flex cable into the connector as shown in figure 6. Note that the flex cable has to be pushed into the chassis. Figure 6 5. Install the motor cable and sensor cable as shown in figures 7 and 8 respectively. Figure 7 Figure 8 6. Install the antenna PCBA on the top cover through plastic guides highlighted in figure 9. The antenna(s) used for this transmitter must be installed must not be co‐located or operating in conjunction with any other antenna or transmitter Figure 9 Figure 10 7. Connect the open end of coaxial cable to the antenna PCBA as shown in figure 11. Figure 11 8. Apply Kapton tape on coaxial cable to ensure that the cable is oriented perpendicular w.r.t. antenna PCBA. Figure 12 9. Install the button and close the top cover as shown in figure 13. Figure 13 10. Install screws at locations highlighted in figures 14, 15 and 16. Install battery and tighten the lock. Figure 14 Figure 15 Figure 16

333 Corporate Woods Parkway Vernon Hills, IL 60061-3109 USA T: +1 847 634 6700 F: +1 847 914 8766 www.zebra.com Sep 15, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Zebra Technologies Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Limited Modular Approval of FCC ID I28MD-ZBR5MZ Host printer models: MZ 220 and MZ 320 We affirm that between SIEMIC and Zebra Technologies Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Charles A Derrow, Director Compliance Engineering Zebra Technologies Corp. 333 Corporate Woods Pkwy Vernon Hills, IL 60061 847-793-5719 [email protected]

333 Corporate Woods Parkway Vernon Hills, IL 60061-3109 USA T: +1 847 634 6700 F: +1 847 914 8766 www.zebra.com Sep 15, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: I28MD-ZBR5MZ We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagrams - Technical descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Charles A. Derrow Director, Compliance Engineering 333 Corporate Woods Pkwy Vernon Hills, Illinois 60061 Tel: 847.793.5719 [email protected]

SCS-F26 Modular Approval Letter Page 2 of 4 Rev 4.0 333 Corporate Woods Parkway Vernon Hills, IL 60061-3109 USA T: +1 847 634 6700 F: +1 847 914 8766 www.zebra.com Sep 15, 2011 EYSMACAXX FCC ID : I28MD-ZBR5MZ , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Host devices which contain separately certified modules do not need to be recertified, provided that they meet the following conditions: (i) The host device, as a stand-alone unit without any separately certified modules, complies with all applicable Radio Standards Specifications. (ii) The host device and all the separately certified modules it contains jointly meet the RF exposure compliance requirements of RSS-102, if applicable. (iii) The host device complies with the certification labeling requirements of each of the modules it contains. Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Chuck A. Derrow Director, Corporate Compliance Zebra Technologies Corporation 333 Corporate Woods Parkway Vernon Hills, IL 60061 SCS-F26 Modular Approval Letter Page 4 of 4 Rev 4.0 333 Corporate Woods Parkway Vernon Hills, IL 60061-3109 USA T: +1 847 634 6700 F: +1 847 914 8766 www.zebra.com LMA Declaration Letter We , Zebra Technologies Corporation declared that will retain control over the final installation of the device, (FCC/IC ID: I28MD-ZBR5MZ / 3798B-ZBR5MZ ) such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must be only approved for use when installed in devices produced by a specific manufacturer. Chuck A. Derrow Director, Corporate Compliance Zebra Technologies Corporation 333 Corporate Woods Parkway Vernon Hills, IL 60061

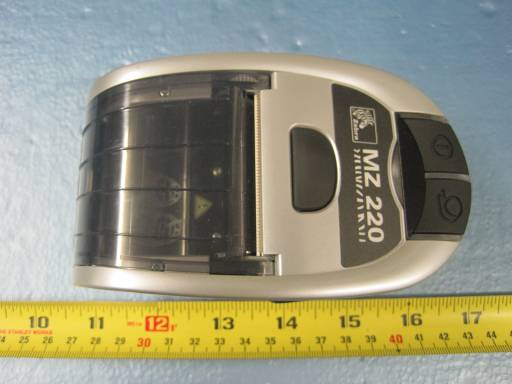

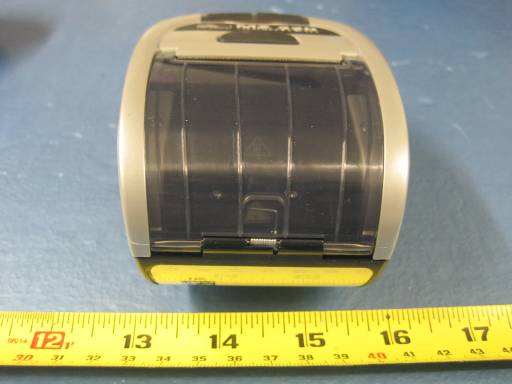

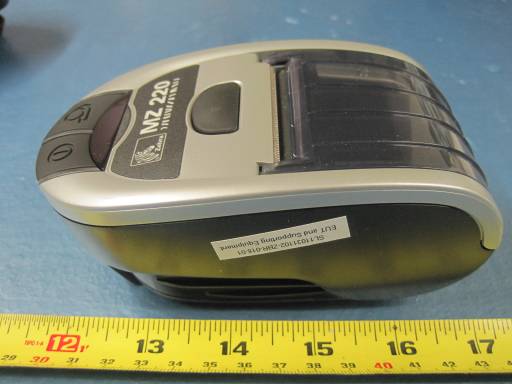

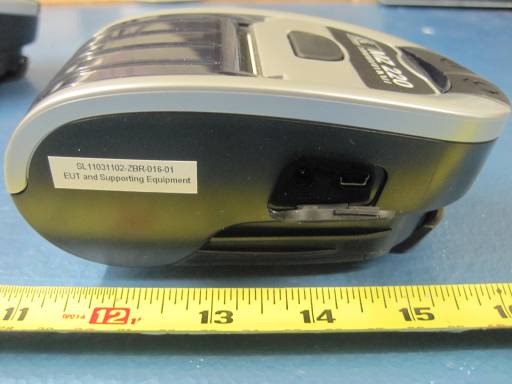

Host (MZ 220) - Front View Host (MZ 220) - Rear View Host (MZ 220) - Right View Host (MZ 220) - Left View Host (MZ 220) - Top View Host (MZ 220) - Bottom View

Host (MZ 320) - Front View Host (MZ 320) - Rear View Host (MZ 320) - Right View Host (MZ 320) - Left View Host (MZ 320) - Top View Host (MZ 320) - Bottom View

Zebra Technologies Corp. Model: ZBR5MZ FCC ID: I28MD-ZBR5MZ IC ID: 3798B-ZBR5MZ

Radio Board Top View Radio Board Bottom View Zebra Technologies Corp. Model: ZBR5MZ FCC ID: I28MD-ZBR5MZ IC ID: 3798B-ZBR5MZ Radio Board shielding off View Antenna View

According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Bluetooth Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mW) 2402 2480 2441 25 Maximum measured transmitter power: Basic Rate mode Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 0.6310 2.64 1.1588 Maximum measured transmitter power: EDR test mode Conducted Power (mW) Max Antenna Gain (dBi) EIRP (mW) 0.8913 2.64 1.6368 Threshold at which no SAR required is 25 mW. Maximum Tx power is 1.6368mW EIRP. Conclusion: No SAR is required. No Simultaneous transmission occurs.

ZEBRA TECHNOLOGIES CORP BLUETOOTH RADIO MODULE Model: ZBR5MZ with host printer MZ220 May 25th 2011 Report No.: SL11031102-ZBR-016(MZ220_BT) (This report supersedes NONE) This Test Report is Issued Under the Authority of: David Zhang Compliance Engineer Leslie Bai Director of Certification Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 2 of 85 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom , SAR Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom , SAR Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety , SAR Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety, SAR Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 3 of 85 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 4 of 85 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................6 2 TECHNICAL DETAILS.....................................................................................................................................................7 3 MODIFICATION...............................................................................................................................................................8 4 TEST SUMMARY.............................................................................................................................................................9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................10 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................49 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS..............................................................................................................53 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT......................................................................................................53 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM.....................................................................................................57 ANNEX E SIEMIC ACCREDITATION......................................................................................................................................58 Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 5 of 85 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 6 of 85 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Zebra Technologies Corp Radio Module, Model: ZBR5MZ with host printer MZ220 against the current Stipulated Standards. The complete system MZ220 has demonstrated compliance with the FCC 15.247:2010 & RSS-210 Issue 8 : 2010. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : Bluetooth module (Model: ZBR5MZ) with host printer MZ220 Model No : ZBR5MZ with host printer MZ220 Serial No : MZ 220 (XXXXJ111400079) HW version : N/A Input Power : 12VDC, 1.25A Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ220 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ220_BT) Issue Date May 25th 2011 Page 7 of 85 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of ZBR5MZ with host printer MZ220 with stipulated standard Applicant / Client Zebra Technologies Corp Manufacturer Zebra Technologies Corp 333 Corporate Woods Pkwy Vernon Hills, IL 60061-3109 USA Laboratory performing the tests SIEMIC Laboratories Test report reference number SL11031102-ZBR-016(M…

Text truncated - open the document above for the full version.

ZEBRA TECHNOLOGIES CORP BLUETOOTH RADIO MODULE Model: ZBR5MZ with host printer MZ320 May 25th 2011 Report No.: SL11031102-ZBR-016(MZ320_BT) (This report supersedes NONE) This Test Report is Issued Under the Authority of: David Zhang Compliance Engineer Leslie Bai Director of Certification Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 2 of 85 www.siemic.com REDIT SIEMIC SIEM Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom , SAR Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom , SAR Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety , SAR Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety, SAR Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 3 of 85 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 4 of 85 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................6 2 TECHNICAL DETAILS.....................................................................................................................................................7 3 MODIFICATION...............................................................................................................................................................8 4 TEST SUMMARY.............................................................................................................................................................9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.......................................................................................10 ANNEX A. TEST INSTRUMENT & METHOD...........................................................................................................................49 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS..............................................................................................................53 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT......................................................................................................53 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM.....................................................................................................57 ANNEX E SIEMIC ACCREDITATION......................................................................................................................................58 Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 5 of 85 www.siemic.com This page has been left blank intentionally. Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 6 of 85 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the Zebra Technologies Corp Radio Module, Model: ZBR5MZ with host printer MZ320 against the current Stipulated Standards. The complete system MZ320 has demonstrated compliance with the FCC 15.247:2010 & RSS-210 Issue 8 : 2010. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description : Bluetooth module (Model: ZBR5) with host printer MZ320 Model No : ZBR5MZ with host printer MZ320 Serial No : MZ 320 (XXXXJ111400507) HW version : N/A Input Power : 12VDC, 1.25A Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report of Zebra Technologies Corp Model : ZBR5MZ with host printer MZ320 To FCC 15.247:2010 & RSS-210 Issue 8 : 2010 Serial# SL11031102-ZBR-016(MZ320_BT) Issue Date May 25th 2011 Page 7 of 85 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of ZBR5MZ with host printer MZ320 with stipulated standard Applicant / Client Zebra Technologies Corp Manufacturer Zebra Technologies Corp 333 Corporate Woods Pkwy Vernon Hills, IL 60061-3109 USA Laboratory performing the tests SIEMIC Laboratories Test report reference number SL1…

Text truncated - open the document above for the full version.

Radiated Emission Radiated Emission Test Setup (below 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Radiated Emission Test Setup (above 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Conducted Emission Conducted Emission Test Setup – Front View Conducted Emission Test Setup – Rear View

Radiated Emission Radiated Emission Test Setup (below 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Radiated Emission Test Setup (above 1GHz) - Front View Radiated Emission Test Setup (above 1GHz) – Rear View Conducted Emission Conducted Emission Test Setup – Front View Conducted Emission Test Setup – Rear View
