I2OMCPS2135MultiCarrier Amplifier System

SPECTRIAN MCPS2135 SERIES MCPA MultiCarrier Amplifier Systems INSTALLATION & OPERATION MANUAL July 2001 IntroductionPlanning and PreparationIntroduction ii MCPS2135 Operations Manual 2001 Spectrian Corporation. All rights reserved. 2001 Spectrian Corporation. This document contains proprietary information of Spectrian Corporation . No part of this manual may be copied or disclosed without written authorization of Spectrian Corporation. All rights reserved. IntroductionPlanning and PreparationIntroduction MCPS2135 System Operation iii 2001 Spectrian Corporation. All rights reserved. TABLE OF CONTENTS 1 Introduction.................................................................................................................................................11 1.1 About this Manual...............................................................................................................................11 1.2 Safety Information..............................................................................................................................22 1.3 Introduction to the MCPS2135 Family...........................................................................................22 1.3.1 MCPA Module Functional Description.................................................................................44 1.3.2 MCPS2135 Amplifier System.................................................................................................55 2 Planning and Preparation............................................................................................................................77 2.1 Installation Planning...........................................................................................................................77 2.2 Site Planning Guide............................................................................................................................77 2.2.1 Site Considerations....................................................................................................................77 2.2.2 Rack Installation Considerations.............................................................................................88 2.2.3 Cable Connections.....................................................................................................................99 2.3 Determine the required RF input power......................................................................................1010 2.3.1 Set RF input drive power for each channel........................................................................1111 2.4 Prepare for Installation...................................................................................................................1212 2.4.1 Inventory Received Equipment...........................................................................................1212 2.4.2 Unpack Received Equipment...............................................................................................1212 2.4.3 Repackaging for Return Shipment......................................................................................1413 3 MCPS2135 Installation...........................................................................................................................1514 3.1 Introduction......................................................................................................................................1514 3.2 Task safety equipment, tools and materials................................................................................1514 3.3 Rack Installation..............................................................................................................................1615 3.3.1 Install Shelf Subassembly.....................................................................................................1615 3.3.2 Install Modules in Shelf........................................................................................................1716 3.4 Cable and Wire Connections.........................................................................................................1716 3.4.1 Connect Chassis Ground Wire.............................................................................................1716 3.4.2 Connect DC Input Power Cables.........................................................................................1716 3.4.3 Connect RF Output and Input Cables.................................................................................1817 3.4.4 Connect Alarm Interface Cables..........................................................................................1918 3.5 Finish Installation............................................................................................................................1918 3.5.1 Set the MCPS2135 unit address..........................................................................................1918 3.5.2 Verify Installation..................................................................................................................1918 4 System Start-Up.......................................................................................................................................2119 4.1 Introduction......................................................................................................................................2119 4.2 Safety Information and Tools........................................................................................................2119 4.3 Verify system installation..............................................................................................................2119 IntroductionPlanning and PreparationIntroduction iv MCPS2135 Operations Manual 2001 Spectrian Corporation. All rights reserved. 4.4 Power Up the MCPS2135..............................................................................................................2220 5 MCPS2135 System Monitoring........................…

Text truncated - open the document above for the full version.

FCC LaboratoryAugust 6 2001 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant:Spectrian FCC ID:I2OMCPS2135 To whom it may concern, Request is hereby submitted, Spectrian is requesting the Commissions to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Function of Active Circuit Components Rationale for request for confidentiality: Spectrian has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely,Gary Glaze / Engineer, Spectrian

350 West Java Drive, Sunnyvale, CA 94089 Tel: 408-745-5400, Fax: 408-541-0263 July 23, 2001 C.B. Cowden Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037-9001 RE: MCPS2135, Power Amplifier system Dear Chuck, The following modifications were made to our MCPS2135 power amplifier. These modifications were required to meet the radiated emissions requirements of FCC part 22. 1. Aluminum tape was used to close the second slot opening in the PA module front panel. 2. RF absorber material was added to the backplane assembly (A4E) inside the MCPA modules. 3. Aluminum tape was wrapped around the cover of the A4 BPM Modules to improve their RF shielding. The aluminum tape used for changes 1 and 3 is 3M Tape 1170, 3/8” wide The RF absorber added to A4E assembly is: BSR-I/SS-6M Details of the changes are in the attached rework instruction. Sincerely, Charles S. Robertson, III Exec. Director of Engineering Spectrian, Inc. Page 2 of 2 Zeus Brick Rework Instructions With each BPM removed from the assembly, apply aluminum tape around the edges of the cover on all four sides as shown below. 3/8” tape may be used on the front and sides, and 3/4” tape should be used along the back of the BPM. Be careful not to cover too much of the heatsink fin area. On the back edge of the cover, do not let the tape extend past the back edge of the top of the heatsink. The surface that mates with the backplane should be CLEAN and COMPLETELY FREE OF TAPE. Tape edges as shown No tape on this surface Page 3 of 3

TCB RF Exposure Review Procedure Statement FCC ID:I2OMCPS2135 Transmitter Category Device Type Product Category Approval and Review Procedures Used Specific Procedures: I Amplifier Fixed Transmitters identified in Table 1 of §1.1307 Section A SP(9) Grant Condition: Emissions listed correspond to AMPS, TDMA, CDMA, CDPD, GSM and EDGE operations. Output power listed above is for single MCPA module. The max. output power for fourMCPA modules is 500W. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by theresponsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). SP9 Grant conditions have been reviewed by TCB and has made the determination that device complied with RF Exposure review procedures. Reviewed by Mike KuoCompliance Certification ServicesAugust 7, 2001

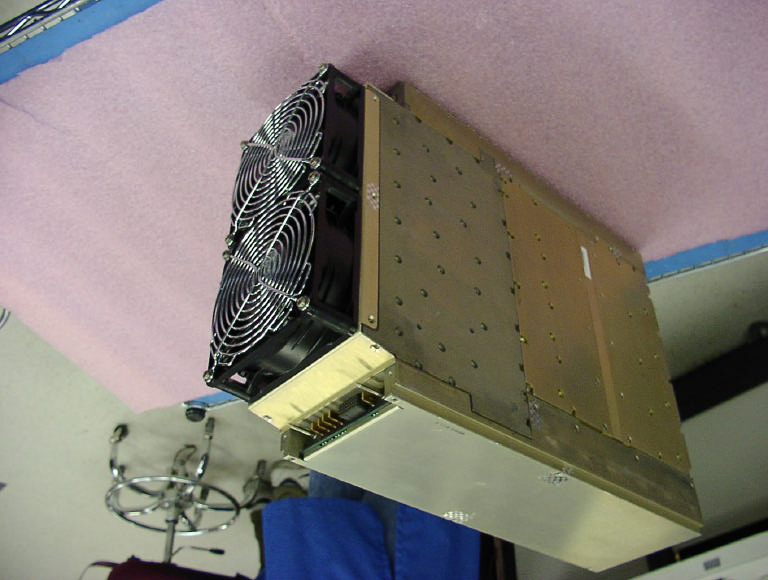

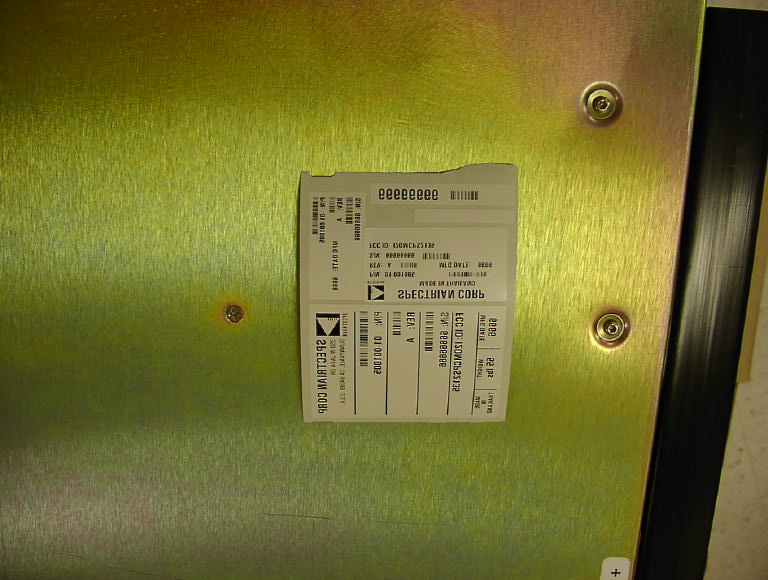

PROPOSED FCC ID LABEL AND LOCATION SPECTRIAN This device complies with Part 22 of the FCC Rules. FCC ID: I2OMSPS2135 FCC ID LABEL

Appendix A4: MCPS2135 System CheckoutPlanning and PreparationIntroduction 38 MCPS2135 Operations Manual 2001 Spectrian Corporation. All rights reserved. Appendix A4: MCPS2135 System Checkout MCPS System Checkout In some cases, it may be desirable to perform a system checkout prior to installation to insure proper operation. The following procedure is included here only for reference. Accurate specification verification is not guaranteed when using this procedure. Equipment Required • HP4432 Signal Generator • Sorenson DHP40-250 DC Power Supply • HP8561A Spectrum Analyzer • HP436 Power Meter • HP8481A Power Head • 750W, 30 dB Attenuator • Digital Volt Meter (DVM) Setup Procedure 1. Connect Sorenson DHP-40-250 DC power supply to DC input as outlined in Section 3.4. 2. Connect HP4432 CDMA Signal Generator to RF input. Set RF level to – 30 dBm. Set I/Q input to internal CDMA generator, IS-97 with EQ, 9 Walsh Codes. 3. Connect Attenuator to RF Output 4. Connect HP8481A Power Sensor to Attenuator output. 5. Connect HP8561A Spectrum Analyzer to Sample Port Output. Set ATTEN=10 dB, RBW=30kHz, VBW=10kHz, Vid. Avg.=100, SPAN=10MHz. Appendix A4: MCPS2135 System CheckoutPlanning and PreparationIntroduction MCPS2135 System Operation 39 2001 Spectrian Corporation. All rights reserved. Performance Checkout Procedure 1. Set current limit on Sorenson power supply to appropriate level as listed in Table 2. 2. Set DC voltage to 27 ± 1V. 3. With no RF applied, verify that idle current is approximately 13A x number of MCPA RF modules. 4. Apply RF signal, and slowly increase power to maximum rated power as listed in Appendix A2. 5. Verify that the total DC current is approximately that listed in Table 2. 6. Perform ACPR measurement. Verify that mask specification exceeds specification listed in Appendix A2.

FCC CFR47 PART 22 SUBPART H CERTIFICATION CERTIFICATION REPORT FOR MULTI-CHANNEL CELLULAR AMPLIFIER MODEL: MCPS2135 FCC ID: I2OMCPS2135 REPORT NUMBER: 01U0851 ISSUE DATE: JULY 30, 2001 Prepared for SPECTRIAN 350 W. JAVA DRIVE SUNNYVALE, CA 94089 Prepared by COMPLIANCE ENGINEERING SERVICE, INC. d.B.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 U.S.A. TEL: (408) 463-0885 FAX: (408) 463-0888 2 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. FCC CERTIFICATION INFORMATION.................................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................................................6 3. TEST FACILITY................................................................................................................................................................8 4. ACCREDITATION AND LISTING.............................................................................................................................8 5. MEASUREMENT INSTRUMENTATION.................................................................................................................8 6. MEASURING INSTRUMENT CALIBRATION......................................................................................................8 7. UNITS OF MEASUREMENT........................................................................................................................................8 8. EQUIPMENT MODIFICATIONS..............................................................................................................................10 9. TEST EQUIPMENT LIST.............................................................................................................................................12 10. CONFIGURATION BLOCK DIAGRAM...........................................................................................................13 11. STANDARD INPUT SIGNALS..............................................................................................................................14 12. PART 2: CERTIFICATION TEST REQUIREMENT:...................................................................................15 SECTION 2.1046: RF POWER OUTPUT...........................................................................................................................15 SECTION 2.1047: MODULATION CHARACTERISTICS...........................................................................................17 SECTION 2.1049: OCCUPIED BANDWIDTH.................................................................................................................18 SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINALS..............................................................42 SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION.....................................................................88 SECTION 2.1055: FREQUENCY STABILITY.................................................................................................................95 13. EUT TEST SETUP PHOTOS..................................................................................................................................96 ATTACHMENTS: Users Manual Theory of operation Schematics Authorization letter Confidentiality Letter FCC ID Label Format EUT Photos 3 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 2.1033(c)(1) Applicant: SPECTRIAN 350 W. JAVA DRIVE SUNNYVALE, CA 94089 Contact person: CHARLES S. ROBERTSON Title: EXECUTIVE DIRECTOR OF ENGINEERING Telephone number: (408) 745-5400 Fax number: (408) 542-0265 2.1033(c)(2) FCC ID: I2OMCPS2135 2.1033(c)(3) A copy of the installation and operating instructions is provided see attachment: Users Manual §2.1033(c)(4) Types of Emissions: AMPS Service: 30K0F3D, 30K0F3E, 30K0F2D, 30K0F8W, 30K0F9W TDMA Service: 30K0DXW CDMA Service: 1M25DXW CDPD Device: 30K0G1W GSM Service incl. GPRS: 200KG7W EDGE Service: 200KD7W §2.1033(c)(5) Frequency Range: The MCPS2135 is designed for normal operation over the cellular band transmit frequency range of 869 MHz to 894 MHz, with a minimum channel frequency separation of 60 kHz and a maximum channel frequency separation of 25 MHz. §2.1033(c)(6) Operating Power Range and Means of Variation: The MCPS2135 produces up to 500 Watts of average output power when equipped with four MCPA modules. When equipped with fewer MCPA modules, the average output power is reduced accordingly, as follows. Three MCPA Modules 375 W Two MCPA Modules 250 W One MCPA Module 135 W in stand alone subrack The MCPS2135 is manufactured with a factory-set gain which can be 30 dB to 60 dB, normally 57.5 dB. The end user may adjust this preset gain by up to +/- 6dB, subject to a internally limited maximum gain of 63dB. This adjustment is made by software commands to the AMM module in 4 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. the 2-4 PA module configurations. The end user may adjust the output power with either the gain control or by varing the input power to the PA. The one module configuration is a fixed gain product, whose output power must be adjusted by varing the input power level. §2.1033(c)(7) Maximum Power Ra…

Text truncated - open the document above for the full version.

61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 63 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 65 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 66 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 75 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 68 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 69 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 70 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS.

71 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 80 72 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 73 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 74 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 84 76 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 85 77 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 79 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 80 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 89

81 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 82 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 83 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 84 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 85 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 86 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 87 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION TEST SETUP: ‘ The EUT was configured as shown above with 4, 3 and 2 amplifiers in the 4 brick shelf, and 1 amplifier in the single brick shelf. The EUT was operated to give its maximum output power. Two unmodulated tones of equal amplitude were input to the EUT to achieve a composite output power equal to the maximum rated output power for each configuration. The two tones were at 881.5MHz and 882.5MHz. DC POWER SUPPLY RF FILTER EUT 4, 3, 2 OR 1 AMP CONFIG. HI-POWER ATTENUATOR COUPLER POWER METER SPECTRUM ANALYZER SIGNAL GENERATOR SIGNAL GENERATOR COMBINER SPLITTER 88 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. SUBSTITUTION METHOD: (Radiated Emissions) Test Set-up: Radiated BELOW 1GHz Ground plane Antenna mast d: distance in meters 1-4 meter d:3 meter 1m Turntable Signal Generator Substituted Biconical or LP antenna Biconical or LP antenna Spectrum analyzer/pre-amp Radiated ABOVE 1 GHz Ground plane Antenna mast d: distance in meters 1-4 meter d 1m Turntable Signal Generator Substituted Horn antenna Horn antenna Spectrum analyzer/pre-amp The actual signal generated by the measured equipment may be determined by means of a substitution measurement in which a known signal source replaces the device to be measured. 89 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. The substitution antenna will replace the Eut antenna in the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the Eut. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the Eut is obtained in the spectrum analyzer. The radiated power is equal to the power supplied by the signal generator The formula, to calculated the true reading, is: True reading = dBm +GdBd - CL dBm = signal generator output level GdBd = the gain in dBd of the substitution antenna CL = the cable loss The calculated True reading is then compared to the limit and should not exceed the limit. This method must be performed for every emission measured from the Eut. This shall also be repeated for horizontal polarization. Minimum Requirement: Section 22.917(e): The mean power of any spurious and harmonic emissions radiated from base stations transmitters must be attenuated below the mean power of the unmodulated carrier by at least 43 + 10 log (P). This calculates to an absolute limit of –13dBm. Test Result: Please refer to attached spreadsheets. 90 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Compliance Certification Services Radiated Emissions 7/11/01 22.917(e) A-Site (1 meter) Hue Vang SPECTRIAN 1 AMPLIFIERS in ONE RACK (M/N: MSPS2135) fo = 881.5 MHz (Configurations #1: 1 Amplifiers in a 1 unit rack) frequenc y SA reading SG reading CL Gain Gain ERP Limit Margin (MHz) (dBuV) (dBm) (dB) (dBi) (dBd) (dBm) (dBm) (dB) 1763V 54 -26.5 0.4 8.8 6.65 -20.25 -13 -7.25 1763H 54.4 -27 0.4 8.8 6.65 -20.75 -13 -7.75 2644.5V 30 -50 0.7 9 6.85 -43.85 -13 -30.85 2644.5H 30.2 -50.5 0.7 9 6.85 -44.35 -13 -31.35 3526V 30.8 -47 0.7 8.1 5.95 -41.75 -13 -28.75 3526H 34.7 -42 0.7 8.1 5.95 -36.75 -13 -23.75 4407.5V 29.8 -48 1 10.6 8.45 -40.55 -13 -27.55 4407.5H 29 -49 1 10.6 8.45 -41.55 -13 -28.55 5289V 24.5 -53 1 10.1 7.95 -46.05 -13 -33.05 5289H 26 -48 1 10.1 7.95 -41.05 -13 -28.05 6107.5V 36 -61 1.2 9.9 7.75 -54.45 -13 -41.45 6107.5H 37.1 -59 1.2 9.9 7.75 -52.45 -13 -39.45 7052V 38.9 -65.5 1.4 10 7.85 -59.05 -13 -46.05 7052H 32 -72.5 1.4 10 7.85 -66.05 -13 -53.05 7933.5V 34 -72.5 2.1 10.3 8.15 -66.45 -13 -53.45 7933.5H 29 -79.5 2.1 10.3 8.15 -73.45 -13 -60.45 8815V 36 -67 3.1 10.6 8.45 -61.65 -13 -48.65 8815H 30.9 -74.5 3.1 10.6 8.…

Text truncated - open the document above for the full version.

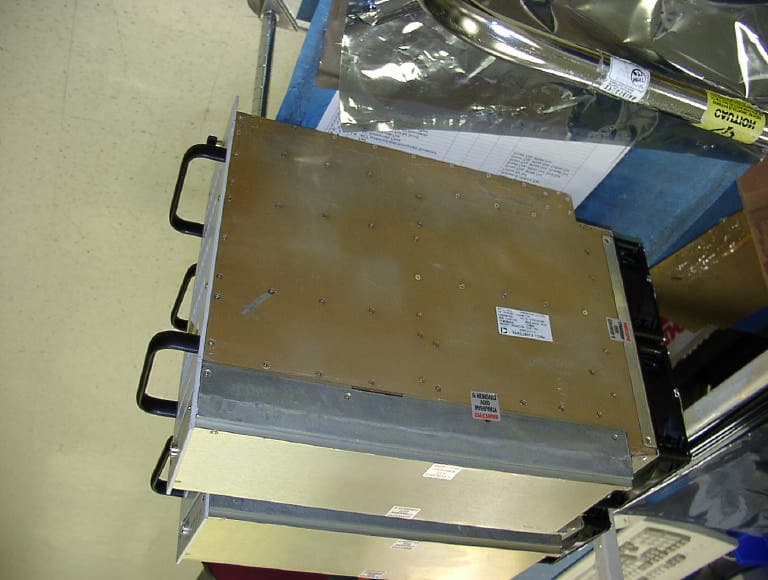

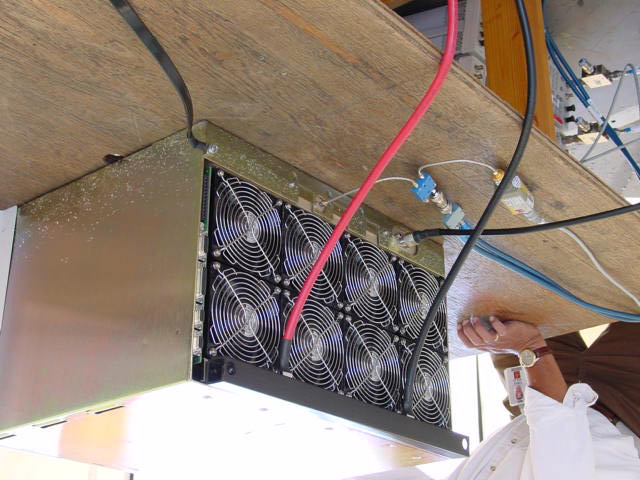

1. EUT TEST SETUP PHOTOS CONDUCTED (FRONT) 2 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. CONDUCTED (BACK) 3 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 4 AMPS HARMONIC TEST 4 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 3 AMPS HARMONIC TEST 5 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2 AMPS HARMONIC TEST 6 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1 AMP HARMONIC TEST 7 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY RD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. SUBSTITUTION TEST
