IB2AFIRS228SSatellite Data Unit

16 July 2014 L-3 Aviation Recorders Proprietary Page i 165E5733-00 Rev. 03 AFIRS 228S Iridium Global Communications System Installation Manual Part Numbers SDU: 228E5733-00 SCM: 418E5733-00 Publication: 165E5733-00 Rev. 03 AFIRS 228S Iridium Global Communications System Installation Manual 16 July 2014 L-3 Aviation Recorders Proprietary Page ii 165E5733-00 Rev. 03 EXPORT CONTROL STATEMENT IRIDIUM SATCOM TECHNOLOGY / DATA: “This Iridium SATCOM System Technical Data is being exported from the United States in accordance with the Export Administration Regulations (ECCN #7E994), No License Required (NLR). Diversion contrary to U.S. law is prohibited. In accordance with U.S. Law (Title 15CFR Part 746 and Supplement No. 1 to Part 774; and Title 31CFR) resale/re-export or transfer to certain designated countries is prohibited without the prior written consent of the U.S. Department of Commerce.” HTSUS/Schedule B: 85439.09.000 This manual contains date-sensitive information. To verify the latest revision level of this manual, visit our document down-load site at http://www.L3ar.net. ©Copyright 2014 by L-3 Communications. All rights reserved. No part of this manual may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying, recording, or by information storage and retrieval system, without permission in writing. Inquiries should be addressed to: L-3 Communications, Aviation Recorders Publications Vendor Code: 06141 P. O. Box 3041 Sarasota, Florida 34230 Phone: (941) 371–0811; FAX: (941) 377–5591 AFIRS 228S Iridium Global Communications System Installation Manual 16 July 2014 L-3 Aviation Recorders Proprietary Page iii 165E5733-00 Rev. 03 FCC Certification This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. AFIRS 228S Iridium Global Communications System Installation Manual 16 July 2014 L-3 Aviation Recorders Proprietary Page iv 165E5733-00 Rev. 03 RECORD OF REVISIONS Rev. Issue Date Description Pages By 00 01 November 2013 Initial issue. All CM 01 15 December 2013 Corrected SDU & SCM Top- Level Part Numbers. All CM/SC 02 21 January 2014 Corrected SDU & SCM Top- Level Part Numbers. All CP 03 16 July 2014 Software PN Change, removed references to unused features, removed non-configurable, updated wiring diagrams, added MCDU screenshots, added voice and data modem models 1, 6, 7, 8, 9, 22, 23, 34, 38, 39, 70-73 CP AFIRS 228S Iridium Global Communications System Installation Manual 16 July 2014 L-3 Aviation Recorders Proprietary Page 1 165E5733-00 Rev. 03 THIS PAGE INTENTIONALLY LEFT BLANK AFIRS 228S Iridium Global Communications System Installation Manual 16 July 2014 L-3 Aviation Recorders Proprietary Page 2 165E5733-00 Rev. 03 Table of Contents RECORD OF REVISIONS ............................................................................................................. iv List of Figures ..................................................................................................................................4 List of Tables....................................................................................................................................5 Appendices ......................................................................................................................................5 Supplemental Documents ...............................................................................................................5 1. Introduction ................................................................................................................................6 1.1 Applicability ........................................................................................................................6 1.2 Model Designation .............................................................................................................6 1.2.1 Iridium SATCOM System .................................................................................................................... 6 1.3 Part Numbers ....................................................................................................................6 1.4 Reference Documents ......................................................................................................6 1.5 Definitions of Acronyms and Terms ..................................................................................8 2. Description and Operation ...................................................................................................... 12 2.1 System Overview ........................................................................................................... 12 2.2 System Architecture ....................................................................................................... 13 2.3 External System Interfaces ............................................................................................ 13 3. Equipment Specifications ..............…

Text truncated - open the document above for the full version.

59 1.900 1.900 .950 3.50 DI A .950 .66 .73 7.33 SPHERICAL R .218 .229 C'SINK .385 DIA X 100° 4 PLACES FARSIDE TYPETNC DI A S67-1575-109 Iridium / GPS S67-1575-109 SPECIFICATIONS IRIDIUM/GPS S67-1575-109 ELECTRICAL Frequency GPS ..........................1575 +/-10MHz Iridium ....................1616 -1626.5 MHz VSWR ...........................1.5:1 Polarization ..................RHCP Impedance ...................50 ohms Power Handling ...........60 watts CW Gain ..............................+3 dBic @ Zenith Lightning Protection ...DC grounded MECHANICAL Weight ..........................6 oz. Height ............................66 in. Diameter .......................3.5 in. Material .........................6061-T6 aluminum / thermoset plastic Finish ............................Skydrol resistant enamel Connector ....................TNC Female ENVIRONMENTAL Temperature .................-67° F to +185° F DESCRIPTION OUTLINE DRAWING RADIATION PATTERN S67-1575-109: Low profile Iridium/GPS antenna pro- vides continuous coverage from 1565MHz to 1626.5 MHz for excellent Iridium operation as well as GPS L1 applications. Mechanical configuration is a spheri- cal-radius molded radome which provides enhanced protection against rain, ice, and lightning strikes. Qualified for high-speed military aircraft as well as ARINC applications. FEDERA; & MILITARY SPECS: DO-160, MIL-C- 5541, MIL-E-5400, MIL-STD-810, TSO-C129. 1565 - 1626.5 MHz Globalstar / GPS S67-1575-174 GLOBALSTAR/GPS S67-1575-174 ELECTRICAL GPS GLOBALSTAR J3 J2 J1 J4 Frequency (MHz) ........1575.42 2483.5- 1610.0- ±2 2500.0 1626.5 Power ...........................100 mW 1 W 10 W VSWR ..........................._________________ 2.0:1 _______________ Polarization ..................RHCP LHCP LHCP Impedance ..................._______________ 50 ohms _______________ Gain Max ......................________________ 3 dBic _______________ Gain (Preamplifier) ......26 ± 3 dB 27.5 dB ± 2.5 dB Passive Supply Voltage ............_______ +3.3 to +28 VDC @ 40 mA MAX ____ Actual Ratio ................._____________ 3.0dB (@ Zenith) __________ Lightning Protection ...DC grounded MECHANICAL Weight ..........................2.4lbs Height ...........................1.49 in. Length ..........................9.50 in. Width ............................5.00 in. Material .........................6061-T6 aluminum Finish ............................Skydrol resistant enamel Connectors ..................TNC Female ENVIRONMENTAL Temperature .................-67°F to +185°F Vibration .......................10 G's Altitude .........................55,000 FT S67-1575-109 Sensor System s Inc . ® 8929 Fullbright Avenue Chatswor th, CA 91311 USA 818-341-5366 fax: 818-341-9059 email: [email protected] www.sensorantennas.com

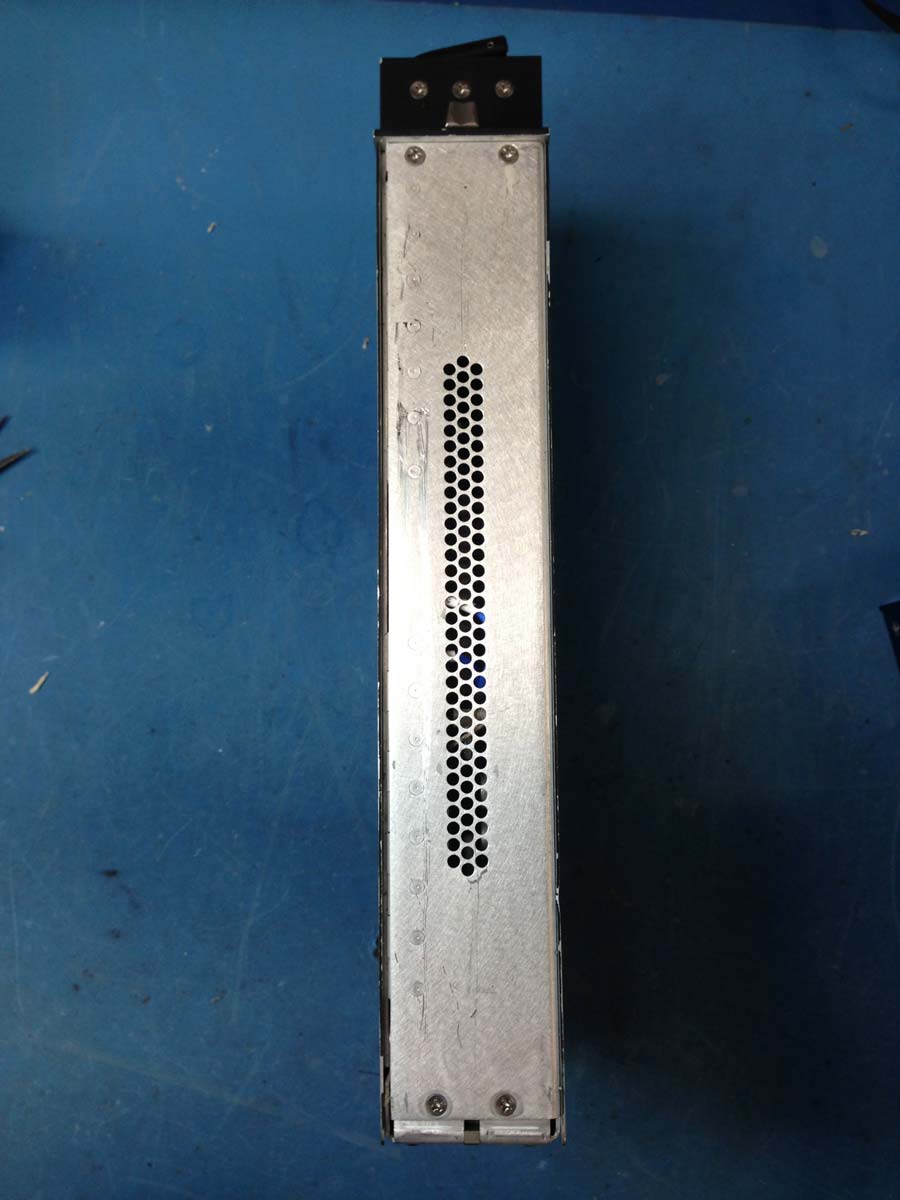

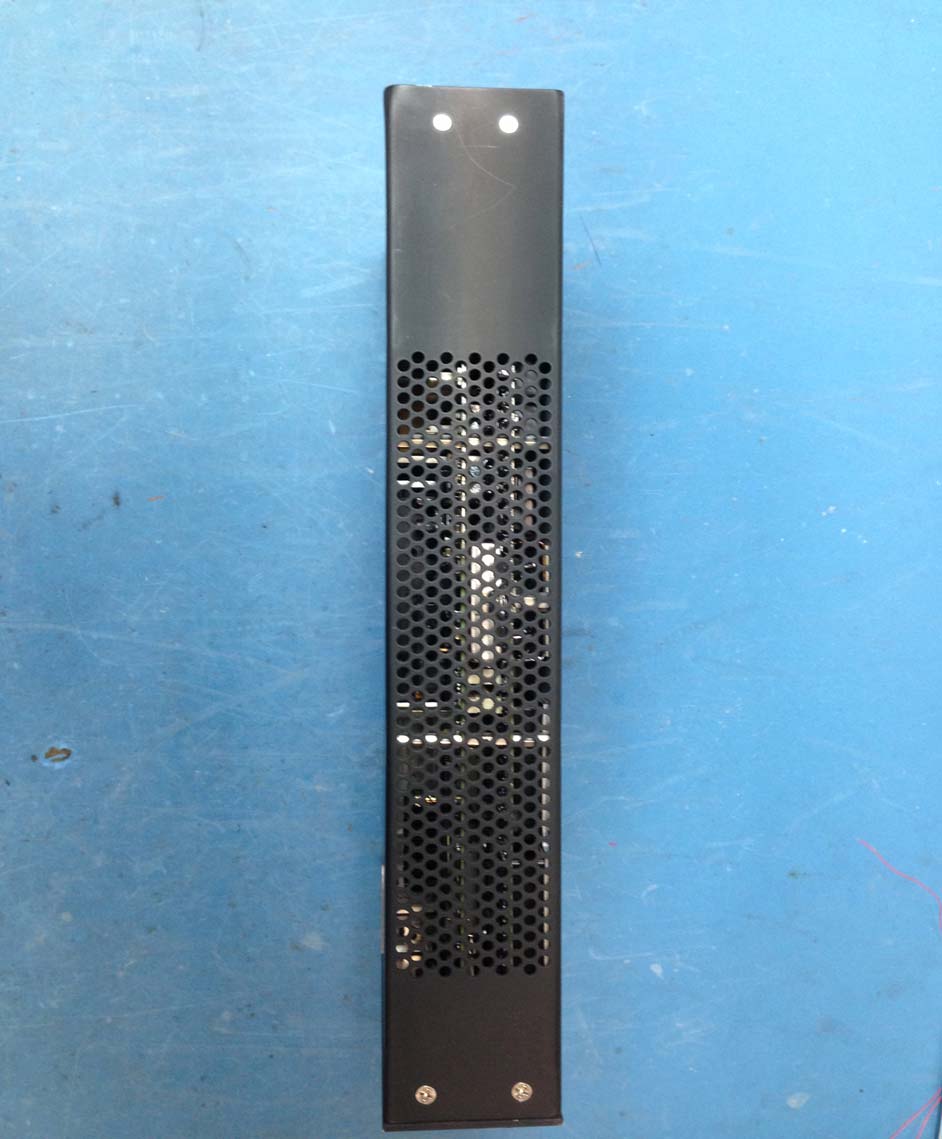

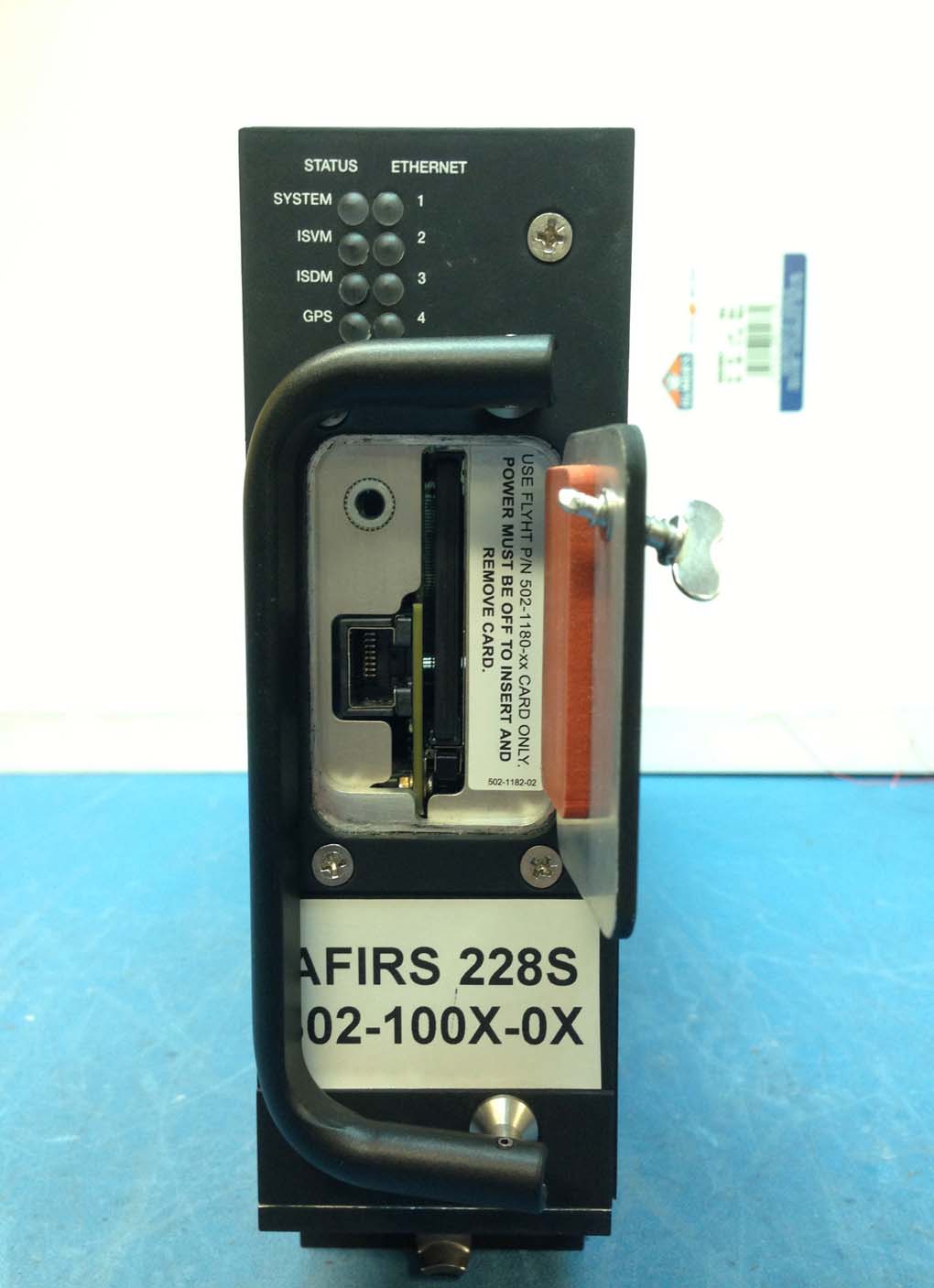

F Figure 1: Front View Figure 2: Front View Figure 3: Front View Figure 4: Side View Figure 5: Side View Figure 6: Rear View Figure 7: Top View Figure 8: Top‐side View Figure 9: Bottom View

Figure 1: Cover Removed Figure 2: Cover Removed Side View Figure 3: Cover Removed Top View Figure 4: Cover Removed Top View Figure 5: Open Lid Side View Figure 6: Open Lid Side View Figure 1: Cavity Filter Top Figure 2: Cavity Filter Bottom Figure 33 Figure 34: Rear Connector Figure 1: RFMM Board Bottom View Figure 2: RFMM Board Removed Figure 3: VMIM Board Top View Figure 4: VMIM Board Bottom View Figure 5: VMIM Board Removed Figure 6: Cavity Filter Top Figure 1: DAPM Board Top View Figure 2: DAPM Board Bottom View Figure 3: DAPM Board Removed Figure 4: RFMM Board Top View (Circuitry Under the Metal Lid) Figure 5: RFMM Board Top View Figure 1: Front Panel Removed Figure 2: MCIM Board Top View Figure 3: MCIM Board Bottom View Figure 4: MCIM Top View Circuitry Figure 5: MCIM Board Removed

p1580015_FCC_Part 1.1310_Rev 2.0 Page 1 of 4 Test Report Prepared for: L-3 Communications Model: 228E5733-00 Description: AFIRS228S Satellite Data Unit FCC ID: IB2AFIRS228S Serial Number: 000904810 To FCC Part 1.1310 Date of Issue: October 1, 2015 On the behalf of the applicant: L-3 Communications P. O. Box 3041 Sarasota, FL 34232 Attention of: Suzi Schulz, Program Manager Ph: (941) 371-0811 xt. 5781 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1580015 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1580015_FCC_Part 1.1310_Rev 2.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 September 3, 2015 Alex Macon Original Document 2.0 October 1, 2015 Alex Macon Updated limits to Uncontrolled use p1580015_FCC_Part 1.1310_Rev 2.0 Page 3 of 4 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1580015_FCC_Part 1.1310_Rev 2.0 Page 4 of 4 Description Dual channel Iridium satcom system used in aircrafts that incorporates Iridium 9523 and 9602. This is a mobile device used in Uncontrolled Exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz Limit [mW/cm²] = 100 1.34-30 MHz Limit [mW/cm²] = (180/f²) 30-300 MHz Limit [mW/cm²] = 0.2 300-1500 MHz Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Frequencies, MHz 1618.725 – 1625.979 Power, Conducted, mW (P) 2070 Antenna Gain Isotropic 3dBi Antenna Gain Numeric (G) 2.0 Antenna Type Distance (R) 20 cm Power Density Calculations Formula = S = PG / 4πR² Power Density (S) = 0.823 Limit = 1.0 The Power Density is below the Limit. The SAR measurement is not necessary.

p1580015_FCC_Part 25_Rev 1.0 Page 1 of 17 Test Report Prepared for: L-3 Communications Model: 228E5733-00 Description: AFIRS228S Satellite Data Unit FCC ID: IB2AFIRS228S Serial Number: 000904810 To FCC Part 25 Date of Issue: September 18, 2015 On the behalf of the applicant: L-3 Communications P. O. Box 3041 Sarasota, FL 34232 Attention of: Suzi Schulz, Program Manager Ph: (941) 371-0811 xt. 5781 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1580015 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested p1580015_FCC_Part 25_Rev 1.0 Page 2 of 17 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 9/3/15 Alex Macon Original Document p1580015_FCC_Part 25_Rev 1.0 Page 3 of 17 Table of Contents Description Page Standard Test Conditions and Engineering Practices .......................................................... 5 Powerline .............................................................................................................................. 6 Emissions Limitations for Mobile Earth Stations ................................................................... 7 Emission Mask ...................................................................................................................... 8 Emissions Limits for Mobile Earth Stations......................................................................... 12 Frequency Tolerance (Temperature Variation)................................................................... 13 Field Strength of Spurious Radiation .................................................................................. 14 Test Equipment Utilized ...................................................................................................... 17 p1580015_FCC_Part 25_Rev 1.0 Page 4 of 17 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted in the table below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1580015_FCC_Part 25_Rev 1.0 Page 5 of 17 Standard Test Conditions and Engineering Practices Unless otherwise indicated, the procedures contained in ANSI C63.4-2009 were observed during testing. Prior to testing, the EUT was tuned up in accordance with the manufacturer’s alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurement. Unless otherwise indicated in the specific measurement results, the ambient temperature was maintained within the range of 10º to 40ºC (50º to 104ºF) and the relative humidity levels were in the range of 10% to 90%. Environmental Conditions Temperature (°C) Humidity (%) Pressure (mbar) 23.2 – 25.1 32.4 – 41.2 967.5 – 971.2 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2 and the following individual Parts: FCC Part 25 Satellite Communications. Prior to testing the EUT was tuned up in accordance with the manufacturer’s alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. EUT Description Model: 228E5733-00 Description: AFIRS228S Satellite Data Unit SN: 000904810 Firmware: N/A Serial Number: 000904810 Additional Information: Iridium satcom system used in aircrafts that incorporates the Iridium 9602N modem. EUT Operation during Tests EUT is placed into a modulated transmit mode which the manufacturer supplied. Accessories: None Cables: None Modifications: None p1580015_FCC_Part 25_Rev 1.0 Page 6 of 17 Powerline Engineer: Alex Macon Test Date: 8/31/15 Test Procedure The EUT was connected directly to a Spectrum Analyzer. The peak readings were taken and recorded in the following table. Test Setup Transmitter Output Power Tuned Frequency (MHz) Conducted Output Power (dBm) Antenna Gain (dBi) EIRP Output Power (dBm) Specification Limit 1616.02 32.85 3.0 35.85 No limit for Earth Stations 1620.96 33.17 3.0 36.17 No limit for Earth Stations 1625.95 32.69 3.0 35.69 No limit for Earth Stations EUT Spectrum Analyzer 30 dB Attenuator p1580015_FCC_Part 25_Rev 1.0 Page 7 of 17 Emissions Limitations for Mobile Earth Stations Engineer: Alex Macon Test Date: 9/1/15 Test Procedure The EUT was connected directly to a spectrum analyzer and the conducted spurious emissions were measured to ensure that the EUT met the requirements specified. Only the worst case emission at each frequency was reported. Notch and high pass filters were utilized to ensure that the fundamental power did not force the input of the spectrum analyzer into compressions. These losses in addition to cable losses were input into the analyzer as a reference level offset to ensure accurate measurements were obtained. Section 25.202(f)(3) Test Setup Tuned Frequency (MHz) Result Comments 1616.02 Pass See Plots 1620.96 Pass See Plots 1625.95 Pass See Plots Plots are within Annex A EUT Spectrum Analyzer 30 dB Attenuator p1580015_FCC_Part 25_Rev 1.0 Page 8 of 17 Emission Mask Engineer: Alex Macon Test Date: 9/1/15 Test Procedure The EUT was con…

Text truncated - open the document above for the full version.

p1580015_Annex A_ Rev 1.0 Page 1 of 13 Annex A Conducted Spurious p1580015_Annex A_ Rev 1.0 Page 2 of 13 high ch 1559 - 1605 1kHz_AVG high ch 1559 - 1605 1kHz_Peak p1580015_Annex A_ Rev 1.0 Page 3 of 13 high ch 1559 - 1605 1MHz high ch 1605 - 1610 1kHz p1580015_Annex A_ Rev 1.0 Page 4 of 13 high ch 1605 - 1610 1MHz high ch 30 - 17000 MHz_AVG p1580015_Annex A_ Rev 1.0 Page 5 of 13 high ch 30 - 17000MHz_Peak low ch 1559 - 1605 1 kHz_AVG p1580015_Annex A_ Rev 1.0 Page 6 of 13 low ch 1559 - 1605 1 kHz_Peak low ch 1559 - 1605 1 MHz p1580015_Annex A_ Rev 1.0 Page 7 of 13 low ch 1605 - 1610 1 kHz AVG low ch 1605 - 1610 1 kHz Peak p1580015_Annex A_ Rev 1.0 Page 8 of 13 low ch 1605 - 1610 1 MHz low ch 1605 - 1610 1 MHz_ p1580015_Annex A_ Rev 1.0 Page 9 of 13 low ch 30 - 17000 MHz_AVG low ch 30 - 17000 MHz_Peak p1580015_Annex A_ Rev 1.0 Page 10 of 13 mid ch 1559 - 1605 1kHz_AVG mid ch 1559 - 1605 1kHz_Peak p1580015_Annex A_ Rev 1.0 Page 11 of 13 mid ch 1559 - 1605 1MHz mid ch 1605 - 1610 1kHz p1580015_Annex A_ Rev 1.0 Page 12 of 13 mid ch 1605 - 1610 1MHz mid ch 30 - 17000 MHz_AVG p1580015_Annex A_ Rev 1.0 Page 13 of 13 mid ch 30 - 17000 MHz_Peak 25.216(i)
