P/N: 165M0601-00Feb. 01/05 Initial Issue ProTec AUTOMATIC IDENTIFICATION SYSTEM HARDWARE AIS PART NUMBER AISD1000-00 INSTALLATION AND OPERATION MANUAL Marine Systems Aviation Recorders Feb. 01/05 Initial Issue165M0601-00 Page ii AIS Hardware I&O Manual 165M0601-00 Initial Issue Feb. 01/05 The AIS products/software are being exported from the United States in accordance with the Export Adminis- tration Regulations ECCN 4D994, No License Re- quired. Diversion contrary to U.S. law is prohibited. In accordance with U.S. Law (31 CFR Part 746, and Sup- plement No.1 to Part 774, and CFR Part 550) resale/re– export or transfer to the countries identified therein is prohibited without the prior written consent of the U.S. Department of Commerce. This manual contains date sensitive information. To verify the latest revision level of this manual, visit our document download site at http://www.L-3ar.net. ECopyright 2005 by L-3 Communications. All rights reserved. No part of this manual may be re- produced or utilized in any form or by any means, elec- tronic or mechanical, including photocopying, record- ing, or by information storage and retrieval system, without permission in writing. Inquiries should be addressed to: L-3 Communications Aviation Recorders Publications Vendor Code: 06141 P. O. Box 3041 Sarasota, Florida 34230 Phone: (941) 371–0811 FAX: (941) 377–5591 Marine Systems Aviation Recorders Page iii Initial Issue165M0601-00 Feb. 01/05 GENERAL This product and related documentation must be reviewed for familiarization with safety markings and instructions before operation. This board was constructed in an ESD (electroćstatic discharge) protected environment. This is because most of the semiconductor devices used in this board are susceptible to damage by static discharge. Depending on the magnitude of the charge, device substrates can be punctured or destroyed by contact or mere proximity of a static charge. The results can cause degradation of device perforĆ mance, early failure, or immediate destruction. These charges are generated in numerous ways such as simple contact, separation of materials, and normal motions of persons working with static sensitive devices. When handling or servicing equipment containing static sensitive devices, adequate precautions must be taken to prevent device damage or destruction. Only those who are thoroughly familiar with industry accepted techniques for handling static senĆ sitive devices should attempt to service circuitry with these devices. In all instances, measures must be taken to prevent static charge buildćup on work surfaces and persons handling the devices. Marine Systems Aviation Recorders Page iv Initial Issue165M0601-00 Feb. 01/05 RETURN MATERIAL POLICY Components and spare parts purchased from L–3 that are discrepant for any of the following reasons may be re- turned immediately provided the extended value of the parts are in excess of $100.00. 1.Overshipments Quantity of parts received in excess of quantity specified on purchase order. 2.Wrong Part Numbers Receipt of parts numbered other than those identified on a customer order where L–3 has not advised the cus- tomer by purchase order acknowledgment, by telex, or by notification on the shipping document that the received part is a replacement for the ordered part. 3.Parts Nonconforming to Specifications If the extended value of the items is less than $100.00, the items are to be scrapped instead of returned. When this occurs, notification must be sent to L–3 advising: (1) the reason for the rejection; (2) the items are less than $100.00 in extended value and have been scrapped, and; (3) whether credit or replacement is desired. If you wish to return material to L–3 for reasons other than warranty returns or those specified above, please contact an L–3 Account Administrator for authorization before proceeding. A Return Authorization Number will be assigned at this time. Your request should specify the relevant Return Authorization Number, purchase order number, part num- ber, quantity and the reason you wish the part returned. To assist us in processing these items more efficiently, we ask that all returned goods be accompanied by paperwork that clearly indicates the following: 1.Reason for return. 2.Purchase Order Numbers. 3.Correspondence Reference Number. 4.Return Authorization Number. 4.Copies of returned goods paperwork should be mailed to: L–3 COMMUNICATIONS CORPORATION AVIATION RECORDERS DIVISION P. O. Box 3041 Sarasota, FL 34230–3041 Attn: Tom Meloche / Marine Systems Product Support Department 5.Parts returned under the above conditions should be addressed to: L–3 COMMUNICATIONS CORPORATION AVIATION RECORDERS DIVISION 6000 E. Fruitville Road Sarasota, FL 34232 Attn: SERVICE DEPARTMENT Component and spare parts purchased from L–3 that have been on the customer’s shelf for more than 10 weeks from date of receipt; have been installed in a component or on a vessel, are not covered by this procedure. Such parts may be covered by warranty in which case they should be returned through normal warranty channels. Marine Systems Aviation Recorders Page v Initial Issue165M0601-00 Feb. 01/05 RETURN OF MATERIAL UNDER WARRANTY 1.Material should be returned to the following address: L–3 COMMUNICATIONS CORPORATION AVIATION RECORDERS DIVISION 6000 E. Fruitville Road Sarasota, FL 34232 Attn: WARRANTY RETURNS 2.For returning overseas shipments, the following customs broker must be used: L–3 COMMUNICATIONS CORPORATION AVIATION RECORDERS DIVISION c/o A.J. Arango Air Cargo Bldg. Hoover Blvd. Tampa Int’l Airport Tampa, Florida 33634 Tel: (813) 248–9220 Fax: (813) 248–6013 To ensure prompt handling of material returned under warranty, your return order and shipment should clearly identify the item as a warranty return, and a copy of such return order should accompany the shipment. Status of warranty in process will be provided by the Warranty Administrator. 3.Warranty claims and warranty return orders pe…

Text truncated - open the document above for the full version.

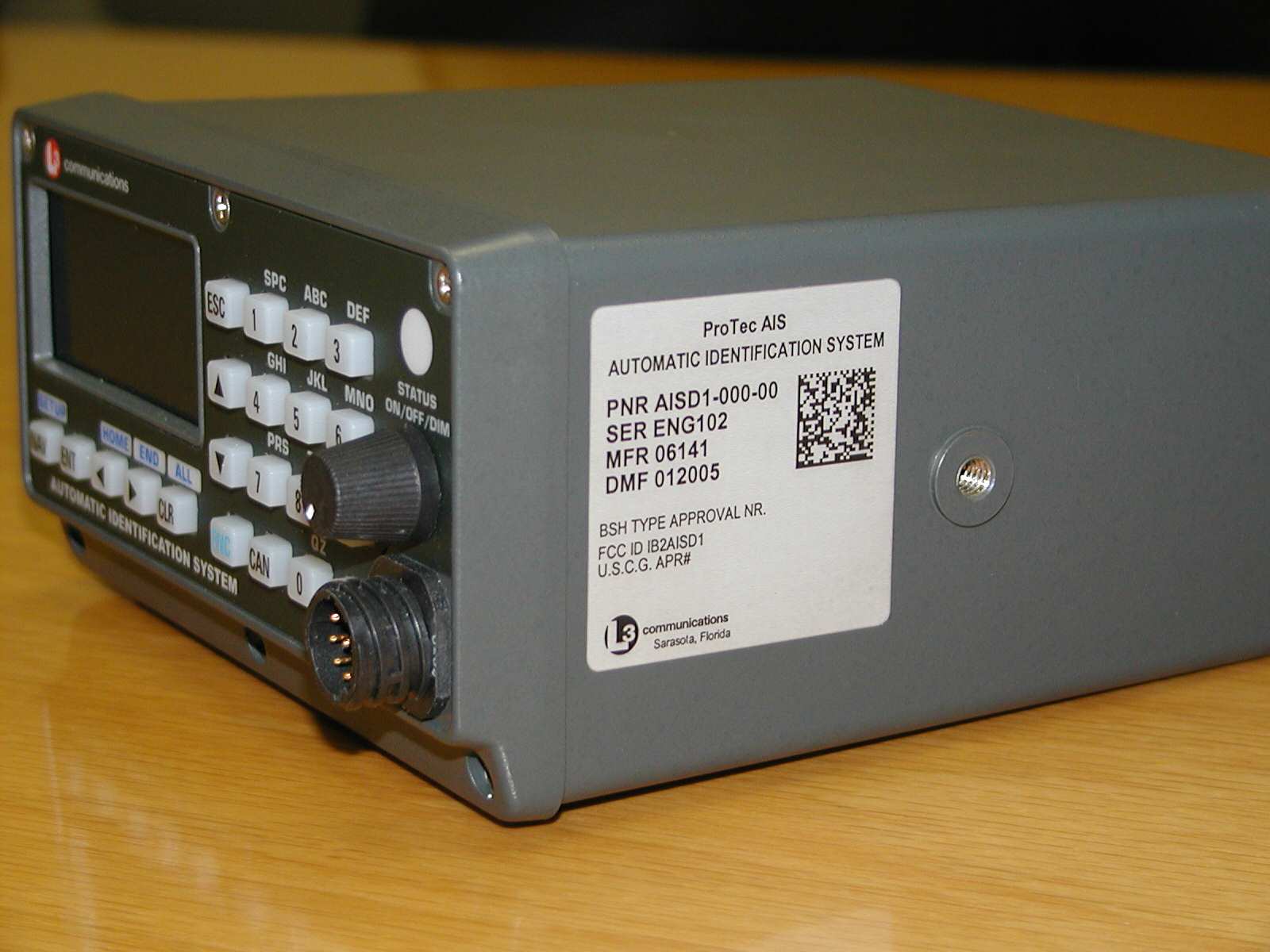

Marine Systems Aviation Recorders Page 1–3 Initial Issue165M0601-00 Feb. 01/05 ProTec AIS Introduction 1.1.General The L-3 ProTec is an Automatic Identification System transponder which is fully com- pliant to the technical specifications defined by the IMO and outlined in ITU.R.M 1371-1. The transponder employs the latest radio frequency and SOTDMA and DSC controller technology to provide a high performance, automated, and reliable identifi- cation system for commercial mariners. The Transponder is a fully automated sys- tem which ties into ship’s navigational instruments to provide automatic transmission of ships identity, status, and maneuvering intentions via standard marine VHF com- munication techniques. Sequencing of transmission between all vessels within VHF range is provided through SOTDMA controlling software to handle high traffic vol- ume situations. The Transponder is a fully automated system. This means that once it is installed and turned on, no maintenance is required to keep it operational. The only time the user needs to perform any function on the transponder is to change the ship’s Ves- sel/Voyage data as required. 1.1.1.System Overview The L-3 ProTec is an Automatic Identification System fully compliant with the IMO specifications defined in IMO MSC.74(69) Annex 3, IEC 61993-2, and ITU.R M.1371-1. This AIS transponder has been developed using technology applied in the design of our VHF DSC Class A radio, a design which has been field tested for over a decade with over 10000 units operational in the field. With the addition of the SOTDMA controllers, the L-3 ProTec provides a cost-effective AIS solution which will meet the needs of any vessel required to carry AIS. The compact, single-box design allows the L-3 ProTec to be easily incorporated into any bridge layout thus simplify- ing installation and cabling requirements. The L-3 ProTec has been designed as maintenance-free unit which makes extensive use of surface mount technology (SMT). The repair of printed wiring assemblies (PWAs) containing SMT components requires specialized factory equipment, train- ing, and techniques, therefore, such PWAs are not field-repairable. As a result, maintenance philosophy for the L-3 ProTec is replacement of failed as- semblies. In the case of the L-3 ProTec, the replaceable assemblies are the Face- plate Assembly (192M0093-00), the RF PWA (205M0597-00), the CPU PWA (205M0596-00), and the PS PWA (205M0598-00). Marine Systems Aviation Recorders Page 1–4 Initial Issue165M0601-00 Feb. 01/05 When it has been determined that one or more of these assemblies is faulty, the faulty assembly(ies) should be removed and returned to the Aviation Recorders fac- tory for repair or replacement. Attempts to repair any of these assemblies will void the warranty. Extreme care should be used when handling these assemblies. For repair service, ship units to: L-3 Communications, Aviation Recorders 6000 East Fruitville Road Sarasota, FL 34232 USA Attn: Repair Department Tel: (941) 377-5558 Fax #: (941) 377-5585 CAUTION :THE L-3 ProTec CIRCUIT BOARDS ARE SUSCEPTIBLE TO ELECTROSTATIC DESTRUCTION (ESD). PRIOR TO HANDLING PWAs, ENSURE PROPER PERSONNEL GROUNDING TECH- NIQUES ARE USED. ENSURE THAT CARDS ARE PLACED INTO STATIC SHIELDING CONDUCTIVE BAGS WHEN HANDLING OR STORING. 1.1.2.References IMO Resolution MSC.74(69), Annex 3, Recommendation on Performance Standards for an Universal Shipborne Automatic Identification Systems (AIS) IMO SN/Circ. 227, Guidelines for the INstallation of a Shipborne Automatic Identifi- cation System (AIS) International Telecommunications Union Sector for Radio Communications (ITU-R) Recommendation M.1371-1, Technical Characteristics for a Universal Shipborne Au- tomatic Identification System Using Time Division Multiple Access in the Maritime Mobile Band. IEC 61993-2 Edition1, Maritime Navigation and Radiocommunication Requirements - Automatic Identification Systems (AIS) - Part 2: Class A shipborne Equipment of the Universal Automatic Identification System (AIS) - Operational and Performance Requirements, Methods of Test and Required Test Results IEC 60945 Edition 4, Maritime Navigation and Radiocommunication Equipment and Systems - General Requirements - Methods of Testing and Required Test Results. IALA Recommendation on AIS Shore Stations and Networking Aspects Relating to the AIS Service, Edition 1.0, September 5, 2002

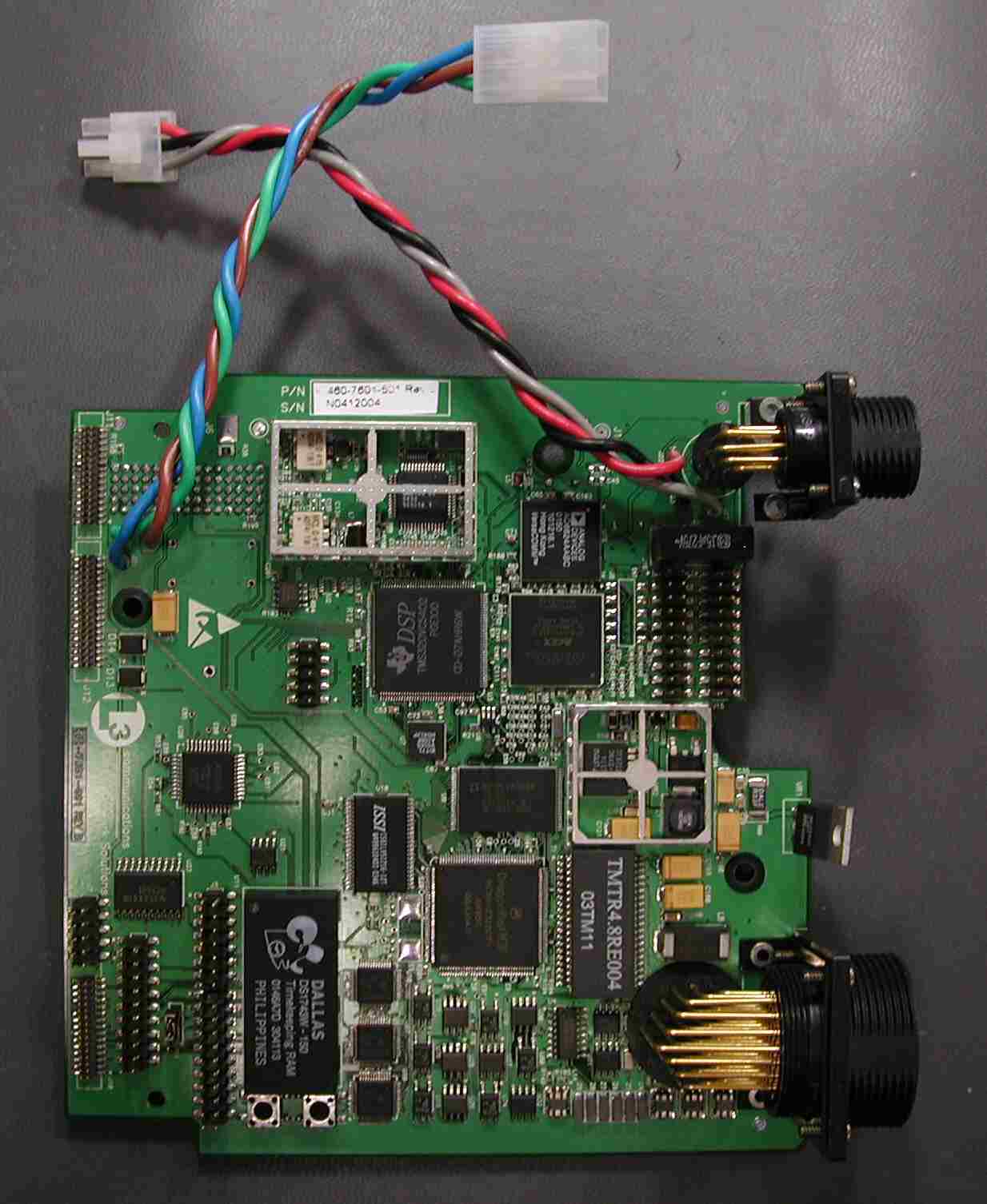

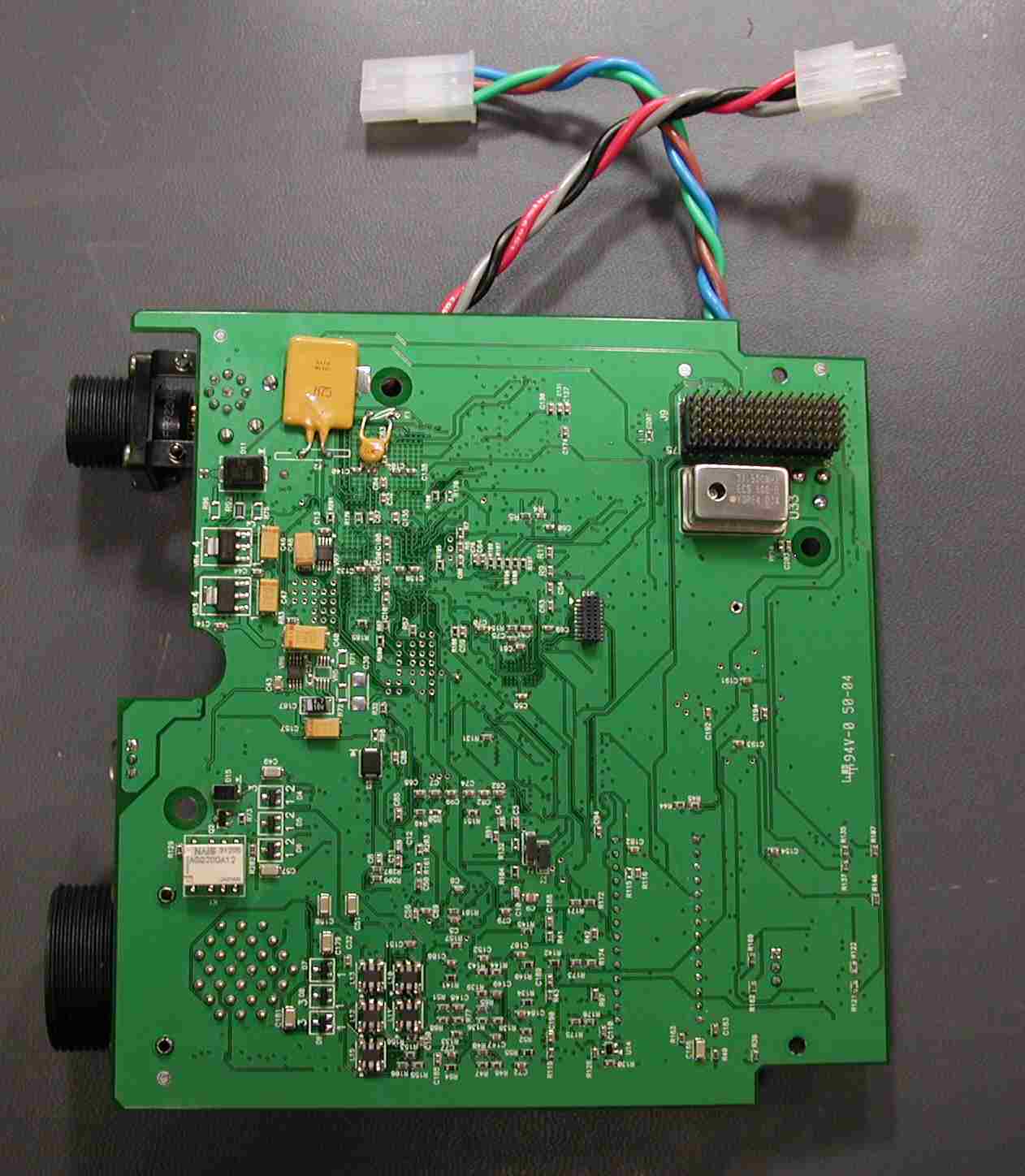

AISD CPU Board Parts List.xls Printed on 1/27/2005 4:32 PM Rev # & Dat e Summary of Changes Rev (1) 12/05/02 Initial Rev (2) 01/23/03 All but Caps & Resistor were updated Rev (3) 01/30/03 Removed RS232 xcvr, Changed Codec & amp types Rev (4) 01/31/03 Updating missing package info Rev (5) 02/03/03 Chg SN74HCT541's pkg, Update dimensions, Chg LMV339 & 393 to six LMV331's, Chg MAX1118 to MAX1117, Rem 33V suffix from CPU part num. Rev (6) 02/05/03Rev (7) 02/11/03 Finished adding caps & res. Added PAL. Rev (8) 02/13/03 Added F1, Z1-Z3. Chg'd about 17 resistors' values.Renumbered C205-C238 to C173-C181. Renum. D11-D16 to D4-D9. Deleted D17-D22. Returned T7&T8 - accidently deleted in Rev7 Rev (9) 02/25/03 J1 chgd to 0 quantity. Add R50, R115, R117, R118, R124, R169, R170, C184 - C196, L19-L20, K1, Q1, F2, D11 Added ITEM numbers: 1-5=batteries, 5-28=caps, 29-39=diodes, 40-44=fuses, 45-59=headers, 60-64=relays, 65-74=inductors,75-76=plu gs, 77-79=transistors, 80-99=resistors, 100-104=switches, 105-109=transformers, 110-139=ICs, 140-145=voltage regulators, 150-154=cl ocks, 155-159=LC circuitsR10=ITEM#97. Chg'd package for VR1 (was ITEM#140, now ITEM#145) Rev (10) 02/27/03Rev (11) 03/10/03 Move C163&C164 from ITEM22 to ITEM19. Move R33&R34 from ITEM82 to ITEM80.Added some mounting items & other devices necessary for prototype although not part of this board. Chg part number for U14 (ITEM126). Add R39, R41-43, R97, R119, R126, R130 to ITEM80, R127-128 to ITEM81, R40 to ITEM82, R129 t o ITEM86 Rev (12) 03/28/03Rev (13) 04/08/03Rev (14) 04/11/03 501 Chg ITEM numbered 160 to be ITEM38. Changed parts for ITEMs 38 & 39 to BMI-S-205. Chgd ITEM numbers from 170 & 171 to 190 & 191 (schematic & baseboard). Delete J29 (ITEM58). Add J21-J25, J27 (ITEM 171). Added ITEMs 166 - 177 (Note: some of these parts were on BOM already, but without ITEM numbers).Correct pkg from 0805 to 0603 for ITEM14. Correct pkg from 1206 to 0805 for ITEM26. Added part no to ITEM68. Removed SMT fromdescription of ITEM114. Deleted ITEM56 since Coax Points are not parts. Added R38 to ITEM81 & delete R161 (do not install part ). Added ITEM39 (E17) & updated ITEM160Chg C123 part (ITEM 10). Chg part for C155 from ITEM11 to ITEM10. Delete C167 & C168 (ITEM11). Delete L20 (ITEM71). Chg PKG d escription for ITEM133 to match datasheet.Add R132, R169 (ITEM81), R154, R159, R171-179, R181 (ITEM80), R180 (ITEM82). Delete Q1 (ITEM77) & R38 (ITEM98) ITEMs 77, 95, 96 empty. Chg all caps in ITEM#12 EXCEPT C118 to new type (ITEM#24). Chg part number of ITEM#14. Completed Z1- Z9 & L7's Part Number. Added missing parts: R131, R162, C178, C179, C180, C181, C182, C183Added ITEMs 164 & 165, Correct some quantity numbers, correct ITEM48, 57, 77, 126 & 105's part numbersDelete R115 (ITEM81), R50 (ITEM83) - other option parts. Chg Ref Des for ITEM 118 to RN1 & RN2. Delete C196(ITEM23), Chg C195 p art Started adding caps, added part for T1-T6 transformers, added U19 mic preamp part, updated part info for U22 audio amp.Chg U22 part type, T1 part type (rem T2-6). Delete U72, U75, U77, U81- U83. Add U26-U30,U32 instead. Chg C155's type. Add C1 67, C168. Add C41, C122, C169, C170, C172, C177. Chg C27 type. Chg J13&J14's type. Added R165, R166, R167, R168, R164.Added D10. Chg U17 from buffer type to DAC part. Chg U12 from TDA8941 to TDA8943 type. Deleted: C153, C206, Q1-7, Q10-12, R42 -43,R119, R127-130, R132, R150, R152, R154, R159. C236, C237, C238. Chg value: R10, R126, R104, R46-47. Chg C44's part (from ITEM#5 to ITEM#24). Chg part number of ITEM#21. Chg F2, J9, K1, VR3, VR4's part. Chg R10, R74, R158's va lues. Delete C45, C158, C177, L8, L9, Q1, R75, R82, R92, R96, R97, R126, R169, R170. Add J26, J29, P1, Z4-Z9.Updated missing package info on some parts. Chg package/part for ITEMs 45-47, 51, 52, 57 to be Surface Mount. Delete ITEM56 ( J1) - was 0 quantity anyway. Added P2 (ITEM76).Add C45 (ITEM26) & C158 (ITEM25). Added J1&J20 as ITEM56 Added Q1 as ITEM77. Added R92(ITEM92). Add R38 as ITEM98 Page 1 of 13 AISD CPU Board Parts List.xls Printed on 1/27/2005 4:32 PM Rev (15) 04/14/03Rev (16) 04/28/03Rev (17) 04/30/03Rev (18) 07/17/03Rev (19) 08/11/03Rev (20) 09/17/03Rev (21) 09/25/03Rev (22) 09/26/03Rev (23) 10/24/03Rev (24) 11/4/03Rev (25) 11/10/04Rev (26) 11/24/04 Changed qty items: 137/-1, 83/-1(R84), 28/+1(C205), 24/+1(C203), 79/+1(R211), 25/-1, 26/-1, 45/-1(J8), 81/+1(R108), 9/+1(C168). Added items 73(PF14), 162 (R84), 163(R212,R214).Changed AVX Resistors to Calchip.Corrected part num: Item 31 (alternate), 119 (alternate), 55. Added items 28, 35, 58, 64, 77, 137, 160, 72, 29, 4. Added C200 to item 22. Added D13, D14 to item 31. Changed the following item/qty: 24/+3, 116/-1, 60/-1, 80/+5, 81/-6, 82/-3, 84/-1.Chg'd file name to VDR_Computer_BOM_RevXX.xlsChg part number for ITEM55 (J9). Chg quantity for ITEM54 (because parts already ordered, now ready to build). Moved ITEMS161 - 177 from this BOM to VDR_Chassis_BOM_Rev01.xlsChanged item 126 to MAX6390XS29D4-T. Copied existing version to -502 and created AIS only version as -501. Item 98: changed tolerance. Item 45: reduced qty by 1. Changed items: 22/-2, 24/+1, 12/+2, 90/-1 Added Item 99. Changed ite m 21 from 39pf to 36pf.Item 82 :increased qty by 2. Item83: increased qty by 12. Item 84: increased qty by 2. Changed the following item/qty: 6/-2, 13/-2, 32/-1, 66/-1, 69/-1, 91/-1, 92/-1, 93/-1, 94/-2, 140/-1, 145/-1 , 8/+1, 20/+1, 22/+3, 90/+1, 85/+8, 86/-8. Added items 147, 148, 27, 74, 95, 98, 34, 36, 37. Changed item 32 to On Semi MBRD835L.Deleted R91 from item 81, reduced qty by 1. Added R91 to item 80, increased qty by 1. Changed items: 83/+2, 84/-1. Added item 11.Correction: ITEM110 part should be from TI, not Phillips, since TI pattern was used on PCB. Correct part number for ITEM166 (f rom 9542 to 9543) Changed quantity for ITEM 54 & ITEM167 (in order to test). Chg part for ITEM 173 & ITEM176 from 6 to 3 terminals. Clean-up ex traneous text fro m quantity parts and Authorized Sub Part columns.Item 65 cha…

Text truncated - open the document above for the full version.

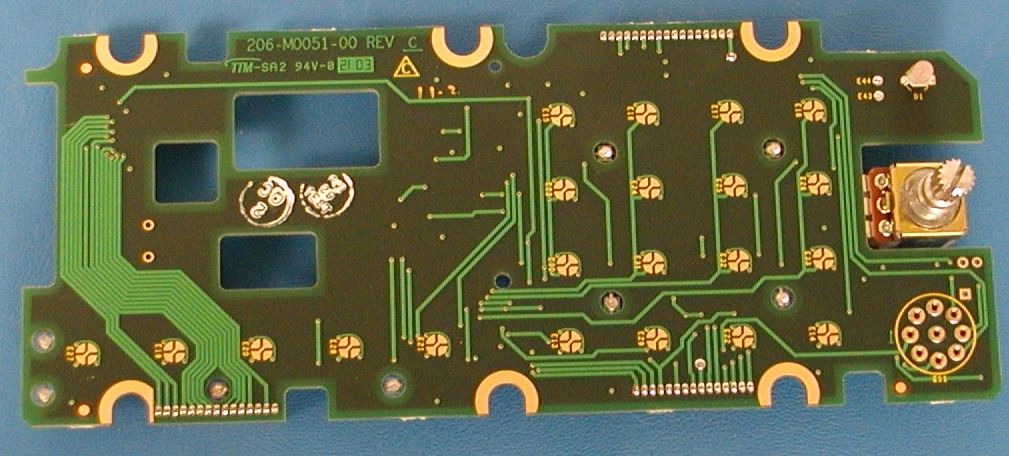

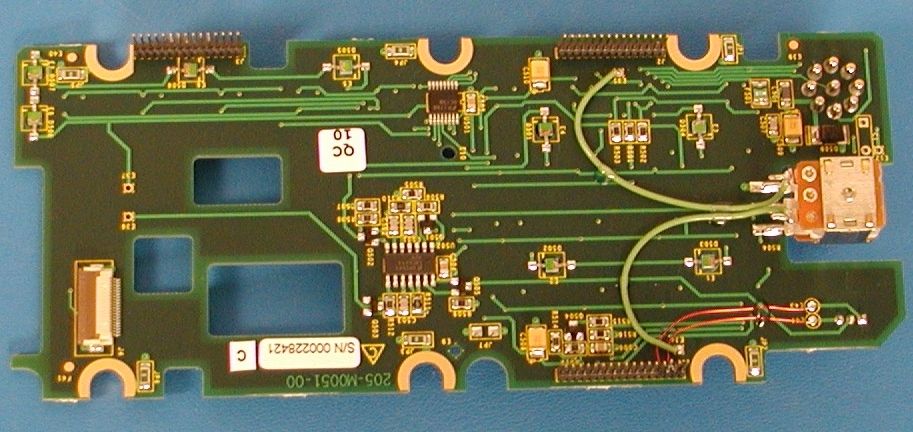

BILL OF MATERIAL DISPLAY PARENT ITEM: 205M005100 REV: *H I I I DEM ISS DSGN DRAWING PWA,UAIS DISPLAY BD EFFECT: UM T C S CTL CTL SRCE SIZE/NBR CHGORD: EA 1 S 2 1 1 PB 205-M0051-00 MFG NAME: L3AR MFG PART: 205-M0051-00 RECORDS: 38 ----(A)------- ---(B)------ (C)----------------------(D)-(E)-----(F)-(G)(H)(I FIND FIND COMPONENT Q C C M NO TO NO ITEM NUMBER ITEM DESCRIPTION T QUANTITY UM T C B 001 - 206M005100 PWB, UAIS DISPLAY BOARD 1 1 EA 1 B 002 - 2369800335 CONT,SKT,.025" SQ. PIN 1 9 EA 1 B 004 - 2769800112 WIRE,#26,STRD,GRN,600V 1 .5 FT 1 B 005 - 0601100019 EPK 0151 PART A & B 3 0 KT 1 B 006 - 2760200112 WIRE,MAGNET,#32,CLASS130 3 0 LB 1 B C501 - C503 3969822009 CAP,NPO,220PF,100V,10% 1 3 EA 1 B C504 - C506 3961810002 CAP,F,CER,25V,.1UF,10%, 1 3 EA 1 - B C507 - 3969822009 CAP,NPO,220PF,100V,10% 1 1 EA 1 B C508 - C510 3963610004 CAP,10UF,16V,TANT 1 3 EA 1 B D001 - 1379800151 LED,BI-COLOR,RD/GRN 1 1 EA 1 B D501 - D508 1379800149 IND,LED,GRN,SMT 1 8 EA 1 B D509 - 0889800163 DIO,SUPRSR,10V,SMT 1 1 EA 1 B F501 - 1209800107 FUSE,PTC,100MA 1 1 EA 1 B J001 - 0639802111 CONN,HDR,17C,.050" 1 1 EA 1 B J002 - J003 0639802110 CONN,HDR,15C,.050" 1 2 EA 1 B J004 - 0639802134 CONN,FPC,20C,SMT 1 1 EA 1 B L501 - 0559800264 COIL,.18UH,SMT,1206 1 1 EA 1 B Q501 - Q503 2631622220 XSTR,NPN,SI,SINGLE,40VCE, 1 3 EA 1 + B Q504 - 2631600252 XSTR,PNP,SI,60VCE,225MW, 1 1 EA 1 + B Q505 - 2631622220 XSTR,NPN,SI,SINGLE,40VCE, 1 1 EA 1 + B R501 - R503 6912110001 RES,F,TF,10K,1%,.1W,100 1 3 EA 1 B R504 - 0180002003 POT,VOLUME,AUDIO TAPER 1 1 EA 1 B R505 - 6912113009 RES,130 OHM,SMT 1 1 EA 1 B R506 - 6912110000 RES,1K 1 1 EA 1 B R507 - 6912113009 RES,130 OHM,SMT 1 1 EA 1 B R508 - 6912110000 RES,1K 1 1 EA 1 B R509 - 6912113009 RES,130 OHM,SMT 1 1 EA 1 B R510 - 6912118201 RES,18.2K,SMT 1 1 EA 1 B R511 - 6912106819 RES,68.1 OHM 1 1 EA 1 B R512 - 6912110000 RES,1K 1 1 EA 1 B R513 - R514 6912147500 RES,4.75K 1 2 EA 1 B R515 - 6912102219 RES,22.1 OHM 1 1 EA 1 B R516 - 6912147509 RES,475 OHM 1 1 EA 1 B U501 - 0469702858 IC,3 TO 8 LINE DCDR,SMT 1 1 EA 1 B U502 - 0469702856 IC,OP-AMP,QUAD,SMT 1 1 EA 1 B JP001 - JP006 6923800001 RES,JUMPER,1206,ZERO OHM, 1 6 EA 1 B REF001 - 905M005101 SCHM,PWA,UAIS DISPLAY BD 2 0 EA 4 M

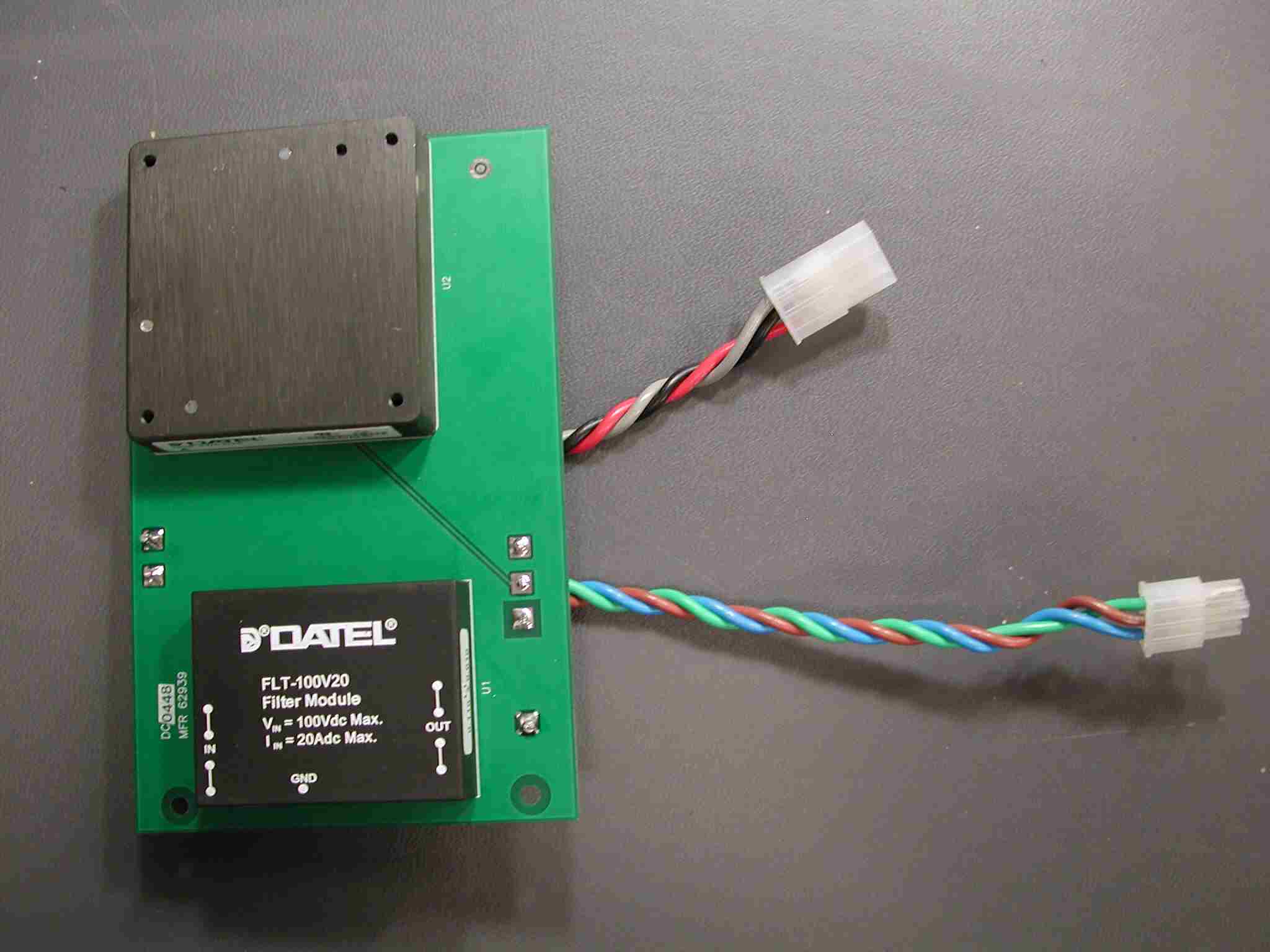

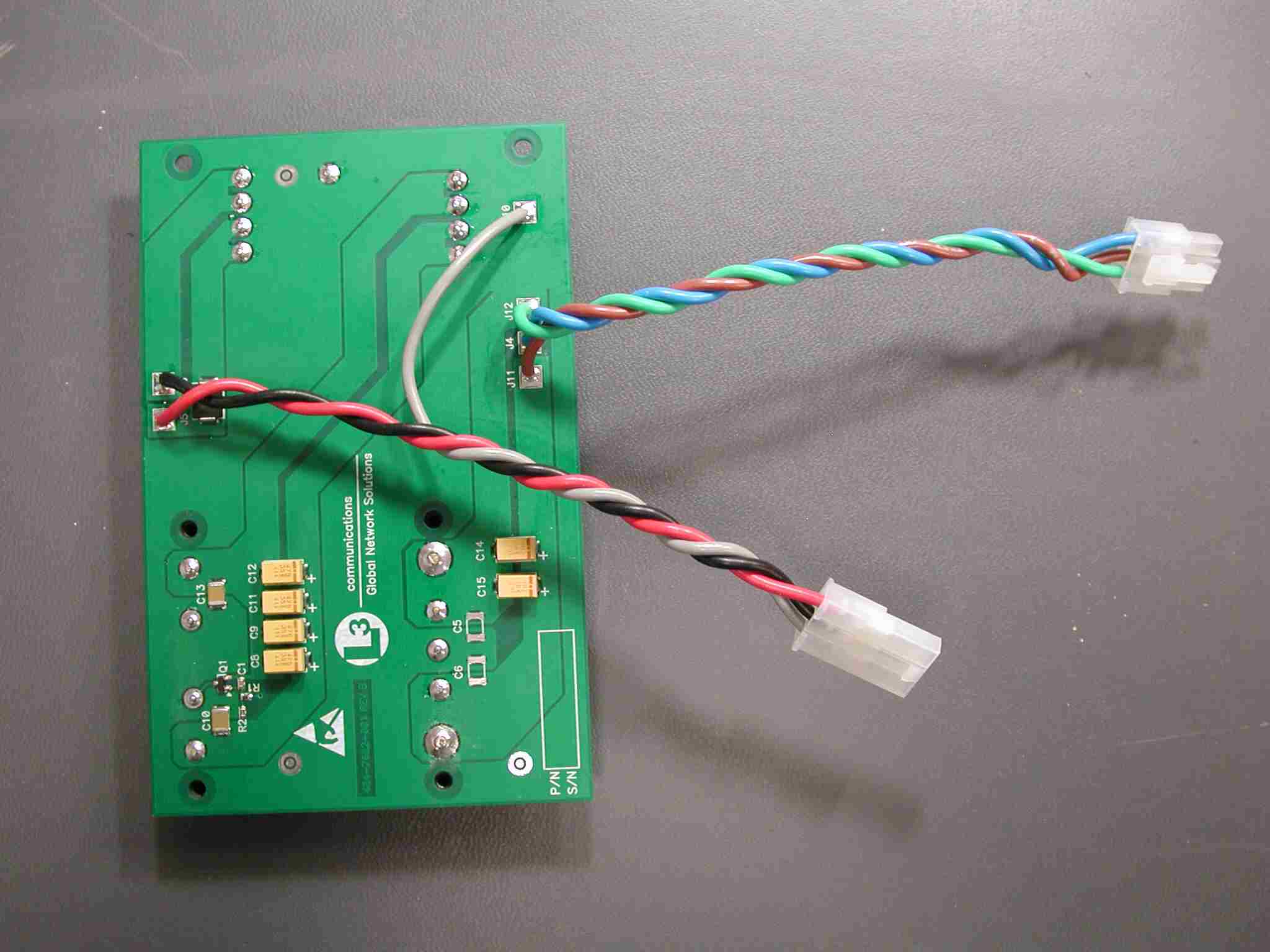

AISD PS Board Parts List.xls Printed on 1/27/2005 4:33 PM L Rev # & Dat e Summary of Changes Rev (0) 03/19/2003 Original Draft Rev (1) 05/01/2003 Removed from Chassis BOM. Added missing components. Rev (2) 10/29/2003 added relay, diode, item 6 and item 9 Rev (3) 11/07/2003 ITEM 20/+1, 21/+1, 40/+1 Rev (4) 01/20/2004 Quantity chg: Item 50 Rev (5) 11/10/2004 Deleted R3, Q2. Deleted item 15, 30, 7, 8, 9, 20, 21, 35. Added items 16, 17, 18, 31, 32. Change qty item 6/+1, 51/-1 460-7602-501 PARTS LIST Revision 5 01/27/05 Item Ref Des Description Qty Package Manufacturer Part Number Authorized Sub Part(s) / Mfgr. 5 C1 CAP, 0.01uF 1 0603 AVX 0603ZC103KAT*A 6 C10, C13 CAP, 0.01uF, 1812, 200V 2 1812 t.b.d. t.b.d 78 CAP, 47uF, 50V 0 SMT Panasonic EEVFK1H470XP 9 C3, C4 CAP, 4700pF, 1812, 200V 0 1812 t.b.d. t.b.d 16 C8, C9, C11, C12 Cap 47 uF 4 Kemet T494X476K035AS 17 C14, C15 CAP, 100 uF, 16V, Low ESR, TANTA 2 7343H Kemet T494X107M016AS 18 D1 Diode, Passivated Rectifier, 5A 1 SMC Diodes Inc. S5BC-13 Digikey #S5BCDICT-ND 31 U1 Power Su pp l y 1 Datel UCP-12/5-D2 4 32 U2 Power Su pp l y Filter 1 Datel FLT-100V20 Page 1 of 2 AISD PS Board Parts List.xls Printed on 1/27/2005 4:33 PM 40 Q1 Transistor, NPN 1 SOT-23 Fairchild Semi MMBT2222A 50 R1 RES, 100, 0.06W, 5% 1 0603 AVX CR10-101JT 51 R2 RES, 10.0K, 0.06W, 5% 1 0603 AVX CR10-103JT 190 Baseboard 1 GNS 404-7602-001 191 Schematic Ref GNS 600-7602 Page 2 of 2

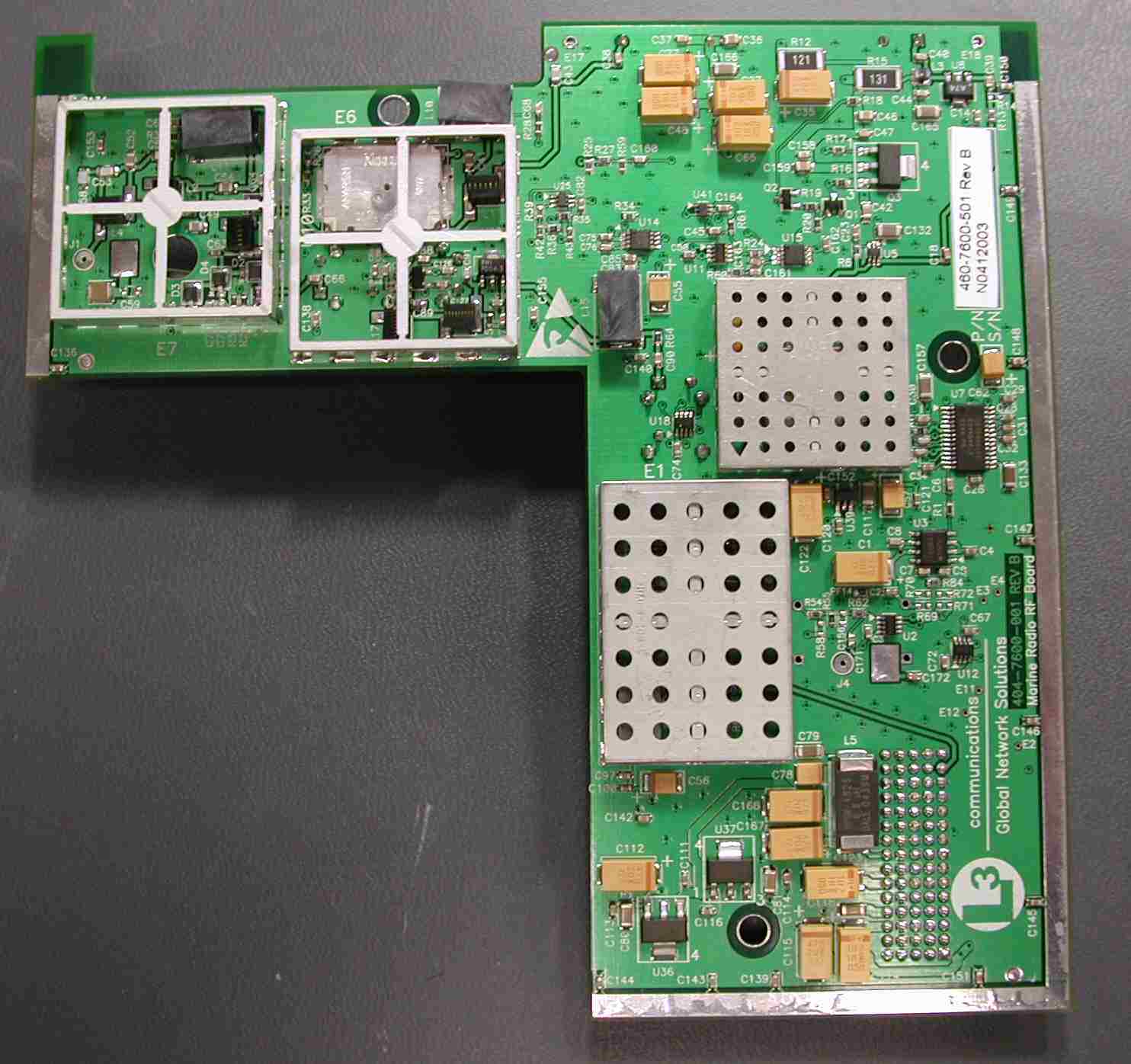

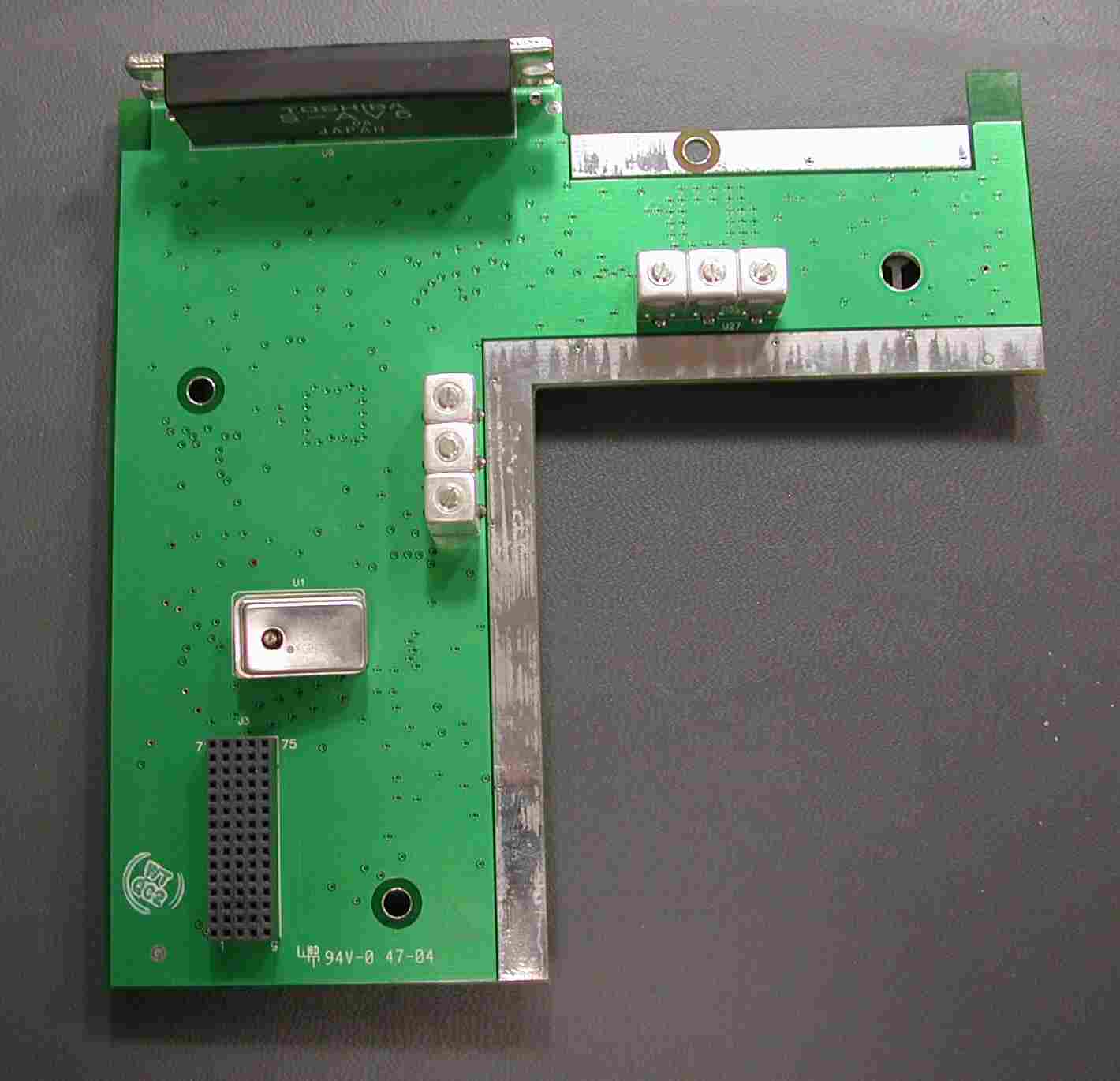

AISD RF Board Parts List.xls Printed on 1/27/2005 4:31 PM Rev # & Dat e Rev (0) 02/26/2003Rev (1) 2/27/03Rev (2) 2/28/03 Added Changes to coils and item 23 from K. Vetter 3/3/03 Rev (3) 3/4/03 Changed C63 from ITEM8 to 21. Changed ITEM12's Part. Moved L6, L10, L11 to ITEM63 Rev (4) 03/28/03Rev (5) 04/07/03Rev (6) 04/16/03Rev (7) 04/30/03Rev (8) 05/06/03Rev (9) 10/14/03Rev (10) 10/28/03Rev (11) 11/03/03Rev (12) 01/20/04Rev (13) 02/09/04Rev (14) 10/11/04Rev (15) 11/10/04 Corrected part no. items:5, 6, 7, 9, 20, 38, 67, 83, 85, 86, 90, 91. Changed item 80, 96, 3/-2, 10/-4, 8/-1, 83/-2, 86/-2, 11/ -2, 121/-1, 141/-1 qty and deleted item 97, 119. Added items 52 to 55.Lowered second stage gain back to Rev 12, and other minor changes. Changed items 5,6,7,8,10,12 13, 66, 86. Added items 19, 20 , 82, 97, 98, 99, 106,112, 119High gain RF PCB. Added some missing capacitor part numbers. Changed item 5, 8, 7,10, 66, 96, 119Moved R25 from ITEM87 to ITEM101. Chg'd part number for ITEM10 & ITEM11. Delete ITEM147 & move U27 to ITEM146 & correct part n um. Chg part number for ITEM141. Add ITEMS 160 & 161.Correct ITEM11 part num. Added C120, C121, C134-C151, C153 - C155 to ITEM3. Add C152 to ITEM12. Add C122-C133 to ITEM10. Ad d ITEM148 (U29)Completed part num for ITEM148. Added ITEM190&191 for reference. Updated LUD table. Deleted text for ITEMs no longer used (ev en by 'do not install' parts) Moved ITEM162 to VDR_Chassis_BOM_Rev01.xlsCorrected C122: moved from ITEM10 to ITEM24. Corrected Ref Des for ITEM48 (from E16 to E18). Added missing ITEMs 49 & 50 (E16 ). Item 150: changed manufacturer Part Number to TI's number. Item 127: Chg part numberMoved L17 & L20 from item 63 to item 64. Changed item 81 to 120 ohm 1% 2512, one watt reistor. Changed items:3/-3; 6/-1;9/+2; 10/-8; 11/-1; 13/-1; 17/-1; 16/+1;18/-1; 23/-1; 24/-3; 27/+4; 31/-1; 39/+1; 40/-3; 46/-1; 47/-1; 62/-2; 63/-1; 64/-2; 82/-1; 83/-2; 85/+1; 86/-1; 88/-1; 89/-2; 91/-3; 93/-4; 94/-2; 95/-1; 97/-1; 98/-1; 99/-1; 100/-1; 101/-1; 102/-4. Changed item value 5/5.1pF; 9/1500pF; 10/NPO; 11/5600 pF; 12/50V-0603; 17/20pF-0603; 45/upp9401; 96/820 ohm. New items; 25 through 43, and 103 through 119.Changed items: 120/-1; 122/-1; 123/-2; 124/-1; 129/-1; 130/-1; 131/-1; 132/-1; 135/-1; 145/-2; 146/TT6724D1-159M; 147/-1. New items; 149 through 152.Changed items: 16/-1, 23/+2, 27/+1, 39/+5, 46/-1, 49/-1, 50/-1, 83/+3; New items; 44, 67Changed item:38, 44. New item: 18 Summary of Changes Made from Mar_Rad_RF_2_23_03.schOriginal DraftAdded Manufacturers, part nos., and descriptions, added gaps in item no. for future additions.Corrected ITEM127 part num. ITEM12 changed to 0805. Delete R53 (ITEM97). Delete ITEM50 (coax points). Delete ITEM 60 & chg L1 to ITEM65. Chg part of L2 (ITEM61). Chg description to read just "inductor". Added ITEMS 46 - 48. Page 1 of 10 AISD RF Board Parts List.xls Printed on 1/27/2005 4:31 PM 460-7600-501 PARTS LIST Revision 15 01/27/05 Item Ref Des Description Qty Package Manufacturer Part Number Authorized Sub Part(s) / Mfgr. 1 C31, C32 CAP, 0.001uF , 10V, X7R, 10% 2 0603 AVX 0603ZC102KAT*A Cal-Chip GMC10X7R102K10NT 23 C2, C3, C4, C10, C11, C14, C26, CAP, 0.1uF, 10V, X7R , 10% 54 0603 AVX 0603ZC104KAT*A C28, C29, C30, C34, Cal-Chip GMC10X7R104K10NT C45, C50, C67, C72, C74, C75, C82,C84, C85, C93, C94, C99, C100, C111, C113, C114, C116, C120, C121, C134, C135,C136, C137, C138, C139,C140, C141, C142, C143, C144,C145, C146, C147, C148, C149,C150, C151, C153, C154, C155,C161, C162, C164 45 C91 CAP, 2.7pF, 50V, NPO, 5% 1 0603 Cal-Chip GMC10CG2R7J50NT 6 C108 CAP, 5.6pF, 50V, NPO, 5% 1 0603 Cal-Chip GMC10CG5R6J50NT 7 C89 CAP, 18pF, 50V, NPO, 10% 1 0603 AVX 06035A180KAT*A Cal-Chip GMC10CG180K50NT 8 C15, C16, C19, C25, C33, C61 CAP, 270pF, 50V, NPO, 10% 12 0603 AVX 06035A271KAT*A C76, C92, C103, C107 Cal-Chip GMC10CG271J50NT C110, C160 9 C17 CAP, 1500pF, 50V, X7R, 10% 1 0805 AVX 06035C152KAT*A Cal-Chip GMC10X7R152K50NT 10 C5, C6, C7, C8, C9, C13, C18, CAP, 1200pF, 50V, X7R, 10% 33 0603 AVX 06035C122KAT*A C24, C37, C38, C39, C40, C44, Cal-Chip GMC10X7R122K50NT C47,C66, C68, C69C71, C73, C83, C86, C88, C95, C97, C102, C105, C126, C127, Page 2 of 10 AISD RF Board Parts List.xls Printed on 1/27/2005 4:31 PM 460-7600-501 PARTS LIST Revision 15 01/27/05 Item Ref Des Description Qty Package Manufacturer Part Number Authorized Sub Part(s) / Mfgr. C130, C131, C158C87, C90 1112 C23, C70, C152, C163 CAP, 0.01uF, 50V, X7R, 10% 4 0603 AVX 06035C103KAT*A Cal-Chip GMC10X7R103K50NT 13 C106 CAP, 47pF, 50V, NPO, 10% 1 0603 Cal-Chip GMC10CG470J50NT 141516 C41 CAP, 18pF, 200V, NPO, 10% 1 0805 AVX 08052A180KAT*A Cal-Chip GMC21CG180J200NT 17 C64 CAP, 20pF, 200V, NPO, 10% 1 0603 Cal-Chip GMC10CG200J200NT 18 C63 CAP, 18pF, 200V, NPO, 10% 1 0603 Cal-Chip GMC10CG180J200NT 19 C169 CAP, 1pF, 200V, NPO, 10% 1 0603 Cal-Chip GMC10CG1R0J200NT 20 C170 CAP, 3.9pF , 200V, NPO, 10% 1 0603 Cal-Chip GMC10CG3R9J200NT 212223 C1, C12, C35, C112, C115, C122, Cap, 47uF,16V, Tantalum, 20% 8 7343 Kemet T491D476M016AS C167, C168 Cal-Chip TCMIC476DT 242527 C55, C56, C57, C62, C78 CAP, 6.8 uF, 16V, TANTALUM 5 3528 Kemet T491B685M016AS Cal-Chip TCMIC685BT Page 3 of 10 AISD RF Board Parts List.xls Printed on 1/27/2005 4:31 PM 460-7600-501 PARTS LIST Revision 15 01/27/05 Item Ref Des Description Qty Package Manufacturer Part Number Authorized Sub Part(s) / Mfgr. 28 C36, C42, C46, C159 CAP, 0.1uF, 25V, X7R 4 0805 Cal-Chip GMC21X7R104K25NT 29303132 C60 CAP, 0.01uF, 630V, X7R, 10% 1 1210 CAL CHIP CHV1210N1K0103KXT 33 C43, C58 CAP, 15pF, 500V, NPO, 10% 2 0805 Cal-Chip CHV0805N500150JCT 34 C53 CAP, 2.2pF, 500V, NPO, 10% 1 0805 Cal-Chip CHV0805N5002R2CCT 35 C52 CAP, 33pF, 500V, NPO, 10% 1 0805 Cal-Chip CHV0805N500330JCT 36 C51 CAP, 7.5pF, 500V, NPO, 10% 1 0805 Cal-Chip CHV0805N5007R5CCT 37 C49 CAP, 12pF, 500V, NPO, 10% 1 0805 Cal-Chip CHV0805N500120JCT 38 C54 CAP, 120pF, 200V, NPO, 10% 1 0805 Cal-Chip GMC21CG121K200NT 39 C27, C48, C65, C77, C119, C123 CAP, 100 uF, 16V, Low ESR, TANTA L 6 7343H Kemet T4…

Text truncated - open the document above for the full version.

Serial No. GM24075f FCC ID: IB2AISD1 FCC TEST REPORT FOR THE L3 COMMUNICATIONS AVIATION RECORDERS CORPORATION AUTOMATIC IDENTIFICATION SYSTEM Prepared for: L3 Communications Aviation Recorders Corp. 6000 Fruitville Road Sarasota, FL 34232 USA Submitted by: Green Mountain Electromagnetics, Inc. (802) 388-3390 Fax: (802) 388-6279 E-mail: [email protected] 219 Blake Roy Road • Middlebury, Vermont 05753 Copyright: November 22, 2004 This report shall not be reproduced, except in full, without the written approval of GME. Accredited Cert 898.01 Serial No. GM24075f FCC ID: IB2AISD1 2 of 31 L3 Communications Aviation Recorders Corporation FCC Tests By Green Mountain Electromagnetics, Inc. Middlebury, Vermont Unit: Automatic Identification System (AIS) Evaluated: November 8 through 12, 2004 I. Applicable Standards: The unit described in this report was measured for certification with the Code of Federal Regulations Chapter 47 – "Telecommunication, Part 2 – Frequency Allocations and Radio Treaty Matters: General Rules and Regulations, Subpart J – Equipment Authorization Procedures (2002)." Measurements required were per paragraphs 2.1046 RF Power Output, 2.1047 Modulation Characteristics, 2.1049 Occupied Bandwidth, 2.1051 Spurious Emissions at Antenna Terminals, 2.1053 Field Strength of Spurious Radiation, 2.1055 Frequency Stability, and 2.1091 Radiofrequency Radiation Exposure Evaluation: Mobile Devices. The AIS was also measured for verification of compliance with "CFR47 – Telecommunication, Part 80 – Stations in the Maritime Services, Subpart E: General Technical Standards (2002)." Paragraphs used were 80.205 Bandwidths, 80.209 Transmitter Frequency Tolerances, 80.211 Emission Limitations, 80.213 Modulation Requirements, 80.215 Transmitter Power, and 80.217 Suppression of Interference Aboard Ships. Additionally, the AIS was measured for verification of compliance with "CFR47, Part 15 – Radio Frequency Devices, Subpart B: Unintentional Radiators, Paragraph 15.109, Radiated Emissions Limits (2002)." Measurement procedures were in accordance with ANSI C63.4, "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (2000)," IEC 61993-2, "Maritime Navigation and Radiocommunication Equipment and Systems – Automatic Identification Systems (AIS), Part 2: Class A Shipborne Equipment of the Universal AIS – Operational and Performance Requirements, Methods of Test and Required Test Results (December 2001)," and FCC OET Bulletin 65, "Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields (August 1997)." Serial No. GM24075f FCC ID: IB2AISD1 3 of 31 II. Unit Tested: The L3 Communications Aviation Recorders Corporation, Automatic Identification System provides continuous signal and data transmission for ship identification. The AIS uses 24-VDC power, has TDMA/DSC transmitters and TDMA/GPS/DSC receivers. It consists of the two-piece metal enclosure with connector hardware, the transmit/receive circuits, the micro-processor/data- storage electronics, and the antenna interface. The table below describes the unit tested to determine compliance with the standards: Model/P/NManufacturerH/W/D in cmSerial Number AISD1-000-00L3 Communications8/15/20104 The highest frequency investigated is ten times the AIS highest fundamental (1.63 GHz). IEC 61993-2, Paragraph 13 masks are used to demonstrate modulation characteristics. III. Measurement Location: The GME laboratory and Open Area Test Site (OATS) are located at 219 Blake Roy Road, Middlebury, VT. The OATS is a 3-meter site complete with antenna positioner, ground plane and motorized turntable. The OATS is constructed in accordance with ANSI C63.7-1992 and complies with the requirements for radiated emissions testing in ANSI C63.4-2000 and CISPR 16-1993. The electromagnetic laboratory is constructed in accordance with CE immunity standards an…
