ICUVGA-GW817DVGA CARD

1 Congratulations and thank you for selecting this graphics card — one of the finest 2D and 3D graphics and video accelerators available on the market today. Designed for personal computers featuring an advanced PCI or PCI/AGP bus architecture, and bundled with accelerated drivers and powerful support software, the graphics card is highly optimized for 32-bit Windows and Direct3D games. An intelligent Plug and Play design ensures problem- free installation and use, with advanced support for the latest VESA standards (VBE), display power management (DPMS), and Plug and Play monitors (DDC), and compatibility with all major 3D APIs. System Requirements The minimum system requirements for installing the graphics card are as follows:
a personal computer with a Pentium, Pentium II or compatible microprocessor and at least 8MB of memory
a VGA analog monitor supporting a minimum 60Hz vertical refresh rate
a free AGP bus slot
a CD-ROM drive Features
Enhanced 64-bit graphics engine
Integrated 230MHz RAMDAC
Enhanced Streams Processor TM technology for hardware-assisted high-quality video playback of two video streams against a graphics background
Supports simultaneous display of graphics and video of different color depths
110MHz Streams Processor operation permits video resolution support of up to 1280x1024x256 @60Hz refresh
133MHz Baseline AGP bus (Trio3D-2X AGP)
Bus Mastering
Resolution support of up to 1152x864x16M, 1600x1200x64K
100MHz Memory Clock support functionality for high performance, support SGRAM block write
BIOS support for VESA Display Power Management Signaling (DPMS)monitor power savings modes, DDC monitor communications support Software Support
Windows 95
Windows 98
Windows NT 1 Overview 2 Before You Begin Before you process further, make sure your computer system meets the peripheral requirements and switch to the standard VGA display driver. Prepare Your Computer for Installation Prior to working on your computer, make sure the power of the computer and any related equipment is turned off. Select a Vacant Expansion PCI (AGP) Slot Most AGP (PCI) bus computers have a combination of AGP (PCI) and ISA expansion slots. AGP (PCI) are usually made with plastic of a contrasting brown color (beige color), and are shorter than other slots in your computer. Your system manual should identify the AGP (PCI) slots. Plugging your Graphic card into a non-AGP (PCI) slot could damage the card, your computer, or both. 2 Hardware Installation Static electricity can severely damage electronic parts. Take these precautions:
Before touching any electronic parts, drain the static electricity from your body. You can do this by touching the internal metal frame of your computer while it's unplugged.
Don't remove a card from the anti-static container it shipped in until you're ready to install it. When you remove a card from your computer, place it back in its container.
Don't let your clothes touch any electronic parts.
When handling a card, hold it by its edges, and avoid touching its circuitry. CAUTION ! Back of computer ISA slot PCI slot AGP slot AGP vs. PCI vs. ISA expansion slots 3 Insert your Graphic Card Remove the cover for the slot you intend to use and save the screw for the mounting bracket. Then, pick up the Graphic card and position it over the expansion slot you've chosen. Push the card with firmly and evenly until it's fully seated in the slot. Replace the screw to secure the bracket of the Graphic card to the computer chassis. Connect the monitor Plug your monitor cable into the monitor connector on your Graphic card. Make sure the other end of the monitor cable is properly connected to your monitor. 2 Hardware Installation PCI expansion slot Graphics card Bracket screw Motherboard Monitor connector (blue) AGP expansion slot 4 Microsoft Windows 95/98 Drivers
Before installing the Display driver, make sure your Windows 95 is installed in VGA mode and work fine.
Please install the DirectX before you want to play the MPEG Movie Player.
The pictures as below are only for reference under Windows 95. Setup VGA Mode Click the right mouse button anywhere on the Windows 95/98 desktop and select Properties from the pop-up menu that appears on screen. Select Settings | Change Display Ty pe (If you use the OSR2, please select Settings│Advanced Properties. If you use the Windows 98, please select Settings│Advanced) and then click the [Change] button for Adapter Type. When the Select Device dialog box appears on the screen, please select [Standard display types] from the manufactures and select Standard Display Adapter (VGA) from the Models then click OK button. (Figure 1) Setup Driver 1. Turn on your computer and start Windows 95/98. 2. Insert the Driver CD into your CD-ROM drive. 3. Click the Start button on the task bar. Select Run and type D:\Cdsetup.exe [Enter] in the Run dialog box. (D is the letter of your CD-ROM drive) 4. The PowerStrip Setup Wizard dialog box will appear on the screen, please click Next button to begin the installation. (Figure 2) Figure 1 Figure 2 5. Choose the Select all for removal (files will not be deleted) check box as Figure 3 and then click Next button to continue the installation. 6. Finally, click Finish button as Figure 4 to complete the PowerStrip Setup. 3 Installation 3 Installation 5 Figure 3 Figure 4 7. At the same time during the installation, the driver will also choose the correct path and VGA card automatically so that you can easy to finish the installation. Click OK button. (Figure 5) In Advanced Display Properties dialog box, click Close button. 8. If the driver doesn't choose the correct path and VGA card automatically, please click the right mouse button anywhere on the Windows 95/98 desktop and select Properties from the pop-up menu that appears on screen. In Display Properties, select Settings│Change Display Type (If you use the OSR2 please select Settings│Advanced Properties.) and then click the Change…

Text truncated - open the document above for the full version.

S3 Trio3D/2X (LC2X) FCC ID : ICUVGA-GW817D Multimedia VGA Controller Installation Guide Version 1.0 12/98 Trademark Acknowledgments Microsoft is a trademark of Microsoft Corporation. PowerStrip is a trademark of Entech International Corporation. All other brand and product names are trademarks or registered trademarks of their respective companies. MMMVS022-10E6RN FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Plug the computer into a different outlet so that the two devices are on different branch circuits. . If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. Warning: Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CSA Notice: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Table of Contents Chapter 1 Overview ..................................................... 1 Chapter 2 Hardware Installation ............................... 2 Chapter 3 Installation Microsoft Windows 95/98 Drivers ..................... 4 Microsoft Windows NT4.0 Drivers .................... 6 Windows 95/98/NT Display Properties.............. 6 Chapter 4 PowerStrip for Windows 95/98/NT4.0 ...... 7 Chapter 5 Technical Information ............................... 8 Chapter 6 Trouble Shooting ....................................... 9

S3 Trio 3D/2X Block Diagram FCC ID : MODEL NO. : MANUFACTORY: PCB No: Video Memory VGA Connector Address BIOS AGP-BUS Crystal 14.318MHz S3 Trio 3D Data Comman d ICUVGA-GW817D MIRAGE 368 GAINWARD CO., LT D 9802-30

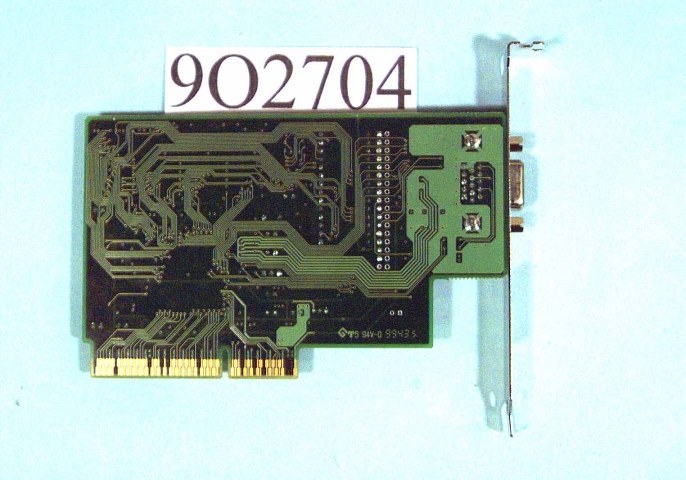

FCC ID : ICUVGA-GW817DFront side of EUT Number 1 9o2704-1.JPG FCC ID : ICUVGA-GW817DRear side of EUT Number 2 9o2704-2.JPG
