nVIDIA Series VANTA-LT(V03-12) (RIVA TNT/TNT2/TNT2 M64/TNT2 ULTRA and VANTA) Multimedia VGA Controller Installation Guide Version 3.0 06/99 FCC ID : ICUVGA-GWV03 Trademark Acknowledgments Microsoft is a trademark of Microsoft Corporation. All other brand and product names are trademarks or registered trademarks of their respective companies. GAINWARD CO., LTD. MMMVP005-30E6RN FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Notice : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Plug the computer into a different outlet so that the two devices are on different branch circuits. . If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. Wa r ni n g : Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CSA Not ice : This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Attention: Please be advised that the Federal Communications Commission certifies this Multimedia VGA Controller for the FCC ID:ICUVGA-GWV03 only in VANTA model with VGA port (Monitor connector) only. The user should disregard any information about other Model and connectors in this user's manual Table of Contents Chapter 1 Overview ........................................................ 1 Chapter 2 Hardware Installation .................................. 3 Chapter 3 Software Installation .................................... 5 Chapter 4 Display Properties for Windows ................... 6 Chapter 5 TV Output for Windows (Option)................. 9 Chapter 6 Expertool for Windows ............................... 10 Chapter 7 Technical Information................................ 13 Chapter 8 Trouble Shooting ........................................ 15

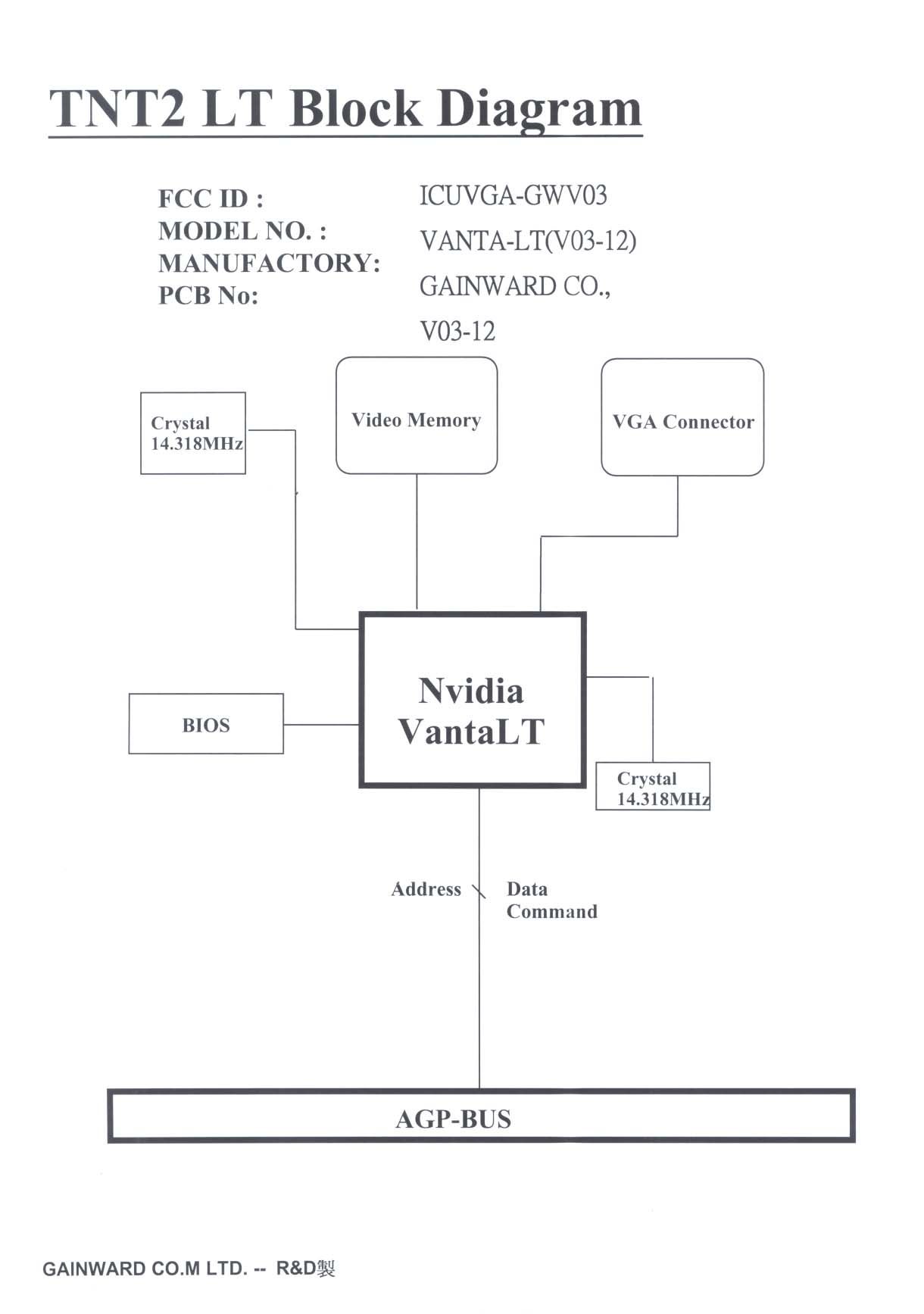

1 Congratulation on the purc hase of this VGA board! You are now the ow ner of a sta te- of -the-art video adapter that offers features and functionality equal to, and beyond any other in the VGA class. System Requirements The minimum system requirements for installing the graphics card are as follows: ! a personal computer with a Pentium, Pentium II or compatible microprocessor and at least 8MB of memory ! a VGA a nalog monitor s upporting a minimum 60Hz vertical refresh rate ! a free AGP bus slot ! a CD-ROM drive Features ! nVIDIA RIVA TNT/RIVA TNT2/VANTA TwiN-Texel 32-bit Graphics Engine. - 2 Texture-mapped, Lit Pixels per Clock - Single Pass Multi-te xture Re ndering ! 24-bit or 16-bit Z-buffer, 8-bit Stencil Buffer. ! High Performance 128-bit 2D/GUI/DirectDraw Acceleration. ! TextureBlend supports Multi-texturing, Bump-mapping, Texture-modulation, Light Maps, Reflection Maps, Detail Textures, Environmental Maps, Procedural Textures. - 32-bit ARGB Rendering with Destination Alpha - Point Sampled, Bilinear, Trilinear and 8-tap Anisotropic Filtering ! Per Pixel Perspective Correct Texture Mapping -Fog, Light, and Mip Mapping. ! Multiple Video Windows with Hardware Color Space Conversion and Filtering. ! DVD Sub-Picture Alpha-Blended Compositing. ! Video Acceleration for DirectShow MPEG-1, MPEG-2 and Indeo. ! Optimized Direct Frame Buffer (DFB) Access with Write-combining. ! Palette-DAC Pipeline Accelerates Full-Motion Video Playback, Sustaining Fast Frame Rates with High Quality Color Resolution. ! True Bilinear Filtering for Scaled Video, and Compensation for Filtering Losses with Edge E nha nce me nt Al gorithms. ! Back-end Hardware Video Scaling for Video Conferencing and Playback. LCD Features (Option) ! Support PanelLink digital interface for LCD monitor. ! LCD support VGA,SVGA,XGA,SXGA 18/24 TFT color monitors. ! LCD resolution ups to 1280x1024 and color depths up to 16 million. ! VESA EDID support for LCD type auto-detect. 1 Overview 2 RIVA TNT ! 128-bit Wide Frame Buffer Interface Supports up to 16MB SGRAM/SDRAM ! 250 MHz Palette-DAC Supports up to 1920x1200 @ 75Hz. ! Variable Length Burst DMA Bus Mastering for Data transfers over 450 MB/s Throughput. ! 66 MHz AGP clock rate and AGP 2X mode. ! 100% Hardware Triangle Setup Engine. RIVA TNT2/ TNT2 Ultra ! 128-bit Wide Frame Buffer Interface Supports up to 32MB SDRAM ! 300 MHz Palette-DAC Supports up to 2048x1536 @ 60Hz. ! Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput. ! 66 MHz AGP clock rate and AGP 4X/2X mode. ! 128-bit Graphics with over 2.4GB/s Throughput. ! RIVA TNT2 150MHz MCLK, Ultra 183MHz MCLK RIVA TNT2 M64 ! 64-bit Wide Frame Buffer Interface Supports up to 32 MB SDRAM ! 300 MHz Palette-DAC Supports up to 2048x1536 @ 60Hz ! Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput ! 66 MHz AGP clock rate and AGP 4X/2X mode ! 64-bit Graphics with over 1GB/s Throughput. Va n t a ! 64-bit Wide Frame Buffer Interface Supports up to 16MB SDRAM. ! 250 MHz Palette-DAC Supports up to 1280x1024 @ 85Hz. ! Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput. ! 66 MHz AGP clock rate and AGP 4X/2X mode. ! 64-bit Graphics with over 1GB/s Throughput. Software Support ! Microsoft Windows 95/98 ! Microsoft Windows NT4.0 ! Microsoft Windows 2000 (Option) ! DirectX ! OpenGL ICD 1 Overview 3 Before You Begin Before yo u process further, ma ke s ure yo ur co mp uter s yste m meets the peripheral requirements and switch to the standard VGA display driver. Prepare Your Computer for Installation Prior to working on your computer, make sure the power of the computer and any related equipment is turned off. Select a Vacant Expansion PCI (AGP) Slot Most AGP (PCI) bus computers have a combination of AGP (PCI) and ISA expansion slots. AGP (PCI) are usually made with plastic of a contrasting brown color (beige color), and are shorter than other slots in your computer. Your system manual should identify the AGP (PCI) slots. Plugging your Graphic card into a non-AGP (PCI) slot could damage the card, your computer, or both. 2 Hardware Installation Static electricity can severely damage electronic parts. Take these precautions: ! Before touching any electronic parts, drain the static electricity from your body. You can do this by touching the internal metal frame of your computer while it's unplugged. ! Don't remove a card from the anti-static container it shipped in until you're ready to install it. When you remove a card from your computer, place it back in its container. ! Don't let your clothes touch any electronic parts. ! When handling a card, hold it by its edges, and avoid touching its circuitry. CAUTION ! Back of computer ISA s lot PCI slot AGP slot AGP vs. PCI vs. ISA expansion slots 4 Insert your Graphic Card Remove the cover for the slot you intend to use and save the screw for the mounting bracket. Then, pick up the Graphic card and position it over the expansion slot you've chosen. Push the card with firmly and evenly until it's fully seated in the slot. Replace the screw to secure the bracket of the Graphic card to the computer chassis. Connect the monitor/LCD/TV Plug yo ur mo nitor/LCD/T V cable into the mo nitor/LCD/T V co nnector o n yo ur Grap hic card. Make sure the other end of the monitor/LCD/TV cable is properly connected to your mo nitor/LCD/TV. 2 Hardware Installation PCI e xpa ns io n slot Graphics card Bracket screw Motherboard Mo nitor co nne ctor (blue ) AG P e xpans io n slot DFP Host Receptacle Connector TV-O ut S-Vi de oTV-Out Composite 5 " Before installing the Display driver, make sure your Windows 95/98/NT is installed in VGA mode and work fine. " For Windows 95 system, please install the DirectX before you want to play the MPEG Movie Player. " To use an AGP graphics card with NT4.0, you may need to pre-install NT with Service Pack 3 (SP3) or latter version before installing the AGP card. " If you are running Windows NT4.0, p…

Text truncated - open the document above for the full version.

FCC ID : ICUVGA-GWV03FRONT SIDE OF EUT Number 1 061402-01.jpg FCC ID : ICUVGA-GWV03REAR SIDE OF EUT Number 2 061402-03.jpg
