S3 Savage4 FCC ID : ICUVGA-GW905C Multimedia VGA Controller Installation Guide Version 2.0 06/99 Trademark Acknowledgments Microsoft is a trademark of Microsoft Corporation. All other brand and product names are trademarks or registered trademarks of their respective companies. MMMVS023-20E6RA FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Plug the computer into a different outlet so that the two devices are on different branch circuits. . If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. Warning: Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CSA Notice: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Table of Contents Chapter 1 Overview ........................................................ 1 Chapter 2 Hardware Installation .................................. 3 Chapter 3 Software Installation..................................... 5 Chapter 4 Display Properties for Windows ................... 6 Chapter 5 Expertool for Windows ............................... 10 Chapter 6 Technical Information ................................ 13 Chapter 7 Trouble Shooting ........................................ 15

1 Congratulation on the purchase of your VGA board! You are now the owner of a state- of-the-art video adapter that offers features and functionality equal to, and beyond any other in the VGA class. System Requirements The minimum system requirements for installing the graphics card are as follows:
a personal computer with a Pentium, Pentium II or compatible microprocessor and at least 8MB of memory
a VGA analog monitor supporting a minimum 60Hz vertical refresh rate
a free AGP or PCI bus slot
a CD-ROM drive Features
128-bit S3 Savage4 3D/2D/Video Graphics Accelerator
8/16/32 MB SDRAM Display Memory
Full 2X/4X AGP @ 4X Speed & Bandwidth (4X AGP function is Savage4 chip dependent) (Only for AGP model)
Hardware DVD Motion Compensation Support for DVD playback
Integrated 300MHz RAMDAC with Gamma Correction
8M Triangles/second Floating Point Triangle Setup Engine
140M Pixels/sec Trilinear Fill Rate and Brightness, Hue, and Saturation Controls
Microsoft DX6.X & S3 S3TC Texture Compression
Single Cycle Trilinear Filtering
Sprite Anti-Aliasing, Reflection Mapping, Texture Morphing, Shadows, Procedural Textures and Atmospheric Effects
High Quality Up/Down Scalar and Maximum Resolution 1600x1200
Full Featured 2D Engine for Acceleration of BitBLT, Rectangle Fill, Panning/Scrolling and Hardware Cursor
Hardware Support for Individually scalable Dual Video Windows
60MHz VIP Video Port Allows HDTV Resolutions
Full Hardware and BIOS Support for VESA Timings and DDC
To execute the Savage4 with 4X AGP mode that was depended on the main board which can support the 4X AGP mode. It is automatic to detect the main board AGP mode and execute in 2X or 4X. 1 Overview 2 Software Support
Windows 9X
Windows NT
Windows DirectX
OpenGL ICD 1 Overview 3 Before You Begin Before you process further, make sure your computer system meets the peripheral requirements and switch to the standard VGA display driver. Prepare Your Computer for Installation Prior to working on your computer, make sure the power of the computer and any related equipment is turned off. Select a Vacant Expansion AGP (PCI) Slot Most AGP (PCI) bus computers have a combination of AGP (PCI) and ISA expansion slots. AGP (PCI) are usually made with plastic of a contrasting brown color (beige color), and are shorter than other slots in your computer. Your system manual should identify the AGP (PCI) slots. Plugging your Graphic card into a non-AGP (PCI) slot could damage the card, your computer, or both. 2 Hardware Installation Static electricity can severely damage electronic parts. Take these precautions:
Before touching any electronic parts, drain the static electricity from your body. You can do this by touching the internal metal frame of your computer while it's unplugged.
Don't remove a card from the anti-static container it shipped in until you're ready to install it. When you remove a card from your computer, place it back in its container.
Don't let your clothes touch any electronic parts.
When handling a card, hold it by its edges, and avoid touching its circuitry. CAUTION ! Back of computer ISA slot PCI slot AGP slot AGP vs. PCI vs. ISA expansion slots 4 Insert your Graphic Card Remove the cover for the slot you intend to use and save the screw for the mounting bracket. Then, pick up the Graphic card and position it over the expansion slot you've chosen. Push the card with firmly and evenly until it's fully seated in the slot. Replace the screw to secure the bracket of the Graphic card to the computer chassis. Connect the monitor Plug your monitor cable into the monitor connector on your Graphic card. Make sure the other end of the monitor cable is properly connected to your monitor. 2 Hardware Installation PCI expansion slot Graphics card Bracket screw Motherboard Monitor connector (blue) AGP expansion slot 5
Before installing the Display driver, make sure your Windows 95/98/NT is installed in VGA mode and work fine.
For Windows 95 system, please install the DirectX before you want to play the MPEG Movie Player.
To use an AGP graphics card with NT4.0, you may need to pre-install NT with Service Pack 3 (SP3) or latter version before installing the AGP card.
If you are running Windows NT4.0, please note that some drivers are not compatible with earlier releases of Windows NT. Consult your dealer or local support to ensure you have the most recent releases for Windows NT and the drivers. Before You Begin If your system is running Windows 95/98/NT, the New Hardware Found dialog box will appear after restart. Select Driver from disk provided by hardware manufacturer, click OK, then follow all on-screen instructions. If the New Hardware Found dialog box does not appear, follow the instructions below. Setup VGA Mode Click the right mouse button anywhere on the Windows 95/98/NT desktop and select Properties from the pop-up menu that appears on screen. Select Settings | Change Display Ty pe (For OSR2 users, please select Settings│Advanced Properties. For Windows 98 users, please select Settings│Advanced. For Windows NT users, please select Setting│Display Type) and then click the [Change] button for Adapter Type. When the Select Device dialog box appears on the screen, please select [Standard display types] from the manufactures and select Standard Display Adapter (VGA) from the Models then click OK button. Install Software Driver 1. Turn on your computer and start Windows 95/98/NT. 2. Insert the Driver CD into your CD-ROM driver. 3. Click the Start button on the task bar and then select Run button. 4. Type D:\Cdssetup.exe [Enter] in the Run dialog box (where D:\ is the location of your CD-ROM drive). 5. The Expertool VGA Installation dialog box will appear on the screen, please click "Continue" button and follow the instruction on screen to complete installation. 6. Final, restart your computer for the changes to take effect. Windows 95/98/NT Display Properties Windows 95/98/NT allows you …

Text truncated - open the document above for the full version.

S3 SAVAGE4 Block Diagram FCC ID : MODEL NO. : MANUFACTORY: PCB No: Video Memory VGA Connector Address BIOS AGP-BUS Crystal 14.318MHz S3 SAVAGE4 Data Comman d ICUVGA-GW905C MIRAGE 397 GAINWARD CO., LT D 9802-30

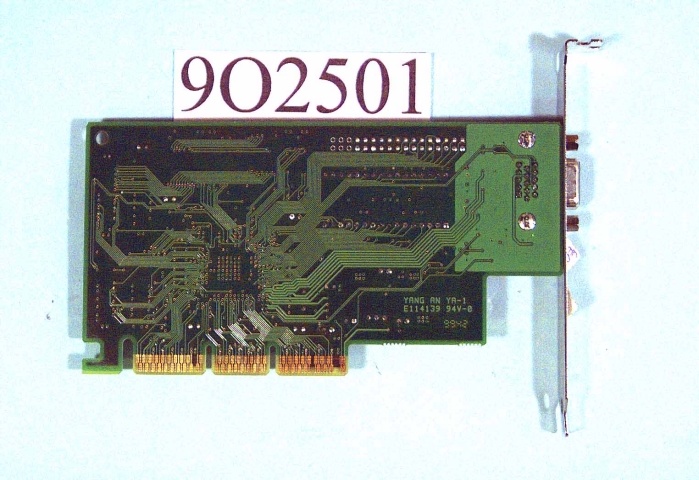

FCC ID : ICUVGA-GW905CFront side of EUT Number 1 9o2501-1.JPG FCC ID : ICUVGA-GW905CRear side of EUT Number 2 9o2501-2.JPG

FCC ID LOCATION 9o2501-3f.JPG
