nVIDIA Series (RIVA TNT/TNT2/TNT2 M64/TNT2 Ultra and VANTA) FCC ID : ICUVGA-GW909 Multimedia VGA Controller Installation Guide Version 3.0 06/99 Trademark Acknowledgments Microsoft is a trademark of Microsoft Corporation. All other brand and product names are trademarks or registered trademarks of their respective companies. MMMVP005-30E6RN FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. ATTN: Please be advised that this VGA CARD is only certified for use by the Federal Communications Commission for the FCC ID:ICUVGA-GW909 without TV function. The user should disregard any information in the users manual about TV function. Warning: Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CSA Notice: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Table of Contents Chapter 1 Overview ........................................................ 1 Chapter 2 Hardware Installation .................................. 3 Chapter 3 Software Installation..................................... 5 Chapter 4 Display Properties for Windows ................... 6 Chapter 5 TV Output for Windows (Option)................. 9 Chapter 6 Expertool for Windows ............................... 10 Chapter 7 Technical Information ................................ 13 Chapter 8 Trouble Shooting ........................................ 15

1 Congratulation on the purchase of this VGA board! You are now the owner of a state- of -the-art video adapter that offers features and functionality equal to, and beyond any other in the VGA class. System Requirements The minimum system requirements for installing the graphics card are as follows:
a personal computer with a Pentium, Pentium II or compatible microprocessor and at least 8MB of memory
a VGA analog monitor supporting a minimum 60Hz vertical refresh rate
a free AGP or PCI bus slot
a CD-ROM drive Features
nVIDIA RIVA TNT/RIVA TNT2/VANTA TwiN-Texel 32-bit Graphics Engine. - 2 Texture-mapped, Lit Pixels per Clock - Single Pass Multi-texture Rendering
24-bit or 16-bit Z-buffer, 8-bit Stencil Buffer.
High Performance 128-bit 2D/GUI/DirectDraw Acceleration.
TextureBlend supports Multi-texturing, Bump-mapping, Texture-modulation, Light Maps, Reflection Maps, Detail Textures, Environmental Maps, Procedural Textures. - 32-bit ARGB Rendering with Destination Alpha - Point Sampled, Bilinear, Trilinear and 8-tap Anisotropic Filtering
Per Pixel Perspective Correct Texture Mapping -Fog, Light, and Mip Mapping.
Multiple Video Windows with Hardware Color Space Conversion and Filtering.
DVD Sub-Picture Alpha-Blended Compositing.
Video Acceleration for DirectShow MPEG-1, MPEG-2 and Indeo.
Optimized Direct Frame Buffer (DFB) Access with Write-combining.
Palette-DAC Pipeline Accelerates Full-Motion Video Playback, Sustaining Fast Frame Rates with High Quality Color Resolution.
True Bilinear Filtering for Scaled Video, and Compensation for Filtering Losses with Edge Enhancement Algorithms.
Back-end Hardware Video Scaling for Video Conferencing and Playback. LCD Features (Option)
Support PanelLink digital interface for LCD monitor.
LCD support VGA,SVGA,XGA,SXGA 18/24 TFT color monitors.
LCD resolution ups to 1024x768 and color depths up to 16 million.
VESA EDID support for LCD type auto-detect. 1 Overview 2 RIVA TNT
128-bit Wide Frame Buffer Interface Supports up to 16MB SGRAM/SDRAM
250 MHz Palette-DAC Supports up to 1600x1200 @ 85Hz.
Variable Length Burst DMA Bus Mastering for Data transfers over 450 MB/s Throughput.
66 MHz AGP clock rate and AGP 2X mode. (For AGP model only)
100% Hardware Triangle Setup Engine. RIVA TNT2/ TNT2 Ultra
128-bit Wide Frame Buffer Interface Supports up to 32MB SDRAM
300 MHz Palette-DAC Supports up to 1600x1200 @ 60Hz.
Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput.
66 MHz AGP clock rate and AGP 4X/2X mode. (For AGP model only)
128-bit Graphics with over 2.4GB/s Throughput.
RIVA TNT2 150MHz MCLK, Ultra 183MHz MCLK RIVA TNT2 M64
64-bit Wide Frame Buffer Interface Supports up to 32 MB SDRAM
300 MHz Palette-DAC Supports up to 1600x1200 @ 60Hz
Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput
66 MHz AGP clock rate and AGP 4X/2X mode. (For AGP model only)
64-bit Graphics with over 1GB/s Throughput. Va n t a
64-bit Wide Frame Buffer Interface Supports up to 16MB SDRAM.
250 MHz Palette-DAC Supports up to 1600x1200 @ 75Hz.
Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput.
66 MHz AGP clock rate and AGP 4X/2X mode. (For AGP model only)
64-bit Graphics with over 1GB/s Throughput. Software Support
Microsoft Windows 95/98
Microsoft Windows NT4.0
Microsoft Windows 2000 (Option)
DirectX
OpenGL ICD 1 Overview 3 Before You Begin Before you process further, make sure your computer system meets the peripheral requirements and switch to the standard VGA display driver. Prepare Your Computer for Installation Prior to working on your computer, make sure the power of the computer and any related equipment is turned off. Select a Vacant Expansion AGP (PCI) Slot Most AGP (PCI) bus computers have a combination of AGP (PCI) and ISA expansion slots. AGP (PCI) are usually made with plastic of a contrasting brown color (beige color), and are shorter than other slots in your computer. Your system manual should identify the AGP (PCI) slots. Plugging your Graphic card into a non-AGP (PCI) slot could damage the card, your computer, or both. 2 Hardware Installation Static electricity can severely damage electronic parts. Take these precautions:
Before touching any electronic parts, drain the static electricity from your body. You can do this by touching the internal metal frame of your computer while it's unplugged.
Don't remove a card from the anti-static container it shipped in until you're ready to install it. When you remove a card from your computer, place it back in its container.
Don't let your clothes touch any electronic parts.
When handling a card, hold it by its edges, and avoid touching its circuitry. CAUTION ! Back of computer ISA slot PCI slot AGP slot AGP vs. PCI vs. ISA expansion slots 4 Insert your Graphic Card Remove the cover for the slot you intend to use and save the screw for the mounting bracket. Then, pick up the Graphic card and position it over the expansion slot you've chosen. Push the card with firmly and evenly until it's fully seated in the slot. Replace the screw to secure the bracket of the Graphic card to the computer chassis. Connect the monitor/LCD Plug your monitor/LCD/TV cable into the monitor/LCD/TV connector on your Graphic card. Make sure the other end of the monitor/LCD/TV cable is properly connected to your monitor/LCD/TV. 2 Hardware Installation PCI expansion slot Graphics card Bracket screw Motherboard Monitor connector (blue) AGP expansion slot DFP Host Receptacle Connector TV-Out S-VideoTV-Out Com posite 5
Before installing the Display driver, make sure your Windows 95/98/NT is installed in VGA mode and work fine.
For Windows 95 system, please install the DirectX before you want to play the MPEG Movie Player.
To use an AGP graphics card with NT4.0, you may need to pre-install NT with Service Pack 3 (SP3) or latter version before installing the AGP …

Text truncated - open the document above for the full version.

CARDEXpert VANTA Your Graphics Advantage Based on the NVIDIA Vanta TwiN-Texel 32-bit 2D/3D Graphics Engine • 66 MHz AGP clock rate and AGP 4X/2X mode • 250 MHz Palette-DAC Supports up to 1600x1200 @ 75Hz • 64-bit Wide Frame Buffer Interface Supports up to 16 MB SDRAM • DVD Sub-Picture Alpha-Blended Compositing • LCD Resolution up to 1024x768 and Color Depths up to 16 Million • Video Acceleration for DirectShow MPEG-1, MPEG-2 and Indeo Features
NVIDIA Vanta TwiN-Texel 32-bit Graphics Engine. - 2 Texture-mapped, Lit Pixels per Clock - Single Pass Multi-Texture Rendering
24-bit or 16-bit Z-buffer, 8-bit Stencil Buffer
High Performance 128-bit 2D/GUI/DirectDraw Acceleration
64-bit Wide Frame Buffer Interface Supports up to 16 MB SDRAM
250 MHz Palette-DAC Supports up to 1600x1200 @ 85Hz
Variable Length Burst DMA Bus Mastering for Data transfers over 900 MB/s Throughput
66 MHz AGP clock rate and AGP 4X/2X mode
Optimized for Katmai New Instructions and 3Dnow!
TextureBlend Supports Multi-texturing, Bump-mapping, Texture-modulation, Light Maps, Reflection Maps, Detail Textures, Environmental Maps, Procedural Textures - 32-bit ARGB Rendering with Destination Alpha - Point Sampled, Bilinear, Trilinear and 8-tap Anisotropic Filtering
Per Pixel Perspective Correct Texture Mapping -Fog, Light, and Mip Mapping
Wide Cache RAM and 256-bit Data path.
64-bit Graphics with over 1GB/s Throughput.
Minimal Software Overhead on Key GDI Calls and DirectDraw
Optimized Direct Frame Buffer (DFB) Access with Write-combining
Palette-DAC Pipeline Accelerates Full-Motion Video Playback, Sustaining Fast Frame Rates with High Quality Color Resolution
True Bilinear Filtering for Scaled Video, and Compensation for Filtering Losses with Edge Enhancement Algorithms.
Back-end Hardware Video Scaling for Video Conferencing and Playback
Multiple Video Windows with Hardware Color Space Conversion and Filtering
DVD Sub-Picture Alpha-Blended Compositing
Video Acceleration for DirectShow MPEG-1, MPEG-2 and Indeo
Supports the PanelLink Digital Interface for LCD monitor
LCD Support for VGA,SVGA,XGA,SXGA 18/24 TFT Color Monitors
LCD Resolution up to 1024x768 and Color Depths up to 16 Million
VESA EDID Support for LCD Type Auto-Detect DRIVER SUPPORT
Microsoft Windows 98/95/NT4.0
Microsoft Windows 2000(Option)
DirectX
OpenGL ICD REFRESH RATE TABLE 8/16MB 256 color64K color16.7M color 640x480 240Hz240Hz240Hz240Hz 800x600 240Hz240Hz240Hz240Hz 1024x768 200Hz200Hz200Hz200Hz 1280x1024 120Hz120Hz120Hz120Hz 1600x1200 85Hz85Hz85Hz85Hz

CARDEXpert VANTA Block Diagram MODEL NO. : MANUFACTORY: PCB No: Video Memory VGA Connector Address BIOS AGP- BUS Crystal 14.318MHz nVIDEA VA N TA Data Comman d CARDEXpert VANTA GAINWARD CO., LTD FCC ID:ICUVGA-GW909

EXHIBIT A. FCC ID LABEL FCC ID:ICUVGA-GW909 The next page shows the location of FCC ID on EUT. The following statement will be placed in the User’s Manual. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID LOCATION

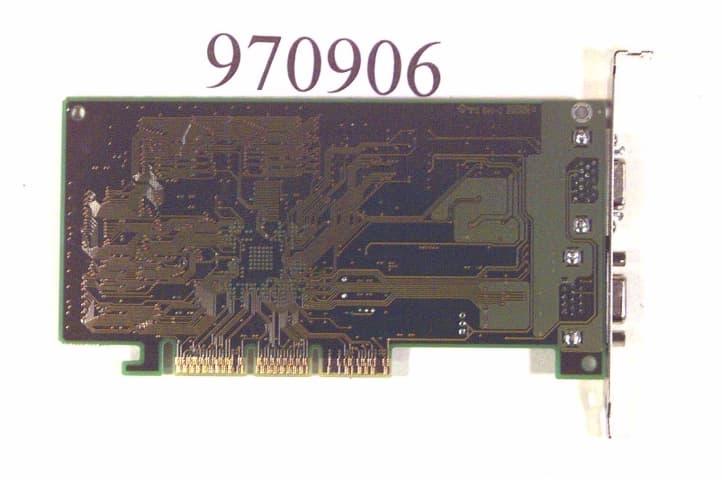

FCC ID : ICUVGA-GW909Front side of EUT Number 1 970906-1.JPG FCC ID : ICUVGA-GW909Rear side of EUT Number 2 970906-2.JPG
