IMA-T3048T3048 RF Module

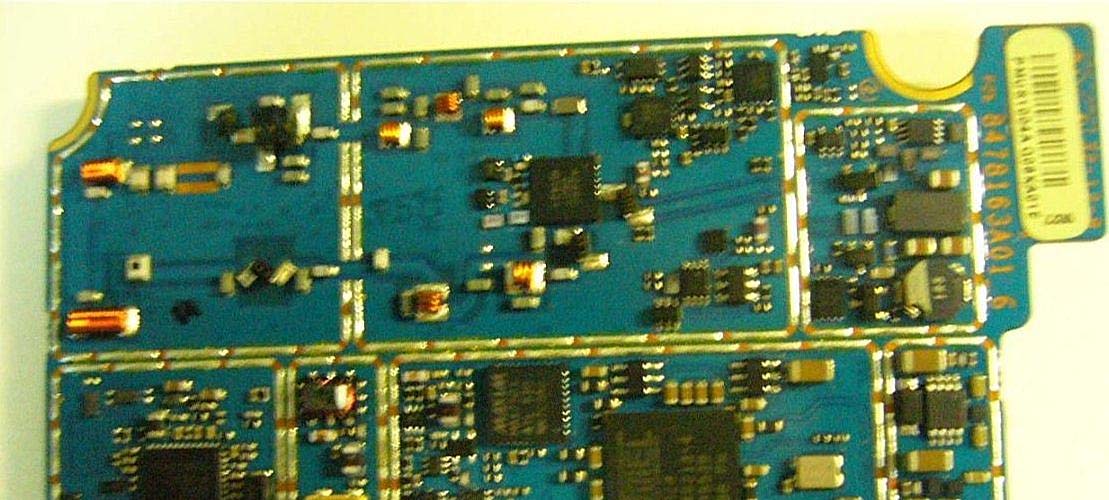

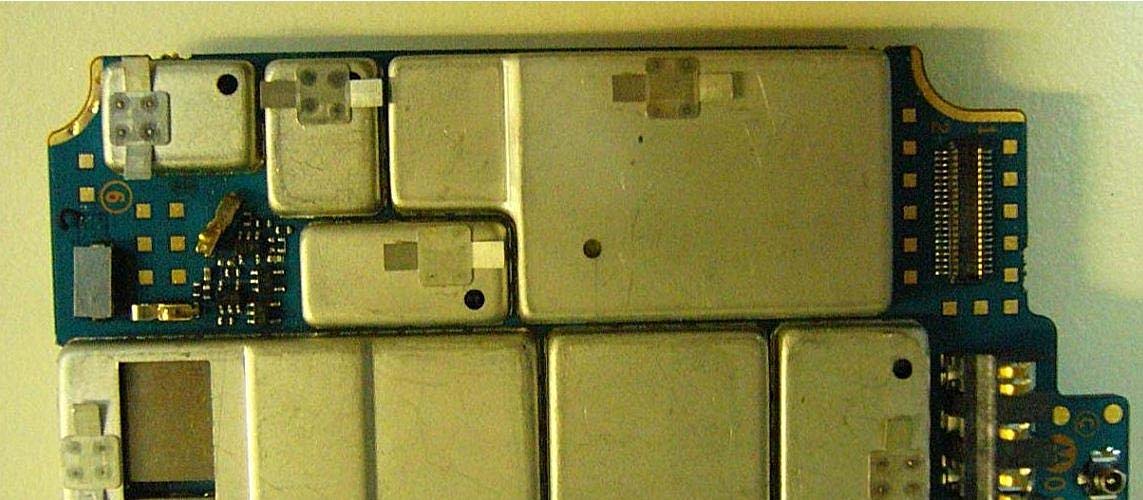

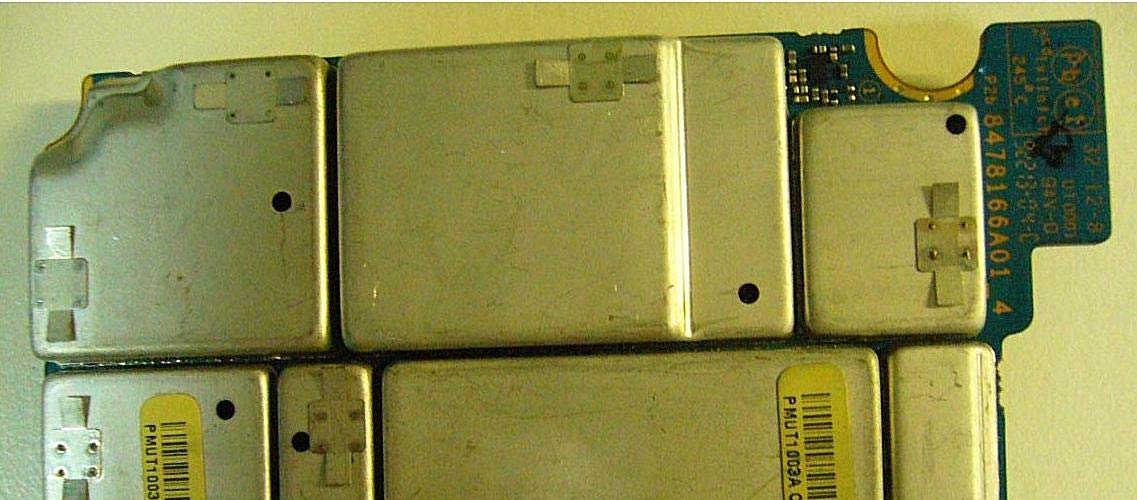

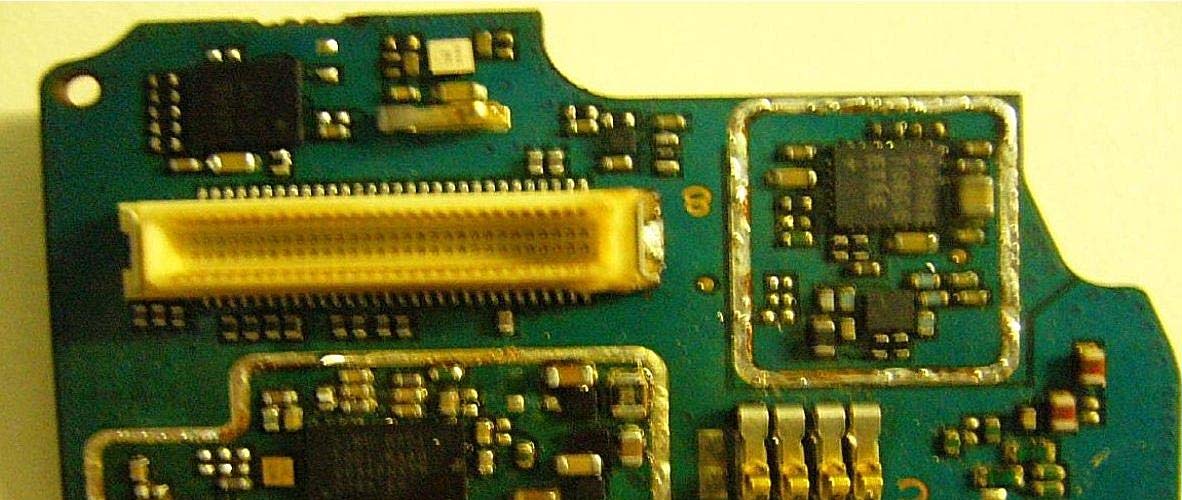

T3048 RF Module P/N127502-5 Users Guide DOCUMENT NO: 136575 REVISION: DATE OF ISSUE: MAY 02, 2013 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca This document contains designs and other information which are the property of Technisonic Industries Ltd. This document may not in whole or in part, be duplicated or disclosed or used for manufacture of the part disclosed herein, without the prior written permission of Technisonic Industries Ltd. INTRODUCTION The T3048 RF module is a Dual Band transceiver assembly that operates in 380-470 MHz and 764-870 MHz range. The T3048 RF module is a modified Motorola APX 7000 UHF LO/700/800 MHz portable radio. The outer casing, top controls, front display and keypad are removed. The RF chassis is slightly machined but all electronic circuits are unmodified from the original APX 7000 radio. The transceiver is designed to be installed and operated in a Technisonic Multiband Airborne Radio TDFM 9000 platform. All external power and antenna connections are provided by the TDFM 9000 as well as controls are via the front panel and display from the TDFM 9000. The RF module is capable of operating on Analog FM, Wide and Narrow and Project 25 Phase 1 conventional and P25 Trunked Phase 1 and 2 systems. FIGURE 1: Overall view of the T3048 RF Module NOTES ESD CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. FCC COMPLIANCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: For compliance with FCC RF Exposure Requirements the mobile transmitter antenna installation shall comply with the following two conditions: 1. The transmitter antenna gain shall not exceed 3 dBi. 2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 80 cm or more between the transmitter antenna of this device and persons during operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. TECHNICAL CHARACTERISTICS Specification Characteristic Model Designation: T3048 Physical Dimensions: Approx. (L) 5.77" x (W) 2.1" x (H) 0.95" Operating Temperature Range: -30° C to +60° C Power Requirement: Voltage: Current: 7.5 VDC ± 15% 300 mA minimum / 2.4A maximum Audio Output Power: 500 mW into 600 W FCC ID: IMA-T3048 INDUSTRY CANADA: 120A-T3048 RF Output Power: 1 or 5 Watts (UHF LO) 1 or 2.5 Watts (700 MHz) 1 or 3 Watts (800 MHz) Frequency Range UHF LO Band: 700 MHz Band: 800 MHz Band: 380-406, 406.1-470 MHz TX 380-470 RX 764-776, 793-806 MHz TX 764-797 MHz RX 806-824, 851-869 MHz TX 851-870 RX No. of channels per band: 2000 pre-programmable channels Transmitter section UHF LO 700/800 MHz FM Hum and noise in dB (wideband): Audio Distortion: Frequency Stability in ppm: Modulation Limiting: -45 -48 1% 1% ±1.5 ±1.5 Wide band ±5kHz Narrow band ±2.5kHz Receiver section UHF LO 700/800 MHz Sensitivity in uV: *Digital 1% BER (12.5kHz) *Digital 5% BER (12.5kHz) **Analog with 12dB SINAD 0.31 0.35 0.21 0.25 0.25 0.25 Selectivity in dB: 25 kHz Channel 12.5 kHz Channel Intermodulation * ** -78 -75 -68 -65 -80 -80 *Measured in digital mode per TIA / EIA IS 102.CAAA under nominal conditions. ** Measured in analog mode per TIA / EIA 603 under nominal conditions. INSTALATION The T3048 module should be installed in the TDFM 9000 in accordance with TIL document 126556 “TDFM-9000 FINAL ASSEMBLY SSP". FCC ID LABELS The T3048 RF module is a modified Motorola APX 7000. Part of the modification requires removal if the original Motorola FCC ID label. After all modifications are done the new Technisonic FCC/IC ID label is applied. FIGURE 2: APX 7000 FCC ID (Left), Right T3048 Module with new FCC ID applied The FCC/Industry Canada label is shown below. It is mounted on the top near the front of the module. FIGURE 3: T3048 FCC/Industry Canada Label FIGURE 4: FCC/Industry Canada Label placement on the T3048 Module The T3048 is intended to be mounted in the TDFM 9000 chassis and is not visible. Therefore, a second label must be applied to the outside of the TDFM 9000 that contains the following text: “TDFM 9000 Multiband Transceiver. Contains Module: FCC ID IMA-T3048”. In addition, external labeling for Industry Canada shall be applied to the TDFM 9000 to include the following text: “Contains IC: 120A-T3048”. WARNING AND DISCLAIMER Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. This manual is designed to provide information about the T3048 RF Module. Every effort has been made to make this manual as complete and accurate as possible. WARRANTY INFORMATION The Model T3048 Trans…

Text truncated - open the document above for the full version.

Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 08 May 2013 SUBJECT: FCC Application for FCC ID: IMA-T3048 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Verification Authorization procedure to the Part 15B - Unintentional Radiator portion of this composite filing. Regards, Steve McIntosh Engineering Manager

Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Date: 08 May 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: IMA-T3048 To Whom It May Concern: This equipment meets the requirements of the FCC rules, Part 90.203(e). The operator cannot program and transmit on frequencies other than those programmed by the manufacturer, service or maintenance personnel. As per FCC KDB Guidance # 634817, an alternate to listing exact frequencies, we, Technisonic Industries Limited, acknowledges that FCC rules will be violated if the device operates on unauthorized frequencies. Regards, Steve McIntosh Engineering Manager

Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Subject: Manufacturer’s Declaration for compliance with FCC KDB Guidance 996369 D01 FOR Licensed Modular Transmitter Approval similar to Sec 15.212 FCC ID: IMA-T3048 Dear Sir/Madam: The applicant hereby confirms that the following requirements per FCC KDB# 996369 for a Licensed Modular Transmitter are met for this Modular Approval certification: Modular Approval Checklist: Modular approval requirement Yes No 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; The modular transmitter has its own shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with requirements under conditions of excessive data rates or over-modulation. The modular transmitter provides limiting and data buffering on the inputs to prevent over modulation. 3. The module must contain power supply regulation on the module. The modular transmitter has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). Not applicable for licensed module 5. The module must demonstrate compliance in a stand-alone configuration. The modular transmitter was tested in a standalone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with FCC identification number. The label can not be seen when installed in the main unit. A label will be placed on the outside of the unit that states: ‘Contains FCC ID: IMA-T3048’ 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization A copy of the instructions are provided with the application. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093. Maximum Permissible Exposure (MPE) evaluation was conducted, specific instructions for users and installers are provided that ensures that the public is not exposed to radio frequency energy levels in excess of the commission’s guidelines. Dated: 08 May 2013 By: Steve McIntosh (Signature) (Print Name) Title: Engineering Manager On behalf of : Technisonic Industries Limited Phone No.: (905) 890-2113 x205 Fax No.: (905) 890-5338 Email : [email protected]

Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 02 July 2013 SUBJECT: FCC Application for FCC ID: IMA-T3048 To Whom It May Concern: Technisonic attests that the T3048 RF module operating in the 421.0 – 470.0 MHz range meets the requirements for 6.25 KHz spectral efficiency by using 2 slot TDMA on a 12.5 KHz channel as per section 90.203(j) (5). Regards, Steve McIntosh Engineering Manager

May 21, 2013 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 Applicant: Technisonic Industries Limited Product: UHF LO/700/800 RF MODULE Model: T3048 FCC ID: IMA-T3048 Dear Sir/Madam: As appointed agent for Technisonic Industries Limited, we submit the application for FCC certification of the above product. Kindly review all required documents uploaded to your E- Filing Site. NOTE: This application is subject to modular approval; see Applicant’s cover letter requesting for modular approval. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP LAB CODE 200093‐0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

Rev. 05/08 Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Date: 08 May 2013 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Technisonic Industries Limited FCC ID: IMA-T3048 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards Steve McIntosh Engineering Manager

Rev. 05/08 Technisonic Industries Limited 240 Traders Blvd., Mississauga, Ontario L4Z 1W7 Tel.: (905) 890-2113 Fax: (905) 890-5338 Date: 08 May 2013 To Whom It May Concern Subject: Confidentiality Letter Applicant: Technisonic Industries Limited FCC ID: IMA-T3048 Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. 1. Operational Description 2. Block Diagram 3. Schematics 4. Parts List 5. Tuning Info The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Regards, Steve McIntosh Engineering Manager

FCC Parts 2 and 90 Page 185 of 200 UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 ULTRATECH GROUP OF LABS File #: TIL-094F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 21, 2013 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.10. EXPOSURE OF HUMANS TO RF FIELD [[§§ 1.1310 & 2.1091] § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 6141.63*(100) 30 1.34-30 824/f2.19/f*(180/f 2 ) 30 30-300 27.50.0730.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC Parts 2 and 90 Page 186 of 200 UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 ULTRATECH GROUP OF LABS File #: TIL-094F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 21, 2013 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.10.1. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 5.10.2. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [dBm]: 37.26 Maximum Antenna Gain, G[dBi]: 3 Maximum EIRP, P EIRP [dBm]: 40.26 MPE Limit for General Population/Uncontrolled Exposure, S controlled [mW/cm 2 ]: 0.25 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_controlled [cm]: 58.1

UHF LO/700/800 RF MODULE Model No.: T3048 FCC ID: IMA-T3048 Applicant: Technisonic Industries Limited 240 Traders Blvd. E. Mississauga, Ontario Canada L4Z 1W7 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 UltraTech's File No.: TIL-094F90R01 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: July 2, 2013 Report Prepared by: Dan Huynh Issued Date: July 2, 2013 Tested by: Wei Wu Test Dates: March 8 - April 8, , 2013  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP LAB CODE 200093‐0 SL2-IN-E-1119R CA2049 FCC Parts 2 and 90 Contents i UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 ULTRATECH GROUP OF LABS File #: TIL-094F90R01 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 July 2, 2013 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS....................................................................................................................... 3 2.4. LIST OF EUT’S PORTS............................................................................................................................................... 4 2.5. ANCILLARY EQUIPMENT ........................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .............................................. 5 3.1. CLIMATE TEST CONDITIONS .................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS....................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 6 4.1. LOCATION OF TESTS ................................................................................................................................................ 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .......................................................................6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ................................................ 6 4.4. DEVIATION OF STANDARD TEST PROCEDURES................................................................................................... 6 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 7 5.1. RF POWER OUTPUT [§§ 2.1046 & 90.205] ................................................................................................................ 7 5.2. MODULATION CHARACTERISTICS - AUDIO FREQUENCY RESPONSE [§ 2.1047(a)] .......................................... 9 5.3. MODULATION CHARACTERISTICS - MODULATION LIMITING [§ 2.1047 (b)]....................................................... 22 5.4. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210]......................................................... 36 5.5. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§§ 2.1051, 2.1057 & 90.210].................................................................................................................................................... 119 5.6. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053, 2.1057 & 90.210]........................ 150 5.7. FREQUECNY STABILITY [§§ 2.1055, 90.213 & 90.539]......................................................................................... 156 5.8. TRANSIENT FREQUENCY BEHAVIOR [§ 90.214] ................................................................................................. 159 5.9. ADJACENT CHANNEL POWER [§ 90.543]............................................................................................................. 165 5.10. EXPOSURE OF HUMANS TO RF FIELD [[§§ 1.1310 & 2.1091]............................................................................. 182 5.11. POWER LINE CONDUCTED EMISSIONS [§ 15.207] .................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Technisonic Industries Limited UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 A1 - 1 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Technisonic Industries Limited UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 A1 - 2 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Technisonic Industries Limited UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 A1 - 3 Radiated Emissions at 3 m, 30 - 1000 MHz Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Technisonic Industries Limited UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 A1 - 4 Radiated Emissions at 3 m, 30 - 1000 MHz Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Technisonic Industries Limited UHF LO/700/800 RF MODULE, Model: T3048 FCC ID: IMA-T3048 A1 - 5 Radiated Emissions at 3 m, Above 1 GHz Orthogonal Position 3
