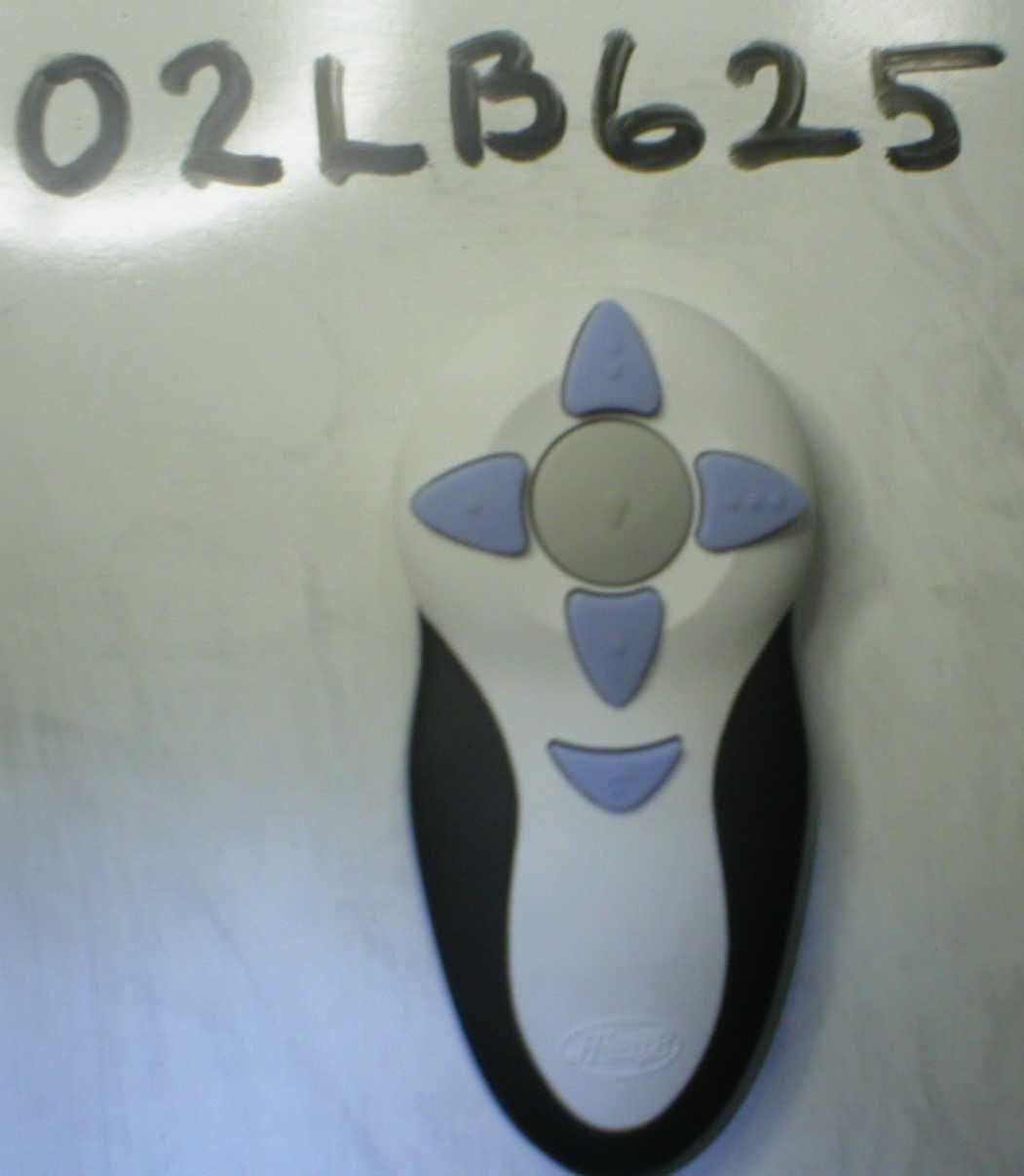

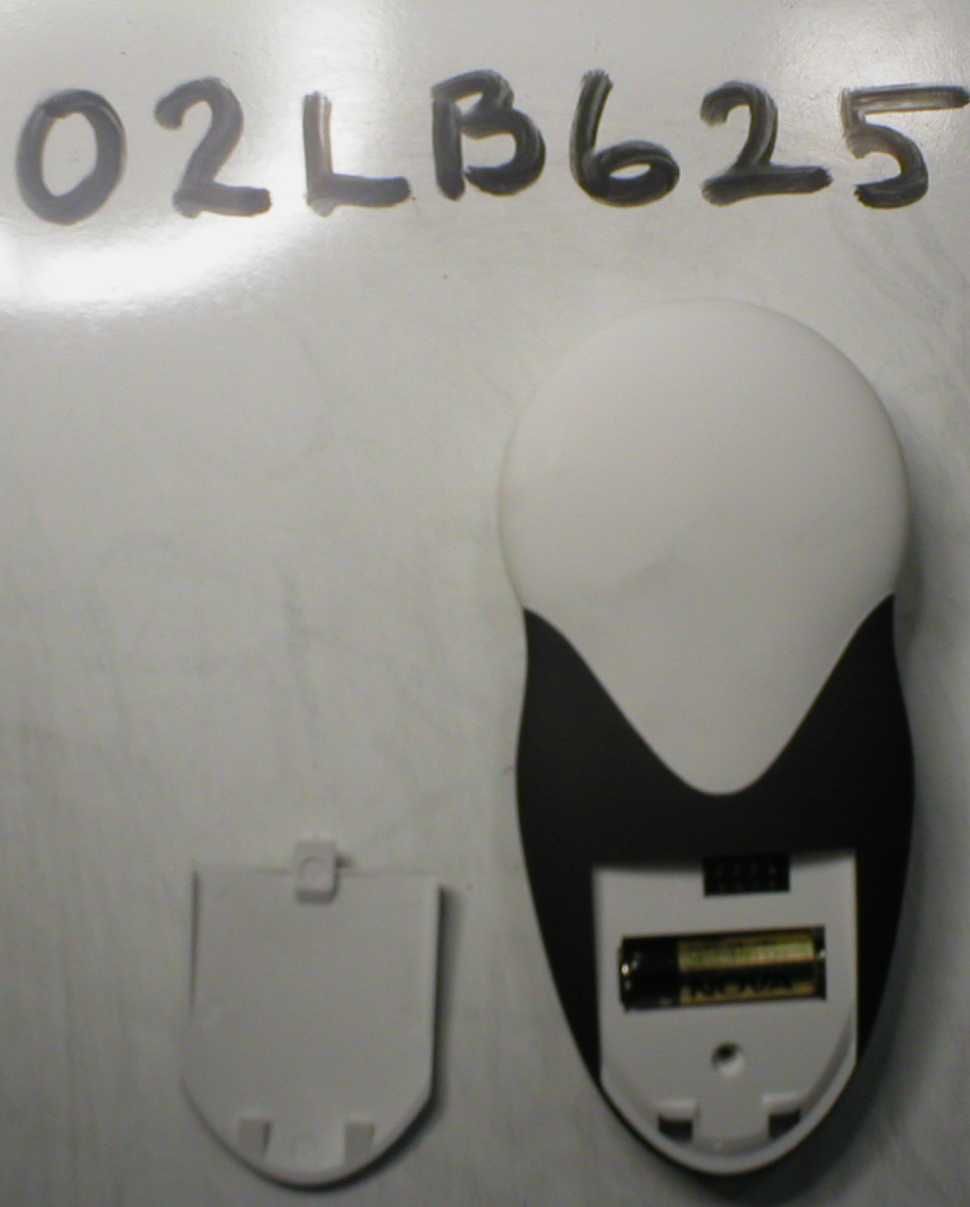

IN2TX17Remote control for ceiling fan and attached lamp

© 2003 Hunter Fan Company41825-01 02/05/2003 11 11 1 41825-01 02/05/2003© 2003 Hunter Fan Company 22 22 2 Your new Hunter ® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. This installation and operation manual gives you complete instructions for installing and operating your fan. We are proud of our work. We appreciate the opportunity to sup- ply you with the best ceiling fan available anywhere in the world. Before installing your fan, record the following information for your records and warranty assistance. Please refer to the carton and the Hunter nameplate label (located on the top of the fan motor hous- ing) for the proper information. Model Name: __________________________ Catalog/Model No.: ______________ Serial No.: _____________________ Date Purchased: ___ / ___ / ______ Where Purchased: _______________________________ Please also attach your receipt or a copy of your receipt for refer- ence. cautions and warnings •• •• • RR RR R ee ee e aa aa a d ed e d ed e d e nn nn n tt tt t irir irir ir e be b e be b e b oo oo o oo oo o kk kk k ll ll l ee ee e t ct c t ct c t c aa aa a rr rr r ee ee e ff ff f ullull ullull ull y by b y by b y b ee ee e ff ff f oo oo o rr rr r e be b e be b e b ee ee e gg gg g inninn inninn inn inin inin in g ing in g ing in g in ss ss s tt tt t aa aa a l-l- l-l- l- ll ll l aa aa a tt tt t ii ii i oo oo o nn nn n . S. S . S. S . S aa aa a vv vv v e te t e te t e t hh hh h ee ee e ss ss s e ine in e ine in e in ss ss s tt tt t rr rr r uu uu u cc cc c tt tt t ii ii i oo oo o nn nn n ss ss s .. .. . •• •• • UsUs UsUs Us e oe o e oe o e o nlnl nlnl nl y Hy H y Hy H y H unun unun un tt tt t ee ee e r rr r r rr r r r ee ee e pp pp p ll ll l aa aa a cc cc c ee ee e mm mm m ee ee e nn nn n t pt p t pt p t p aa aa a rr rr r tt tt t ss ss s .. .. . •• •• • TT TT T o ro r o ro r o r ee ee e dudu dudu du cc cc c e te t e te t e t hh hh h e re r e re r e r ii ii i ss ss s k ok o k ok o k o f pf p f pf p f p ee ee e rr rr r ss ss s oo oo o nn nn n aa aa a l inl in l inl in l in jurjur jurjur jur yy yy y , a, a , a, a , a tt tt t tt tt t aa aa a cc cc c h th t h th t h t hh hh h e fe f e fe f e f aa aa a nn nn n dirdir dirdir dir ee ee e cc cc c tt tt t ll ll l y ty t y ty t y t o to t o to t o t hh hh h e se s e se s e s upup upup up pp pp p oo oo o rr rr r t st s t st s t s tt tt t rr rr r uu uu u cc cc c tt tt t urur urur ur e oe o e oe o e o f tf t f tf t f t hh hh h e be b e be b e b uiluil uiluil uil dindin dindin din g ag a g ag a g a cc cc c -- -- - cc cc c oo oo o rr rr r dindin dindin din g tg t g tg t g t o to t o to t o t hh hh h ee ee e ss ss s e ine in e ine in e in ss ss s tt tt t rr rr r uu uu u cc cc c tt tt t ii ii i oo oo o nn nn n ss ss s , a, a , a, a , a nn nn n d ud u d ud u d u ss ss s e oe o e oe o e o nlnl nlnl nl y ty t y ty t y t hh hh h e he h e he h e h aa aa a rr rr r d-d- d-d- d- ww ww w aa aa a rr rr r e se s e se s e s upup upup up pp pp p lili lili li ee ee e d.d. d.d. d. •• •• • TT TT T o ao a o ao a o a vv vv v oo oo o ii ii i d pd p d pd p d p oo oo o ss ss s sibsib sibsib sib ll ll l e ee e e ee e e e ll ll l ee ee e cc cc c tt tt t rr rr r ii ii i cc cc c aa aa a l sl s l sl s l s hh hh h oo oo o cc cc c kk kk k , b, b , b, b , b ee ee e ff ff f oo oo o rr rr r e ine in e ine in e in ss ss s tt tt t aa aa a llinllin llinllin llin gg gg g yy yy y oo oo o ur fur f ur fur f ur f aa aa a nn nn n , di, di , di, di , di ss ss s cc cc c oo oo o nnnn nnnn nn ee ee e cc cc c t tt t t tt t t t hh hh h e pe p e pe p e p oo oo o ww ww w ee ee e r br b r br b r b y ty t y ty t y t urur urur ur nn nn n inin inin in g og o g og o g o ff ff f f tf t f tf t f t hh hh h e ce c e ce c e c irir irir ir -- -- - cc cc c uiui uiui ui t bt b t bt b t b rr rr r ee ee e aa aa a kk kk k ee ee e rr rr r s ts t s ts t s t o to t o to t o t hh hh h e oe o e oe o e o uu uu u tt tt t ll ll l ee ee e t bt b t bt b t b oo oo o x ax a x ax a x a nn nn n d ad a d ad a d a ss ss s ss ss s oo oo o cc cc c ii ii i aa aa a tt tt t ee ee e d wd w d wd w d w aa aa a llll llll ll ss ss s ww ww w ii ii i tt tt t cc cc c h lh l h lh l h l oo oo o cc cc c aa aa a tt tt t ii ii i oo oo o nn nn n . I. I . I. I . I f yf y f yf y f y oo oo o u cu c u cu c u c aa aa a nnnn nnnn nn oo oo o t lt l t lt l t l oo oo o cc cc c k tk t k tk t k t hh hh h e ce c e ce c e c irir irir ir cc cc c uiui uiui ui t bt b t bt b t b rr rr r ee ee e aa aa a kk kk k -- -- - ee ee e rr rr r s in ts in t s in ts in t s in t hh hh h e oe o e oe o e o ff ff f f pf p f pf p f p oo oo o sisi sisi si tt tt t ii ii i oo oo o nn nn n , s, s , s, s , s ee ee e cc cc c urur urur ur ee ee e ll ll l y fy f y fy f y f aa aa a ss ss s tt tt t ee ee e n a pn a p n a pn a p n a p rr rr r oo oo o mm mm m inin inin in ee ee e nn nn n tt tt t ww ww w aa aa a rr rr r nn nn n inin inin in g dg d g dg d g d ee ee e vv vv v ii ii i cc cc c ee ee e , s, s , s, s , s uu uu u cc cc c h ah a h ah a h a s a ts a t s a ts a t s a t aa aa a gg gg g , t, t , t, t , t o to t o to t o t hh hh h e se s e se s e s ee ee e rr rr r vv vv v ii ii i cc cc c e pe p e pe p e p aa aa a nn nn n ee ee e l.l. l.l. l. •• •• • AA AA A ll wll w ll wll w ll w irir irir ir inin inin in g mug mu g mug mu g mu ss ss s t bt b t bt b t b e in ae in a e in ae in a e in a cc cc c cc cc c oo oo o rr rr r dd dd d aa aa a nn nn n cc cc c e we w e we w e w ii ii i tt tt t h nh n h nh n h n aa aa a tt tt t ii ii i oo oo o nn nn n aa aa a l al a l al a l a nn nn n dd dd d ll ll l oo oo o cc cc c aa aa a l el e l el e l e ll ll l ee ee e cc cc c tt tt t rr rr r ii ii i cc cc c aa aa a l cl c l cl c l c oo oo o dd dd d ee ee e s as a s as a s a nn nn n d Ad A d Ad A d A NN NN N SS SS S I/NI/N I/NI/N I/N FF FF F PP PP P A 70. IA 70. I A 70. IA 70. I A 70. I f yf y f yf y f y oo oo o u au a u au a u a rr rr r ee ee e unun unun un ff ff f aa aa a mm mm m iliili iliili ili aa aa a r wr w r wr w r w ii ii i tt …

Text truncated - open the document above for the full version.

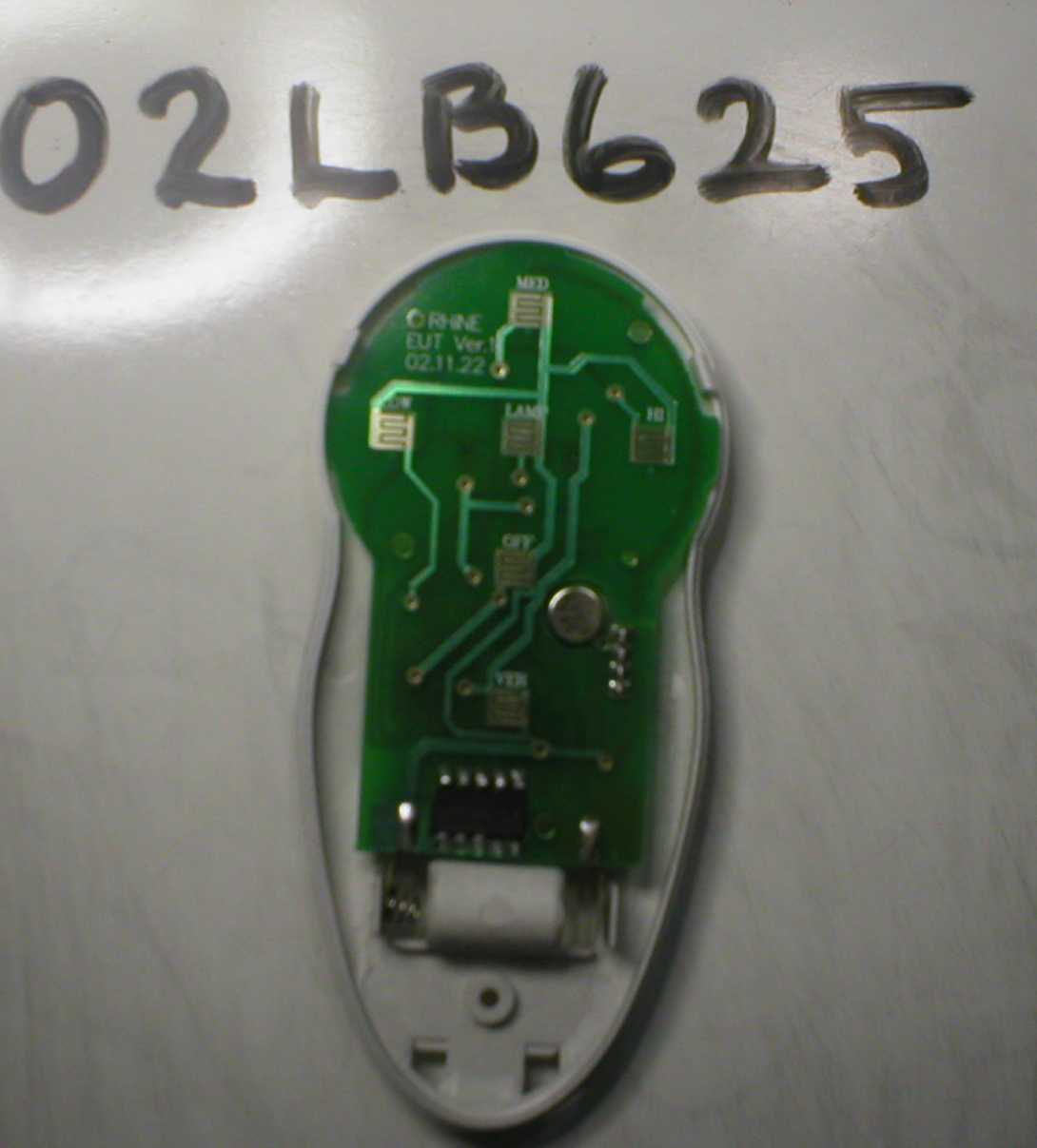

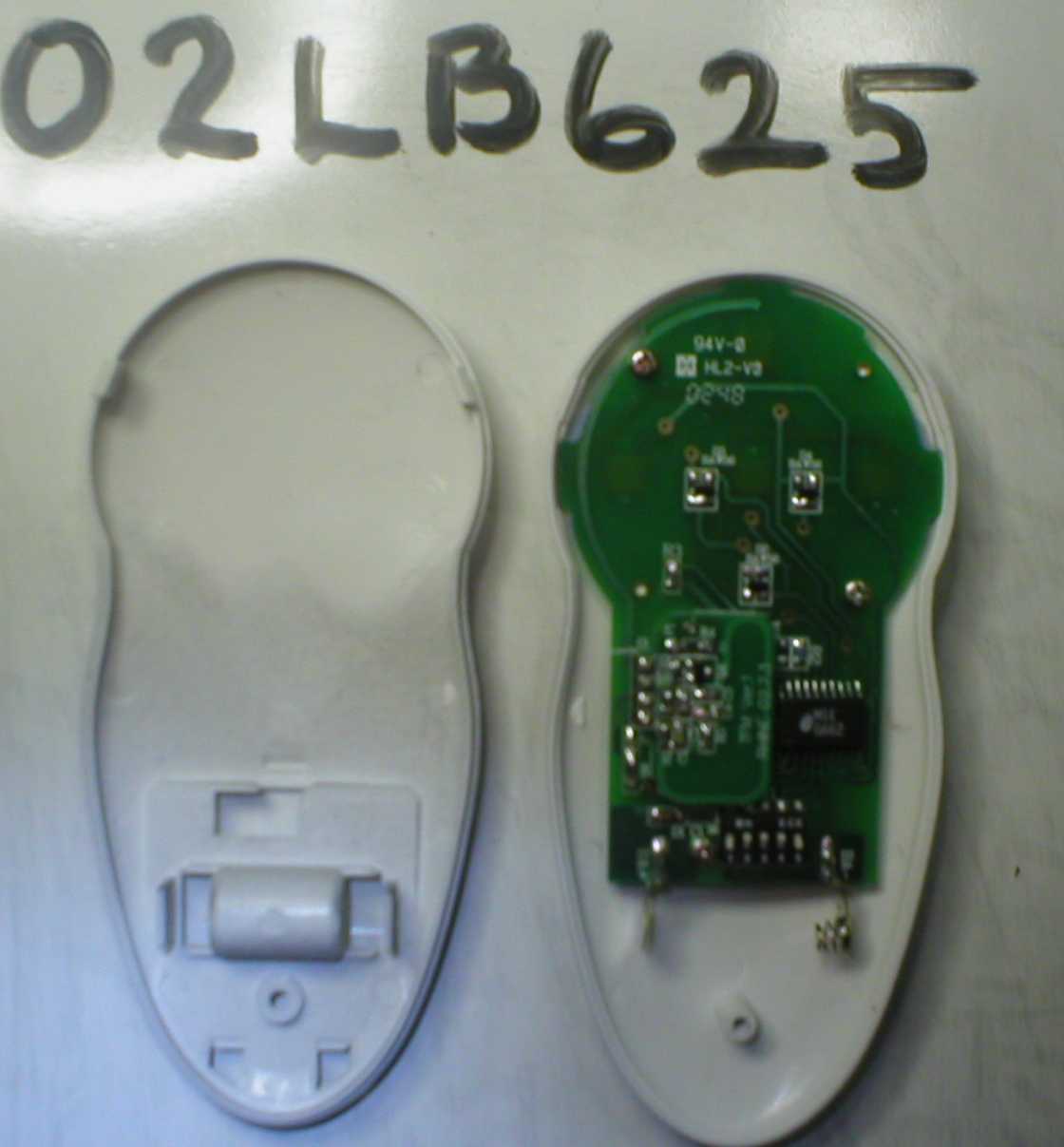

Hunter Fan & Light Remote Control Transmitter Block Diagram Description: The top box of the diagram below represents all of the potential keys that may be pressed for the Hunter Euro Contemporary transmitter. Pressing any key generates an encoded PCM code word which will modulate on at approximately 303.8 MHz RF carrier for transmission. The encoded PCM code word is obtained from encoder U1 and is modulated by the SAW resonator and transistor Q4. Encoder U1 also provides four selectable security bits which can be set by the user. The frequency is factory tuned to approximately 303.8 MHz, and is not user adjustable. Antenna Loop The receiver decodes the received signal and compares the on/off pattern received to the pattern expected (including security bits). The receiver then performs the instructed action (fan on, lamp dim, etc). Euro Contemporary Transmitter Light Button(s) Fan Low Button Fan Medium Button Fan High Button Fan Off Button U1 Encoder (HT12ESOP) Q1 (MPSH10) SAW Resonator factory set for approx. 303.8 MHz Hunter Fan & Light Remote Control RF Transmitter Coding Description: The Euro Contemporary transmitter uses the following code words to modulate on a 303.8 MHz RF carrier by using ASK modulation. Examples of code words for different commands: 1xxxxx000101 1xxxxx001001 1xxxxx000110 1xxxxx000111 1xxxxx001000 1xxxxx001101 1xxxxx001110 (Where “x” can be set to “1” or “0” by the user with DIP switches.) Code “0” is represented as: 0.66 ms 0.33 ms Code “1” is represented as: 0.33 ms 0.66 ms

Hunter Fan & Light Remote Control Transmitter Block Diagram Description: The top box of the diagram below represents all of the potential keys that may be pressed for the Hunter Euro Contemporary transmitter. Pressing any key generates an encoded PCM code word which will modulate on at approximately 303.8 MHz RF carrier for transmission. The encoded PCM code word is obtained from encoder U1 and is modulated by the SAW resonator and transistor Q4. Encoder U1 also provides four selectable security bits which can be set by the user. The frequency is factory tuned to approximately 303.8 MHz, and is not user adjustable. Antenna Loop The receiver decodes the received signal and compares the on/off pattern received to the pattern expected (including security bits). The receiver then performs the instructed action (fan on, lamp dim, etc). Euro Contemporary Transmitter Light Button(s) Fan Low Button Fan Medium Button Fan High Button Fan Off Button U1 Encoder (HT12ESOP) Q1 (MPSH10) SAW Resonator factory set for approx. 303.8 MHz Hunter Fan & Light Remote Control RF Transmitter Coding Description: The Euro Contemporary transmitter uses the following code words to modulate on a 303.8 MHz RF carrier by using ASK modulation. Examples of code words for different commands: 1xxxxx000101 1xxxxx001001 1xxxxx000110 1xxxxx000111 1xxxxx001000 1xxxxx001101 1xxxxx001110 (Where “x” can be set to “1” or “0” by the user with DIP switches.) Code “0” is represented as: 0.66 ms 0.33 ms Code “1” is represented as: 0.33 ms 0.66 ms

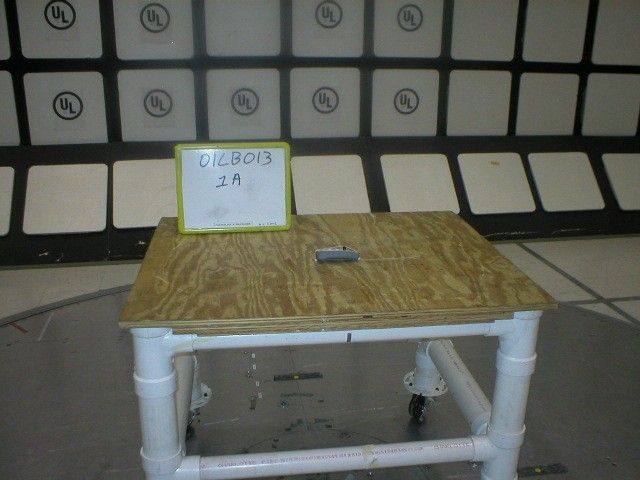

Project: 03RT2075 File: MC1324 Report: 030113 Date: January 24, 2003 Model: 84757 Test Report On Electromagnetic Compatibility Testing Hunter Fan Company Memphis, TN USA Copyright  2003 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 03RT2075 Underwriters Laboratories, Inc. Issued: 01/24/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 2 of 45 Test Report: 030113 Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Hunter Fan Company 2500 Frisco Avenue Memphis, TN 38114 USA Applicant Contact: Mr. Chris Williams Safety and Test Engineer (901) 248-2342 (901) 248-2382 - FAX Test Report Number: 030113 Test Report Date: January 24, 2003 Product Type: Ceiling Fan/Lamp Remote Model Number: 84757 Sample Serial Number: Non-serialized sample Sample Tag Number: S0452503-001 EUT Category: Transmitter - Low Power EUT Type: Hand Held Sample Receive Date: December 12, 2002 Testing Start Date: January 02, 2003 Date Testing Complete: January 23, 2003 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA certificates provided at the end of this report. Project: 03RT2075 Underwriters Laboratories, Inc. Issued: 01/24/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 3 of 45 Test Report: 030113 Summary of Testing: Test Test Name Comply Does Not See # Test Requirement/Specification Comply Remark 1 Radiated Disturbance Emissions - 30 MHz to 1000 MHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 2 Radiated Disturbance Emissions - Above 1 GHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 3 Radiated Disturbance Emissions - Peak-to-Average Ratio N/A N/A 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 4 Radiated Disturbance Emissions - Occupied Bandwidth X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 5 Radiated Disturbance Emissions - Restricted Bands X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.205 Remarks: 1) Data can be applied to Canadian RSS-210 Section 6.1. 2) Device contains an integrated, non-removable antenna. 3) Device is exempt from routine exposure testing per FCC Part 2.1093(c). 4) Device was observed to cease transmission immediately upon release of button. 5) Canadian Designation of Emissions: 56K0L1D. Conclusion : The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Prepared By: Reviewed By: Jim Marley Mark Nolting NARTE Certified EMC Engineer NARTE Certified EMC Test Lab Engineer EMC-002278-NE ATL-0340-E (919) 549-1408 (919) 549-1584 Project: 03RT2075 Underwriters Laboratories, Inc. Issued: 01/24/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 4 of 45 Test Report: 030113 Test Facilities: Test Location A) 10-Meter Anechoic Chamber (Industry Canada - IC 2953, NVLAP - 200246-0, VCCI - R-722) Constructed by Lindgren RF Enclosures, this room consists of a 17.9 by 12 by 8.3 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 4.0 m diameter embedded turntable and a 1.2 by 2.1 m and 2.4 by 2.4 m double knife edge doors for access. Also, the room is fed electrical EUT power via permanently installed filters and is provided with a permanently mounted video surveillance camera. A remotely controllable antenna mast is located in the room for positioning the measuring antenna from 1 to 4 m above the ground plane. Test Location B) Compact Anechoic Chamber Constructed by Lindgren RF Enclosures, this room consists of a 6 by 3 by 2.9 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 1.5 m diame…

Text truncated - open the document above for the full version.
