IN2TX61Remote Control for Ceiling Fan

Fan on/off -- turn on or turn off the fan. Fan speed up -- speed up the fan, until high speed. Fan speed down -- speed down the fan, until fan stop. Fan reverse -- reverse the fan. LED indicator –- LED on operation. FCC Caution: Part 15.21 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part 15.105 Note: This equipment has been tested and found to comply with the limits for a Class B digital KB283-A5/A6 Fan speed down Fan speed up Fan on/off Fan reverse LED indicator device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. User manuals for licence-exempt radio apparatus shall contain the following or equivalent notice in a conspicuous location in the user manual or alternatively on the device or both. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radio apparatus containing digital circuitry which can function separately from the operation of a transmitter or an associated transmitter, shall comply with ICES-003. In such cases, the labelling requirements of the applicable RSS apply, rather than the labelling requirements in ICES-003. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Hunter Fan Company * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter August 30, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: IN2TX60 FRN: 0006777569 Per section 2.911(d)(7) of the FCC rules, (“ Hunter Fan Company”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Hunter Fan Company Physical U.S. Company Address: 7130 Goodlett Farms Pkwy, Suite 400 Agent name: Julian Martin Agent Email Address: [email protected] FRN: 0006777569 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Julian Martin Printed name: Julian Martin Title: Compliance Manager Title: Compliance Manager Company Name: Hunter Fan Company Company Name: Hunter Fan Company Date: August 30, 2024 Date: August 30, 2024

Hunter Fan Company Covered Equipment Certification Attestation Letter 8/29/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: IN2TX61 (Hunter Fan Company) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. (Hunter Fan Company) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Julian Martin Title: Compliance Manager Company Name: Hunter Fan Company Date: 8/29/2024

2024-08-29 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China / Xu Yang,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hunter Fan Company / 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States. Agency agreement expiration date: 2025-08-28 By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

2024-08-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: IN2TX61 Product Name: Remote Control for Ceiling Fan Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

Statement Letter All measurements were performed radiated and therefore additional antenna gain documentation is not required. By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

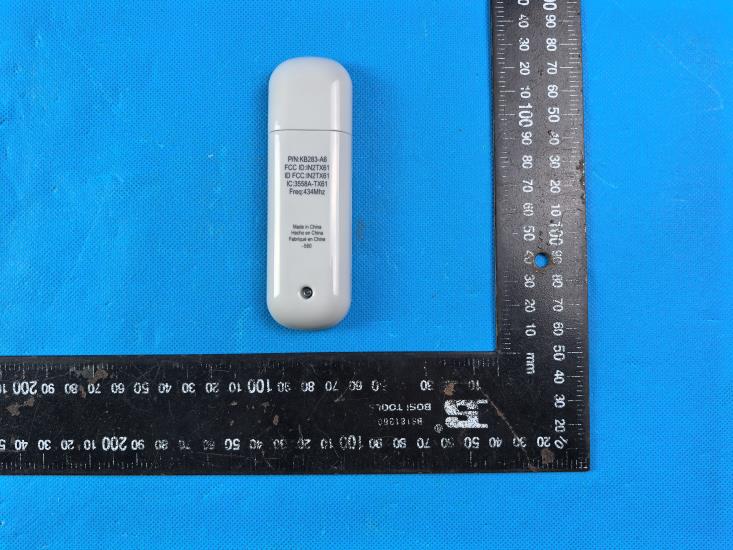

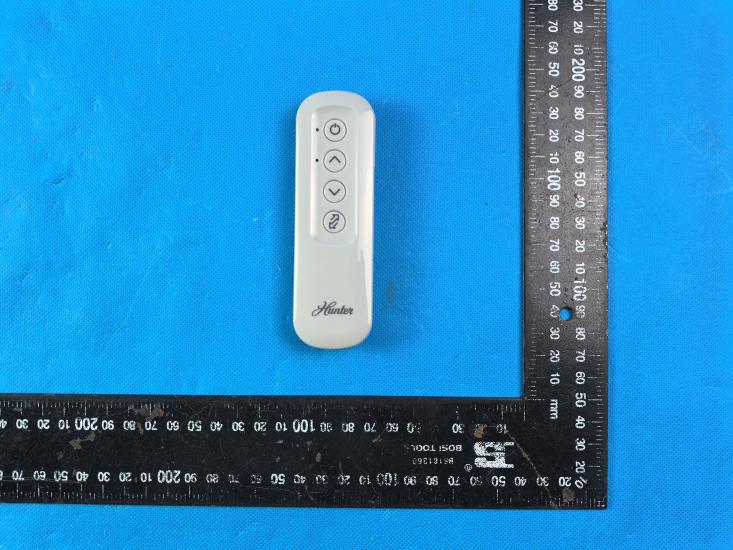

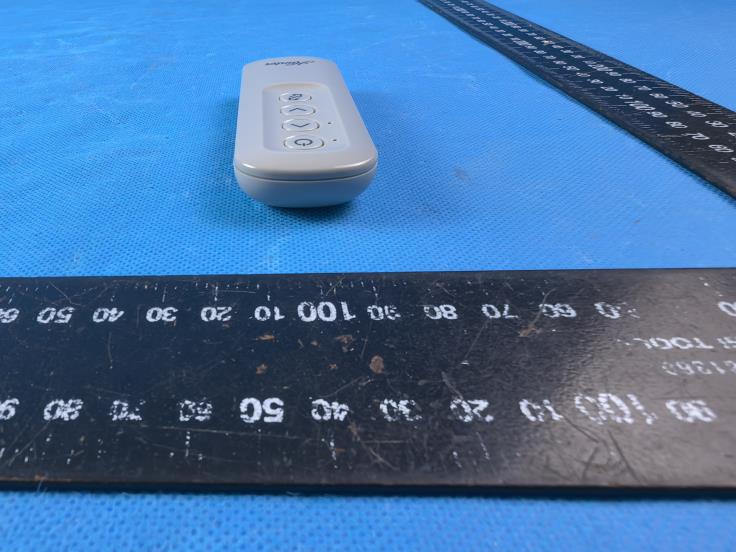

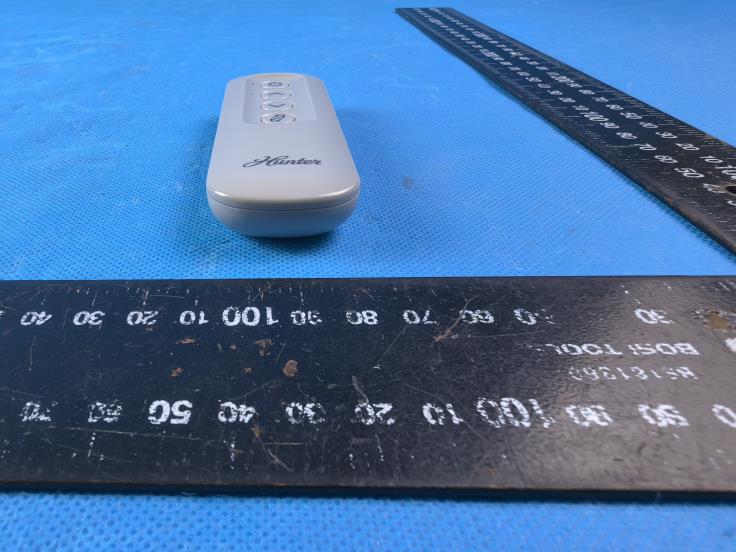

External Photos KB283-A5 KB283-A6

KB283-A5 KB283-A6

Internal Photos

FCC ID: IN2TX61 RF Exposure Evaluation REQUIREMENT KDB447498 D01 General RF Exposure Guidance v06, Clause 4.3.1(a) a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where -f(GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The result is rounded to one decimal place for comparison -The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 MHz to be acceptable. TEST RESULT Passed Not Applicable Test Frequency H-field strength (dBuV/m) H-field strength (dBm) H-field strength (mW) Limit (mW) Result 433.92MHz 77.15 -18.05 0.01567 3.0 Pass Note: 1) The exposure evaluation safety distance is 5mm. 2) (dBm)=E(dBuV/m)+20log(d)-104.77=E(dBuV/m)-95.2

Page: 1 of 32 TEST REPORT For RF Report No. ...................................... : CHTW24080067 Report Verification: Project No.................................： SHT2406041902W FCC ID ............................................. : IN2TX61 Applicant’s name ........................... : Hunter Fan Company Address ............................................. : 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Product Name ................................ : Remote Control for Ceiling Fan Trade Mark ....................................... : Hunter Model No. ......................................... : KB283-A5 Listed Model(s) ................................. : KB283-A6 Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C § 15.231 Date of receipt of test sample..........: Aug.08, 2024 Date of testing.............................: Aug.09, 2024 - Aug.20, 2024 Date of issue...............................: Aug.21, 2024 Result .................. ........................: PASS Compiled by (Position+Printed name+Signature): File administrators Kiki Kong Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Xu yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTW24080067 Page: 2 of 32 Date of issue: 2024-08-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06 (2023-09) Contents 1. TEST S T A N D A R D S AND R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. 20dB bandwidth 13 5.4. 99% Occupied Bandwidth 14 5.5. Transmission Time 15 5.6. Duty Cycle Corrected Factor 16 5.7. Radiated field strength of the fundamental signal 17 5.8. Radiated Spurious Emission 19 6. TEST SETUP PHOTOS 25 7. EXTERNAL AND INTERNAL PHOTOS 27 7.1. External Photos 27 7.2. Internal Photos 30 8. APPENDIX REPORT 32 Report No.: CHTW24080067 Page: 3 of 32 Date of issue: 2024-08-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06 (2023-09) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC CFR Title 47 Part 15 Subpart C § 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices 1.2. Report version Revision No. Date of issue Description N/A 2024-08-21 Original Report No.: CHTW24080067 Page: 4 of 32 Date of issue: 2024-08-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06 (2023-09) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203 PASS Xiangyu Wei 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 20dB Bandwidth 15.231(c) PASS Xiangyu We 5.4 99% Occupied Bandwidth - PASS *1 Xiangyu We 5.5 Transmission time 15.231(a)(1) PASS Xiangyu We 5.6 Duty cycle corrected factor - PASS *1 Xiangyu We 5.7 Field strength of the Fundamental signal 15.231(b) PASS Yifan Wang 5.8 Radiated Spurious Emission 15.231(b)/15.205/15.209 PASS Yifan Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTW24080067 Page: 5 of 32 Date of issue: 2024-08-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06 (2023-09) 3. SUMMARY 3.1. Client Information Applicant: Hunter Fan Company Address: 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Manufacturer: Hunter Fan Company Address: 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Factory: Shenzhen H&T Iintelligent Control CO., Ltd. Address: H&T Industrial Park,No.18 BaoShan Road,Tian Liao Community,Guangming new district,Shenzhen,Guangdong,China 518132 3.2. Product Description Main unit information: Product Name: Remote Control for Ceiling Fan Trade Mark: Hunter Model No.: KB283-A5 Listed Model(s): KB283-A6 Power supply: DC 3.0V from Battery Hardware version: V04 Software version: V01 Accessory unit information: Battery information: CR2032 3V LITHIUM BATTERY 3.3. Radio Specification Description Operation frequency: 433.92MHz Modulation: OOK Channel number: 1 Antenna type: PCB Antenna Report No.: CHTW24080067 Page: 6 of 32 Date of issue: 2024-08-21 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V06 (2023-09) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location Building 7, Bai…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Radiated Emission
