IN2TX52Remote Control for Ceiling Fan

M0124 • 02/28/20 • © 2020 Hunter Fan Company This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or modifications to the transmitter or receiver not expressly approved by Hunter Fan Company may void one’s authority to operate this remote control. Chemical burn hazard. Keep batteries away from children. This remote contains a lithium button cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Dispose of cells properly and keep away from children. Even used cells may cause injury. Remote Control of Fan is Erratic • Make sure the battery is installed correctly. • Install a fresh battery. Multiple Remote Issues • If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are experiencing interference or faulty operation of your remote controls, please go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-controlled fans?” for information on how to correct this issue. This product conforms to UL Standard 1917. WARNINGS CEILING FAN REMOTE CONTROL Model 99372, 99392 HUNTER FAN COMPANY CONTROL LIMITED WARRANTY The Hunter Fan Company makes the following limited warranty to the original purchaser of the Control (“Control”): Your Control is warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If the Control malfunctions or fails within the warranty period due to a defect in material or workmanship we will replace it free of charge. IF THE ORIGINAL PURCHASER CEASES TO OWN THE CONTROL, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY CONTROL, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH CONTROL. This warranty excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling, improper installation, modifications, or damage to the Control while in your possession, or unreasonable use. This warranty does not apply to batteries or to deterioration or damage to the product caused by the use of faulty batteries. To obtain a replacement, return your Control postage prepaid along with proof of purchase to Hunter Fan Company Service Department at 7130 Goodlett Farms Pkwy., Memphis, TN 38016. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. 7 Installing the battery Installation Wiring Trouble Shooting Cradle Installation Before installation, use the pull chains to set the fan speed to HIGH and the light to ON. Ensure the power is OFF at the outlet box and wall switch location before proceeding with installation. Turn Po wer OFFOFF 2 3 1 Option 1 Option 2 4 5 Remove the canopy. If uncertain how to remove it, reference the fan’s owner’s manual. With wiring exposed, it may be helpful to note existing wire connections or take a digital photo for reference. Remove the wire connectors that connect the wires from the outlet box to the fan, leaving the grounding wires connected. Turning off the power Using screws Using Adhesive Strip Connecting the ground wires Wiring the receiver to the fan (continued) Installing the receiver Removing the canopy Choose the hanging system that most closely resembles the one used by your fan, and install the receiver and wire as directed. You may have installation issues if the fan is installed on an angled ceiling. For assista…

Text truncated - open the document above for the full version.

2023-01-09 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hunter Fan Company / 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States. Agency agreement expiration date: 2024-01-09 By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

2023-01-09 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: IN2TX52 Product Name: Remote Control for Ceiling Fan Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

Differences Declaration To whom concern, We company Hunter Fan Company Here by declares: The produc t model(s) K6266-A1 is the same PCB layout, electronic schematic and Antenna with K6266-A2, K6266-A3, K6266-B1, K6266-B2, K6019-A1, K6019-A4, K5579-A1, K5580-A4, KB283-A1, KB283-A2 which tested in Shenzhen Huatongwei International Inspection Co., Ltd. They are the same model that has 11 names, the EUT has different appearance and silk screen is different. See the table below for details: Sincerely yours, Signature: Name: Julian Martin Company name: Hunter Fan Company Company address: 7130 Goodlett Farms Parkway, Ste 400 Cordova, TN 38016-4991 USA E-Mail: [email protected]

Statement Letter All measurements were performed radiated and therefore additional antenna gain documentation is not required. By: Julian Martin Signature Printed On behalf of : Hunter Fan Company Telephone: 901-248-2810

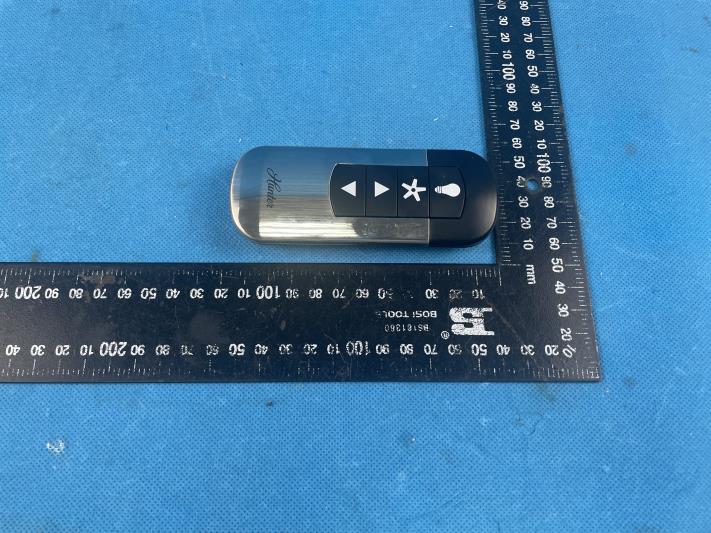

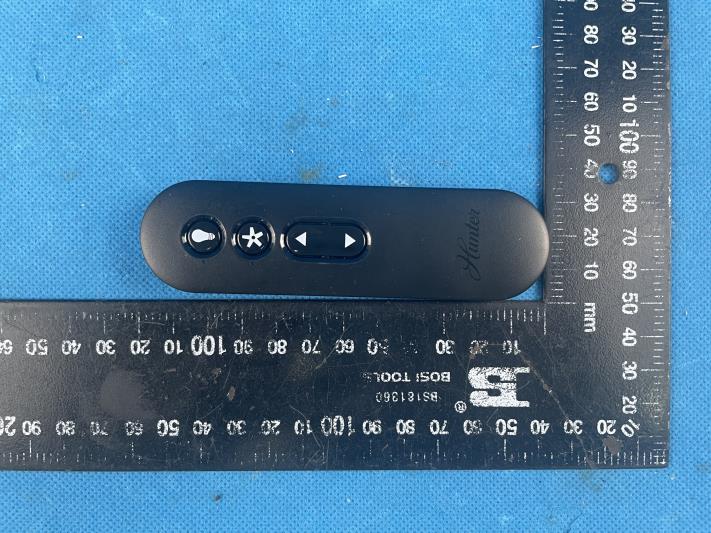

External Photos K6266-A1 K6266-A2 K6266-A3 K6266-B1 K6266-B2 K5579-A1 K5580-A4 K6019-A1 K6019-A4 KB283-A1 KB283-A2

K5579-A1 Label location

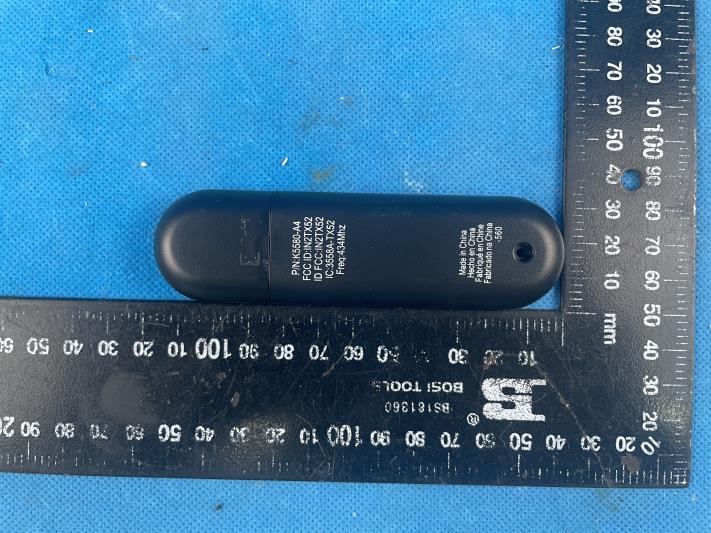

K5580-A4 Label location

K6019-A1 Label location

K6019-A4 Label location

K6266-A1 Label location

K6266-A2 Label location

K6266-A3 Label location

K6266-B1 Label location

K6266-B2 Label location

KB283-A1 Label location

KB283-A2 Label location

Internal Photos K6266-A1 K6266-A2 K6266-A3 K6266-B1 K6266-B2 K5579-A1 K5580-A4 K6019-A1 K6019-A4 KB283-A1 KB283-A2

Page: 1 of 67 TEST REPORT For RF Report No. ...................................... : CHTEW22100093 Report Verification: Project No.................................： SHT2209104201EW FCC ID ............................................. : IN2TX52 Applicant’s name ........................... : Hunter Fan Company Address ............................................. : 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Product Name ................................ : Remote Control for Ceiling Fan Trade Mark ....................................... : Hunter Model No. ......................................... : K6266-A1 Listed Model(s) ................................. : K6266-A2, K6266-A3, K6266-B1, K6266-B2, K5579-A1, K5580- A4, K6019-A1, K6019-A4, KB283-A1, KB283-A2 Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of receipt of test sample..........: Oct.11, 2022 Date of testing.............................: Oct.11, 2022- Oct.25, 2022 Date of issue...............................: Oct.26, 2022 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW22100093 Page: 2 of 67 Date of issue: 2022-10-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. 20dB bandwidth 13 5.4. 99% Occupied Bandwidth 14 5.5. Transmission Time 15 5.6. Duty Cycle Corrected Factor 16 5.7. Radiated field strength of the fundamental signal 17 5.8. Radiated Spurious Emission 20 6. TEST SETUP PHOTOS 26 7. EXTERNAL AND INTERNAL PHOTOS 27 8. APPENDIX REPORT 67 Report No.: CHTEW22100093 Page: 3 of 67 Date of issue: 2022-10-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.231(a): Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices 1.2. Report version Revision No. Date of issue Description N/A 2022-10-26 Original Report No.: CHTEW22100093 Page: 4 of 67 Date of issue: 2022-10-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203 PASS Xiaoqin Li 5.2 AC Conducted Emission 15.207 N/A N/A 5.3 20dB Bandwidth 15.231(c) PASS Xiaoqin Li 5.4 99% Occupied Bandwidth - PASS *1 Xiaoqin Li 5.5 Transmission time 15.231(a)(1) PASS Xiaoqin Li 5.6 Duty cycle corrected factor - PASS *1 Xiaoqin Li 5.7 Field strength of the Fundamental signal 15.231(b) PASS Xiaoqin Li 5.8 Radiated Spurious Emission 15.231(b)/15.205/15.209 PASS Xiaoqin Li Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW22100093 Page: 5 of 67 Date of issue: 2022-10-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3. SUMMARY 3.1. Client Information Applicant: Hunter Fan Company Address: 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Manufacturer: Hunter Fan Company Address: 7130 Goodlett Farms Pkwy, Suite 400, Memphis Tennessee 38016 United States Factory: Shenzhen H&T Iintelligent Control CO., Ltd. Address: H&T Industrial Park,No.18 BaoShan Road,Tian Liao Community,Guangming new district,Shenzhen,Guangdong,China 518132 3.2. Product Description Main unit information: Product Name: Remote Control for Ceiling Fan Trade Mark: Hunter Model No.: K6266-A1 Listed Model(s): K6266-A2, K6266-A3, K6266-B1, K6266-B2, K5579-A1, K5580-A4, K6019-A1, K6019-A4, KB283-A1, KB283-A2 Power supply: DC 3V from battery Hardware version: V04 Software version: V01 3.3. Radio Specification Description Operation frequency: 433.92MHz Modulation: OOK Channel number: 1 Antenna type: PCB Report No.: CHTEW22100093 Page: 6 of 67 Date of issue: 2022-10-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2022-01) 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi…

Text truncated - open the document above for the full version.

Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 6 APPENDIX REPORT Project No. SHT2209104201EW Test sample No. YPHT22091048001 Model No. K6266 Start test date 2022-10-14 Finish date 2022-10-14 Temperature 25.1°C Humidity 31% Test Engineer Xiaoqin Li Auditor Appendix clause Test item Result A 20dB Bandwidth PASS B 99% Occupied Bandwidth PASS C Deactivation Time PASS D Duty Cycle Corrected Factor PASS Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 6 Appendix A：20dB bandwidth Test Channel 20dB Bandwidth (kHz) Limit (kHz) Result CH M 7.99 1084.8 Pass NOTE:Limit=0.25%*Center Frequency=1084.8 kHz CH M Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 6 Appendix B：99% Occupied Bandwidth Test Channel 99% Occupied Bandwidth (kHz) Limit (kHz) Result CH M 29.67 - Pass CH M Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 6 Appendix C：Deactivation Time Transmission time (second) Limit (second) Result 0.33 5 Pass CH M Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 6 Appendix D：Duty Cycle Corrected Factor T ON1 (ms) : 0.40 T ON1 number 66 T ON2 (ms) : 0.80 T ON2 number 12 Period (ms) : 100 Duty Cycle : =(0.40*66+0.80*12)/100=0.36 Duty Cycle Corrected Factor: =20*log(0.36)=-8.87 Note： 1) Duty cycle= Ton1* T ON1 number +Ton2* T ON2 number / Tperiod 2) Duty Cycle Corrected Factor/DCCF=20*log (Duty Cycle) Project No.: SHT2209104201EW Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 6 T ON1 (ms) : T ON2 (ms) : Period (ms) : --------End of Report--------

TEST SETUP PHOTOS Radiated Emission
