Hunter B32 Bathroom Fan & Light Remote Control Transmitter Block Diagram Description: The top box of the diagram below represents all of the potential keys that may be pressed for the Hunter transmitter. When pressing the On / Off Button, power on & off. Pressing light/fan/delay key generates an encoded PCM code words, which will modulate on a 350 MHz RF carrier for transmission. The encoded PCM code word is obtained from MCU U1 and is ASK modulated by the RF oscillator formed by transistor Q3. Delay-off button turns off device(s) selected in Device selector switch which enables fan, light or both for delay-off operation after the time selected by Delay-off time selector switch which turns off selected device(s) after 5, 10 or 20 minutes. Antenna Loop ON/OFF Button Light Button Fan Button Delay Button Delay Selector Switch Time Delay Select Switch U1 MCU (S3C9454) Q3 (MMBTH10) ASK Modulator & Oscillator (350 MHz) Hunter Bathroom Fan & Light Remote Control Receiver Block Diagram Description: Refer to the block diagram of the Hunter receiver below. Power is supplied to the receiving and control circuits through a 5-Volt regulator U1, which is not shown in the diagram. Transistor Q1 is the front amplifier to amplify the signal received from the monopole antenna. Transistor Q2 is the super-regenerative receiving stage, whose frequency can be factory tuned by coil L2. Op- Amp U1 is configured as the detector. Microcontroller U2 converts the PCM data signal to performs the desired actions to control the fan and light. Monopole Antenna RF front Amp Q1 (MMBTH10LT1) Super-regenerative stage Q1 (MMBTH10LT1) Detector Op-amp U1 (LM358) Microcontroller U2 (S3C9454) Fan On/OFF Control Light On/OFF Control

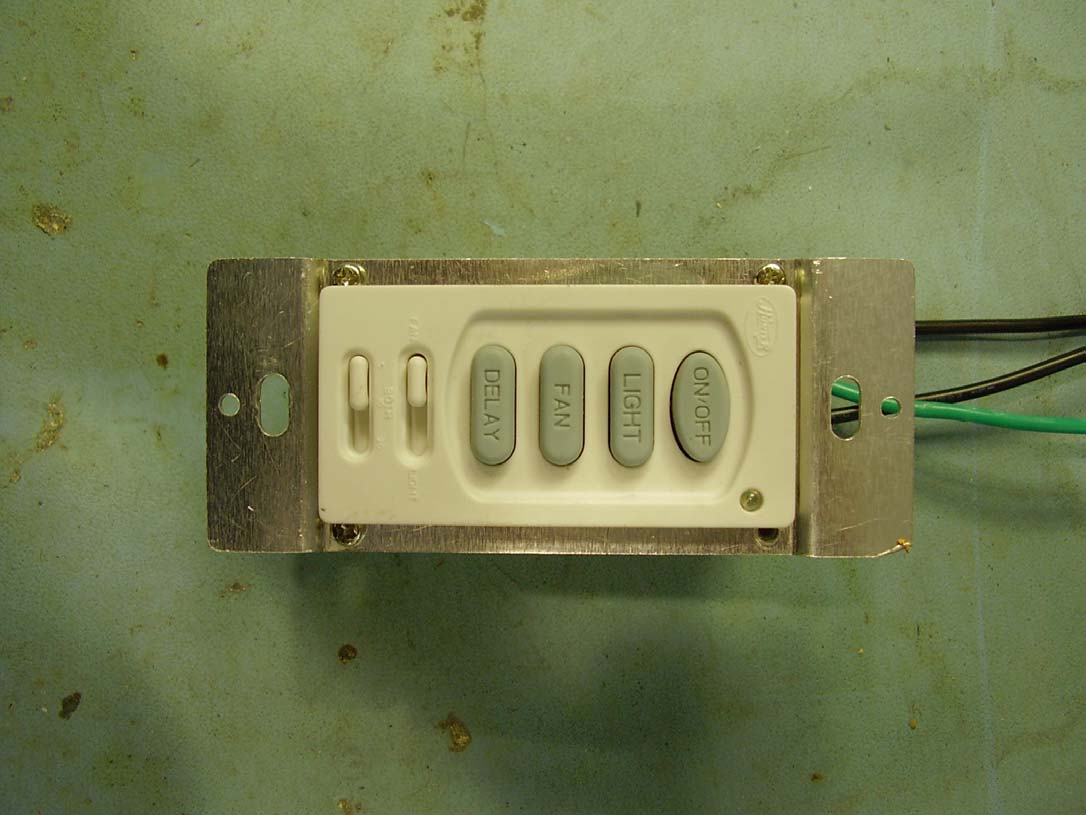

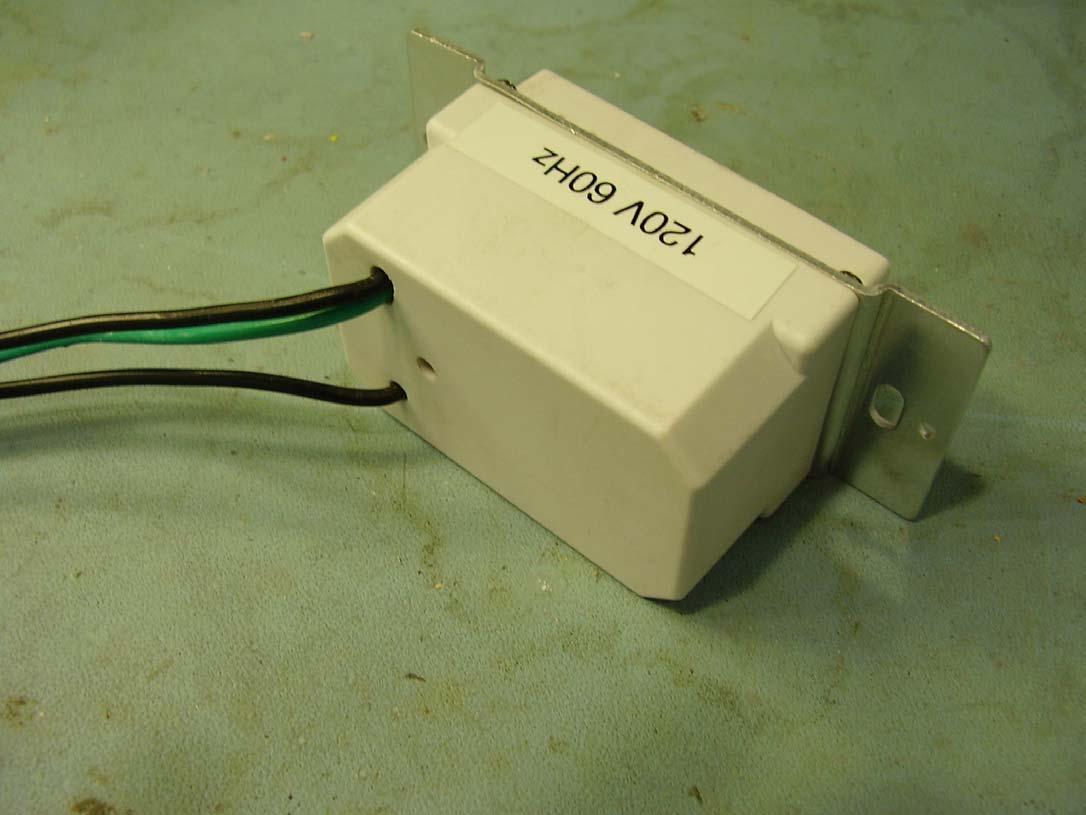

External Photos FCC ID: IN2TX22 IC: 3558A-TX22 Front: External Photos FCC ID: IN2TX22 IC: 3558A-TX22 Rear/Left Side External Photos FCC ID: IN2TX22 IC: 3558A-TX22 Rear/Right Side

B32A UL FCC label (size: 50 mm x 30 mm) Hunter Fan Co. Memphis, TN 38114 7OF1 When used with receiver # 86088-01 Bath Fan & Light Wall Control Mod/Part # 27179/86086-01 Ratings: 120Vac, 60Hz, 1.25A FCC ID: IN2TX22 I C: 3558A-TX22 Made in China 060 Hunter Fan Co. Memphis, TN 38114 7OF1 When used with receiver # 86088-01 Bath Fan & Light Wall Control Mod/Part # 27179/86086-01 Ratings: 120Vac, 60Hz, 1.25A FCC ID: IN2TX22 I C: 3558A-TX22 Made in China 060 Hunter Fan Co. Memphis, TN 38114 7OF1 When used with receiver # 86088-01 Bath Fan & Light Wall Control Mod/Part # 27179/86086-01 Ratings: 120Vac, 60Hz, 1.25A FCC ID: IN2TX22 IC : 3558A-TX22 Made in China 060 Illustrator artwork Photo jpg

Internal Photos Components (Top to Bottom: Keypad Board, Transmit Board, Switch Board) Detailed photos on following pages. Keypad Board (Component Side) Keypad Board (Keypad side) Transmit Board (Component Side) Transmit Board (Solder Side) On/Off Switch Board (Component Side) On/Off Switch Board (Solder Side) Receiver Board (Component Side) Solder Side

Hunter B32 Bathroom Fan & Light Remote Control Transmitter Description of Operation Description: The top box of the diagram below represents all of the potential keys that may be pressed for the Hunter transmitter. When pressing the On / Off Button, power on & off. Pressing light/fan/delay key generates an encoded PCM code words, which will modulate on a 350 MHz RF carrier for transmission. The encoded PCM code word is obtained from MCU U1 and is ASK modulated by the RF oscillator formed by transistor Q3. Delay-off button turns off device(s) selected in Device selector switch which enables fan, light or both for delay-off operation after the time selected by Delay-off time selector switch which turns off selected device(s) after 5, 10 or 20 minutes. RF Transmitter Coding Description: The Hunter transmitter uses the following code words to modulate on a 350 MHz RF carrier by using ASK modulation. Code words for the different commands: 1000XXXXXXXX 1001XXXXXXXX 1010XXXXXXXX 1011XXXXXXXX (Where “x” is the address code generated by the MCU randomly.) Code “0” is represented as: 1 ms 0.5ms Code “1” is represented as: 0.5ms 1ms The interval between two code words is about 12 ms.

HUNB32A-2.sch-1 - Mon Nov 29 17:29:35 2004

HUNb32r.sch-1 - Mon Nov 29 17:28:38 2004

Project: 05RT2219 File: MC1324 Report: 050017 Date: February 14, 2005 Model: Transmitter and Receiver Model 27179 (FCC ID: IN2TX22, IC: 3558A-TX22) Test Report On Electromagnetic Compatibility Testing Hunter Fan Co Memphis, TN USA Copyright  2005 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 05RT2219 Underwriters Laboratories, Inc. Issued: 02/03/05 File: E11810 Test Report on Electromagnetic Compatibility Page 2 of 64 FCC ID: IN2TX22 Test Report: 050017 IC:3558A-TX22 Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Hunter Fan Co 2500 Frisco Avenue Memphis, TN 38114 USA Applicant Contact: Mr. Robert Davis Safety and Test Engineer - International (901) 248-2212 (901) 248-2382 - FAX Test Report Number: 050017 Test Report Date: February 14, 2005 Product Type: Ceiling Fan Remote Control Transmitter and Receiver Model Number: Transmitter and Receiver Model 27179 Sample Serial Number: Unserialized, production sample Sample Tag Number: 0644349-001 EUT Category: Transmitter - Low Powered EUT Type: Wall Mounted Sample Receive Date: January 11, 2005 Testing Start Date: January 24, 2005 Date Testing Complete: January 27, 2005 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA certificates provided at the end of this report. Project: 05RT2219 Underwriters Laboratories, Inc. Issued: 02/03/05 File: E11810 Test Report on Electromagnetic Compatibility Page 3 of 64 FCC ID: IN2TX22 Test Report: 050017 IC:3558A-TX22 Summary of Testing: Test Test Name Comply Does Not See # Test Requirement/Specification ComplyRemark 1 Radiated Disturbance Emissions - 30 MHz to 1000 MHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 Canada RSS-210, Issue 5, Amend. 4 / Canada RSS-210 Issue 5, Amend. 4, Section 6.2.2(t1) and 6.1.1(e) 2 Radiated Disturbance Emissions - Above 1 GHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 Canada RSS-210, Issue 5, Amend. 4 / Canada RSS-210 Issue 5, Amend. 4, Section 6.2.2(t1) and 6.1.1(e) 3 Radiated Disturbance Emissions - Occupied Bandwidth X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 Canada RSS-210, Issue 5, Amend. 4 / Canada RSS-210 Issue 5, Amend. 4, Section 6.1.1(c) 4 Radiated Disturbance Emissions - Peak-to-Average Ratio / Turn-off Delay X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 Canada RSS-210, Issue 5, Amend. 4 / Canada RSS-210 Issue 5, Amend. 4, Section 6.5 5 Conducted Disturbance Emissions - Voltage X - 47 CFR Part 15, Subpart B / CISPR 22:1997 Class B Canada ICES-003 / Canada ICES-003, Class B 6 Radiated Disturbance Emissions - Restricted Bands X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.205 Canada RSS-210, Issue 5, Amend. 4 / Canada RSS-210 Issue 5, Amend. 4, Section 6.2.2(t1) Remarks: 1) Modifications required to comply: None. 2) Transmitter is regarded as a composite device: Power supply is of linear design and is regarded as an incidental radiator. Transmitter is an intentional radiator. 3) Broadband emissions from transmitter power supply are disregarded as an incidental radiator. 4) Device is exempt from routine RF exposure testing per FCC Part 2.1093 and RSS-102, Issue 1. From Range Equation device is calculated to produce 0.7 μW EIRP. 5) All data was recorded on Industry Canada Registered Site IC-2953. Canadian Emissions designator L1D4K08. 6) Device contains an integrated antenna. It is not detachable or replaceable by the user. 7) This device contains both manually activated transmissions and automatically activated transmissions. a. All manually activated transmissions are found to cease in less than five seconds as required in Part 15.231(a)(1) and RSS-210 Section 6.1.1(a)(1). b. All automatically activated transmissions are found to be less than fives seconds in duration as required in Part 15.231 (a)(2) and RSS-210 Section 6.1.1(a)(2). Conclusion: The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Prepared By: Reviewed By: Jim Marley Mark Nolting NARTE Certified EMC Engineer NARTE Certified EMC Test Lab Engineer EMC-002278-NE ATL-0340-E (919) 549-1408 (919) 549-1584 Project: 05RT2219 Underwriters Laboratories, Inc. Issued: 02/03/05 File: E11810 Test Report on Electromagnetic Compatibility Page 4 of 64 FCC ID: IN2TX22 Test Report: 050017 IC:3558A-TX22 Test Facilities: Test Location A) 10-Meter Anechoic Chamber (Industry Canada - IC 2953, NVLAP - 200246-0, VCCI - R-722) Constructed by Lindgren…
