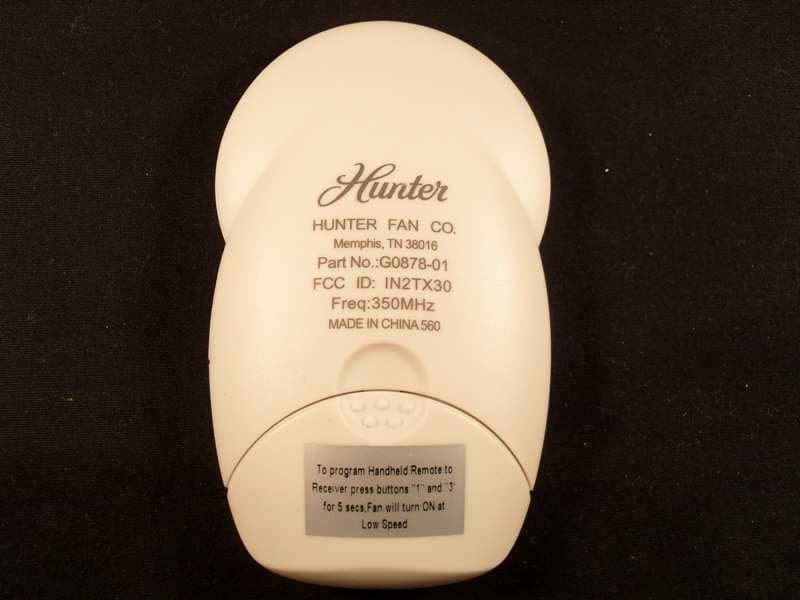

IN2TX30Remote control for ceiling fan

Universal Fan and Light Remote Control Universal Fan and Light Remote Control Universal Fan and Light Remote Control Form# 44092-01 20101011 ©2010 Hunter Fan Co. English Owner’s Guide and Installation Manual Hand-Held Remote and Wall Cradle 41797-01 • 10/11/10 • Hunter Fan Company 2 1 • Welcome Table of Contents 1 • Welcome ..............................................................2 2 • Installation Preparation ...............................3 3 • Programming Your Remote ......................4 4 • Receiver Installation ......................................5 5 • Transmitter Installation ...............................7 6 • Operation ............................................................8 7 • Troubleshooting ...........................................10 8 • Warranty ...........................................................11 © 2010 Hunter Fan Company Read and Save these Instructions Caution: Risk of Electrical Shock! All wiring must be performed in accordance with national and local electrical codes. If you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and possible damage to other equipment, do not install to control a receptacle, motor operated appliance, or transformer-supplied appliance. Use only to control one ceiling fan with or without a light fixture. Ratings: 120 VAC, 60 Hz,1.0 Amp Fan Receiver Weight: 6 oz. 300 Watts incandescent light 41797-01 • 10/11/10 • Hunter Fan Company 3 2 • Installation Preparation Notes: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from the one the receiver is connected to. • Consult the dealer or an experienced radio/TV technician for help. 3. For use only with electrically reversible ceiling fans rated at 1.0 amp or less, and fan incandescent light kits rated at 300 watts or less. 4. Not for use with shaded-pole motors, Hunter 42” Low Profile fans, and Hunter Baseball fans. Not recommended for use with the Hunter Original®. For Hunter Original® series fans, use Hunter control model numbers 27187, 22691, or 27189. 5. Medium and Low fan speeds are determined by the control and thus may vary from the factory settings due to normal motor variations. 6. For use with Hunter Hanging Systems (excludes Hunter Original) on flat ceilings or angled ceilings with a pitch up to 34°. 7. Not for use in applications where the fan does not have a wall switch. Any changes or modifications to this equipment not expressly approved by Hunter Fan Company will void the user’s authority to operate the equipment. BEFORE YOU INSTALL THIS CONTROL: USE THE PULL CHAIN SWITCH TO SET THE FAN SPEED TO THE HIGH POSITION BEFORE INSTALLATION. DO NOT USE THE PULL CHAIN TO CHANGE THE FAN SPEED AFTER INSTALLATION, AS DAMAGE TO YOUR FAN OR REMOTE MAY RESULT. THE SPEED OF THE FAN SHOULD ONLY BE CHANGED BY THE HUNTER CONTROL!! 41797-01 • 10/11/10 • Hunter Fan Company 4 3 • Programming Your Remote BEFORE INSTALLING THE CONTROL: 1. USE THE PULL CHAIN SWITCH TO SET THE FAN SPEED TO THE HIGH POSITION BEFORE INSTALLATION. DO NOT USE THE PULL CHAIN TO CHANGE THE FAN SPEED AFTER INSTALLATION, AS DAMAGE TO YOUR CEILING FAN OR UNIVERSAL CONTROL MAY RESULT. THE SPEED OF THE FAN SHOULD ONLY BE CHANGED BY THE HUNTER CONTROL!! 2. Set the ceiling fan light kit to the ON position before installation. Installation Instructions: 1. Install the ceiling fan according to its instructions, up to the point of making the electrical connections. Connect receiver to ceiling fan according to the mounting types shown on the next page. Determine your ceiling fan mounting type from the images on Pages 5-6. Most installations will be one of these five types. 2. If the fan is already installed, turn the power OFF at the main electrical panel. Reverse the installation procedure according to the fan instructions, to the point of disconnecting the fan wiring. Connect the receiver to the ceiling fan according to the mounting type as shown on Pages 5-6. Low Profile Style I (Figure 1): Secure receiver to the fan plate above the motor with UL-listed cable ties (not included). Connect wiring as shown in Figure 6. Extend antenna through one of the ceiling plate openings (approximately 3–6 ̋). Low Profile Style II (Figure 2): Secure receiver to the ceiling mounting bracket with UL-listed cable ties (not included). Connect wiring as shown in Figure 6. Extend antenna above the ceiling mounting bracket (approximately 3–6 ̋). Cable Tie Routing for Low Profile Fans (Figs.5-6): Insert cable tie through openings as shown. DO NOT insert the cable tie through the inside of the receiver. The cable tie can be placed across the length or width of the receiver to best match your fan installation type. Low Profile Style 1 Figure 1 Low Profile Style 2 Figure 2 NOTE: Some fans may have considerable excess lead wir…

Text truncated - open the document above for the full version.

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Equipment: Transmitter G0878 (IN2TX30) Dated this 28 th day of October, 2010 Robert Davis Robert DavisRobert Davis Robert Davis Signature Robert Davis Name Manager of Compliance and Controls Title Hunter Fan Company Company 901-248-2212 Telephone

11 22 33 44 DD CCBB AA Title Number Revision Size A4 Date: 2010-10-6 Sheet of File: D:\Hunter fan\..\27208 Tx block diagram.SchDoc Drawn By: 27208 Tx block diagram V01 HT68F30 Mcrocontroller 12V Battery Key input circuit 350 MHz RF circuit TP4450 LED INC CFL Toggle switch 3.3V Regulator HT7133


(  )
             1  1  !"#
 $%& '()  *+V01 27208 Tx schematic

    2010-10-1 BATTERY12V 2 3 1 LDO HT-7133 U2 GND +3.3V C6104 PA0/C0X/TP0_0 1 VSS 2 PB4/XT2 3 PB3/XT1 4 PB2/OSC2 5 PB1/OSC1 6 VDD 7 PB0/RES 8 PB5/SCS 9 PA7/SCK/SCL 10 PA6/SDI/SDA 11 PA5/C1X/SDO 12 PA4/INT1/TCK1 13 PA3/INT0/CO- 14 PA2/TCK0/CO+ 15 PA1/TP1A 16 U1 HT68F30 K1 K2 K3 K4 K5 GND LED1BLUE GND +3.3V 56K R3 56K R4 C3 102 C2 102 GND R2 56K C4 104 +3.3V R1 1K +3.3V GND R6 10K C5 104 GND +3.3V DATA OUT D1 MMBD914 SW1 INCCFL GND C1 104 GND K6 GND OSCOUT 1 GND 2 POUT 3 CE 4 VDD 5 OSCIN 6 U3 PT4450 1 2 3 350MHz SAW1 1pF C12 1pF C13 104 C11 5.6pF C10 3.3pF C7 NC C6 6.8pF C9 NC C8 104 C14 47nH L2 GND GND GND GND GND GND GND 180nH L3 +3.3V +3.3V GND GND GND DATA IN ANT R7 10K
