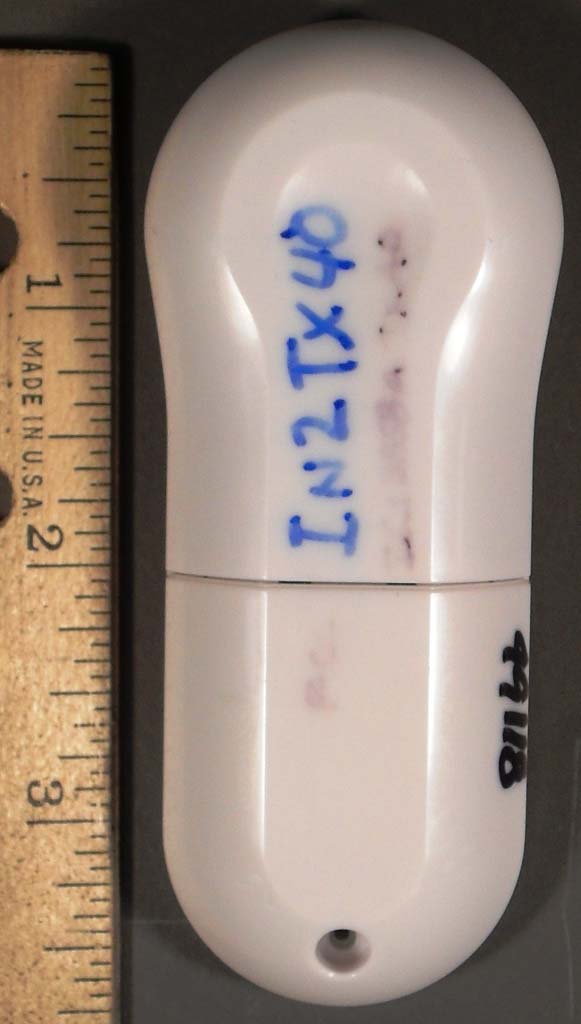

IN2TX40Remote Control for Ceiling Fan

Ladder Pliers Flat Blade Screwdriver Phillips Screwdriver Item #000-000 Model #99112 USE AND CARE GUIDE UNIVERSAL CEILING FAN REMOTE CONTROL Care and CleaningPre-InstallationTo clean, use soft brushes or cloths to prevent scratching. Cleaning products may damage finishes.TOOLS REQUIRED Ladder Pliers Flat Blade Screwdriver Phillips Screwdriver Safety Information NOTE: This product conforms to UL Standard 507. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the remote control or receiver not expressly approved by the manufacturer may void one’s authority to operate this remote control.NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: All wiring must be in accordance with national and local electrical codes. ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.CAUTION: To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel. Warranty 1-YEAR LIMITED WARRANTYWHAT IS COVEREDThe manufacturer makes the following limited warranty to the original purchaser of the remote control: Your remote control is warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If the remote control malfunctions or fails within the warranty period due to a defect in material or workmanship we will replace it free of charge. If the original purchaser ceases to own the remote control, this warranty and any implied warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, are voided. This warranty is in lieu of all other express warranties. The duration of any implied warranty, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose, in respect to any control, is expressly limited to the period of the express warranty set forth above for such control.WHAT IS NOT COVEREDThis warranty excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling, improper installation, modifications, or damage to the remote control while in your possession, or unreasonable use. This warranty does not apply to batteries or to deterioration or damage to the product caused by the use of faulty batteries. In no event shall the manufacturer be liable for consequential or incidental damages. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state . Questions, problems, missing parts? Before returning to the store, call Customer Service 9 a.m.-5:30 p.m., EST, Monday-Friday 1-888-830-1326 WWW.HOMEDEPOT.COM Troubleshooting Problem Solution Remote control of the fan is erratic. Install a fresh battery. Make sure the battery is installed correctly. The CFL bulbs flicker. Turn the light switch off and back on. Within three minutes, hold down the Fan Off button while pressing the Light button twice. If the problem is not corrected, repeat the process up to three times. The remote control only works when held at close range. Install fresh battery. 6  Press one of the fan speed buttons (located under the Fan Off button) to turn the fan on. Press the Fan Off button to turn the fan off. Installing the battery Fan Off Light Fan Light $ % Part Description Quantity A Receiver 1 B Remote Control 1 C Battery 1 D Wire Connectors 5 & ' &5 Phillips Head ScrewBattery Door B B B PACKAGE CONTENTS NOTE: Parts not shown to actual size. Installation  Before installation, use the pull chains to set the fan speed to HIGH and the light to ON.  Ensure the power is OFF before proceeding with installation.  Using the blue wire connectors (D), connect the white wire from the receiver (A) (marked “common out”) to the white wire from the fan. Connect the black wire from the receiver (A) (marked “fan out”) to the black wire from the fan. Connect the blue wire from the receiver (A) (marked ”light out”) to the blue wire (or possibly black with white stripe) from the fan. OF F Turn Po we r 2 314  Remove the canopy by following the instructions supplied by the fan manufacturer. Turning off the power Wiring the receiver to the fan Installing the receiver Removing the canopy F R O M R E C E I V E R whiteblack blue white (common out)black (fan out)blue…

Text truncated - open the document above for the full version.

HOME COMFORT Hunter Fan and Light Remote Control Block Diagram and Operational Description Description: The top box of the diagram below represents all of the potential keys that may be pressed for Hunter 99118 Transmitter. Pressing any key generates an encoded PCM code word which will modulate on a 434 MHZ RF carrier for transmission. The encoded PCM code word is obtained from encode U1 (ASIC). The frequency is obtained by the programmed ASIC. Light Button ON/OFF Fan Button ON/OFF U1 ASIC ( HeimdallS ) Antenna Loop 434MHz

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Equipment: Remote 99118 (IN2TX40) Dated this 22 nd day of February, 2013 Signature Robert Davis Name Manager of Compliance and Controls Title Hunter Fan Company Company 901-248-2212 Telephone

HOME COMFORT Hunter Fan and Light Remote Control Block Diagram and Operational Description Description: The top box of the diagram below represents all of the potential keys that may be pressed for Hunter 99118 Transmitter. Pressing any key generates an encoded PCM code word which will modulate on a 434 MHZ RF carrier for transmission. The encoded PCM code word is obtained from encode U1 (ASIC). The frequency is obtained by the programmed ASIC. Light Button ON/OFF Fan Button ON/OFF U1 ASIC ( HeimdallS ) Antenna Loop 434MHz

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize Letter Date:10/31/2012Sheet of File:C:\Users\..\HD_On_Off_v0P3.SchDocDrawn By: Home Depot ON OFF Remote XXXXXXX 3V CR2032 John Amschler Ver 0p2 AyDeeKay LLC DNI C1 Cer Cap 0603 GND +3v GND 100nH L1 +3V GND +3v GND GND GND GND 100nF C7 Cer Cap 0603 GND 100nF C5 Cer Cap 0603 100pF C2 Cer Cap 0603 100nF C3 Cer Cap 0603 Speed4 Light_Off Speed4 Light_Off +1.8V SWCLK SWDIO P9 1 P8 2 P7 3 P6 4 P5 5 GND 0 TMS 6 SWCLK 7 SWDIO 8 V1V8 9 VBAT 10 P2 11 P1 12 P0 13 RFOUT 14 VQP 15 C2 16 C1 17 P11 18 P10 19 XTAL 20 U1 HeimdallS Rf VQP BT1 Battery_CR2032 GND Antenna 0 Ohm C4 Cer Cap 0603 1.5nH L4 Ind 0603 6.8nH L3 18pF C10 Cer Cap 0603 GND 0 ohm L2 27pF C15 Cer Cap 0603 DNI C20 Cer Cap 0603 SWCLK SWDIO 1 2 3 4 609-3248-ND DNI P1 TEST HEADER +3V GND GND DNI C21 Cer Cap 0603 DNI C24 Cer Cap 0603 Speed4Light_Off X1 HC49SM SMD 100pF C8 Cer Cap 0603 GND FAN_HI smd_Hunter_9p0x6p0x4p3 DNI C25 Cer Cap 0603 DEBUG CONNECTOR GND LIGHT_OFF smd_Hunter_9p0x6p0x4p3 GND DNI C26 Cer Cap 0603 SWCLK PIAntenna01 COAntenna PIBT101 PIBT102 COBT1 PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301 PIC302 COC3 PIC401PIC402 COC4 PIC501 PIC502 COC5 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC1001 PIC1002 COC10 PIC1501 PIC1502 COC15 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2401 PIC2402 COC24 PIC2501 PIC2502 COC25 PIC2601 PIC2602 COC26 PIFAN0HI01PIFAN0HI02 PIFAN0HI03PIFAN0HI04 COFAN0HI PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PIL401PIL402 COL4 PILIGHT0OFF01PILIGHT0OFF02 PILIGHT0OFF03PILIGHT0OFF04 COLIGHT0OFF PIP101 PIP102 PIP103 PIP104 COP1 PIU100 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106PIU107PIU108PIU109PIU1010 PIU1011 PIU1012 PIU1013 PIU1014 PIU1015 PIU1016PIU1017PIU1018PIU1019PIU1020 COU1 PIX101PIX102 COX1 PIC301 PIU109 NL0108V PIBT101 PIC101 PIC201 PIC501PIC701 PIL102 PIP101 PIU1010 NL03V PIBT102 PIC202 PIC302 PIC502PIC702 PIC801 PIC1001 PIC2002PIC2101PIC2401 PIC2501 PIC2601 PIFAN0HI04 PILIGHT0OFF04 PIP102 PIU100 PIU101 PIU103 PIU105 PIU106 PIU1011 PIU1012 PIU1013 PIU1019 PIX102 PIC2402 PIC2502 PILIGHT0OFF02 PIU102 NLLight0Off PIAntenna01 PIC1502PIL302 PIL402PIC402PIL401 PIC802 PIC1501 PIL301 PIC1002 PIL201 PIFAN0HI01 PIFAN0HI03 PILIGHT0OFF01 PILIGHT0OFF03 PIU1015 PIU1016PIU1017PIU1018PIU1020 PIX101 PIC102 PIC401 PIL101 PIL202 PIU1014 NLRf PIC2001PIC2102 PIFAN0HI02 PIU104 NLSpeed4 PIC2602 PIP104 PIU107 NLSWCLK PIP103 PIU108 NLSWDIO NLVQP

Client: Product Designation: 99118 Report Number: 101036110ATL-001 All services undertaken are subject to the following general policy: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST, or any agency of the US Government. Tested by: Tests performed by:Report reviewed by: Standard: Troy Ihle EMC Project Engineer Jeremy O. Pickens Senior Staff Engineer Hunter Fan 7130 Goodlett Farms Parkway, Ste 400 Memphis, TN 38016 Contact: Robert Davis Phone: 901-248-2212 Fax: 901-248-2382 [email protected] TEST REPORT February 26, 2013 Intertek Testing Services NA Inc. 1950 Evergreen Blvd., Suite 100 Duluth, GA 30096 47 CFR Part 15, Subpart C (15.231 - Periodic operation in the band 40.66- 40.70 MHz and above 70 MHz) RSS-210, Issue 8, 2010 Page 1 of 34EMC Report for Hunter Fan on the 99118 02/26/2013Report Number: 101036110ATL-001Issued: Intertek 2.0 Test Summary 2.0 Test Summary2.0 Test Summary 2.0 Test Summary 1.0 Introduction and Conclusion 1.0 Introduction and Conclusion1.0 Introduction and Conclusion 1.0 Introduction and Conclusion Test DateTest Full NameResultSection System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup)4.0 Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview)5.0 01/28/2013Restrictions (FCC 15C-15.231 / RSS-210 A1.1)PASS6.0 01/28/2013Duty Cycle Determination (FCC 15A-15.35(c) / RSS-GEN 4.5)PASS7.0 01/18/2013Radiated Emissions (FCC 15.231(b) / RSS-210 A1.1.2)PASS8.0 01/28/2013Bandwidth Requirements (FCC 15.231(c) / RSS-210 A1.1.3)PASS9.0 Revision History (Revision History)10.0 Conducted Emissions for Intentional Radiators (FCC 15C - 15.207) was waived due to the device was battery-powered.NA The tests indicated in section 2.0 were performed on the product constructed as described in section 3.0. The remaining test sections are the verbatum text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Page 2 of 34EMC Report for Hunter Fan on the 99118 02/26/2013Report Number: 101036110ATL-001Issued: Intertek 3.0 Description of Equipment Under Test 3.0 Description of Equipment Under Test3.0 Description of Equipment Under Test 3.0 Description of Equipment Under Test Equipment Under Test Description Manufacturer Model Number Serial Number Ceiling Fan Remote Hunter Fan 99118 N/A EUT receive date: January 16, 2013 EUT receive condition: Good Description of EUT provided by Client: The EUT was a hand held wireless transmitter used for remote control of a ceiling fan and light assembly. Description of EUT exercising: During testing, the device was powered from a new internal CR2032 battery and configured to transmit continuously. Page 3 of 34EMC Report for Hunter Fan on the 99118 02/26/2013Report Number: 101036110ATL-001Issued: Intertek System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) diagram. (System Setup)diagram. (System Setup) diagram. (System Setup) 4.0 4.04.0 4.0 Method: Record the details of EUTcabling, document the support equipment, and show the interconnections in a block diagram. EUT Setup Diagram Drawing: Page 4 of 34EMC Report for Hunter Fan on the 99118 02/26/2013Report Number: 101036110ATL-001Issued: Intertek System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block System setup including cable interconnection details, support equipment and simplified block diagram. (System Setup) diagram. (System Setup)diagram. (System Setup) diagram. (System Setup) 4.0 4.04.0 4.0 None Support Equipment DescriptionManufacturerModel NumberSerial Number None Description EUT Cabling Connection Length Shielding FerritesIDFromTo Data: Page 5 of 34EMC Report for Hunter Fan on the 99118 02/26/2013Report Number: 101036110ATL-001Issued: Intertek Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview) Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview)Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview) Overview of EUT (Low Power Transmitters) (FCC 15C - EUT Overview)5.0 5.05.0 5.0 Method: Complete the overview spreadsheet. Related Submittal(s) Grants: This repor…
