IN2TX73Hunter Home Light Control System

Model 45051 Hunter Home Light Control System Installation and Operation Manual 43012-01 r101107 ENGLISH See page 2 ESPAÑOL Vea la página 37 2 43012-01 TABLE OF CONTENTSIntroduction..............................2Features...................................3Limitations/Warnings ..............4 Transmitter Co ntrols...............5 Receiver Controls....................7Setup.........................................8Home Program........................15 INTRODUCTION The Hunter Home Light Control System is an automated, easy-to-use home timer system. It features two programmable modes that control lighting when you're at home, or when you're away on vacation. It also has a manual mode that allows you to use the Transmitter as a remote control. A convenient keychain remote lets you turn lights on and off from outside your home.The Transmitter controls four light groups. Once the Transmitter is programmed, you can use as many Receivers as you want in each lighting group. Simply assign the additional Receivers to a light group, plug the lamp into the Receiver, and plug the Receiver into a standard home electrical outlet. The System allows an unlimited number of Receivers and Remotes. Vacation Program.....................25Manual Operation.....................30Keychain Remote Operation....31Daily Operation.........................32Transmitter Wall Mount .............34 Maintenance..............................35Technical Support.....................36 43012-01 3 ‡$+RPH3URJUDPZLWKWKUHHPRGHV ~ 7-Day Same mode - allows you to quickly and easily program the same On/Off times for every day of the week either for all Light Groups or for individual Light Groups.~ Week / Weekend mode - allows you to program the same On/Off times for the weekdays, and different On/Off times for the weekend either for all Light Groups or for individual Light Groups.~ Custom mode - allows you to program individual On/Off times for each day of the week, either for all Light Groups or for individual Light Groups. ‡$9DFDWLRQ3URJUDPZLWKWZRPRGHV ~ Home Variable Mode - uses your Home Program settings to randomly turn on light groups for each hour and turn them off after thirty minutes.~ Smart Deterrence Mode EHWZHHQWKHKRXUVRI30DQG306PDUW  Deterrence always keeps at least one Light Group on. Each Light  *URXSVUHPDLQVRQEHWZHHQRQHKRXUDQGRQHKRXUIRUW\¿YH    minutes, depending on how many Light Groups are selected for this mode. The cycle continues through all selected Light Groups. In this way Smart Deterrence simulates someone inside your home moving from one area to another. ‡ A Manual mode that allows you to use the Transmitter as a Remote Control for your lighting. ‡ Convenient Transmitter wall-mounting. ‡ )RULQGRRUXVHRQO\ Features 4 43012-01 ‡ )RUXVHZLWKVZLWFKHGZDOORXWOHWV‡ 0D[LPXPORDGIRUUHFHSWDFOHVLVZDWWV‡ 5HFHLYHUVFRQIRUPWR8/7LPHUVDQG7LPH6ZLWFKHVThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two FRQGLWLRQV  WKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFH DQG  WKLVGHYLFHPXVWDFFHSW any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct WKHLQWHUIHUHQFHE\RQHRUPRUHRIWKHIROORZLQJPHDVXUHV‡ ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU‡ &RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWI URPWKDWWRZKLFKWKHUHFHLYHU is connected. ‡ &RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRU KHOS $Q\FKDQJHRUPRGL¿FDWLRQWRWKLVHTXLSPHQWQRWH[SUHVVO\DSSUR YHGE\+XQWHU)DQ&R will void the user’s authority to operate the equipment. Limitations & Warnings 43012-01 5 WIRELESS LAMP TIMER SYSTEM AD BC OFF ON ALL ON SETUP ALL OFF ALL ON All On / Scroll Right / Enter Button All Off / 6FUROO8SSetupButton All On / Scroll Down Button All Off / Scroll Left/BackButton Transmitter Controls Transmitter Controls 6 43012-01 Transmitter Controls (cont.) t)0.& t7"$"5*0/ t."/6"- Program Select Switch Channel Switch 12 3 43012-01 7 Receiver Controls Receiver Controls Light Group Select Dial Channel Select Dial 8 43012-01  5HPRYHWKH%DWWHU\&RYHUIURPWKHEDFNRIWKH7UDQVPLWWHU Setup  6OLGHWKH&KDQQHO6HOHFW6ZLWFKWRDQ\RIWKHWKUHHQXPEHUV QH[WWRLW 12 3 43012-01 9 Setup (cont.)  2QHDFK5HFHLYHUURWDWHWKH&KDQQHO6HOHFW'LDOWRWKHFKDQQ HOWRZKLFK\RXVHWWKH7UDQVPLWWHU Channel Select Switch. Channel Select Dial VKRZQZLWKFKDQQHO VHOHFWHG  7KH+XQWHU+RPH/LJKW&RQWURO6\VWHPGLYLGHVWKHURRPVDQGD UHDVRI\RXUKRPHLQWRIRXU/LJKW Groups labeled A, B, C, and D on the Transmitter keyboard. Assign your rooms and areas to Light Groups, and make a note of the assignments. We suggest that the entry area of your home be as-signed to Light Group A. This is because the Keychain Remote for your Hunter Light Control System operates only Light Group A, and you will want to be able to turn on your entry lighting before you HQWHU$VDPSOH/LJKW*URXSDVVLJQPHQWVFKHPHPLJKWEH Light Group A - Entry Area Light Group B - Living Area Light Group C - Dining Area Light Group D - Master Bedroom 10 43012-01  2QHDFK5HFHLYHUURWDWHWKH/LJKW*URXS6HOHFW'LDOWRWKH/ LJKW*URXSIRUZKLFK…

Text truncated - open the document above for the full version.

Block Diagram MCU EM78P153S Channel switch LED indicator On/Off Key 433MHz RF Tx Board Tx Data (P53) (P66~67) (P50~52) (P61) Crystal oscillator 3.58MHz

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 3, 2007 RE: ATCB005488 FCC ID: IN2TX73 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. It is required to put the crystal oscillator with frequency value on your block diagram according to the FCC 2.1031. “FCC 2.1031 (5) A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” 2. Please indicate where I may find the 15.21 Information to User statement in the Manual. “Section 15.21 Information to user. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.” ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Hunter Fan Company 2500 Frisco Ave Memphis, TN 38114, USA, Web Site: www.hunterfan.com E-Mail: [email protected] Phone: (901) 248-2212 FAX: (901) 248-2382 AGENCY AUTHORIZATION LETTER FCC ID: IN2TX73 Date: Sep 28, 2007 IC: 3558A-HCT04 To whom it may concern: We, the undersigned, hereby authorize SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD of China to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Robert Davis / Engineer Hunter Fan Company Phone: (901) 248-2212 FAX: (901) 248-2382 E-mail: [email protected]

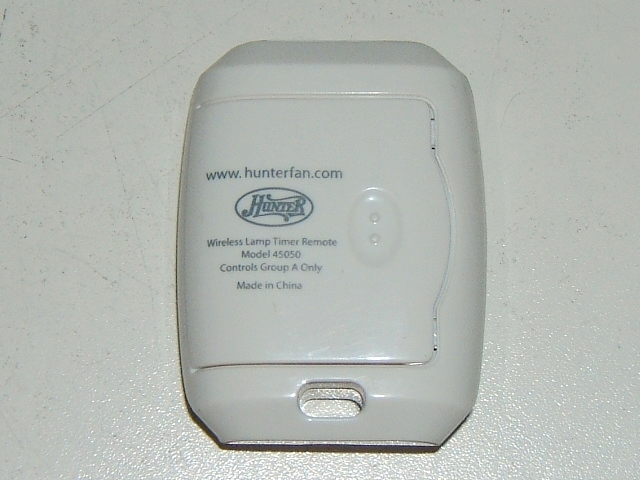

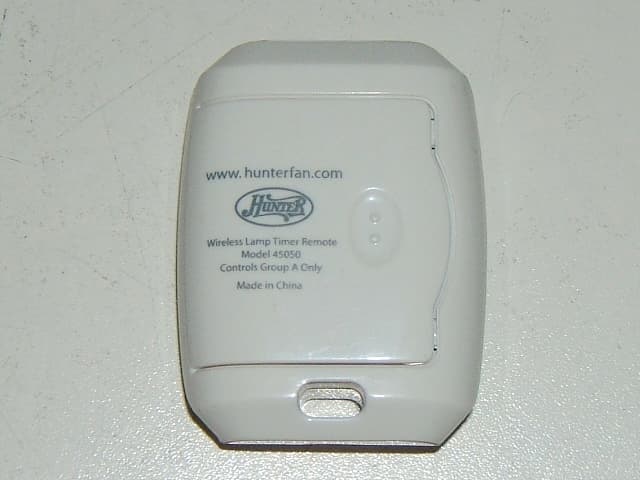

Shenzhen Huatongwei International Inspection Co., Ltd Front View of EUT Back View of EUT

The FCC ID & IC Label and Location This Device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: IN2TX73 IC: 3558A-HCT04 M/N: 45012 Company Name: HUNTER FAN Company FCC & IC label location

Theory of Operation Product: Remote control Model Number: A009 EMITTER DESCRIPTION 1. Emitter Power Voltage: DC 3V 2. Basic Frequency: 433.92MHZ 3. Emissive Frequency: 433.92MHZ 4. Modulating Manner: ASK Work process Once connected 3V DC power supply, when SW1 or SW2 are pushed, IC1 (EM78P153S)P53 will generate a signal to The frequency controlling circuit (R5, SAW1, Q2, C1, C2, R6, L2). This circuit will feed this signal into the frequency amplifying circuit (R8, C6, R9, Q1, R10, C18) through C4. The amplified signal will pass into the filter circuit (C8, L4, C9, C10) and emit the signal by the antenna.

H007TX0.sch-1 - Tue Jul 31 15:53:41 2007

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07090004 FCC ID: IN2TX73 IC: 3558A-HCT04 DATE: 09/28/2007 Page 1 of 23 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C AND RSS-210 REQUIREMENT OF Key Chain Remote Control FCC ID: IN2TX73 IC: 3558A-HCT04 MODEL No.: 45012 Listed Models: 45010; 45011 BRAND NAME: N/A REPORT NO: WE07090004 ISSUE DATE: Sep 28, 2007 Prepared for HUNTER FAN COMPANY 2500 FRISCO AVE MEMPHIS, TN 38114, USA Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748005 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07090004 FCC ID: IN2TX73 IC: 3558A-HCT04 DATE: 09/28/2007 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Hunter Fan Company 2500 Frisco Ave Memphis , TN 38114, USA Product Description: Key Chain Remote Control Brand Name: N/A Model Number: 45012 Listed Model 45010; 45011 Serial Number: N/A File Number: WE07090004 Date of Test: Sep 19, 2007 ~ Sep 20,2007 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.231 and RSS-210 Issue 7 June 2007. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / RF Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD INTERNATIONAL INSPECTION CO., LTD Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07090004 FCC ID: IN2TX73 IC: 3558A-HCT04 DATE: 09/28/2007 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION............................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)...................................................................................................... 5 1.3 TEST METHODOLOGY...............................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................... 5 1.5 SPECIAL ACCESSORIES............................................................................................................................ 5 1.6 EQUIPMENT MODIFICATIONS.................................................................................................................... 6 1.7. LABORATORY ACCREDITATIONS AND LISTINGS........................................................................................ 6 2. SYSTEM TEST CONFIGURATION............................................................................................... 8 2.1 EUT CONFIGURATION.............................................................................................................................. 8 2.2 EUT EXERCISE......................................................................................................................................... 8 2.3 TEST PROCEDURE.................................................................................................................................... 8 2.4 LIMITATION................................................................................................................................................ 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. DESCRIPTION OF TEST MODES................................................................................................ 9 4. CONDUCTED EMISSIONS TEST （NOT APPLICABLE TO THIS DEVICE）................. 10 4.1 MEASUREMENT PROCEDURE:................................................................................................................ 10 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................... 10 4.3 MEASUREMENT EQUIPMENT USED:....................................................................................................... 11 4.4 MEASUREMENT RESULT:........................................................................................................................ 11 5. RADIATED EMISSION TEST....................................................................................................... 12 5.1 MEASUREMENT PROCEDURE................................................................................................................. 12 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................... 12 5.3 MEASUREMENT EQUIPMENT USED:....................................................................................................... 13 5.4 FIELD STRENGTH CALCULATION............................................................................................................ 13 5.5 MEASUREMENT RESULTS...................................................................................................................... 14 6. 99% OCCUPIED BANDWIDTH................................................................................................... 15 6.1 MEASUREMENT PROCEDURE............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd Radiated Emission Setup Photo
