INGPT36BG2UHF PLL Body-Pack Transmitter

US-36G2 / Mh-36G2 / PT-36BG2 59508-043-01 1856 Instruction Manual UHF PLL TRue DIversity WIRELESS SYSTEMS US-36G2 Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the system, you are recommended to take few minutes to read this instruction manual carefully. 1. Important Caution 2. Features 3. Specification 3-1 Receiver// US-36G2 3-2 Handheld Transmitter // Mh-36G2 3-3 Body-pack Transmitter // PT-36BG2 3-4 Optional Condenser Microphone 4. Part Identification & Accessories 4-1 Receiver // US-36G2 4-2 Handheld Transmitter // Mh-36G2 4-3 Body-pack Transmitter // PT-36BG2 4-4 Optional Condenser Microphone 4-5 Accessories 5. Preparing Procedures & Basic Operation 5-1 Receiver// US-36G2 5-2 Handheld Transmitter // Mh-36G2 5-3 Body-pack Transmitter // PT-36BG2 5-4 Installation of Condenser Microphones 6. Recommendation 7. Important Notice 1 1 2 2 2 3 3 6 6 7 8 9 13 14 14 17 19 20 22 22 INDEX WIRELESS MICROPHONE SYSTEM 1 1. Important Caution 2. Features Always make all connections before plugging the unit into an AC power outlet. • Do not leave the devices in a place neither with high temperature nor high humidity.• Always do not handle the power cord with wet hands !• Keep the devices away from fire and heat sources. • Due to the PLL synthesized technology, the system can offer up to 1441 selectable frequencies • for choosing simultaneously. 6 groups, maximum 23 channels in one group.• The true diversity reception with 2 independent RF receivers ensure the stable transmission and • reception. Adjustable Pilot tone squelch control can effectively reduce the noise. • Equipped with S. A.W. filter benefits the interference-resistant. • Tuned antennas can benefit the stable RF reception.• Built-in Noise Squelch circuity & Mute function are available to restrain the interference for • signals. Rugged metal housing can pass through the difficult environment. • Equipped with balanced XLR and balanced output allow great convenience.• Anti-interference design is available to work with every computer device.• Transmission power selectable between 10 and 50mW (depends on local regulation).• 2 3.Specification 3-1 Receiver // US-36G2 3-2 Handheld Transmitter // Mh-36G2 Frequency Preparation........ Carrier Frequency Range S/N Ratio..................................... T.H.D............................................... Display............................................. Display Contents..................... Controls......................................... Audio Output Level.............. AF Output Impedance........ Squelch........................................... Operation Voltage.................. Output Connector................. Dimension(m/m)................. PLL Synthesized Control 470.0~607.950MHz, 614.050~697.950MHz > 105dB <0.6%@1KHz LCD / LED Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR) , Battery Status Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad -12dB 600Ω Pilot Tone & Noise Mute 12V, 500mA 1 XLR Balanced Socket 1 Ø6.3mm Unbalanced phone jack 212.3mm (W)* 38.3mm (H)* 144mm (D) Frequency Preparation............. Carrier Frequency Range....... RF Outputs...................................... Stability Frequency..................... Deviation........................................... LCD Display.................................... Controls.............................................. Spurious Emissions.................... Audio Frequency Response Battery.................................................. PLL Synthesized Control 470.0~607.950MHz, 614.050~697.950MHz 10mW / 50mW (Depend on Local Regulation) <±10KHz ±48KHz (Peak) Group, Channel, Frequency, Battery Status, Sensitivity Power On/Off, Mode Setting , AF Level, Frequency Up/ Down, Lock-on Mode <-50 dBC 50~16,000 Hz UM3, AA 1.5V*2 WIRELESS MICROPHONE SYSTEM 3 3-3 Body-pack Transmitter // PT-36BG2 3-4 Optional Condenser Microphone Model No............................... Connector.............................. Option Connector........... Frequency Response...... Polar Pattern.......................... Sensitivity (at 1000Hz) Impedance............................. Max. SPL for 1% THD Dimension(mm).............. Net Weight............................ CM-501 4P Mini XLR 100~15,000 Hz Cardioid -60±3 dB 2.2kΩ 130dB Ø10.1mm(W) * 26.4mm(H) 21.5g CM-201i 201C4 (4P Mini XLR) 201C3 (3P Mini XLR) 201CS (3.5 stereo plug) 201CR 60~15,000 Hz Omni-directional -60±3 dB 2.2kΩ 130dB Ø5mm(W)* 9mm(H) 20.7g CM-125i 201C4 (4P Mini XLR) 201C3 (3P Mini XLR) 201CS (3.5 stereo plug) 201CR 50~18,000 Hz Omni-directional -53±3 dB 4.4kΩ 130dB Ø4mm(W)* 11mm(H) 7g (cable excluded) Lavaliere Microphone Frequency Preparation.............. Carrier Frequency Range........ RF Outputs....................................... Stability Frequency...................... Deviation............................................ LCD Display..................................... Controls............................................... Output connector......................... Spurious Emissions..................... Audio Frequency Response... Battery................................................... PLL Synthesized Control 470.0~607.950MHz, 614.050~697.950MHz 10mW / 50mW (Depend on Local Regulation) <±10KHz ±48KHz (Peak) Group, Channel, Frequency, Battery Status, Sensitivity Power On/Off, AF Level, Group, Channel, Frequency Up/Down, Lock-on Mode 4P mini XLR <-50 dBC 50Hz~18k Hz UM3, AA Alkaline x2 4 Headset Microphone Model No............................... Connector.............................. Frequency Response...... Polar Pattern.......................... Sensitivity (at 1000Hz) Impedance............................. Max. SPL for 1% THD Dimension(mm).............. Net Weight............................ CM-235 801C4 (4P Mini XLR ) 50~18,000 Hz Omni-directional -53±3 dB 1.8kΩ 130dB 155mm(W) * 134mm(H) * 157mm(D) 17g (cable excluded) CX-504 4P Mini …

Text truncated - open the document above for the full version.

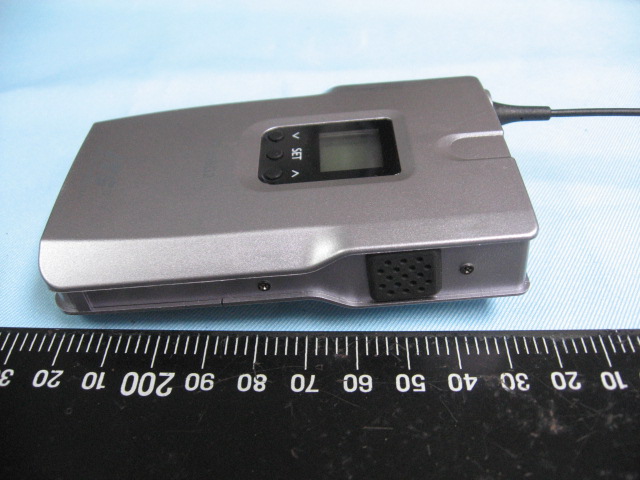

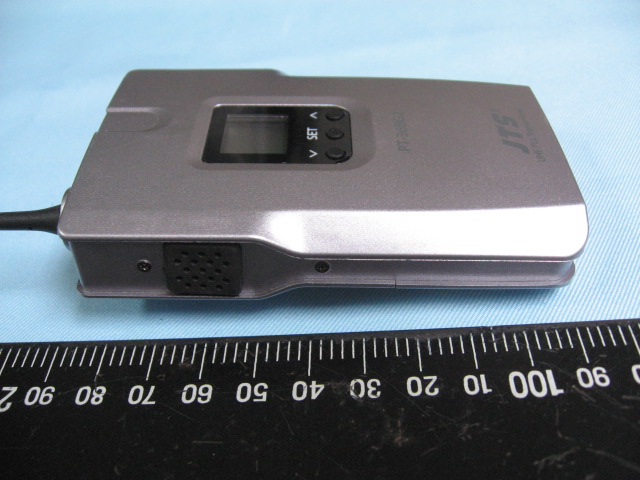

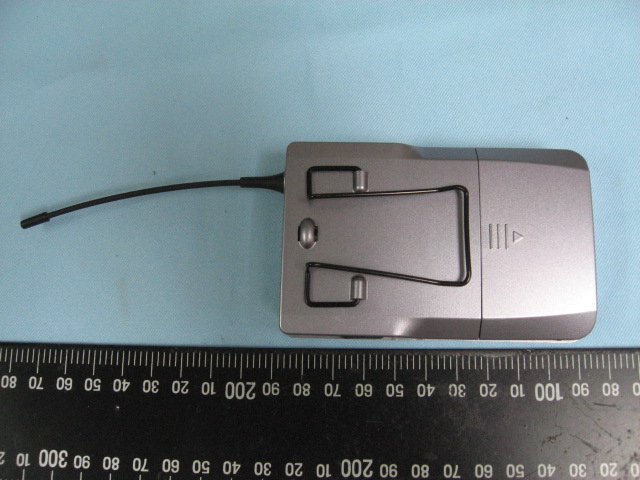

ETC Report No.: 14-04-RBF-027-04 Sheet 1 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.: 14-04-RBF-027-04 Sheet 2 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.: 14-04-RBF-027-04 Sheet 3 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 5. 6.

FCC ID label location Label here FCC ID: INGPT36BG2

ETC Report No.: 14-04-RBF-027-04 Sheet 4 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.: 14-04-RBF-027-04 Sheet 5 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No.: 14-04-RBF-027-04 Sheet 6 of 6 Sheets FCC ID:INGPT36BG2 Rev. 2.0 CONSTRUCTED PHOTOS of EUT 11. 12.

According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] ·[ √f(GHz)] ≤ 3.0 The max. average power of channel, including tune-up tolerance(mW) is 12 mW @ 697.900MHz (With Tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] = 2.00 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Signature___________________________________ Name/Title: S. S. Liou / Section Manager, EMC Testing Department II TEL: +886‐2‐2602‐3052 Email: [email protected]

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : UHF PLL Body-Pack Transmitter FCC ID. : INGPT36BG2 Model No. : PT-36BG2 Working Frequency : 470~608, 614~698 MHz for APPLICANT : JTS Professional Co., Ltd. ADDRESS : No. 148, Industry 9 th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 14-04-RBF-027-04 ETC Report No.: 14-04-RBF-027-04 FCC ID:INGPT36BG2 Rev. 2.0 TEST REPORT CERTIFICATION Applicant : JTS Professional Co., Ltd. No. 148, Industry 9th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Manufacturer : JTS Professional Co., Ltd. No. 148, Industry 9th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Description of EUT : a) Type of EUT : UHF PLL Body-Pack Transmitter b) Trade Name : JTS c) Model No. : PT-36BG2 d) FCC ID : INGPT36BG2 e) Working Frequency : 470~608, 614~698 MHz f) Power Supply : DC 1.5V Battery*2 Regulation Applied : FCC Rules and Regulations Part 74 Subpart H I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. ETC Report No.: 14-04-RBF-027-04 FCC ID:INGPT36BG2 Rev. 2.0 Issued Date : Nov. 07, 2014 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: 14-04-RBF-027-04 FCC ID:INGPT36BG2 Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS ................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE...................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION.................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 7 3.5 TEST EQUIPMENT.................................................................................................................................................... 7 4. MODULATION CHARACTERISTICS ............................................................................................................. 8 4.1 PROVISIONS APPLICABLE........................................................................................................................................ 8 4.2 MEASUREMENT METHOD........................................................................................................................................ 8 4.3 MEASUREMENT INSTRUMENT.................................................................................................................................. 9 4.4 MEASUREMENT RESULT.......................................................................................................................................... 9 5. OCCUPIED BANDWIDTH OF EMISSION .................................................................................................... 11 5.1 PROVISIONS APPLICABLE...................................................................................................................................... 11 5.2 MEASUREMENT METHOD...................................................................................................................................... 11 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 11 5.4 BANDWIDTH MEASURED....................................................................................................................................... 12 5.4.1 Input Level Derived...................................................................................................................................... 12 5.4.2 Occupied Bandwidth Plotted............................................................................…
