INGTG-64TWireless Tour Guide Transmitter

TG-64R(A) / TG-64T(A) TG-64R(A) / TG-64T(A) Power Switch and Volume Control Power Switch and Volume Control 3.5mm Earphone Output Jack 3.5mm Microphone Input Jack 3.5mm Line Out Top Panel Bottom Panel Left Side Panel WIRELESS TOUR GUIDE SYSTEM TG-64R/64T TG-64RA/64TA Important Caution Always make all connections before plugging the unit in to an AC power outlet. Do not leave the devices in a place with high temperature or high humidity. Always do not handle the power cord with wet hands !   operation, and recharge if no use for over three months. Feature             TG-64CH2 WIRELESS TOUR GUIDE STSTEM TG-64R(A)/TG-64T(A) Charger Slot DC input (12V) Charging Indicator Neck-Strap Accessories WM-10TG Mono Earphone ( For TG-64R/RA) TG-64T/TG-64TA TG-64CH2 Number of charging slot Power requirement LED Indicator Dimensions(mm) 2 (receiver or transmitter) 12-18 VDC , 600mA Power connected: Flash green Charging : Green 85mm(W)* 75mm(D)* 41mm(H) TG-64R/TG-64RA TG-64R(A) TG-64R(A) TG-64R/TG-64T TG-64RA/ TG-64TA TG-64T(A) TG-64T(A) 18.5 cm PLL Synthesized Control 502MHz~960MHz Channel Power On/O, Channel selection Volume control, Group selection, Limiter 40~18,000Hz 1/8” Dummy stereo Phone Jack 10 hours typical Rechargeable NIMH AA (1.2V,2000mAh) 62mm(W)* 20mm(D)* 97mm(H) Frequency Preparation Carrier Frequency Range Controls Audio Frequency Response Output connector Battery life Battery Dimension(mm) Internal Microphone Frequency Preparation Carrier Frequency Range RF Outputs Stability Frequency Deviation Controls Spurious Emissions Audio Frequency Response Microphone input connector Battery life Battery Dimension(mm) Omni-directional Condenser Microphone PLL Synthesized Control 502MHz~960MHz 10mW ±10kHz ±48kHz Power On/O, Channel selection, Volume control, Group selection, Boost <-50 dBC 40~18,000 Hz 1/8” Mono Phone Jack 10 hours typical Rechargeable NIMH AA (1.2V, 2000mAh) 62mm(W)* 20mm(D)* 97mm(H) Optional : CM-201 omnidirectional Lavaliere Microphone (For TG-64T/TA) CM-801S omnidirectional Earhook Microphone (For TG-64T/TA) PANTONE 425C Adaptor (110/230V input, 600mA 12V output) Installation and Operation Wearing and Operating TG-64T/TG-64TA Use the “Belt-Clip” and the “external Microphone” Use the “Neck-Strap” and the “external Microphone” Installation and Operation Wearing and Operating TG-64R/TG-64RA Use the “Belt-Clip” and the “Mono Earphone” Use the “Neck-Strap” and the “Mono Earphone” Installation and Operation Charge Battery Plug the TG-64T/TG-64R (Charger Connector faces down) into “Charger Slot” in TG-64CH2.The “Charging testing, and then show green light when charging. I t Notice 1 : As soon as AC power is connected, the Notice 2 : for selt-t esting during charging to protect batt er ies fr om being damaged. 59516-004 Installation and Operation P ower On / OFF and Volume Control  Select Channel / Group Notice.1: The channel and group of the transmitter (TG-64T) must match that of the receiver (TG-64R). Connect Microphone or Earphone TG-64T/TG-64TA : Plug “External Microphone” into “ 3.5mm Microphone Input Jack” TG-64R/TG-64RA : Plug “an earphone” into “3.5mm Earphone Output Jack” Power Switch and Volume Control TG-10R Earhook Microphone CM-801S 1856 說明書 雙面.N字三摺.JTS TG-64R/64T/64RA/64TA (185*250mm)含塑膠袋-01版 59516-004 TG-64 is designed on the base of the TG-10 successful experience plus JTS very recent innovative ideas. UHF PLL 64 channels in 4 groups Maximum operational distance ( in line of sight ) TG-64R : 180m TG-64RA : 280m Use rechargeable AA battery Built in transmission power selector Built in audio output limiter Line in at TX and Line Out at RX ready for video camera Transmitter bundled with tie clip microphone CM-201 Receiver bundled with single earphone WM-10TG Built in speaker at TG-64R/RA Built in microphone at TG-64T/TA Compatible with stationary transmitter TG-10GSTX and receiver TG-10GSRX LINE OUTLINE IN 3.5mm Line In Built-in Speaker Antenna Channel Selector LED Power Indicator CH Belt Clip Charger Connector 12V 600mA CH TG-64T/TA TG-64R/RA WIRELESS TOUR GUIDE SYSTEM Use the “Neck-Strap” and the “Built-in Microphone” T TG-64T T T TG-64T Wireless Tour Guide Transmitter MIC CH T TG-64T Turn on or o the power and adjust the volume by rotating the volume control clockwise and reversely. Noted: Please turn o the receiver/transmitter before replacing batteries to ensure all functions normal. Select a desired channel for the receiver / transmitter by rotating the channel selector. (0-9,A-F) Use the supplied plastic stick to select a desired group for the receiver/transmitter. (A-D) C D A B 6.3 cm6.2 cm6.2 cm6.3 cm

Date Mar. 14, 2013 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, the applicant declares that the product of Wireless Tour Guide Transmitter, Model: TG-64T; TG-64TA; TG-16T; TG-16TA have as following difference TG-64T: Internal antenna / 64 channel selection. TG-64TA: External antenna / 64 channel selection. TG-16T: Internal antenna / 16 channel selection. TG-16TA: External antenna / 16 channel selection. Any questions regarding this declaration, please don’t hesitate to contact us. Sincerely, Signature___________________________________ Name/Title: S. S. Liou / Section Manager, EMC Testing Dept. II Company Name: Electronics Testing Center, Taiwan TEL: 886-2-26023052 FAX: 886-2-26010910 Email: [email protected]

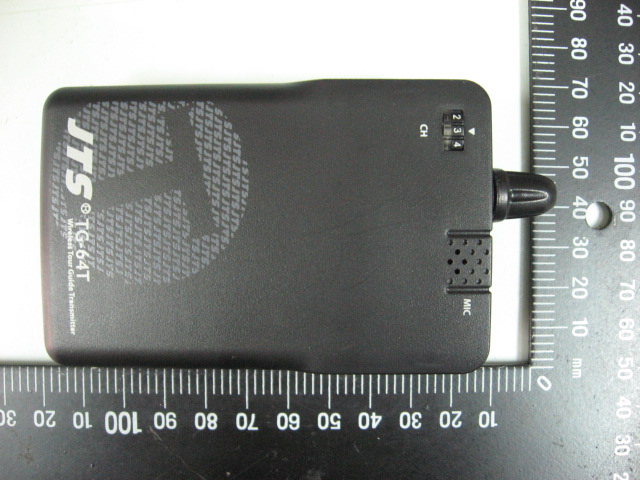

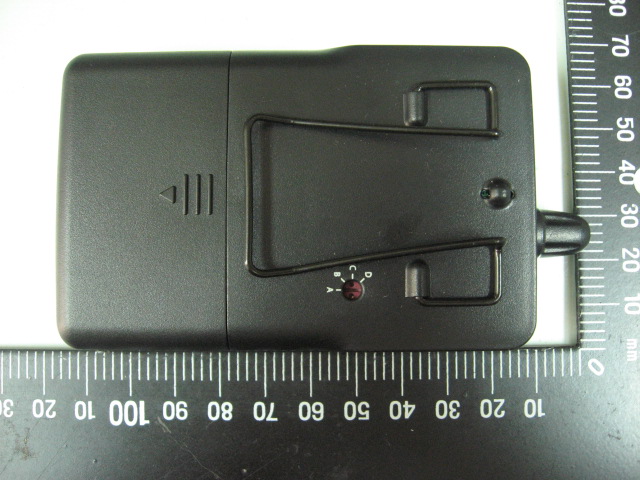

ETC Report No.:12-07-RBF-017-01 Sheet 1 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64TA 1. 2. ETC Report No.:12-07-RBF-017-01 Sheet 2 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64TA 3. 4. ETC Report No.:12-07-RBF-017-01 Sheet 3 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64TA 5. 6. ETC Report No.:12-07-RBF-017-01 Sheet 6 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64T 1. 2. ETC Report No.:12-07-RBF-017-01 Sheet 7 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64T 3. 4. ETC Report No.:12-07-RBF-017-01 Sheet 8 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64T 5. 6.

得琦電子股份有限公司 TEL: 04-24938803 FAX: 04-24914890 MO-- 完成日發稿日再完稿再完稿 董事長副總營業研發設計 材質發稿方式尺寸顏色 廠商: Date: 料號: From: 品名: 註 解 成品 鈺婷 2012 10 30 2012 e-mail E-mail: [email protected]分機550 其它標籤 印FCC ID :INGTG-64T 52884-xxx 25*6mm灰底白字 FCC ID: INGTG-64T FCC ID label location Label here

ETC Report No.:12-07-RBF-017-01 Sheet 4 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64TA 7. 8. ETC Report No.:12-07-RBF-017-01 Sheet 5 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64TA 9. ETC Report No.:12-07-RBF-017-01 Sheet 9 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64T 7. 8. ETC Report No.:12-07-RBF-017-01 Sheet 10 of 10 Sheets FCC ID.: INGTG-64T Rev. 2.0 CONSTRUCTED PHOTOS of EUT Model: TG-64T 9.

Rev. 2.0 FCC Part 74 Subpart H EMI TEST REPORT of E.U.T. : Wireless Tour Guide Transmitter FCC ID. : INGTG-64T Model No. : TG-64T; TG-64TA; TG-16T; TG- 16TA Working Frequency : 502~607.875, 614.125~697.875 MHz for APPLICANT : JTS Professional Co., Ltd. ADDRESS : No. 148, Industry 9 th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 12-07-RBF-017-01 ETC Report No.:12-07-RBF-017-01 FCC ID.: INGTG-64T Rev. 2.0 TEST REPORT CERTIFICATION Applicant : JTS Professional Co., Ltd. No. 148, Industry 9 th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Manufacturer : JTS Professional Co., Ltd. No. 148, Industry 9 th Road, Tali Dist., Taichung City 41280 Taiwan, R.O.C. Description of EUT : a) Type of EUT : Wireless Tour Guide Transmitter b) Trade Name : JTS c) Model No. : TG-64T; TG-64TA; TG-16T; TG-16TA d) FCC ID : INGTG-64T e) Working Frequency : 502~607.875, 614.125~697.875 MHz f) Power Supply : DC 1.5V Battery*2 Regulation Applied : FCC Rules and Regulations Part 74 Subpart H I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. ETC Report No.:12-07-RBF-017-01 FCC ID.: INGTG-64T Rev. 2.0 Issued Date : Jan. 21, 2013 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:12-07-RBF-017-01 FCC ID.: INGTG-64T Rev. 2.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 TEST METHODOLOGY.............................................................................................................................................. 1 1.3 TEST FACILITY........................................................................................................................................................ 1 2. REQUIREMENTS OF PROVISIONS ................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 FREQUENCIES AVAILABLE...................................................................................................................................... 2 2.3 REQUIREMENTS FOR RADIO EQUIPMENT ON CERTIFICATION.................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 3 3. OUTPUT POWER MEASUREMENT ................................................................................................................ 4 3.1 PROVISION APPLICABLE.......................................................................................................................................... 4 3.2 MEASUREMENT PROCEDURE................................................................................................................................... 4 3.3 TEST DATA.............................................................................................................................................................. 6 3.4 RESULT CALCULATION............................................................................................................................................ 8 3.5 TEST EQUIPMENT.................................................................................................................................................... 8 4. MODULATION CHARACTERISTICS ............................................................................................................. 9 4.1 PROVISIONS APPLICABLE........................................................................................................................................ 9 4.2 MEASUREMENT METHOD........................................................................................................................................ 9 4.3 MEASUREMENT INSTRUMENT................................................................................................................................10 4.4 MEASUREMENT RESULT........................................................................................................................................ 10 5. OCCUPIED BANDWIDTH OF EMISSION .................................................................................................... 12 5.1 PROVISIONS APPLICABLE...................................................................................................................................... 12 5.2 MEASUREMENT METHOD...................................................................................................................................... 12 5.3 OCCUPIED BANDWIDTH TEST EQUIPMENT............................................................................................................ 12 5.4 BANDWIDTH MEASURED....................................................................................................................................... 13 5.4.1 Input Level Derived...................................................................................................................................... 13 5.4.2 Occupied Bandwidth Plotted..…

Text truncated - open the document above for the full version.

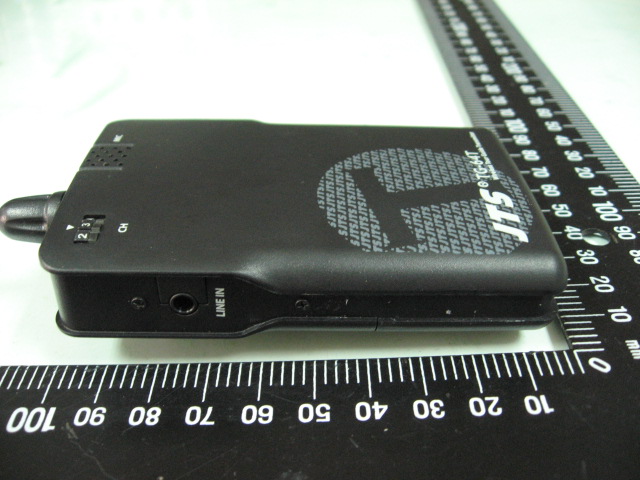

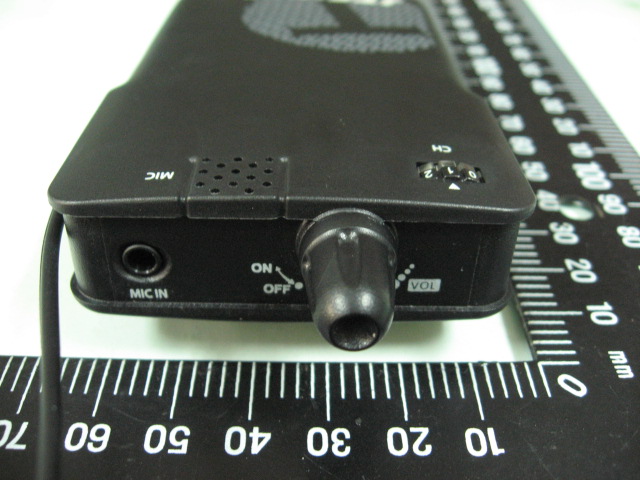

ETC Report No.:12-07-RBF-017-01 Sheet 31 of 39 Sheets FCC ID.: INGTG-64T Rev. 2.0 6.6 Radiated Measurement Photos Test Model:TG-64TA ETC Report No.:12-07-RBF-017-01 Sheet 32 of 39 Sheets FCC ID.: INGTG-64T Rev. 2.0 Test Model: TG-64T
