IR5DR786EXTablet Computer W/802.11 b/g WLAN

TABLET COMPUTER DR786 USER’S GUIDE Copyright © 2004 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, or computer language, in any form, or by any means, electronic, mechanical, magnetic, optical, chemical, or other, without the prior written permission of the manufacturer. The manufacturer reserves the right to revise this publication and to make changes to the contents hereof without obligation to notify any person of such revision or changes. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the software described in this manual is sold or licensed "as is". Should the programs prove defective following purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any software defects. Trademark Acknowledgments IBM and PC are the registered trademarks of International Business Machines Corp. MS-DOS and Windows are registered trademarks of Microsoft Corp. Pentium, Pentium II, Pentium III, Pentium 4, and Pentium M are the registered trademarks of Intel Corp. All product and company names are trademarks or registered trademarks of their respective holders. EMC and Safety Notice Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this DR786 must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. IMPORTANT NOTE (CO-LOCATION) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. SAR Exposure This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical flat configurations. CE Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EN 55022 ( CISPR 22 ) Radio Frequency Interference EN 55024 ( EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6,EN61000-4-8,EN61000-4-11,EN61000-3-2, EN61000-3-3) Generic Immunity Standard EN 60950 ( IEC950 ) Product Safety R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN - IEEE 802.11b/g) 802.11b/g Restrictions: European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz. In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. ENGLISH CE Declaration of Conformity Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low- voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards. EN 300 328 V.1.4.1 (2003-04) EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04) EN 50371:2002 EN 60950:2000 UL, TÜV AC Adapter (TÜV includes EN60950 LVD) E-Mark Registered: e13 Power Conservation This computer consumes less power than conventional computers; however, power consumption can be further reduced by properly configuring the Power Management Setups. It is recommended that the power saving functions be enabled even not running on battery power. Please read the power saving features and the setting procedures described in this manual for setting your computer. Recycling All materials used in the construction of this unit are recyclable or environmentally friendly. No CFC or related materials were used in …

Text truncated - open the document above for the full version.

Marketing Statement July 22, 2004 Product Name: Tablet PC Model No.: DR786 Trade Name: DR786 FCC ID: IR5DR786EX To whom it may concern, We, the undersigned, hereby state that the secondary battery connector of the product indicated above is designed for our marketing purposes. No option of a secondary battery shall be offered at this moment. If there is a market demand for the second battery in the future, we shall perform a test of the product with the second battery to verifying its compliance with the FCC rules, and submit the applicable permissive change prior to marketing the option of a second battery. Yours truly, __________________ Will Liang/Sr. Engneer CRETE SYSTEMS INC.

Mike Kuo From: [email protected] Sent: July26 2004 Monday 2:49 AM To: Mike Kuo Cc: [email protected] Subject: FW: CReTE SYSTEMS INC., FCC ID: IR5DR786EX, Assessment NO.: AN04 T4052, Notice#1 7/26/2004 Hi Mike, Please refer to the following for our replies. Thank you for your advice. Best regards, Ting ----- ting/ccsemc 2004/07/26 04:35 PM ----- -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, July 20, 2004 6:56 PM To: [email protected] Subject: CReTE SYSTEMS INC., FCC ID: IR5DR786EX, Assessment NO.: AN04T4052, Notice#1 Question #1: Page 18 of SAR test report at OFDM modulation, at 2437MHz, the channel shall be 6 but 11 is indicated. Please make necessary correction. Ans #1: Please refer to the corrected test report as below. Question #2: Based upon product specification in the user manual, this tablet PC provides optional secondary battery. Please inform which battery was used during the tests and provide additional body worn at highest SAR measured for the second battery. Ans #2: The client remove from the manual descripon of the optional secondary battery. A marketing statement declaring no optional secondary battery be marketed is aslo attached. Please refer to the attched files of revised manual, marketing staement, and internal & external photos. Question #3: Based upon user manual, this device can be equipped with external antenna which has not addressed in the EMC and SAR test reports. Please provide external antenna specification sheet and provide additional EMC and SAR tests for external antenna. Mike Kuo <[email protected]> 2004/07/21 10:14 AM "CCS-Taiwan, Ting (E-mail)" <[email protected]> Ans #3: No external antenna shall be available. The manual is revised to remove description of the external antenna. Please refer to the revised manual. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/26/2004

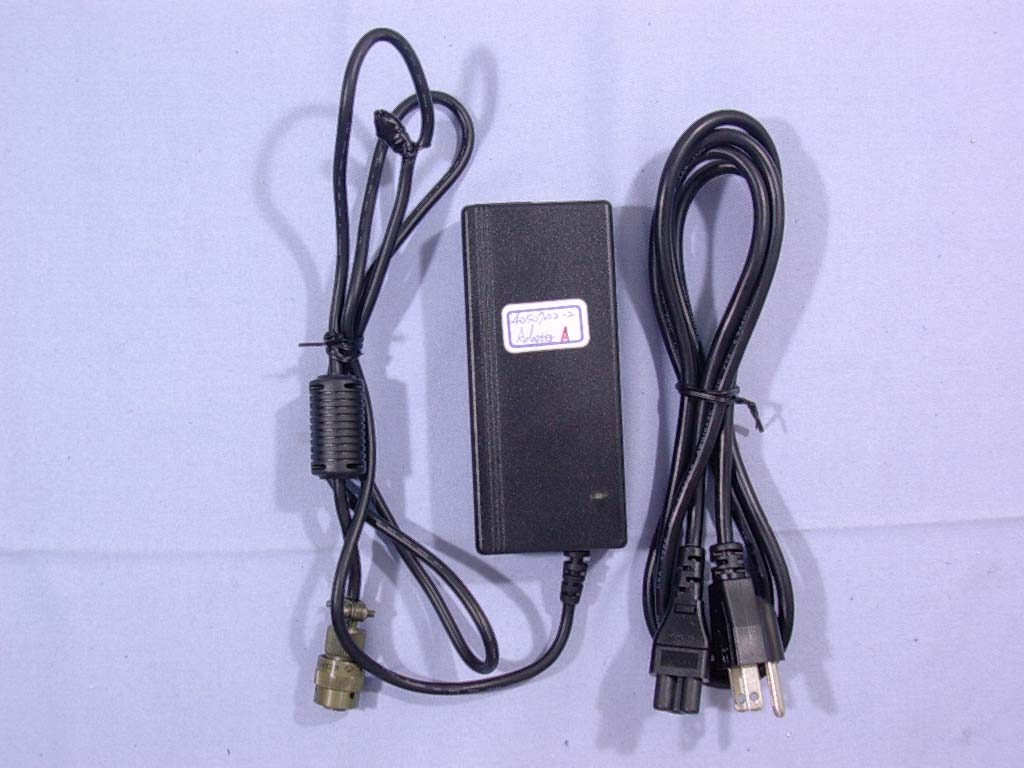

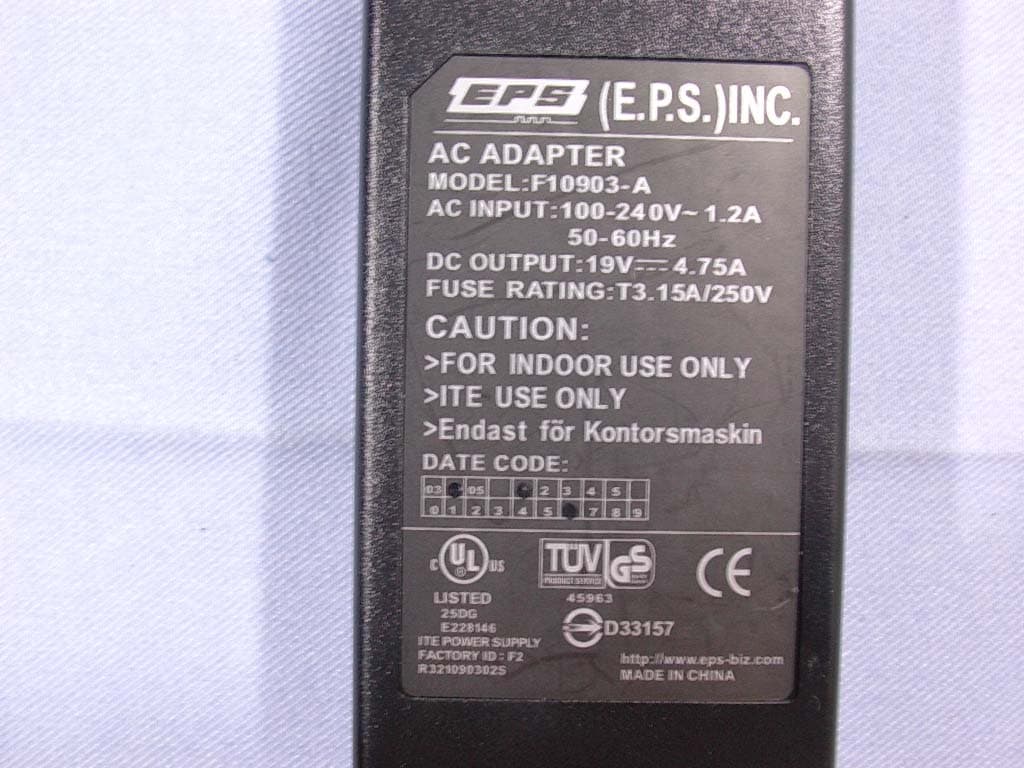

Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 1 of 15 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 2 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 3

Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 4 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 5 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 6 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 7 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 8 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 9 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 10 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 11 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 12 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 13 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 14 Compliance Certification Services Inc. Report No: 40507002 Date of Issue: July 6, 2004 Page 15

Compliance Certification Services Inc. Report No: 40507002-SF FCC ID: IR5DR786EX Date of Issue: June 4, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 24 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For CReTE SYSTEMS INC. Tablet Computer Model: DR786 Trade Name: DR786 Prepared for CReTE SYSTEMS INC. 7F, No. 250, Sec. 3, Pei Shen Rd., Shen Keng Hsiang, Taipei County, Taiwan. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40507002-SF Date of Issue: June 4, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM ............................................................. 6 3.2 SYSTEM COMPONENTS..................................................................................... 7 4. EVALUATION PROCEDURES .................................................................................. 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 13 6. EXPOSURE LIMIT ..................................................................................................... 14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS............ 14 8. MEASUREMENT RESULTS ..................................................................................... 15 8.1 SYSTEM PERFORMANCE CHECK.................................................................. 15 8.2 TEST LIQUID CONFIRMATION ...................................................................... 16 8.3 EUT TUNE-UP PROCEDURES.......................................................................... 17 8.4 SAR MEASUREMENTS RESULTS................................................................... 18 9. EUT PHOTOS .............................................................................................................. 20 10. EQUIPMENT LIST & CALIBRATION STATUS................................................... 22 11. FACILITIES ................................................................................................................. 23 12. REFERENCES ............................................................................................................. 23 13. ATTACHMENTS......................................................................................................... 24 Compliance Certification Services Inc. Report No: 40507002-SF Date of Issue: June 4, 2004 Page 4 1. EUT DESCRIPTION Applicant: CReTE SYSTEMS INC. 7F, No. 250, Sec. 3, Pei Shen Rd., Shen Keng Hsiang, Taipei County, Taiwan. Model Number / Trade Name: DR786 / CReTE Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 19.10dBm Max. SAR (1g): 0.817 W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Patch Ant. Compliance Certification Services Inc. Report No: 40507002-SF Date of Issue: June 4, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe ES3DV2-SN: 3023 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure with accuracy of better than ±10%. The spherical isotropy was evaluated with the procedure and found to be better than ±0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEEE P1528 and EN50361. Compliance Certification Services Inc. Report No: 40507002-SF Date of…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 62 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CReTE SYSTEMS INC. Tablet Computer Model: DR786 Trade Name: DR786 Prepared for CReTE SYSTEMS INC. 7F, No. 250, Sec. 3, Pei Shen Rd., Shen Keng Hsiang, Taipei County, Taiwan. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS ................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................32 7.6 SPURIOUS EMISSIONS ................................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................58 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................61 Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Page 4 2. EUT DESCRIPTION Product Tablet Computer Trade Name DR786 Model Number DR786 Model Discrepancy N/A Power Supply AC Adapter model number: F10903-A AC I/P: 100-240V ~ 1.2A, 50-60Hz DC O/P: 19V 4.75A Frequency Range 2412 ~ 2462 MHz Transmit Power 802.11b mode: 19.06 dBm 802.11g mode: 13.78 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Transmit Data Rate 802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps 802.11g: 54Mbps with fall back rates of 48/36/24/18/12/9/6 Mbps (OFDM) Number of Channels 11 Channels Antenna Specification Patch Antenna Gain: 3.11 dBi (Max) Note: This submittal(s) (test report) is intended for FCC ID: IR5DR786EX filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX freque…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Page 61 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40507002-RP FCC ID: IR5DR786EX Date of Issue: July 6, 2004 Page 62 Conducted Emission Set Up Photos
