IR5RK10Notebook Computer

NOTEBOOK COMPUTER RK10 User’s Guide (PRELIMINARY DRAFT) I Notice The company reserves the right to revise this publication or to change its contents without any notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication. Any of the software described in this manual is sold or licensed "as is". Should the programs prove defective following purchase, the buyer (and not the manufacturer, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any software defects. Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. Copyright© 2013, MilDef Crete Inc. All rights reserved. Trademarks All other brand and product names are trademarks or registered trademarks of their respective companies. II Revision History: Revision Date Changes Author III FCC (Federal Communications Commission) Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and radiates radio frequency energy. If not being installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Re-orient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: z This device may not cause harmful interference. z This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). IV Regulatory Information/ Disclaimers Installation and use of this computer must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. V CE Products with the CE Marking comply with both the (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EN55022 CISPR 22 Radio Frequency Interference EN55024 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN61000-3-2, EN61000-3-3, Generic Immunity Standard LVD EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011 IEC 60950-1: 2005 (2nd Edition) R&TTE (CE) Manual Regulatory Requirement WLAN - IEEE 802.11a/b/g/n 802.11a/b/g/n Restrictions: European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835 GHz. VI CE Declaration of Conformity It is confirmed to comply with the requirements set out in the Council Directive on the approximation of the laws of the member states relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive (2006/95/EC), the Amendment Directive (93/68/EEC), and the procedures given in European Council Directive (99/5/EC and 2004/108/EC). The equipment was passed, and the equipment test was performed according to the following European standards: EN 300 328 V1.7.1 (2006) EN 301 893 V1.6.1 (2011) EN 301 489-1 V1.9.2 (2011) / EN 301 489 – 3 V1.4.1 (2002) / EN 301 489-17 V2.2.1 (2012) EN 62311: 2008 EN 300 440-1: V 1.6.1 (2010) / EN 300 440-2: V 1.4.1 (2010) AC Adapter (TÜV includes LVD EN60950) VII Power Conservation This computer consumes much less power than conventional computers. However, power consumption may be reduced by configuring the Power Management Setup properly. It is recommended the power saving functions to be enabled even when not running on battery power. Power Management will not degrade performance while saving power. Power Safety There are specific power requirements for this computer: z Only use an approved power adapter for this computer. z There is a 3-prong grounded plug of the power adapter. The thir…

Text truncated - open the document above for the full version.

MilDef Crete Inc. 7F, No. 250, Sec 3, Pei Shen Rd Shen Keng District, New Taipei City Taiwan Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: December 20, 2013 Request for Confidentiality Company name: MilDef Crete Inc. FCC ID: IR5RK10 FCC Part 15 Certification To whom it may concern: In accordance with 0.459 of CFR 47, MilDef Crete Inc. hereby requests confidentiality of all Block Diagrams, Schematics, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which MilDef Crete Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, MilDef Crete Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name: Wi llie Liang Title: Manager Company: MilDef Crete Inc.

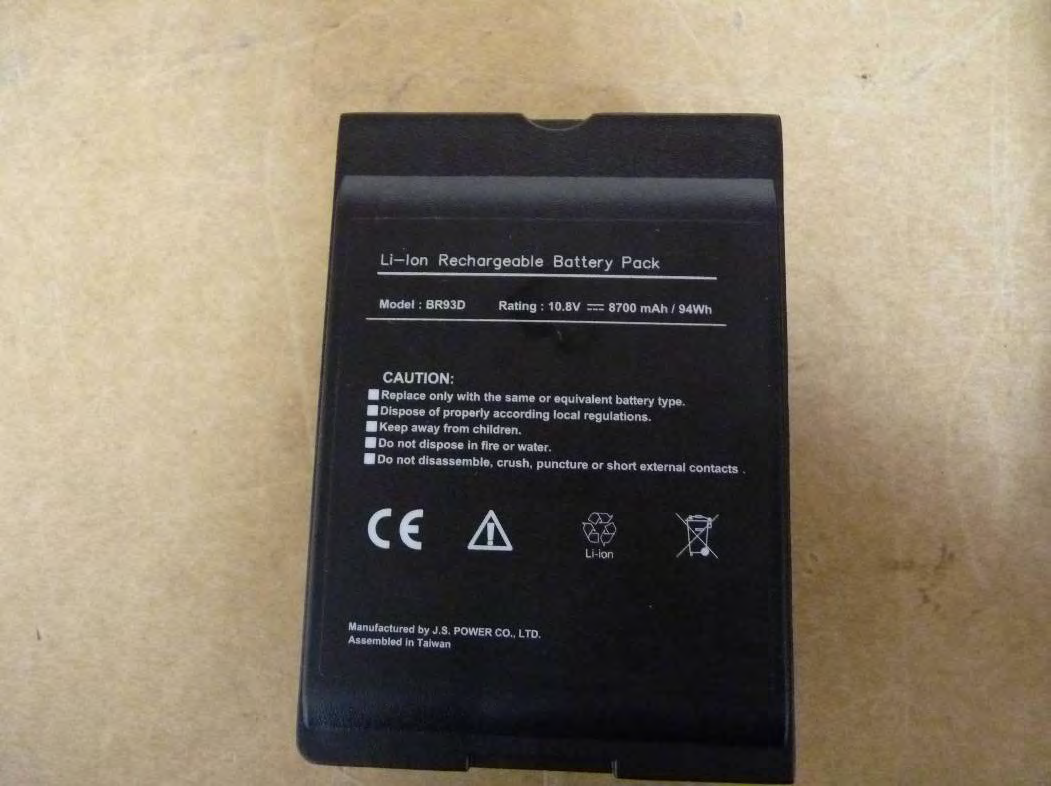

Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 83 External Photos Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 83

Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 83 Internal Photos Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 32 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 33 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 34 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 35 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 36 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 37 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 38 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 39 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 40 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 41 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 42 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 43 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 44 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 45 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 46 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 47 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 48 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 49 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 50 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 51 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 52 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 53 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 54 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 55 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 56 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 57 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 58 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 59 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 60 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 61 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 62 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 63 of 83 Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 64 of 83 Registration number: W6M21309-13…

Text truncated - open the document above for the full version.

MilDef Crete Inc. 7F, No. 250, Sec 3, Pei Shen Rd Shen Keng District, New Taipei City Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Notebook Computer Model No: RK10 The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Notebook Computer will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M21309-13502-C-1 and the accompanying calculations. Company: MilDef Crete Inc. Address: 7F, No. 250, Sec 3, Pei Shen Rd Shen Keng District, New Taipei City Taiwan Date: 20. December 2013 Signature Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 41 of 156 3.2 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain 5.8GHz Item Unit Value Remarks P mW 291.20 Peak value D dB -- -- AG dBi -1.26 -- G -- 0.75 Calculated Value R cm 20 Assumed value S mW/cm 2 0.0434 Calculated value 2.4GHz Item Unit Value Remarks P mW 302.08 Peak value D dB -- -- AG dBi 4.23 -- G -- 2.65 Calculated Value R cm 20 Assumed value S mW/cm 2 0.1593 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0 MildDef Crete Inc. FCC ID: IR5RK10

of Applicant: MilDef Crete Inc. Address: 7F, NO.250, Sec.3, Pei Shen Rd. Shen Keng District, New Taipei City Taiwan R.O.C. Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21309-13502-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT For Notebook Computer Model No.: RK10 FCC ID: IR5RK10 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 156 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 TESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................8 2 TECHNICAL TEST .........................................................................................................................9 2.1 S UMMARY OF TEST RESULTS........................................................................................................9 2.2 TEST ENVIRONMENT....................................................................................................................9 2.3 TEST EQUIPMENT LIST...............................................................................................................10 2.4 G ENERAL TEST PROCEDURE......................................................................................................12 3 TEST RESULTS (ENCLOSURE) ................................................................................................14 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................15 3.2 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................41 3.3 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................42 3.4 S PURIOUS EMISSIONS (TX) .........................................................................................................43 3.5 C ARRIER FREQUENCY SEPARATION...........................................................................................68 3.6 N UMBER OF HOPPING FREQUENCIES..........................................................................................71 3.6.1 Pseudorandom Frequency Hopping Sequence .................................................................73 3.6.2 Coordination of hopping sequences to other transmitters................................................73 3.6.3 System Receiver Hopping Capability ...............................................................................73 3.7 T IME OF OCCUPANCY (DWELL TIME) ........................................................................................74 3.8 20 DB BANDWIDTH.....................................................................................................................80 3.8.1 System Receiver Input Bandwidth.....................................................................................83 3.9 MINIMUM 6 DB BANDWIDTH.....................................................................................................84 3.10 R ADIATED EMISSION ON THE BAND EDGE................................................................................107 3.11 P EAK POWER SPECTRAL DENSITY...........................................................................................127 3.12 R ADIATED EMISSION FROM DIGITAL PART..............................................................................150 3.13 POWER LINE CONDUCTED EMISSION.......................................................................................151 A PPENDIX............................................................................................................................................156 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 156 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test r…

Text truncated - open the document above for the full version.

Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 149 of 156 mW dBm ANT A Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz(5.8GHz) 0.026 0.027 0.026 -15.80 -15.65 -15.83 802.11n 40MHz 0.017 ./. 0.019 -17.59 ./. -17.30 802.11n 20MHz(2.4GHz) 0.070 0.061 0.065 -11.55 -12.13 -11.89 802.11n 40MHz 0.036 0.028 0.030 -14.43 -15.50 -15.26 mW dBm ANT B Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz(5.8GHz) 0.039 0.046 0.038 -14.08 -13.38 -14.16 802.11n 40MHz 0.029 ./. 0.027 -15.44 ./. -15.64 802.11n 20MHz(2.4GHz) 0.106 0.088 0.065 -9.73 -10.55 -11.89 802.11n 40MHz 0.041 0.036 0.045 -13.83 -14.46 -13.50 mW dBm Combine Ch Low Ch Mid Ch High Ch Low Ch Mid Ch High 802.11n 20MHz(5.8GHz) 0.065 0.073 0.064 -11.87 -11.37 -11.94 802.11n 40MHz 0.046 ./. 0.046 -13.37 ./. -13.37 802.11n 20MHz(2.4GHz) 0.176 0.149 0.130 -7.55 -8.27 -8.86 802.11n 40MHz 0.077 0.064 0.075 -11.14 -11.94 -11.25 Limits: Frequency Range MHz dBm 902-928 8 2400-2483.5 8 5725-5850 8 Test equipment used: ETSTW-RE 055, ETSTW-RE 050 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 150 of 156 3.12 Radiated Emission from Digital Part FCC Rule: 15.109 Except for Class A digital devices, the field strength of radiated emissions from unintentional radiators at a distance of 3 meters shall not exceed the following values: Frequency of Emission (MHz) Field Strength (microvolts/meter) Field Strength (dBmicrovolts/meter) 30 – 88 100 40.0 88 – 216 150 43.5 216 – 960 200 46.0 Above 960 500 54.0 Test equipment used: ETSTW-RE 030, ETSTW-RE 055, ETSTW-RE 064, ETSTW-RE 111 Explanation: Please refer to separated test report no.: W6M21309-13502-P-15B. Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 151 of 156 3.13 Power Line Conducted Emission For an intentional radiator which is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the limits in the table bellows with this provision shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminals. This measurement was transact first with instrumentation using an average and peak detector and a 10 kHz bandwidth. If the peak detector achieves a calculated level, the measurement is repeated by an instrumentation using a quasi-peak detector. DVI Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 152 of 156 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 153 of 156 VGA Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 154 of 156 Note 1. The formula of measured value as: Test Result = Reading + Correction Factor 2. The Correction Factor = Cable Loss + LISN Insertion Loss + Pulse Limit Loss 3. Detector function in the form : PK = Peak, QP = Quasi Peak, AV = Average 4. All not in the table noted test results are more than 20 dB below the relevant limits. 5. Measurement uncertainty = ±1.60 dB; Reported uncertainties represent expanded uncertainties expressed at approximately the 95% confidence level using a coverage factor of k = 2. 6. Up Line: QP Limit Line, Down Line: Ave Limit Line. Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 155 of 156 Limits: Frequency of Emission (MHz) Conducted Limit (dBuV) Quasi Peak Average 0.15-0.5 66 to 56 56 to 46 0.5-5 56 46 5-30 60 50 Test equipment used: ETSTW-CE 001, ETSTW-CE 016, ETSTW-CE 006, ETSTW-RE 064, ETSTW-RE 045 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Page 156 of 156 Appendix Measurement diagrams Spurious Emissions radiated Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 1 of 221 Spurious Emissions radiated_Transmitter ANT A WLAN 802.11a 5745MHz Antenna Polarization H Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 221 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Up Line: Peak Limit Line Down Line: Ave Limit Line Note: 1. The attached measurement plots are preliminarily pre-scanned with peak detector for determining the final checking frequencies and are for reference only. 2. The some frequencies may exceed the limit line without the specified detectors, but that cannot present the results are failed to the specification of test standard. 3. For corrected test results are listed in the relevant table of radiated test data of this test report. Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 221 Registration number: W6M21309-13502-C-1 FCC ID: IR5RK10 Up Line: Pea…

Text truncated - open the document above for the full version.

Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 73 of 83 Set Up Photo of Radiated Emission EMI Adaptor DVI Below 1GHz Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 74 of 83 Above 1GHz Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 75 of 83 VGA Below 1GHz Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 76 of 83 Above 1GHz Registration number: W6M21309-13502-FCC FCC ID: IR5RK10 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 77 of 83 Battery DVI Below 1GHz Registration number: W6M21309-1350…

Text truncated - open the document above for the full version.
